Siemens B32000S01 - Molded Case Circuit Breaker 20A 3P 240V
Siemens B32000S01 - Molded Case Circuit Breaker 20A 3P 240V

Siemens B32000S01 - Molded Case Circuit Breaker 20A 3P 240V

Siemens
Price
Save $1,013.04
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

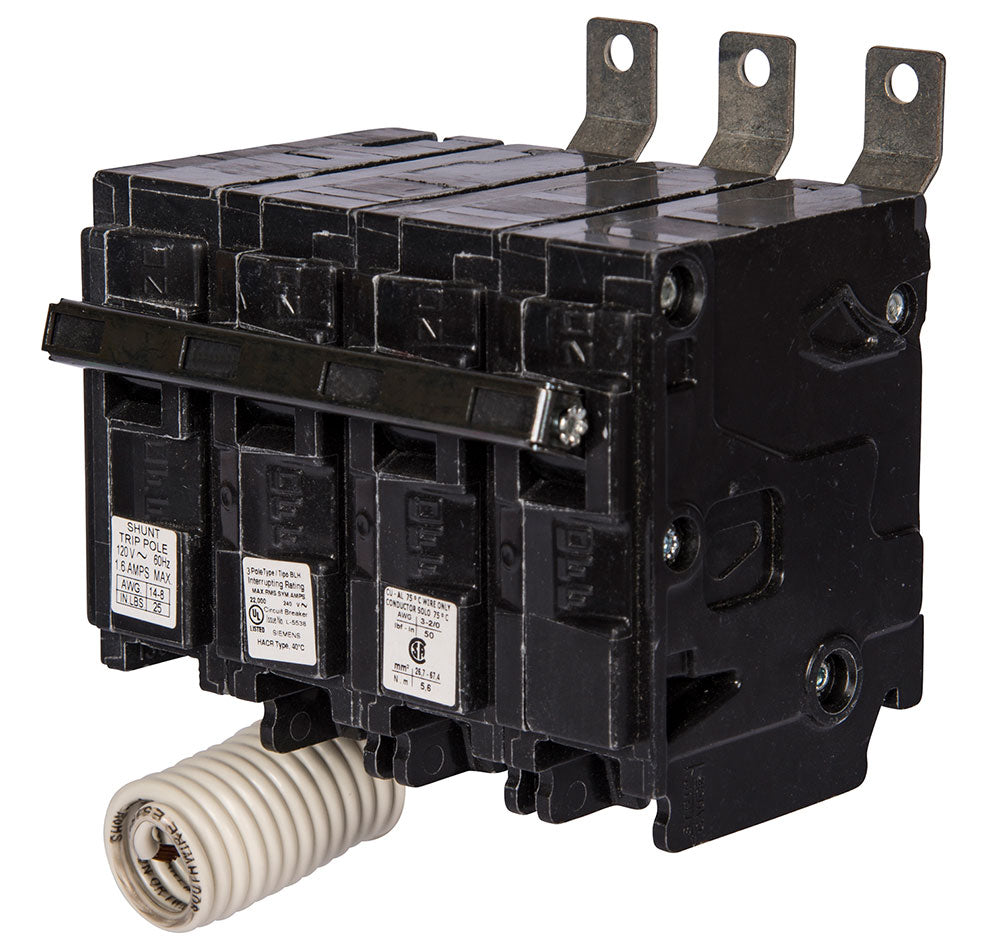

Siemens B32000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 20A current rating and a 240V voltage rating, housed within a compact, bolt-on frame measuring 2.563 x 4.00 x 3.122 inches and weighing 1.257 lb. This shunt trip breaker is constructed with thermal-magnetic protection for both long-time and instantaneous tripping functions and complies with key industry standards including UL, CSA, HACR, and NOM. It is typically applied in industrial and commercial settings, specifically within Siemens P1 panelboards, for safeguarding motor and feeder circuits.

Key Features & Specifications
  • Type: Molded Case, Shunt Trip, Thermal Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 20A
  • Frame Size: 125A/BL
  • Poles: 3
  • Phase: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Wire Size Range: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 6 AWG
  • Dimensions: 2.563" x 4.00" x 3.122"
  • Weight: 1.257 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Panel Compatibility: Siemens P1 Panelboards
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643268500
  • GTIN: 00783643268500
