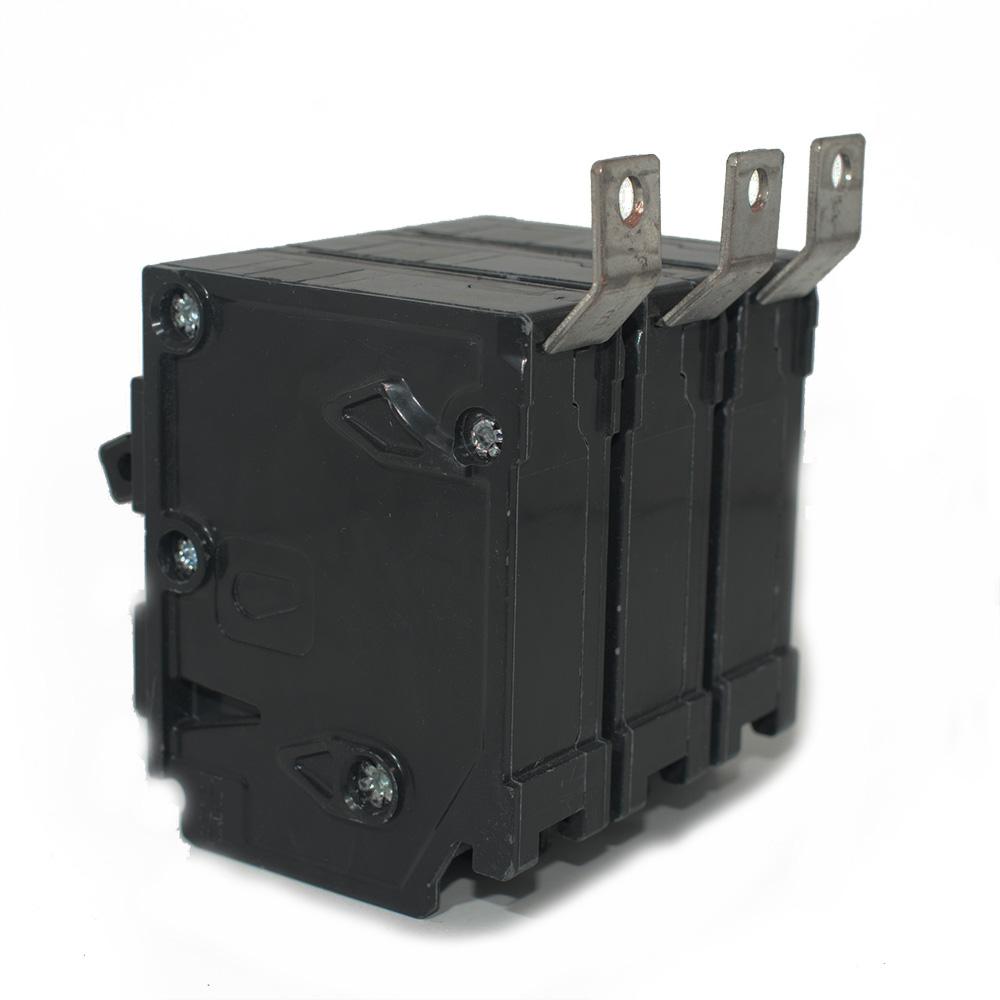

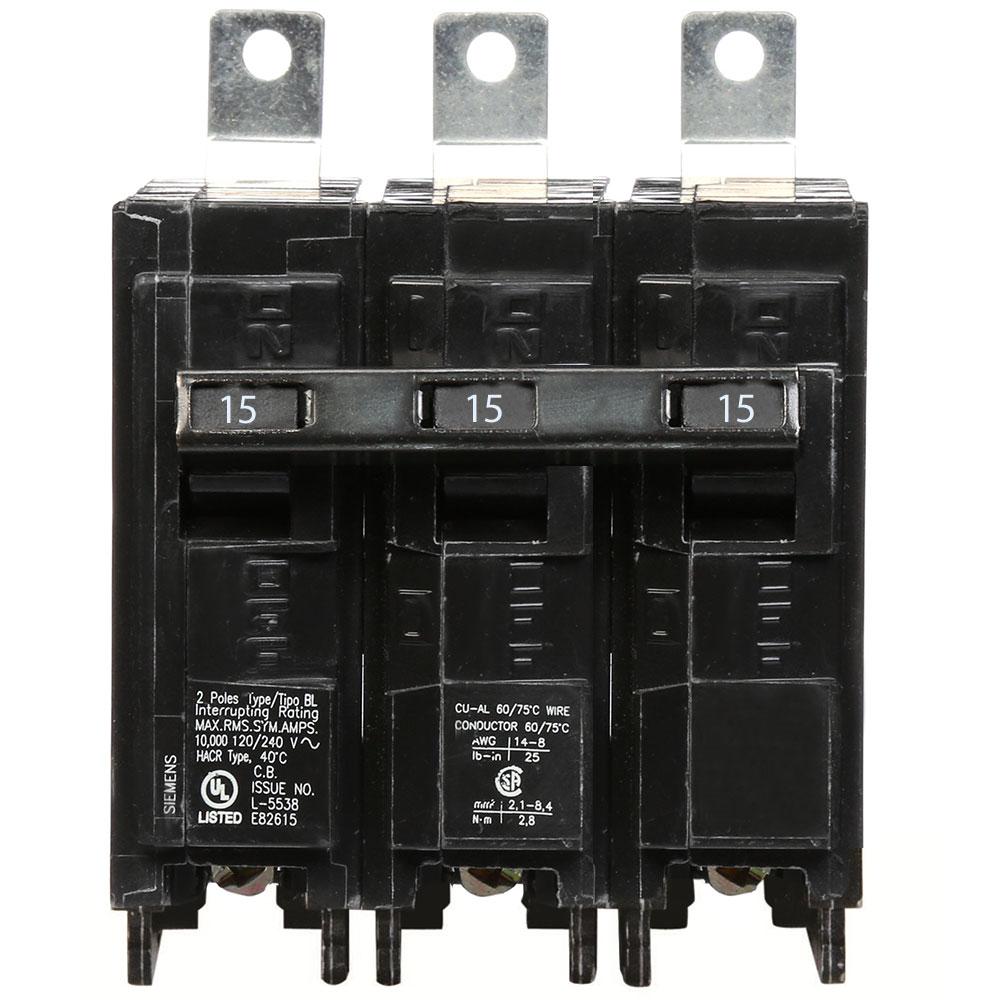

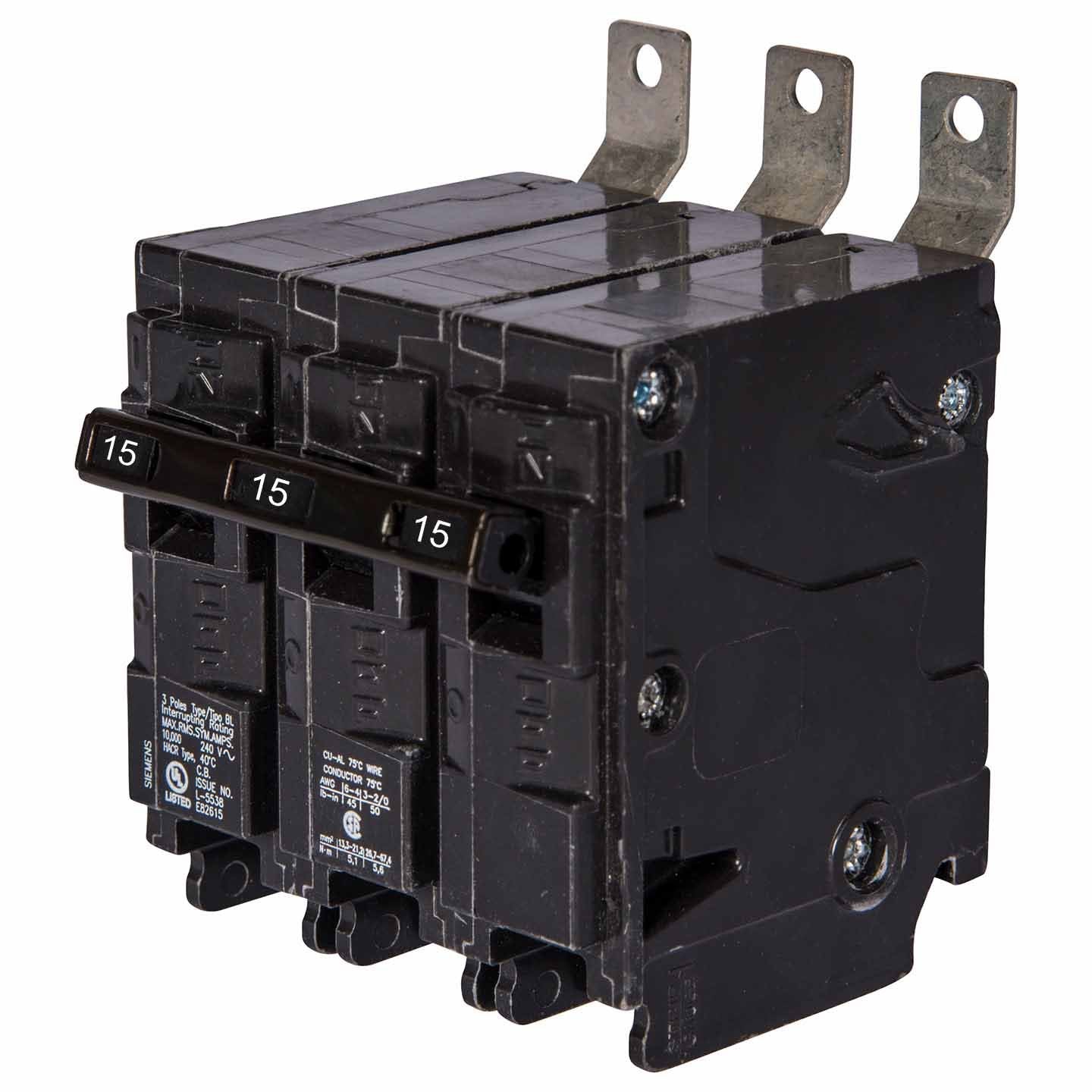

Siemens B315 - Molded Case Circuit Breaker 15A 3P (240V, 10kA)
Siemens B315 - Molded Case Circuit Breaker 15A 3P (240V, 10kA)
Siemens B315 - Molded Case Circuit Breaker 15A 3P (240V, 10kA)
Siemens B315 - Molded Case Circuit Breaker 15A 3P (240V, 10kA)
Siemens B315 - Molded Case Circuit Breaker 15A 3P (240V, 10kA)
Siemens B315 - Molded Case Circuit Breaker 15A 3P (240V, 10kA)

Siemens B315 - Molded Case Circuit Breaker 15A 3P (240V, 10kA)

Siemens
Price
Save $644.41
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B315 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 15A current rating and a 240V voltage rating, housed within a compact, bolt-on configuration measuring 12.598 x 4.331 x 3.543 inches and weighing 0.948 lb. This thermal-magnetic breaker is constructed for durability with a 125A/BL frame size and is certified to UL, CSA, HACR, and NOM standards for safety and interoperability. Its 10kA interrupting rating at 240V and lug terminal connections make it suitable for installation in Siemens P1 panelboards and similar industrial and commercial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard
  • Voltage Rating: 240V AC
  • Current Rating: 15A
  • Dimensions: 12.598 x 4.331 x 3.543 inch
  • Weight: 0.948 lb
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Industrial and Commercial Electrical Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Phase: 3
  • Poles: 3
  • AIC rating: 10kA@240V
  • Connection: Bolt-on
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 125A/BL
  • Breaker Type: Standard
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Terminal Connection: Lug
  • Panel Type: Siemens P1 Panelboards
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263680
  • GTIN: 00783643263680
