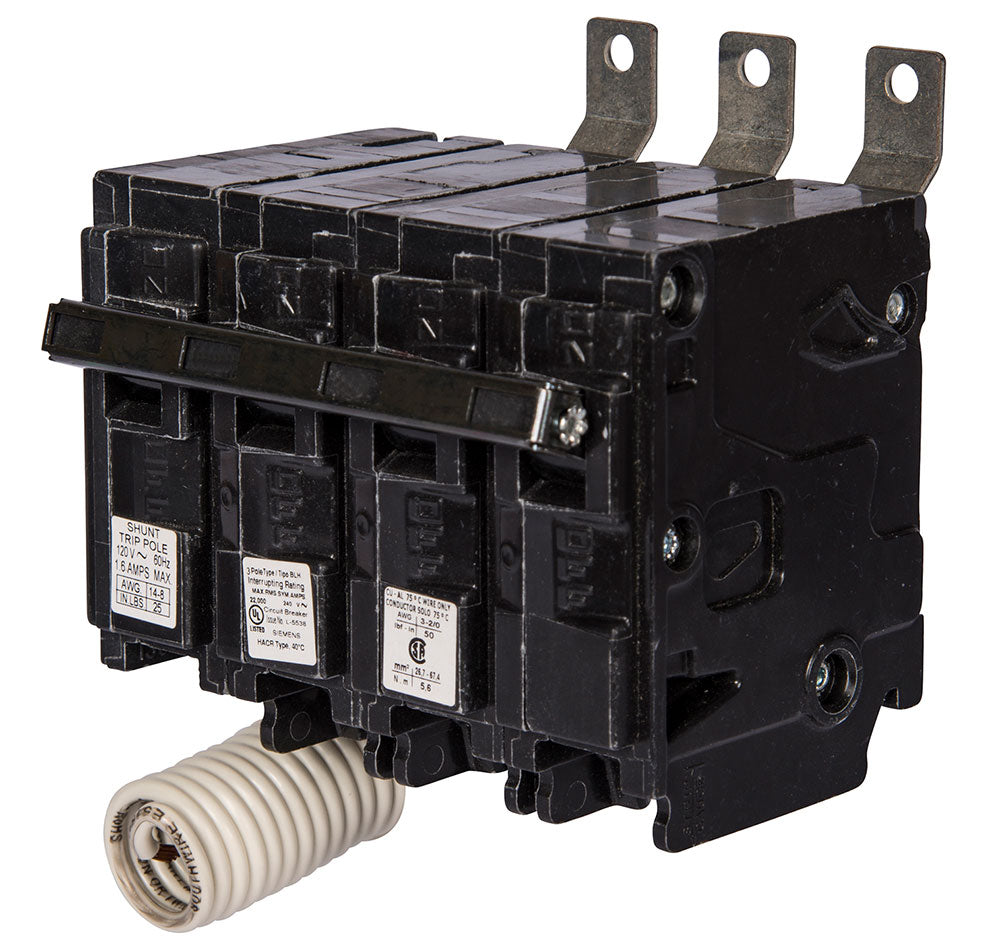

Siemens B310000S01 - Molded Case Circuit Breaker 100A 3P (240V)
Siemens B310000S01 - Molded Case Circuit Breaker 100A 3P (240V)

Siemens B310000S01 - Molded Case Circuit Breaker 100A 3P (240V)

Siemens
Price
Save $1,129.34
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B310000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 100A current rating and a 240V AC voltage rating, housed within a compact, bolt-on frame measuring 2.563 x 4.00 x 3.122 inches and weighing 1.257 lb. This thermal-magnetic shunt trip breaker is CSA, HACR, NOM, and UL listed, ensuring compliance with key North American safety standards for use in Siemens P1 panelboards and similar industrial and commercial distribution equipment.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Thermal Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Frame Size: 125A/BL
  • Poles: 3
  • Connection: Bolt-on with Lug Terminal
  • AIC Rating: 10kA @ 240V
  • Breaker Type: Shunt Trip
  • Phase: 3
  • MCM Size / Wire Range: Minimum 2 AWG (Al) / 4 AWG (Cu), Maximum 1/0 AWG
  • Dimensions: 2.563" x 4.00" x 3.122"
  • Weight: 1.257 lb
  • Standards & Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Panel Type: Compatible with Siemens P1 Panelboards
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643268623
  • GTIN: 00783643268623
