Siemens B29000S01 - Molded Case Circuit Breaker 90A 2-Pole
Siemens B29000S01 - Molded Case Circuit Breaker 90A 2-Pole

Siemens B29000S01 - Molded Case Circuit Breaker 90A 2-Pole

Siemens
Price
Save $797.81
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price

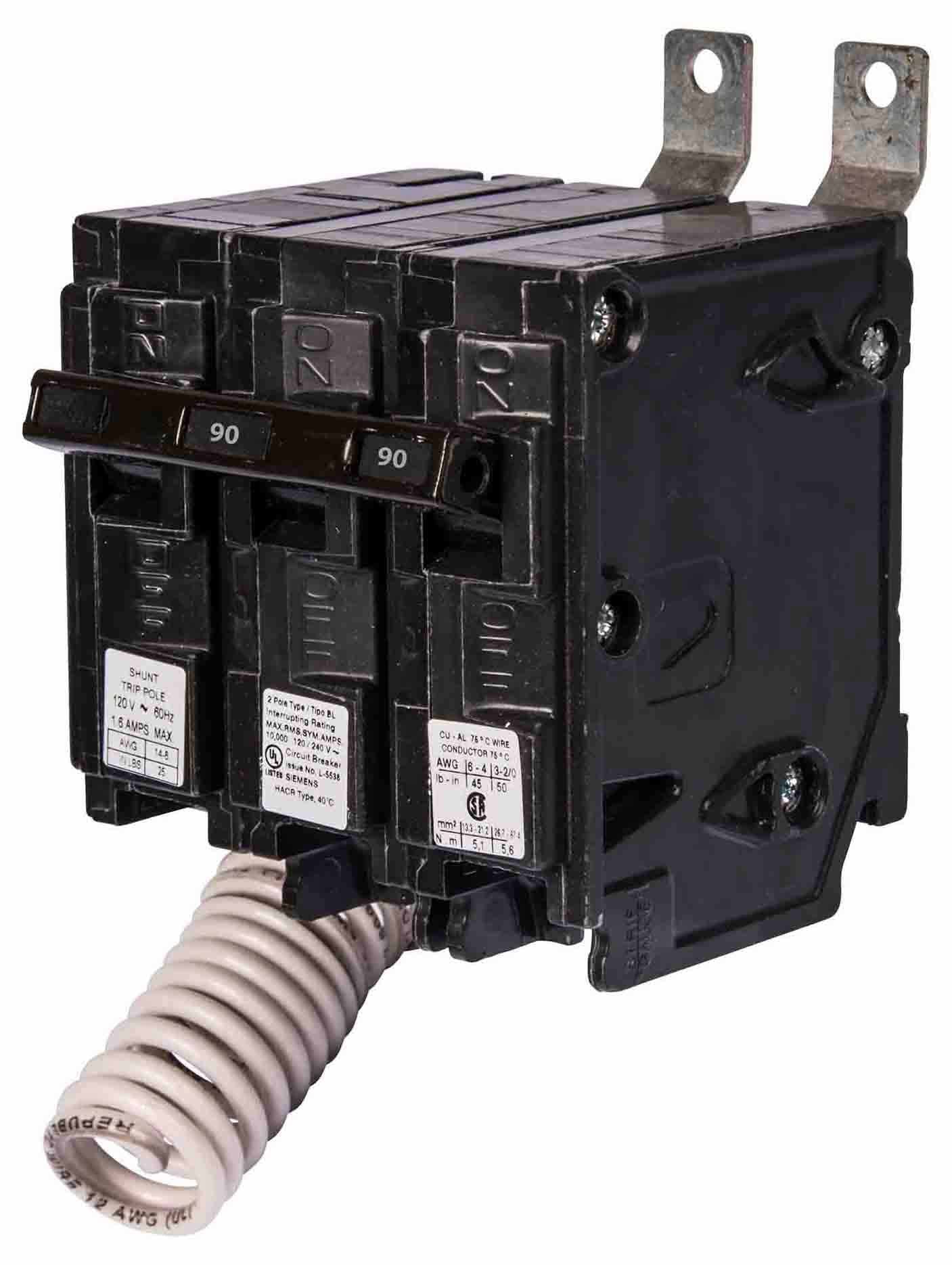

Siemens B29000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 90A current rating and a 120/240V voltage rating, housed within a compact 125A/BL frame with dimensions of 5.906 x 3.937 x 3.937 inches and a weight of 1.213 lb. This thermal magnetic, shunt trip breaker is constructed with bolt-on lugs and is CSA, HACR, NOM, and UL listed for compliance, offering a 10kA interrupting capacity at 240V. It is engineered for integration into Siemens P1 panelboards, protecting circuits with wire sizes from a minimum of 12 AWG (Al) or 14 AWG (Cu) up to a maximum of 6 AWG.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic Protection with Shunt Trip, BL Series
  • Voltage Rating: 120/240V AC
  • Current Rating: 90A
  • Frame Size: 125A/BL
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Protection Functions: LI (Long-Time and Instantaneous)
  • Wire Size Compatibility: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 6 AWG; Wire Size for Lugs: 4 AWG (Cu), 2 AWG (Al) Min, 1/0 AWG Max
  • Panel Type: Siemens P1 Panelboards
  • Standards & Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Dimensions: 5.906 x 3.937 x 3.937 inch (150mm x 100mm x 100mm)
  • Weight: 1.213 lb (0.55 kg)
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643268456
  • GTIN: 00783643268456
