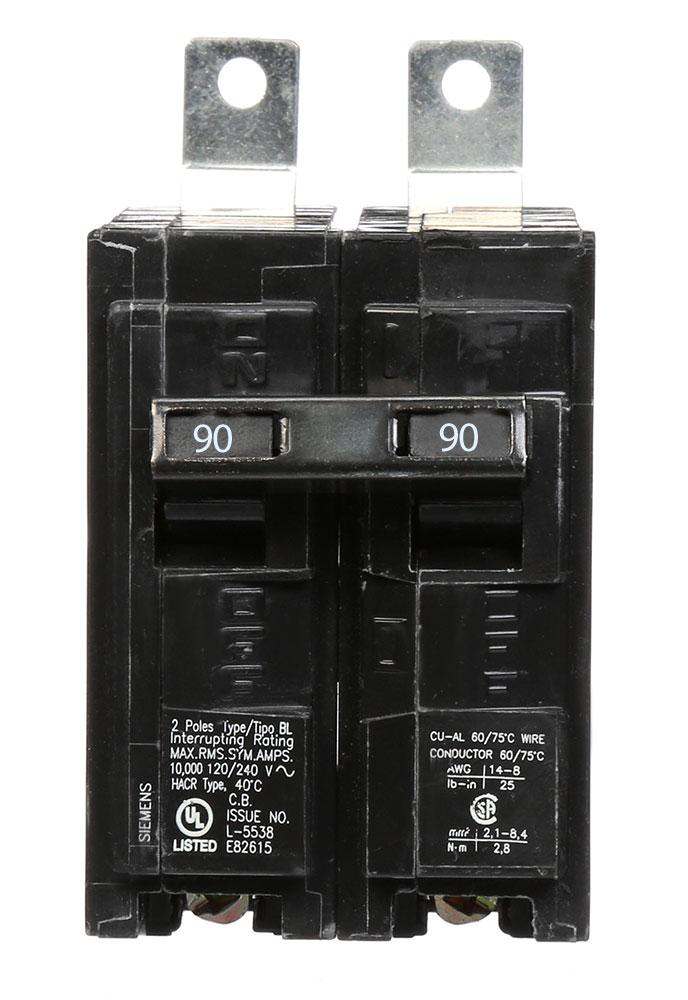

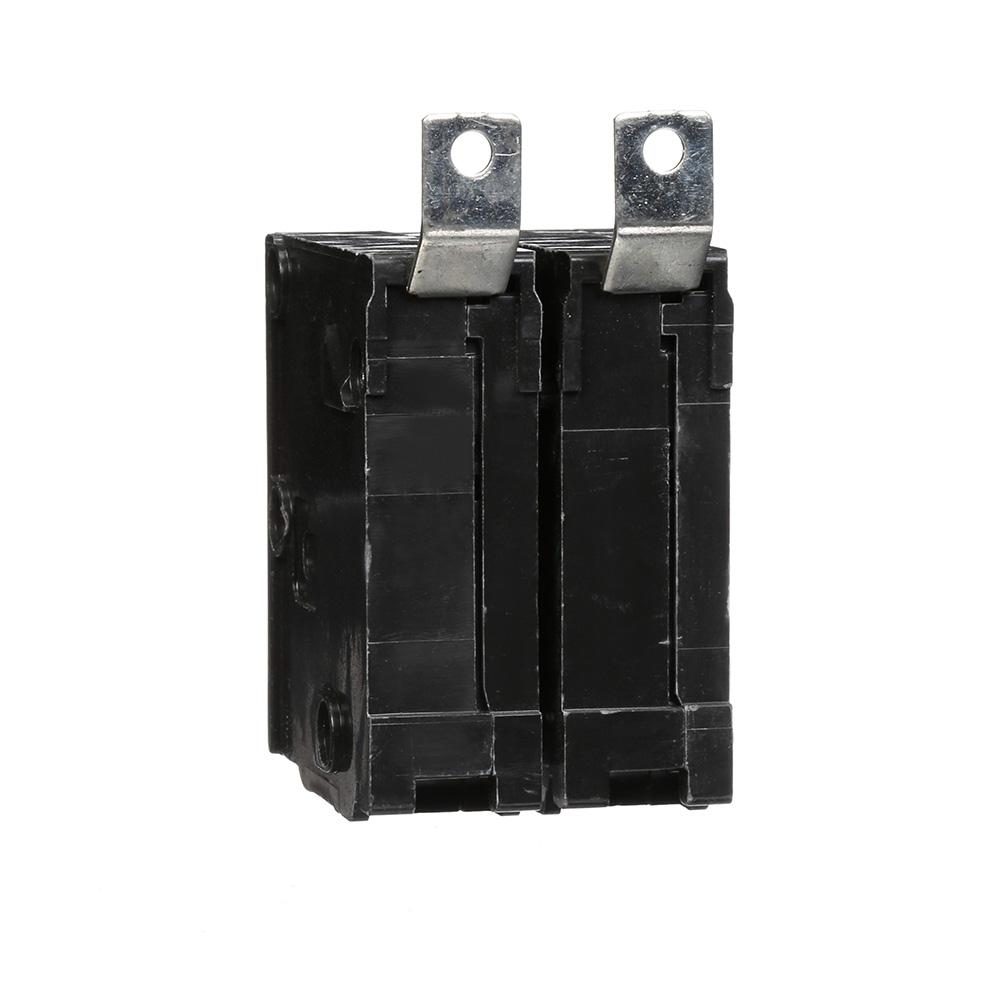

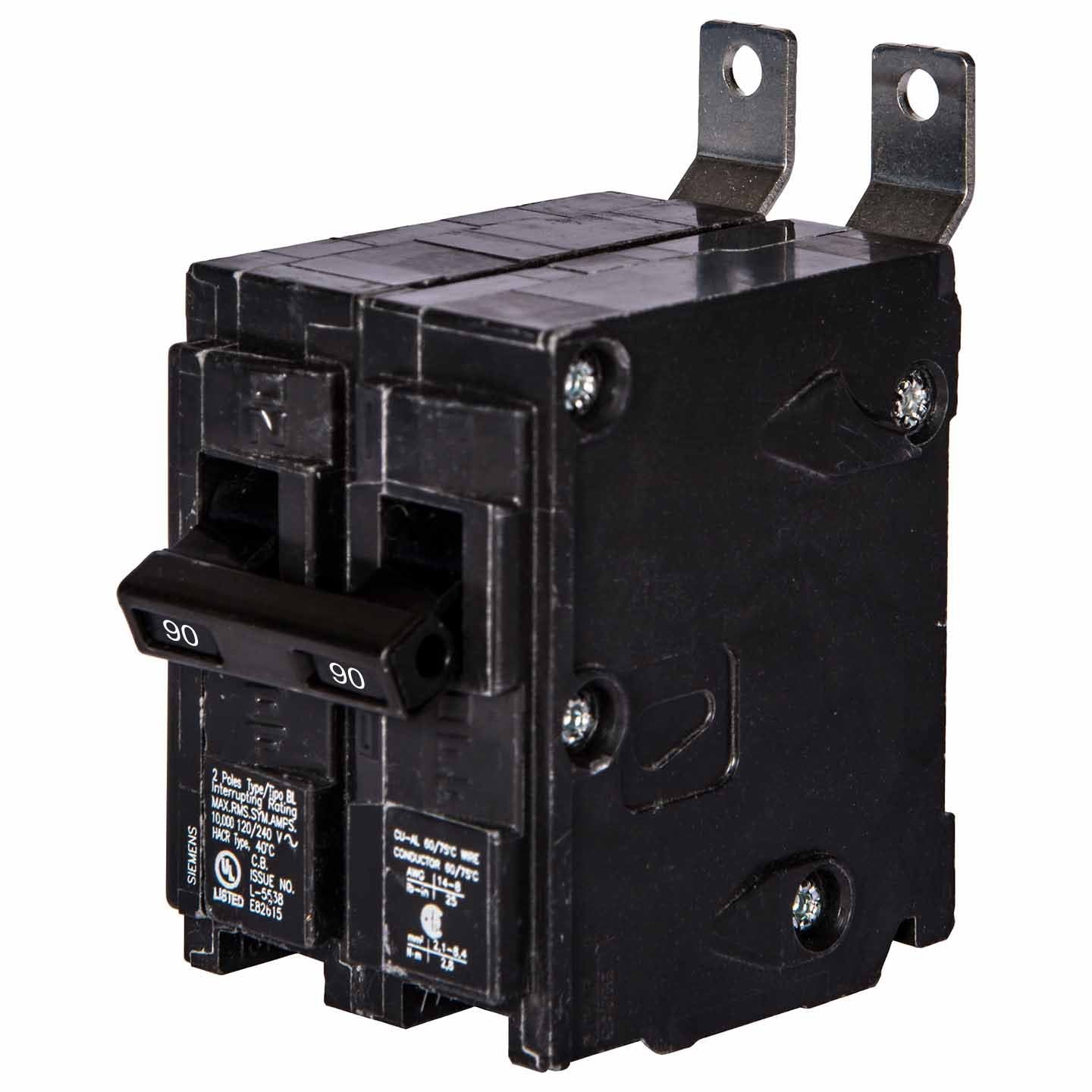

Siemens B290 - Molded Case Circuit Breaker 90A 2-Pole

Price
Regular price $53.75
Regular price $575.00 Sale price $53.75
Save $521.25
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens B290 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 90A current rating and a 120/240V voltage rating, housed within a compact, bolt-on design measuring 2.563" x 2.00" x 3.122" and weighing 0.639 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, is certified to UL, CSA, HACR, and NOM standards, and is rated for operation from -25°C to 70°C. Its 10kA interrupting rating at 240V and compatibility with Siemens P1 panelboards make it suitable for a range of commercial and light industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-on Connection
  • Voltage Rating: 120/240V AC
  • Current Rating: 90A
  • Frame Size: 125A/BL
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Connection: Bolt-on, Lug Terminal
  • Panel Type: Siemens P1 Panelboards
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 2.563" H x 2.00" W x 3.122" D
  • Weight: 0.639 lb
  • MCM Size / Wire Range: Minimum 12 AWG (Al) / 14 AWG (Cu), Maximum 10 AWG
  • Breaker Type: Standard
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263635
  • GTIN: 00783643263635
