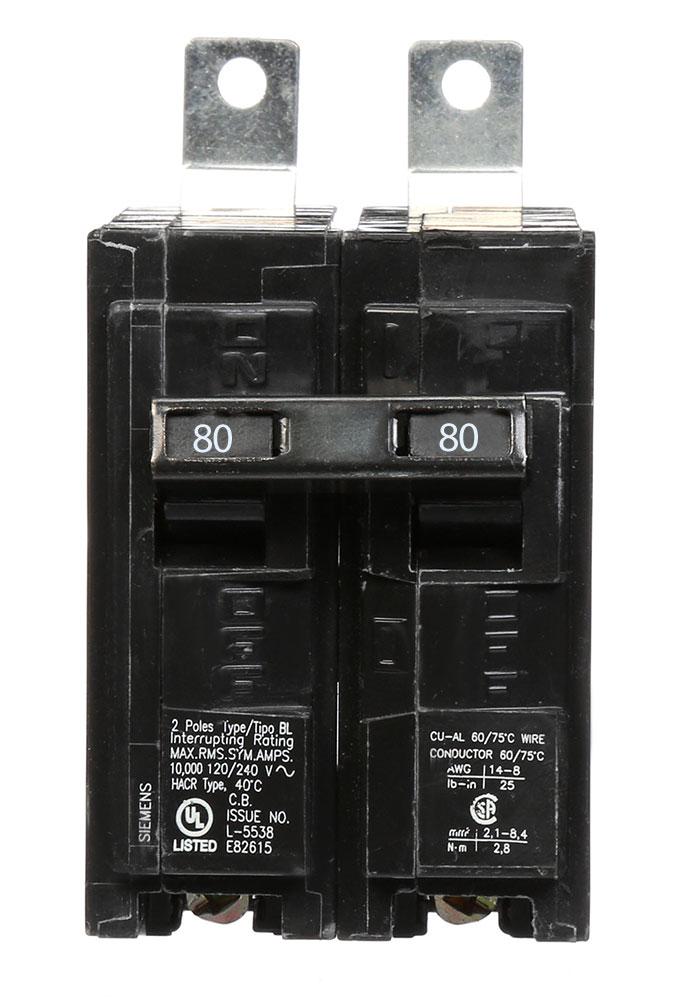

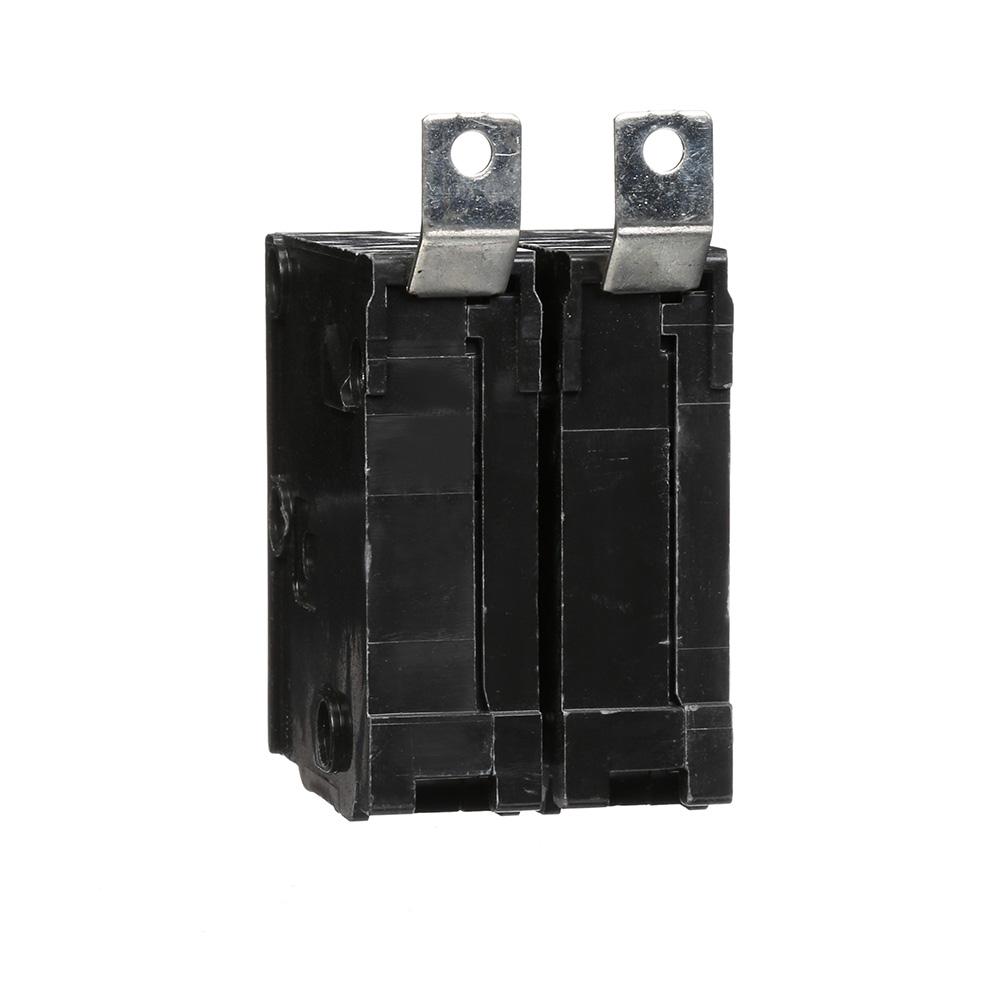

Siemens B280 - Molded Case Circuit Breaker 80A 2-Pole
Siemens B280 - Molded Case Circuit Breaker 80A 2-Pole
Siemens B280 - Molded Case Circuit Breaker 80A 2-Pole
Siemens B280 - Molded Case Circuit Breaker 80A 2-Pole
Siemens B280 - Molded Case Circuit Breaker 80A 2-Pole
Siemens B280 - Molded Case Circuit Breaker 80A 2-Pole
Siemens B280 - Molded Case Circuit Breaker 80A 2-Pole
Siemens B280 - Molded Case Circuit Breaker 80A 2-Pole

Siemens B280 - Molded Case Circuit Breaker 80A 2-Pole

Siemens
Price
Save $521.53
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

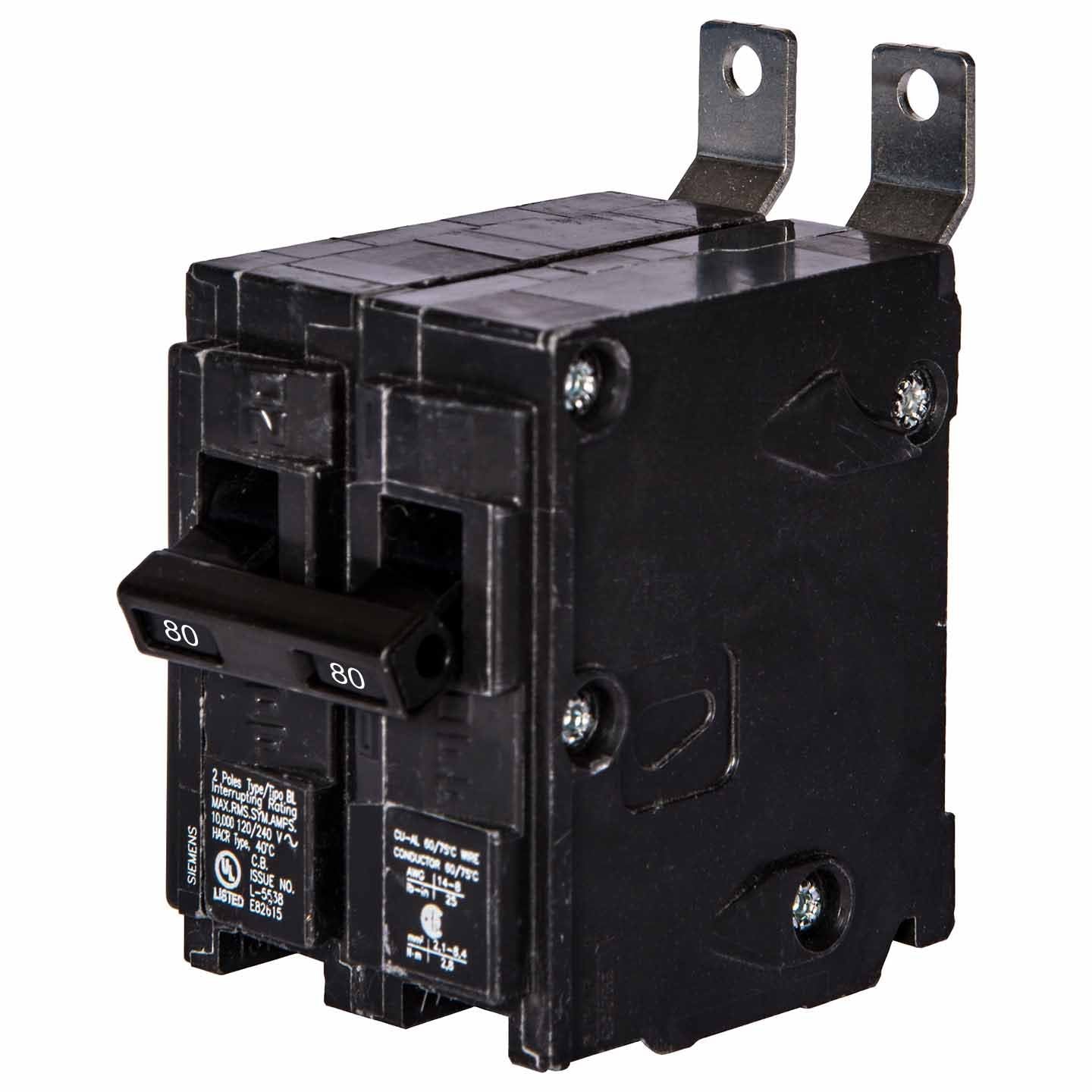

Siemens B280 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions, rated for 80A continuous current and 120/240V AC voltage within a 125A frame. The compact, bolt-on unit measures 2.563" x 2.00" x 3.122" (65.1mm x 50.8mm x 79.3mm), weighs 0.639 lb, and is constructed with lug terminals compatible with wire sizes from 12 AWG (Al) or 14 AWG (Cu) minimum to 10 AWG maximum. It complies with key industry standards including UL listing, CSA certification, HACR rating, and NOM certification, and is typically applied in Siemens P1 panelboards for commercial and light industrial distribution.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 80A
  • Frame Size: 125A/BL
  • AIC Rating: 10kA @ 240V
  • Phase: 1
  • Poles: 2
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Panel Type: Siemens P1 Panelboards
  • MCM Size / Wire Range: Min: 12 AWG (Al) / 14 AWG (Cu), Max: 10 AWG
  • Dimensions: 2.563" x 2.00" x 3.122" (65.1mm x 50.8mm x 79.3mm)
  • Weight: 0.639 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643000933
  • GTIN: 00783643000933
