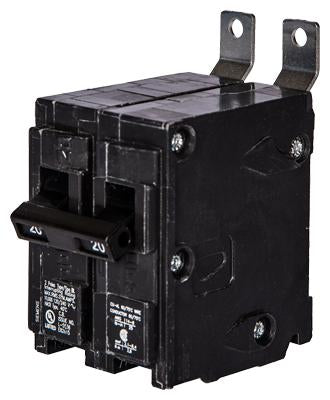

Siemens B270HH - Molded Case Circuit Breaker 70A 2-Pole
Siemens B270HH - Molded Case Circuit Breaker 70A 2-Pole

Siemens B270HH - Molded Case Circuit Breaker 70A 2-Pole

Siemens
Price
Save $1,310.51
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B270HH is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 70A current rating and a 120/240V voltage rating, housed within a compact, bolt-on unit measuring 70 x 50 x 100 mm (2.756 x 1.969 x 3.937 inches) and weighing 0.75 lb. The breaker is constructed with thermal-magnetic trip technology for both long-time and instantaneous protection, is CSA, HACR, NOM, and UL listed, and is typically applied in Siemens P1 panelboards for commercial and light industrial power distribution.

Key Features & Specifications
  • Type: HBL Series, Standard, Molded Case, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 70A
  • Frame Size: 125A/HBL
  • AIC Rating: 65kA @ 240V
  • Poles: 2
  • Phase: 1
  • Connection: Bolt-on, Lug Terminal
  • Functions: Long Time and Instantaneous Trip
  • Panel Type: Siemens P1 Panelboards
  • Standards/Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Dimensions: 70 x 50 x 100 mm (2.756 x 1.969 x 3.937 in)
  • Weight: 0.75 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • MCM Size/Wire Compatibility: Min. 8 AWG, Max. 4 AWG (Al) or 6 AWG (Cu)
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643264199
  • GTIN: 00783643264199
