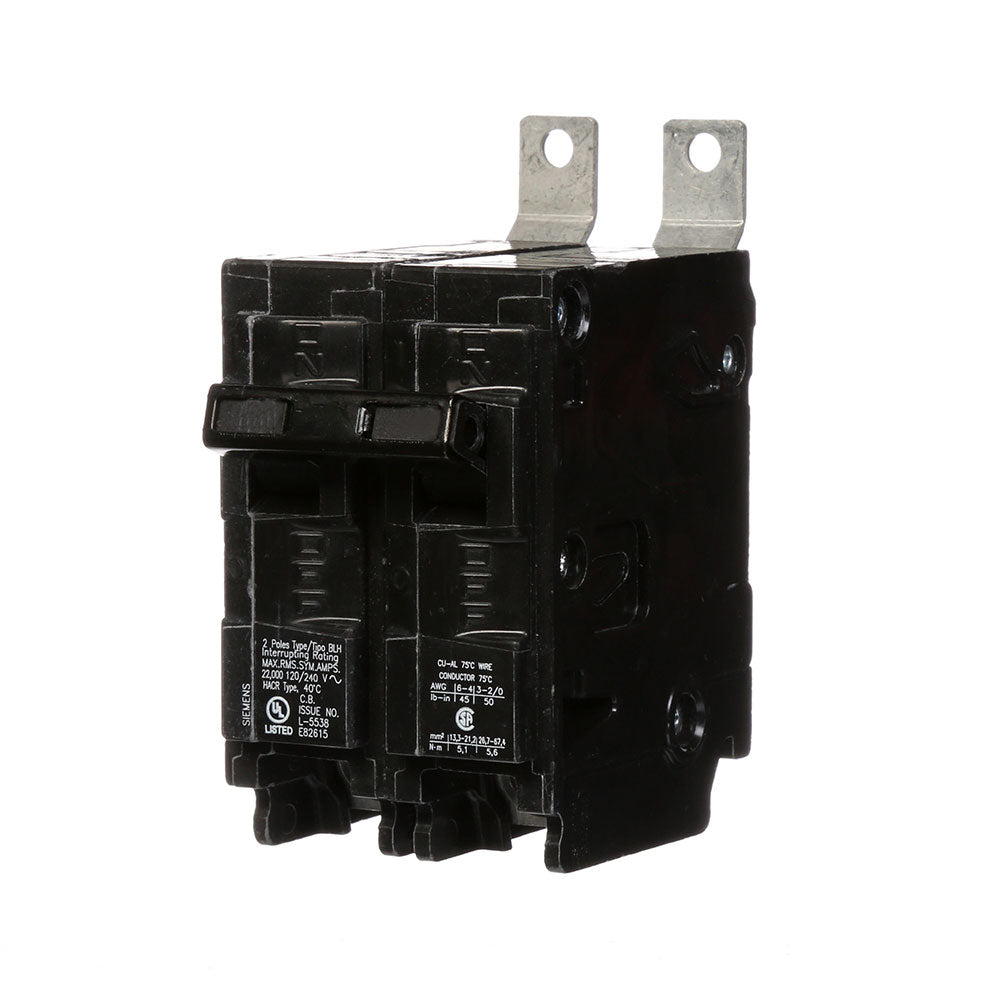

Siemens B270H - Molded Case Circuit Breaker 70A 22kA
Siemens B270H - Molded Case Circuit Breaker 70A 22kA

Siemens B270H - Molded Case Circuit Breaker 70A 22kA

Siemens
Price
Save $525.18
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B270H is a molded case circuit breaker designed for reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 70A current rating and a 120/240V voltage rating, housed within a compact, bolt-on frame measuring 3.937 x 2.756 x 1.969 inches and weighing 0.683 lb. This thermal-magnetic breaker is CSA, HACR, NOM, and UL listed, ensuring compliance with key North American safety standards for use in Siemens P1 panelboards and similar industrial or commercial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard Type
  • Voltage Rating: 120/240V AC
  • Current Rating: 70A
  • Dimensions: 3.937" H x 2.756" W x 1.969" D (100mm x 70mm x 50mm)
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Industrial and Commercial Electrical Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Phase: 1
  • Amperage: 70A
  • AIC Rating: 22kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 125A/BLH
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Weight: 0.683 lb
  • Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Circuit Breaker Mounting Style: Bolt-on
  • Terminal Connection: Lug
  • Standards: CSA, HACR, NOM, UL
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263956
  • GTIN: 00783643263956
