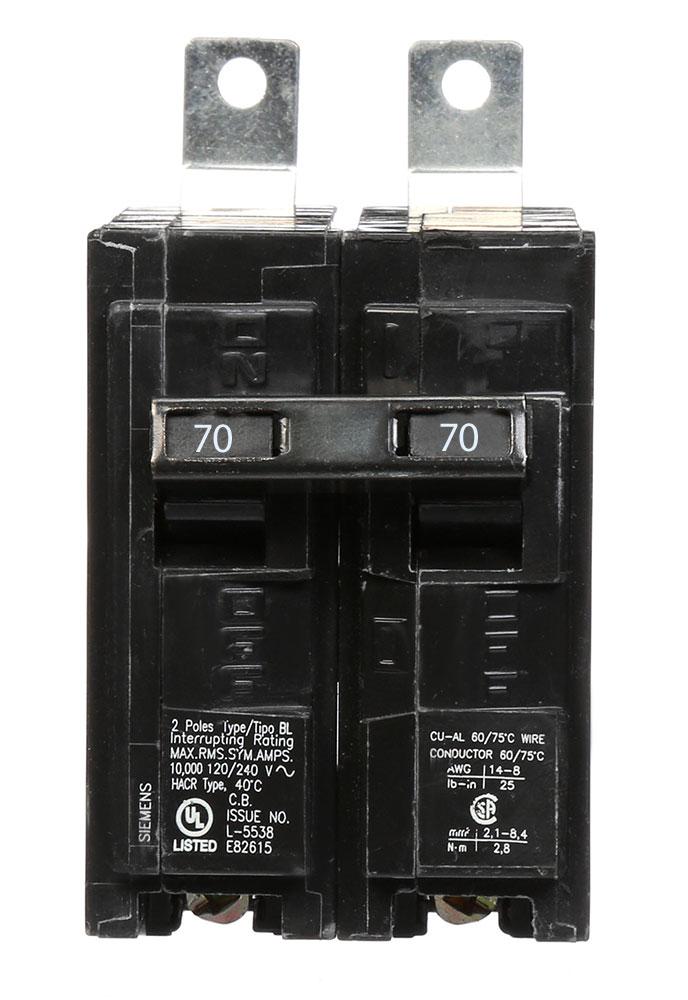

Siemens B270 - Molded Case Circuit Breaker 70A 2-Pole
Siemens B270 - Molded Case Circuit Breaker 70A 2-Pole
Siemens B270 - Molded Case Circuit Breaker 70A 2-Pole
Siemens B270 - Molded Case Circuit Breaker 70A 2-Pole
Siemens B270 - Molded Case Circuit Breaker 70A 2-Pole
Siemens B270 - Molded Case Circuit Breaker 70A 2-Pole
Siemens B270 - Molded Case Circuit Breaker 70A 2-Pole
Siemens B270 - Molded Case Circuit Breaker 70A 2-Pole

Siemens B270 - Molded Case Circuit Breaker 70A 2-Pole

Siemens
Price
Save $379.10
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B270 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 70A current rating and a 120/240V voltage rating, housed within a compact, bolt-on design measuring 2.563" x 2.00" x 3.122" and weighing 0.639 lb. This thermal-magnetic breaker, part of the BL Series, is CSA, HACR, NOM, and UL listed, ensuring compliance with key North American safety standards for use in Siemens P1 panelboards and similar industrial and commercial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard Breaker Type
  • Voltage Rating: 120/240V AC
  • Current Rating: 70A
  • Dimensions: 2.563" H x 2.00" W x 3.122" D
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Overcurrent and short-circuit protection for single-phase systems
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 125A/BL
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • Terminal Connection: Lug
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Weight: 0.639 lb
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263611
  • GTIN: 00783643263611
