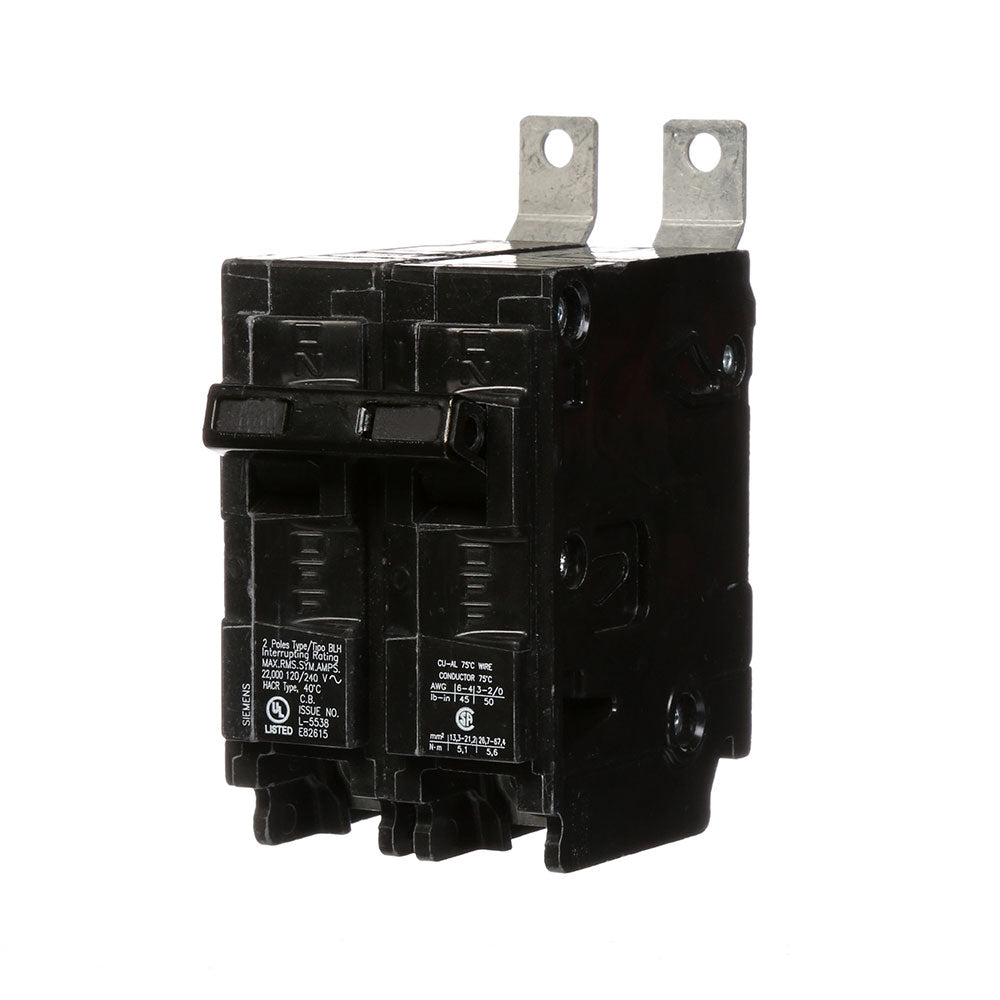

Siemens B260HH - Molded Case Circuit Breaker, 60A 2-Pole
Siemens B260HH - Molded Case Circuit Breaker, 60A 2-Pole

Siemens B260HH - Molded Case Circuit Breaker, 60A 2-Pole

Siemens
Price
Save $785.51
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B260HH is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 60A current rating and a 120/240V voltage rating, housed within a compact 125A/HBL frame with dimensions of 2.756" x 1.969" x 3.937" and a weight of 0.683 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, utilizes a bolt-on connection with lug terminals, and is rated for an interrupting capacity of 65kA at 240V. It complies with key industry standards including UL listing, CSA certification, HACR rating, and NOM certification, and operates reliably within a temperature range of -25°C to 70°C. This breaker is typically applied in Siemens P1 panelboards for commercial and light industrial applications, accommodating wire sizes from 8 AWG minimum to 4 AWG aluminum or 6 AWG copper maximum.

Key Features & Specifications
  • Type: HBL Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 60A
  • Dimensions: 2.756" x 1.969" x 3.937" (70mm x 50mm x 100mm)
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Siemens P1 Panelboards, Commercial & Light Industrial
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Phase: 1
  • AIC Rating: 65kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: 125A/HBL
  • Breaker Type: Standard
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • MCM Size: Min. 8 AWG, Max. 4 AWG (Al) / 6 AWG (Cu)
  • Panel Type: Siemens P1 Panelboards
  • Certification: UL, CSA, HACR, NOM
  • Mounting: Panel Mount
  • Family: BL Series
  • Weight: 0.683 lb


Product Identification
  • UPC: 783643264182
  • GTIN: 00783643264182
