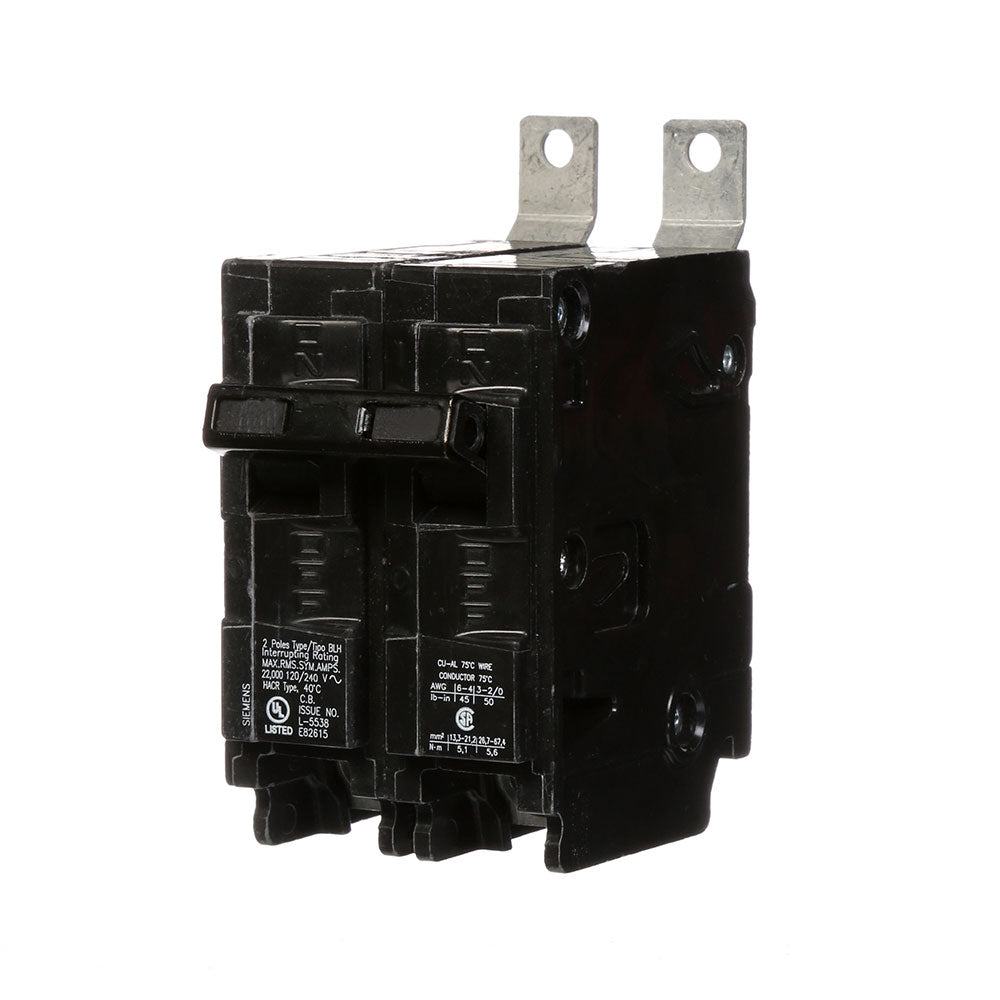

Siemens B260H - Molded Case Circuit Breaker 60A 2-Pole
Siemens B260H - Molded Case Circuit Breaker 60A 2-Pole

Siemens B260H - Molded Case Circuit Breaker 60A 2-Pole

Siemens
Price
Save $349.13
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B260H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 60A current rating and a 120/240V voltage rating, housed within a compact, bolt-on unit measuring 2.563" x 2.00" x 3.122" and weighing 0.639 lb. This thermal-magnetic breaker is constructed with lug terminals, complies with UL, CSA, and NOM standards, and is engineered for a 22kA interrupting capacity at 240V. Its typical applications include integration into Siemens P1 panelboards for commercial and light industrial power distribution.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Type
  • Voltage Rating: 120/240V AC
  • Current Rating: 60A
  • Dimensions: 2.563" H x 2.00" W x 3.122" D
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Commercial and Light Industrial Power Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Phase: 1
  • Amperage: 60A
  • AIC Rating: 22kA @ 240V
  • Connection: Bolt-on
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: 125A/BLH
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Mounting: Panel Mount
  • Terminal Connection: Lug
  • Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263949
  • GTIN: 00783643263949
