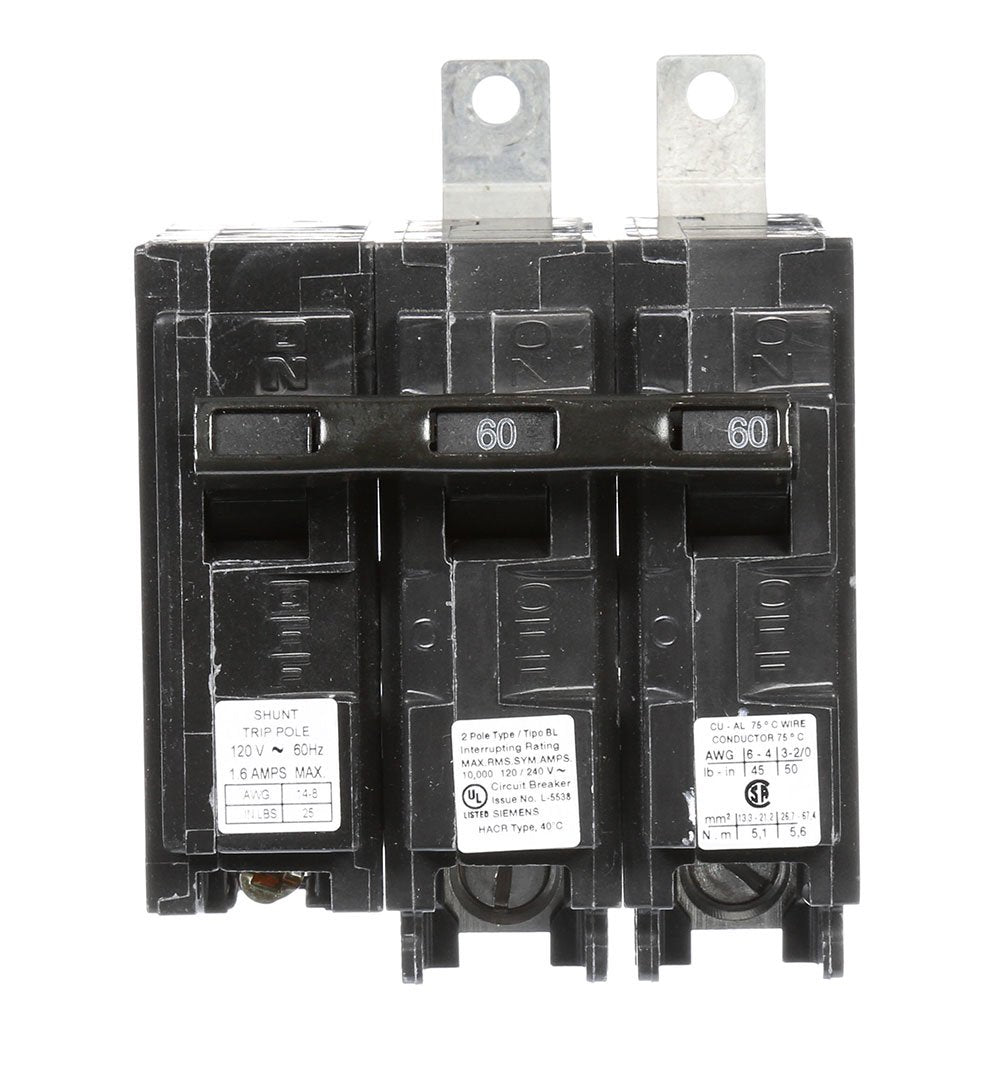

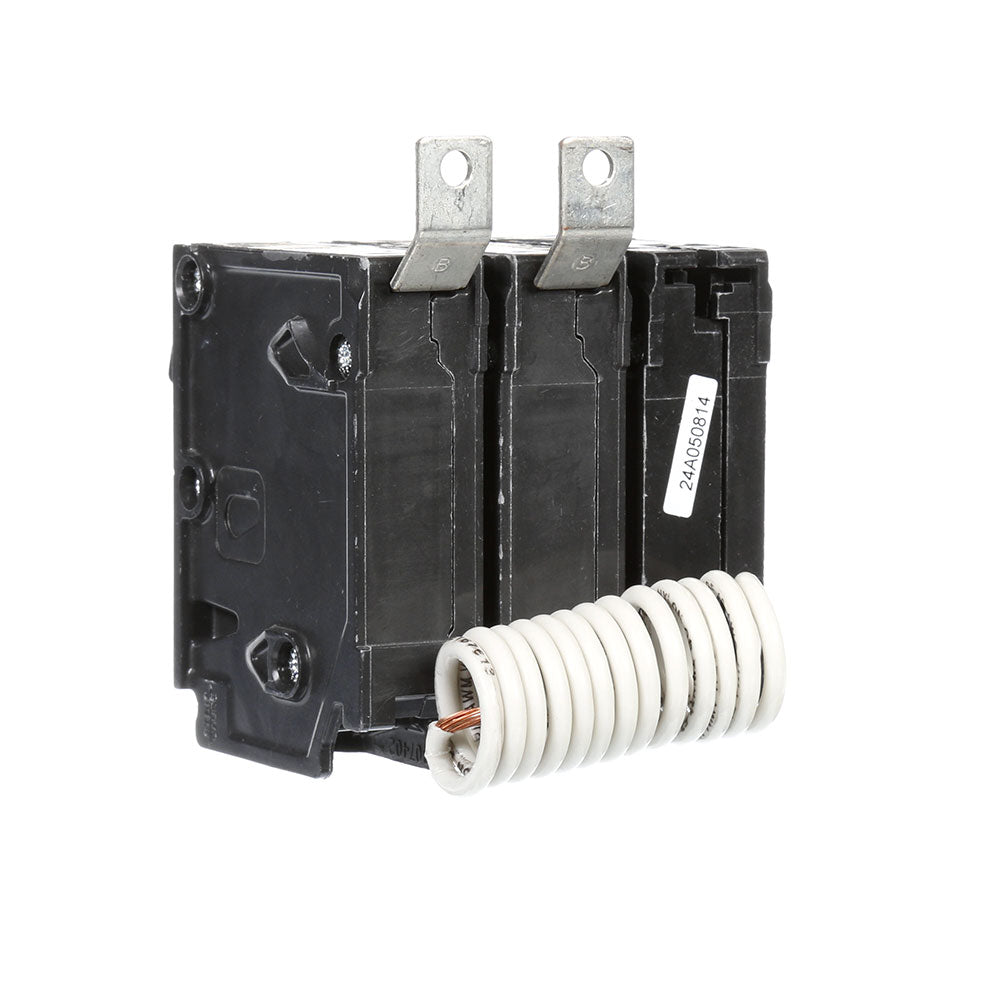

Siemens B26000S01 - Molded Case Circuit Breaker 60A 2-Pole

Price
Regular price $131.24
Regular price $681.00 Sale price $131.24
Save $549.76
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens B26000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 60A current rating and a 120/240V voltage rating, housed within a compact, bolt-on configuration measuring 4.724 x 3.937 x 3.937 inches and weighing 1.257 lb. This thermal-magnetic shunt trip breaker is constructed for use in Siemens P1 Panelboards and complies with key industry standards including UL, CSA, and NOM. It is typically applied in industrial and commercial settings where its 10kA interrupting capacity at 240V and long-time with instantaneous (LI) trip functions ensure system safety and equipment protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Thermal Magnetic Protection with Shunt Trip
  • Voltage Rating: 120/240V AC
  • Current Rating: 60A
  • Dimensions: 4.724" H x 3.937" W x 3.937" D (120mm x 100mm x 100mm)
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Overcurrent protection for industrial and commercial single-phase power distribution
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 125A/BL
  • Breaker Type: Shunt Trip
  • Panel Type: Siemens P1 Panelboards
  • Terminal Connection: Lug
  • MCM Size: Wire Range 12-6 AWG (Aluminum), 14-6 AWG (Copper)
  • Weight: 1.257 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643268425
  • GTIN: 00783643268425
