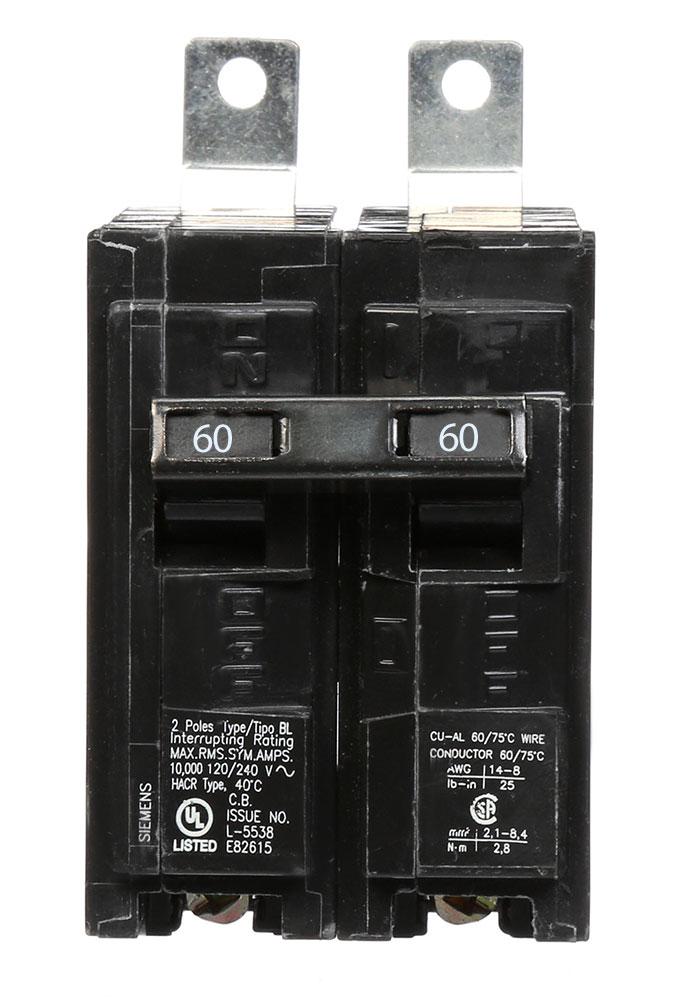

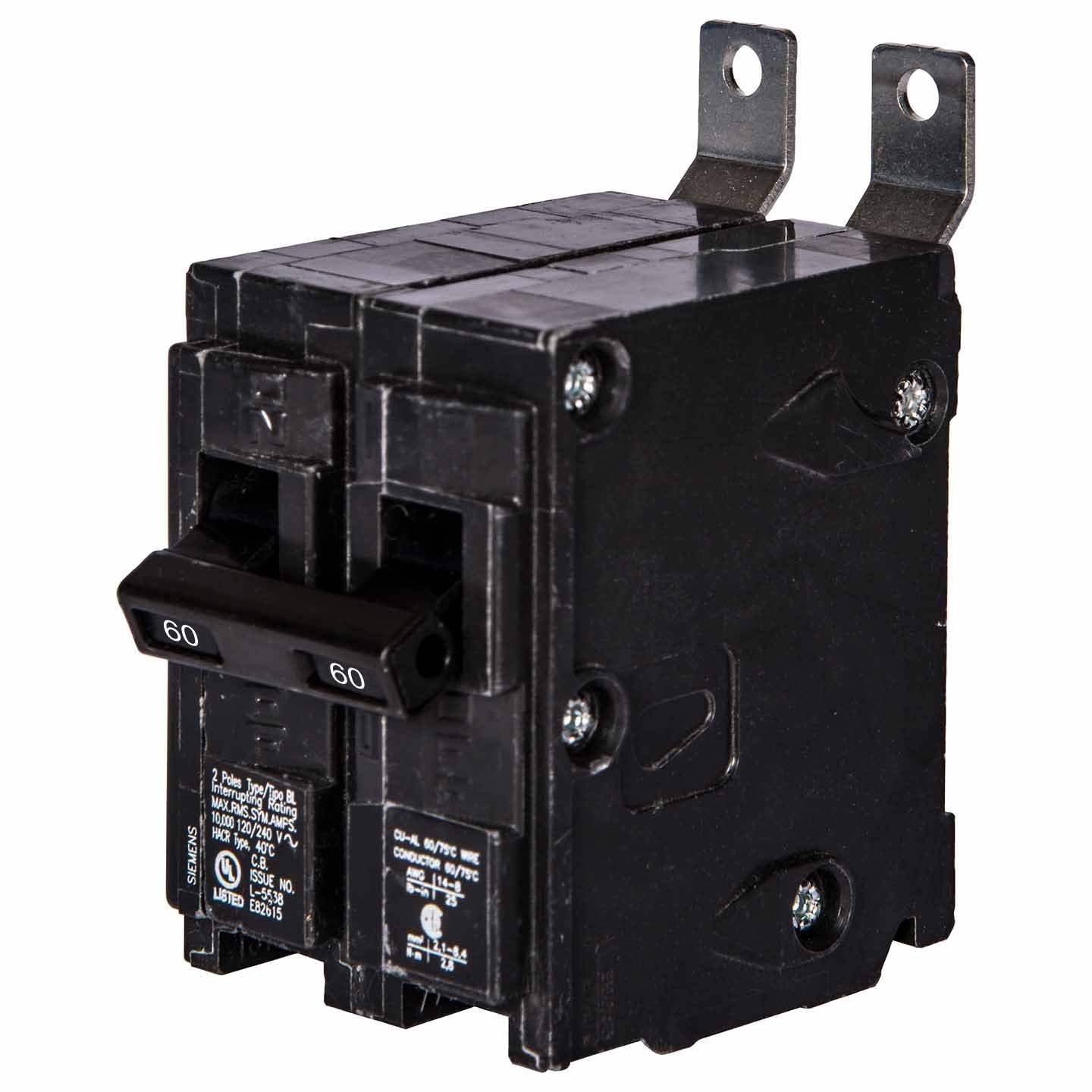

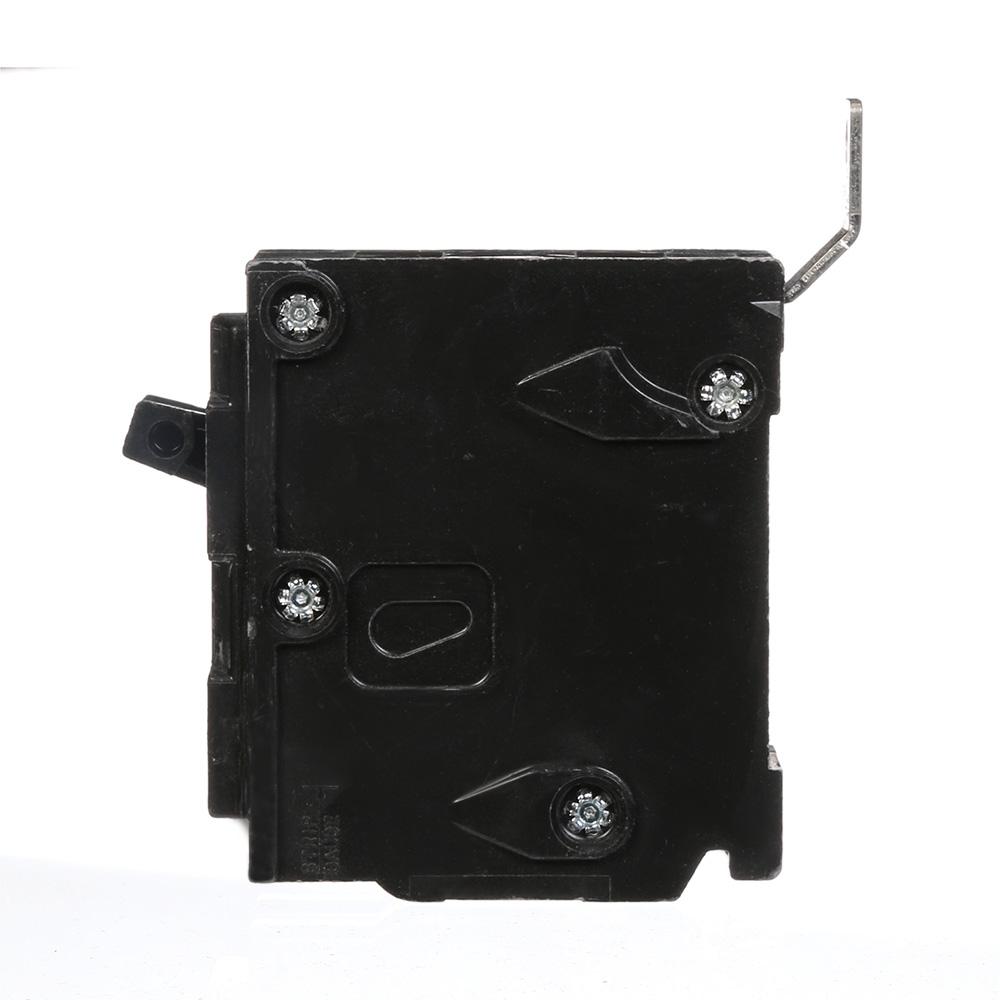

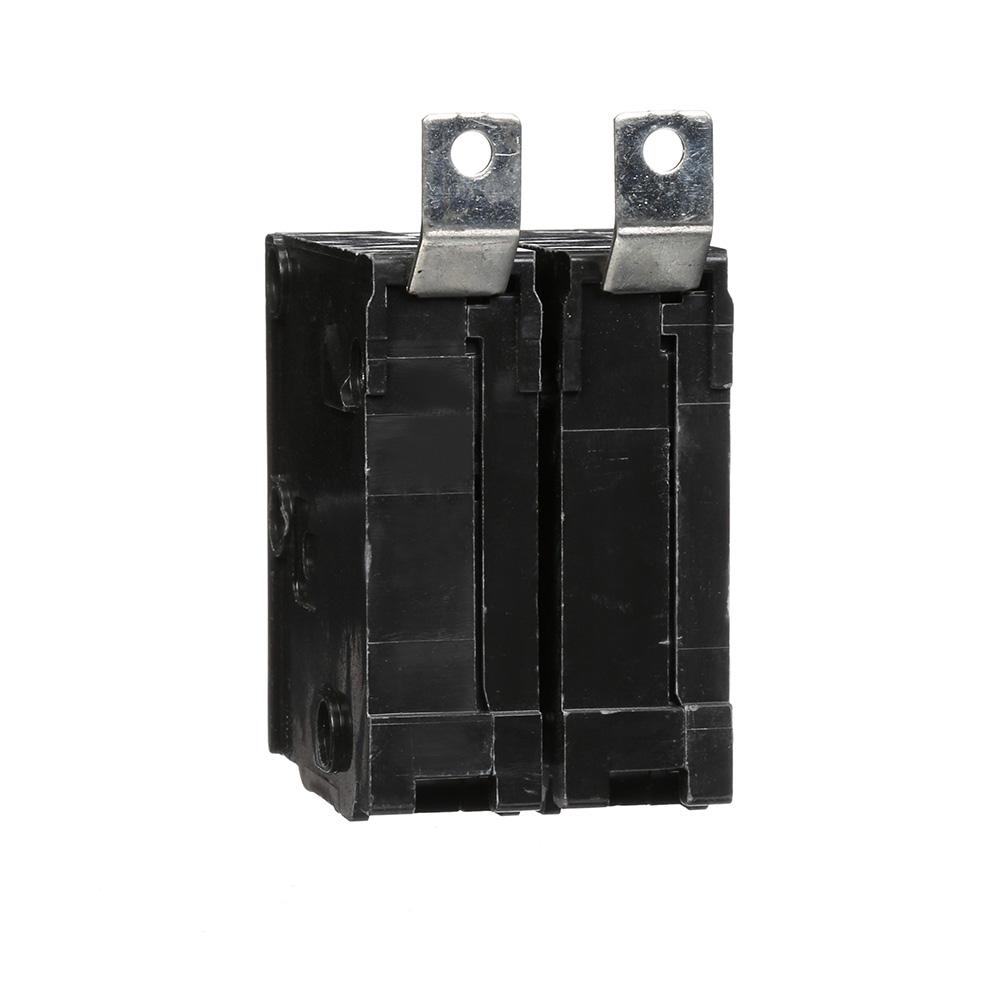

Siemens B260 - Molded Case Circuit Breaker 60A 2-Pole
Siemens B260 - Molded Case Circuit Breaker 60A 2-Pole
Siemens B260 - Molded Case Circuit Breaker 60A 2-Pole
Siemens B260 - Molded Case Circuit Breaker 60A 2-Pole
Siemens B260 - Molded Case Circuit Breaker 60A 2-Pole
Siemens B260 - Molded Case Circuit Breaker 60A 2-Pole
Siemens B260 - Molded Case Circuit Breaker 60A 2-Pole
Siemens B260 - Molded Case Circuit Breaker 60A 2-Pole

Siemens B260 - Molded Case Circuit Breaker 60A 2-Pole

Siemens
Price
Save $193.11
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B260 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 60A current rating and a 120/240V voltage rating, housed within a compact, bolt-on unit measuring 2.571" x 2.00" x 2.89" and weighing 0.639 lb. The breaker is constructed with thermal-magnetic trip protection for both long-time delay and instantaneous functions, ensuring compliance with key industry standards including UL, CSA, HACR, and NOM. It is engineered for use in Siemens P1 panelboards and is suitable for a wide range of commercial and light industrial applications, operating reliably in ambient temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-on Connection
  • Voltage Rating: 120/240V AC
  • Current Rating: 60A
  • Dimensions: 2.571" H x 2.00" W x 2.89" D (65.3mm x 50.8mm x 73.4mm)
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Overcurrent protection for Siemens P1 Panelboards in commercial/industrial systems
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Poles: 2
  • Frame Size: 125A/BL
  • Trip Type: LI (Long-time and Instantaneous)
  • Terminal Connection: Lug
  • Breaker Type: Standard
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 0.639 lb
  • MCM Size: Wire Range 10-12 AWG (Al), 10-14 AWG (Cu)
  • Family: BL Series


Product Identification
  • UPC: 783643263604
  • GTIN: 00783643263604
