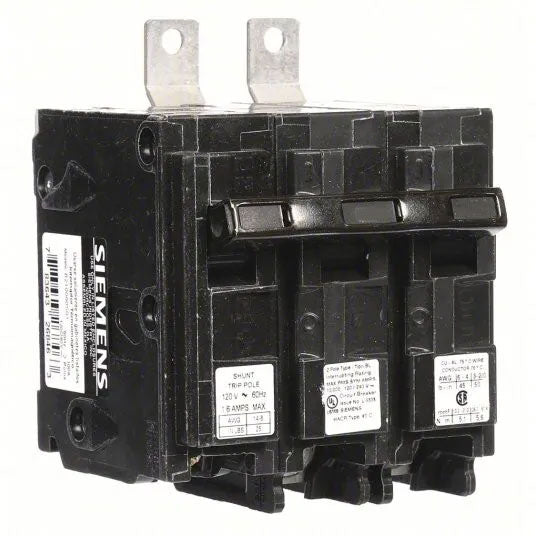

Siemens B25000S01 - Molded Case Breaker 50A 2-Pole (10kA AIC)
Siemens B25000S01 - Molded Case Breaker 50A 2-Pole (10kA AIC)

Siemens B25000S01 - Molded Case Breaker 50A 2-Pole (10kA AIC)

Siemens
Price
Save $496.29
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B25000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 50A current rating and a 120/240V AC voltage rating, housed within a compact, bolt-on frame measuring 2.571" x 3.00" x 2.89" and weighing 0.926 lb. This thermal magnetic shunt trip breaker is CSA, HACR, NOM, and UL listed, ensuring compliance with key North American safety standards for use in Siemens P1 panelboards and similar industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Thermal Magnetic Protection with Shunt Trip
  • Voltage Rating: 120/240V AC
  • Current Rating: 50A
  • Dimensions: 2.571" H x 3.00" W x 2.89" D (65.3mm x 76.2mm x 73.4mm)
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Overcurrent protection for Siemens P1 Panelboards and compatible single-phase systems
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 125A/BL
  • Trip Type: Thermal Magnetic
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Shunt Trip
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Terminal Connection: Lug
  • MCM Size: Wire Range 6 AWG to 12 AWG (Al) / 14 AWG (Cu)
  • Weight: 0.926 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643268401
  • GTIN: 00783643268401
