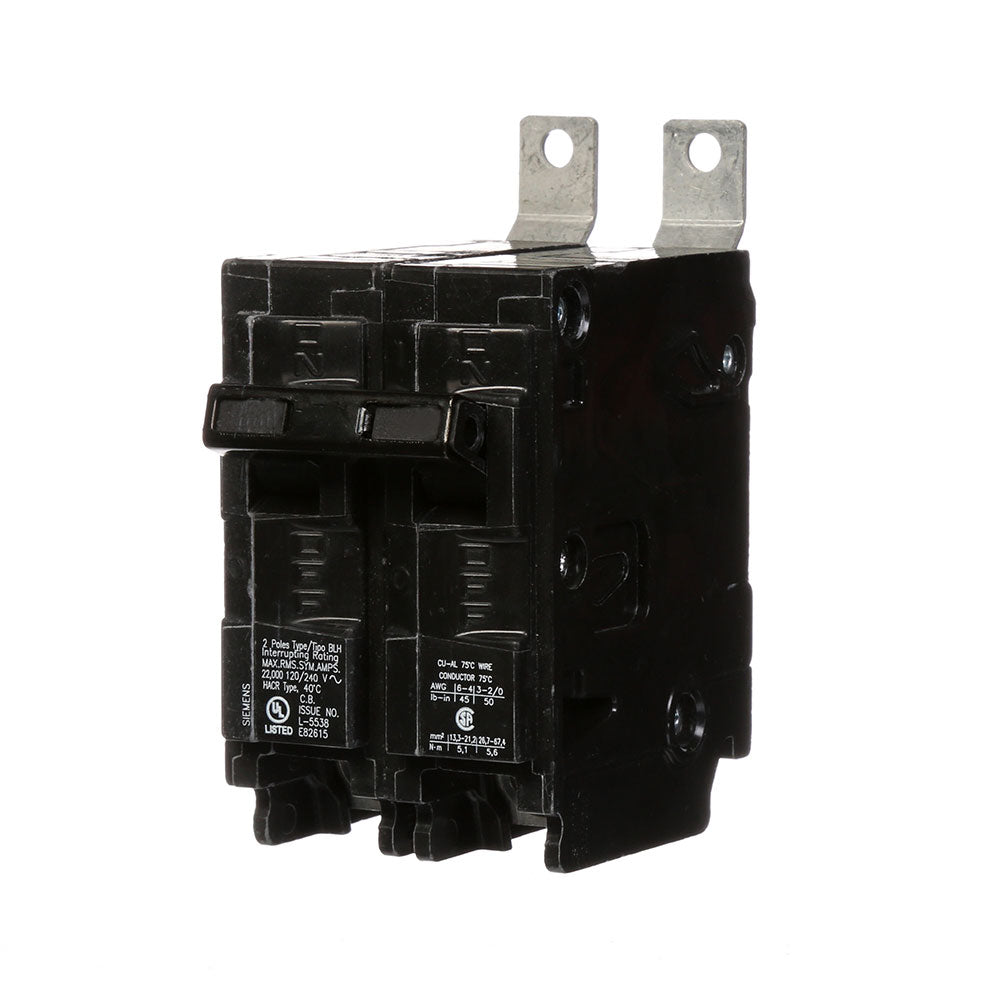

Siemens B240H - Molded Case Circuit Breaker 40A 2-Pole
Siemens B240H - Molded Case Circuit Breaker 40A 2-Pole

Siemens B240H - Molded Case Circuit Breaker 40A 2-Pole

Siemens
Price
Save $374.70
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B240H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 40A current rating and a 120/240V AC voltage rating, housed within a compact, bolt-on unit measuring 12.598 x 4.331 x 3.543 inches and weighing 0.661 lb. The breaker is constructed with a thermal-magnetic trip mechanism for long-time and instantaneous protection, is CSA, HACR, NOM, and UL listed, and is typically applied in Siemens P1 panelboards for commercial and light industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BLH Type, Thermal-Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 40A
  • Dimensions: 12.598" x 4.331" x 3.543"
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Siemens P1 Panelboards, Commercial & Light Industrial
  • Switch Type: Standard
  • Configuration: Bolt-on
  • Phase: 1
  • Voltage: 120/240V
  • Amperage: 40A
  • AIC rating: 22kA @ 240V
  • Connection: Bolt-on
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 125A/BLH
  • Trip Type: Thermal Magnetic
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Terminal Connection: Lug
  • Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Family: BL Series
  • Country of Origin: Mexico
  • Weight: 0.661 lb


Product Identification
  • UPC: 783643263925
  • GTIN: 00783643263925
