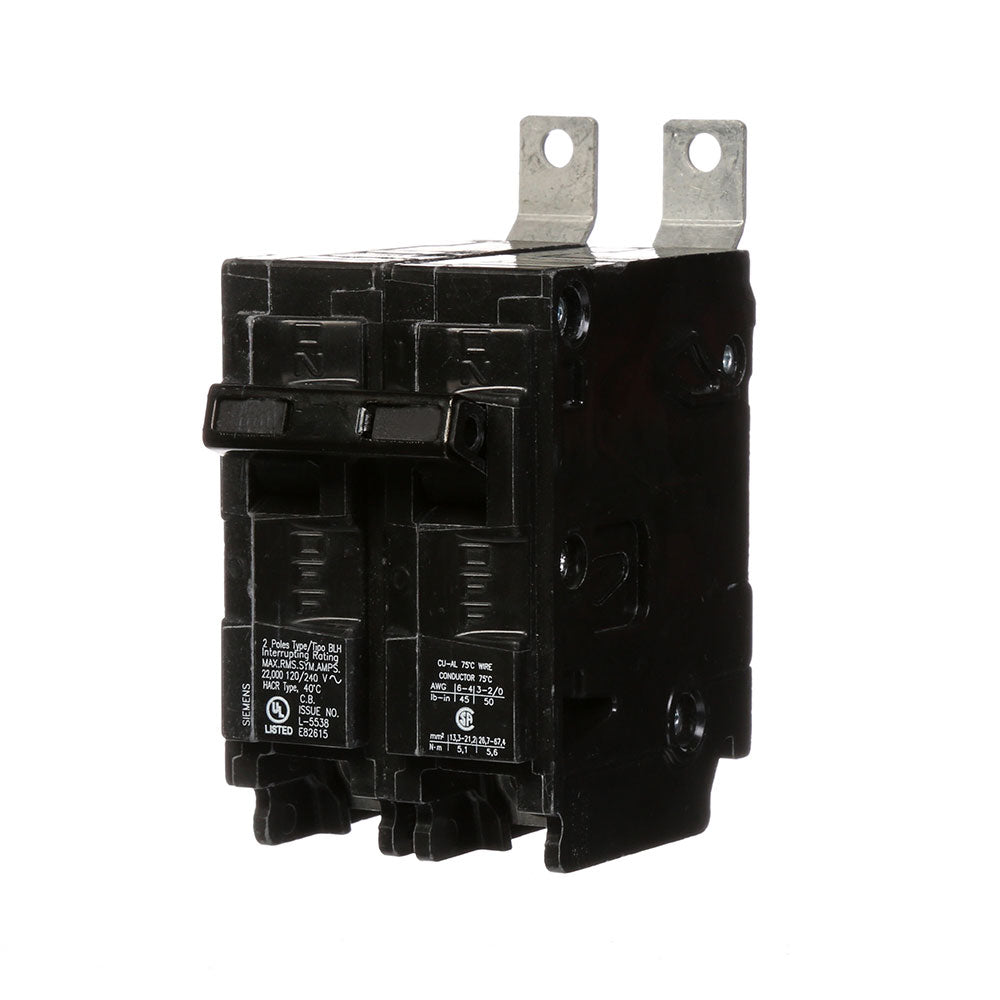

Siemens B235HH - Molded Case Circuit Breaker, 35A 2-Pole
Siemens B235HH - Molded Case Circuit Breaker, 35A 2-Pole

Siemens B235HH - Molded Case Circuit Breaker, 35A 2-Pole

Siemens
Price
Save $772.39
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B235HH is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 35A current rating and a 120/240V AC voltage rating, housed within a compact, durable frame measuring 3.94" x 1.97" x 2.76" (100mm x 50mm x 70mm) and weighing 0.661 lb. The breaker is constructed with a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection and complies with key industry standards including UL, CSA, and NOM. Its bolt-on connection and lug terminals make it suitable for installation in Siemens P1 panelboards for commercial and light industrial applications.

Key Features & Specifications
  • Type: HBL Series, Standard, Molded Case, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 35A
  • Frame Size: 125A/HBL
  • AIC Rating: 65kA @ 240V
  • Poles: 2
  • Phase: 1
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Panel Type: Siemens P1 Panelboards
  • Standards & Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 3.94 x 1.97 x 2.76 in (100 x 50 x 70 mm)
  • Weight: 0.661 lb
  • MCM Size / Wire Range: Min. 8 AWG, Max. 4 AWG (Aluminum) or 6 AWG (Copper)
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643089129
  • GTIN: 00783643089129
  • Family: BL Series
