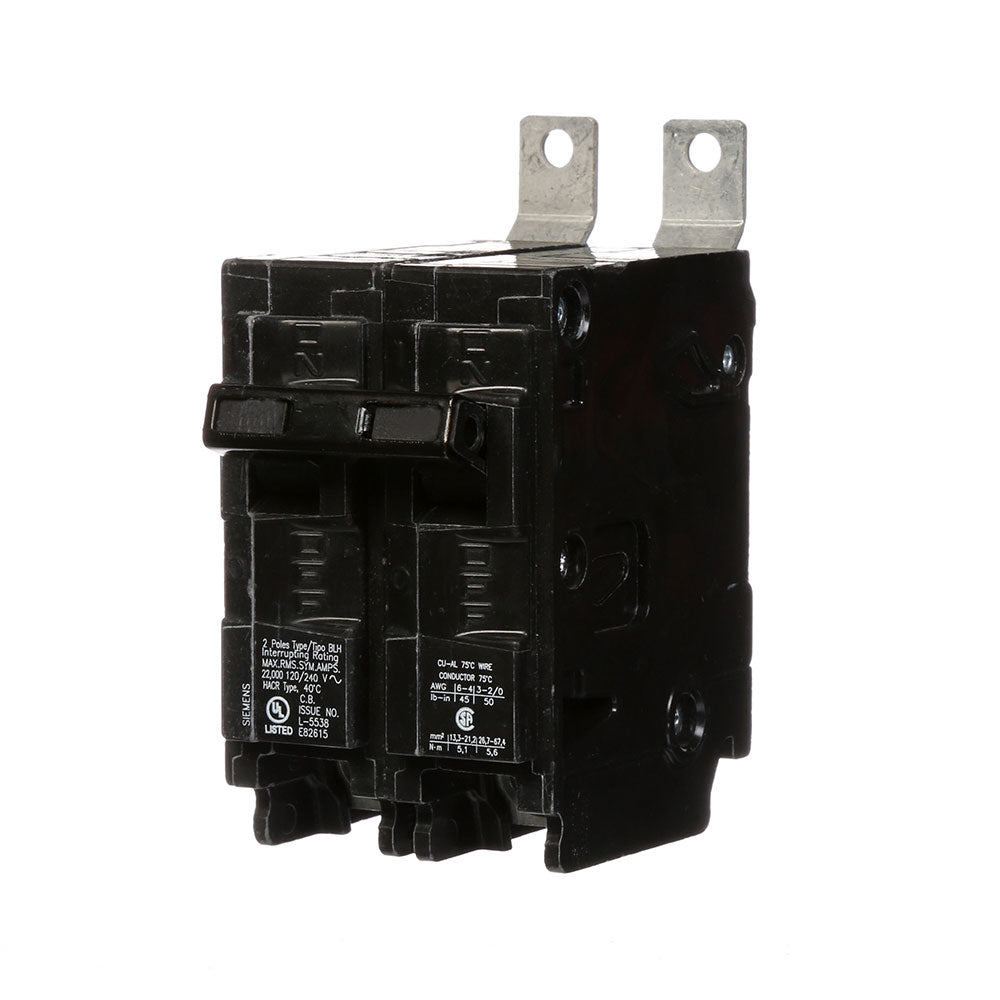

Siemens B235H - Molded Case Circuit Breaker 35A 2-Pole
Siemens B235H - Molded Case Circuit Breaker 35A 2-Pole

Siemens B235H - Molded Case Circuit Breaker 35A 2-Pole

Siemens
Price
Save $333.64
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Siemens B235H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 35A current rating and a 120/240V voltage rating, housed within a compact, bolt-on design measuring 2.563" x 2.00" x 3.122" and weighing 0.639 lb. This thermal-magnetic breaker is constructed for compliance with key industry standards including UL, CSA, HACR, and NOM, and is typically applied in Siemens P1 panelboards for commercial and light industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard Breaker Type
  • Voltage Rating: 120/240V AC
  • Current Rating: 35A
  • Frame Size: 125A/BLH
  • Poles: 2
  • AIC Rating: 22kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Phase: 1
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Panel Type: Siemens P1 Panelboards
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 2.563" H x 2.00" W x 3.122" D
  • Weight: 0.639 lb
  • Wire Size (MCM): Minimum 12 AWG (Al) / 14 AWG (Cu), Maximum 10 AWG


Product Identification
  • UPC: 783643089082
  • GTIN: 00783643089082
