Siemens
Price
Save $183.96
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price

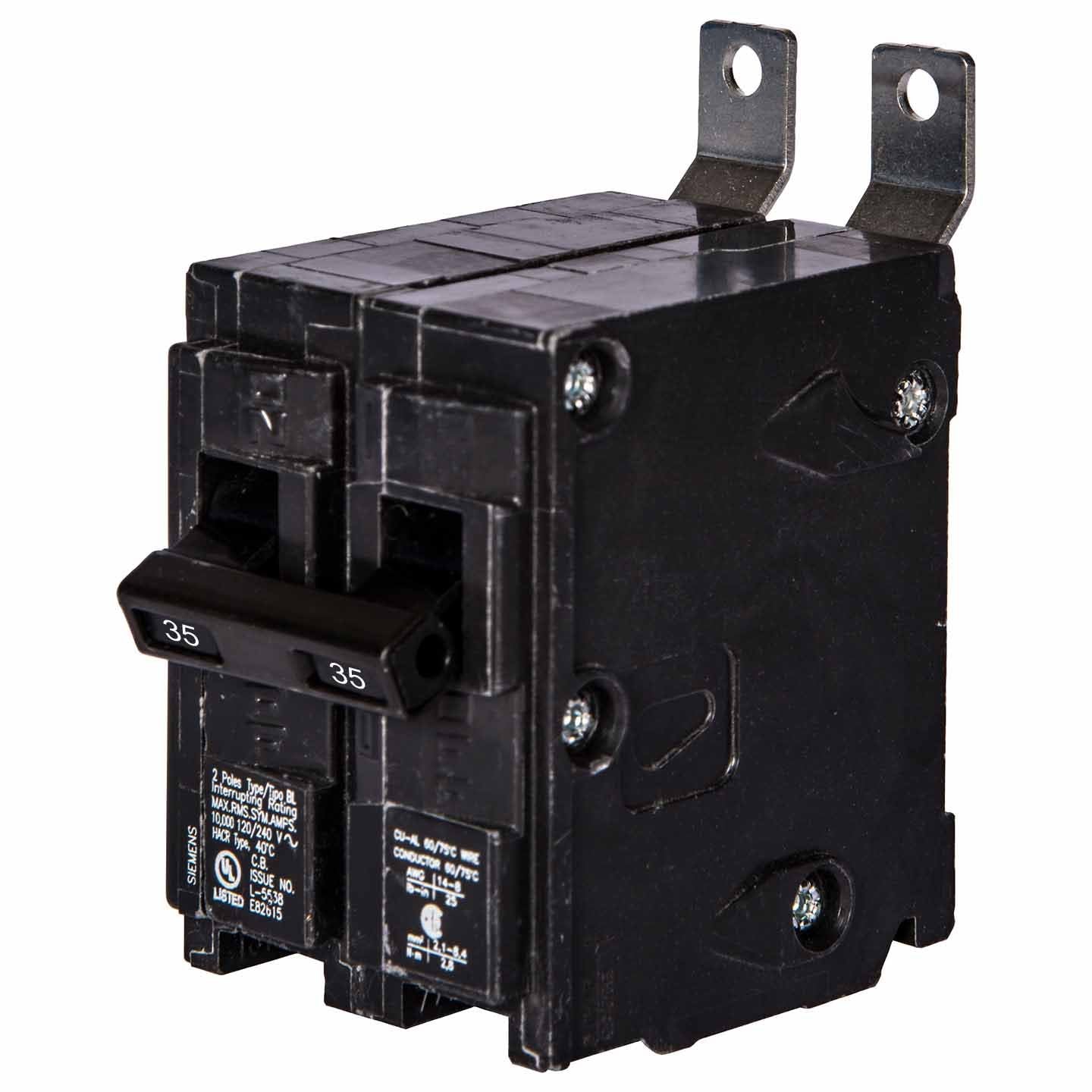

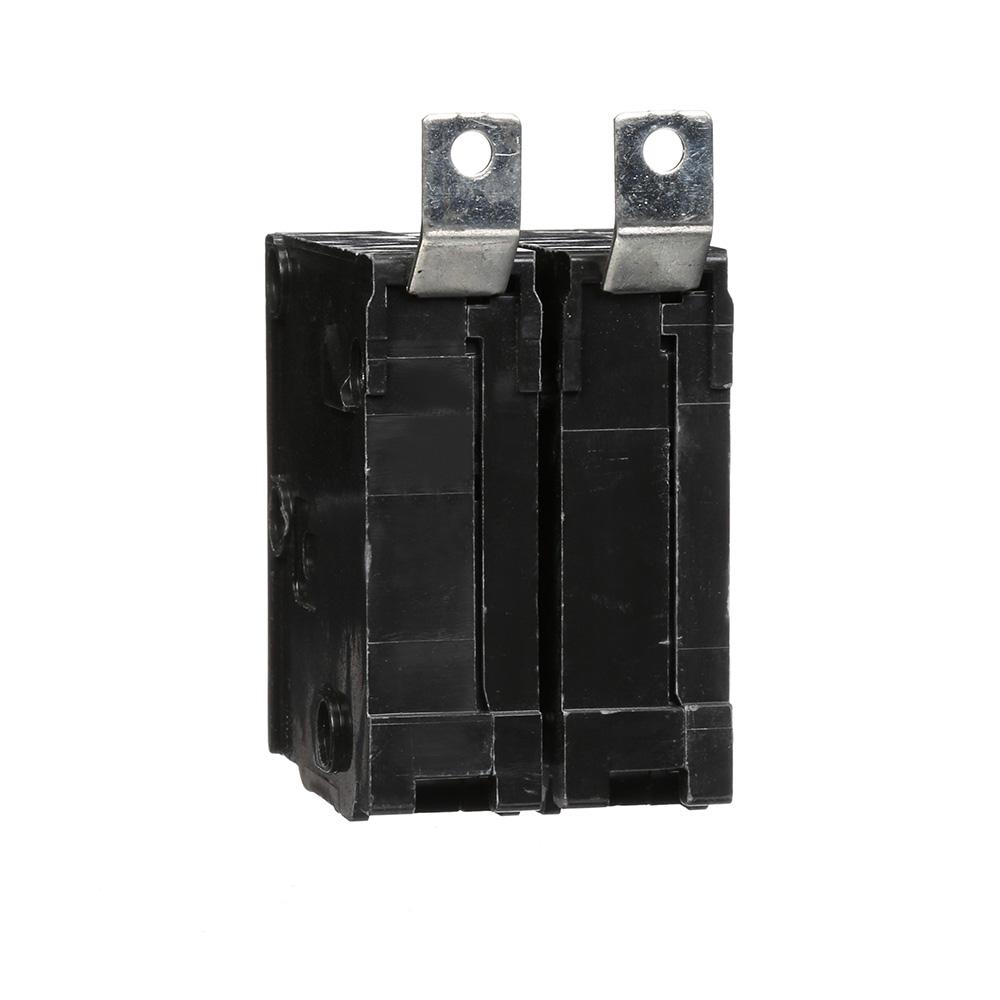

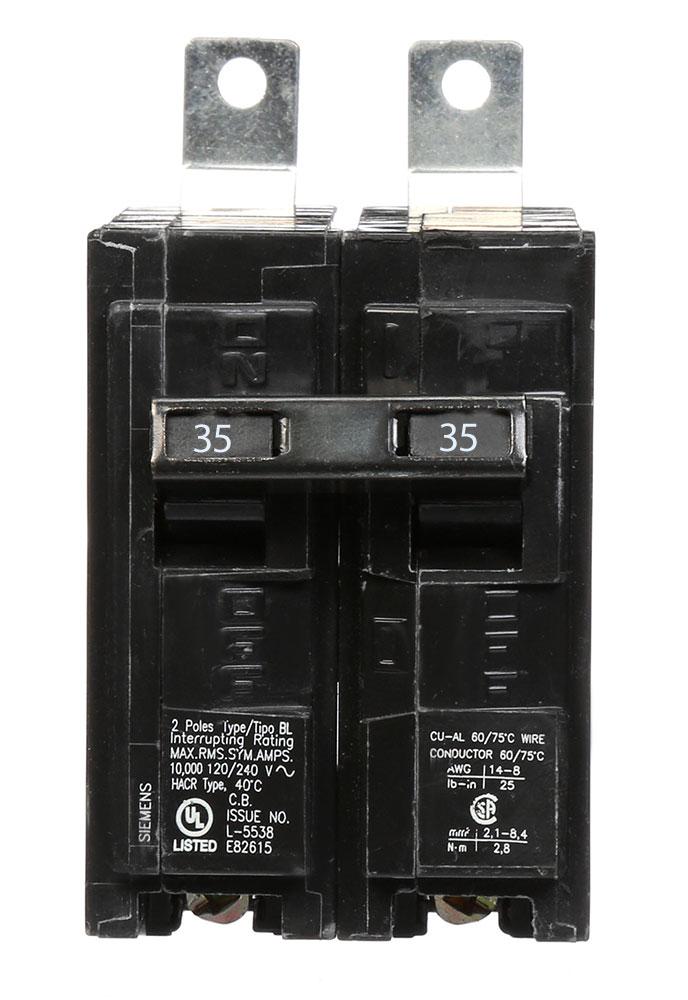

Siemens B235 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 35A current rating and a voltage rating of 120/240V AC, housed within a compact, bolt-on frame measuring 3.937 x 2.756 x 1.969 inches and weighing 0.639 lb. The breaker is constructed with thermal-magnetic trip technology for long-time and instantaneous (LI) protection and complies with key industry standards including UL, CSA, HACR, and NOM. It is typically applied in Siemens P1 panelboards for commercial and light industrial power distribution.

Key Features & Specifications
  • Type: Molded Case, Thermal Magnetic, Standard Breaker
  • Voltage Rating: 120/240V AC
  • Current Rating: 35A
  • Frame Size: 125A/BL
  • AIC Rating: 10kA @ 240V
  • Poles: 2
  • Phase: 1
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • MCM Size / Wire Range: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Protection: Thermal Magnetic
  • Panel Type: Siemens P1 Panelboards
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 3.937" x 2.756" x 1.969" (100mm x 70mm x 50mm)
  • Weight: 0.639 lb
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263567
  • GTIN: 00783643263567
