Siemens B230HH - 2-Pole 30A Circuit Breaker (65kA AIC)
Siemens B230HH - 2-Pole 30A Circuit Breaker (65kA AIC)

Siemens B230HH - 2-Pole 30A Circuit Breaker (65kA AIC)

Siemens
Price
Save $681.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

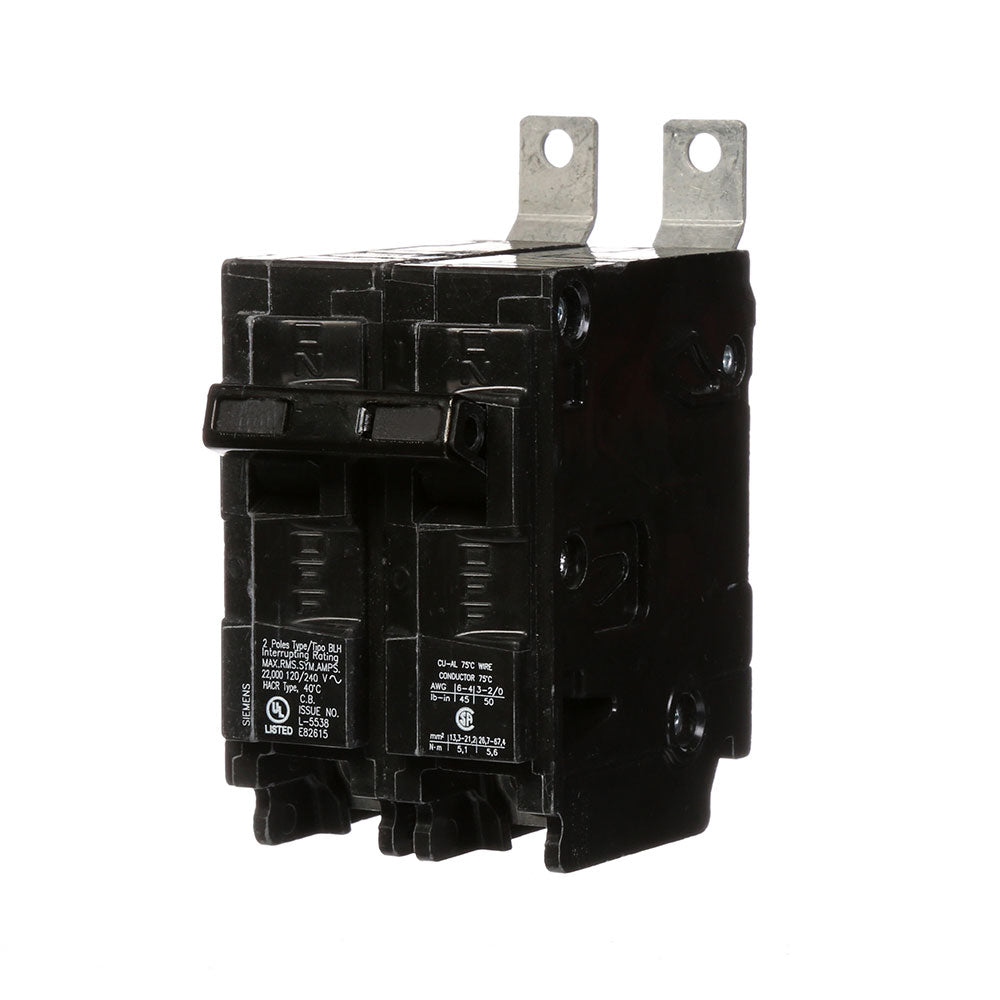

Siemens B230HH is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 30A current rating and a 120/240V voltage rating, housed within a compact, durable frame measuring 2.563" x 2.00" x 3.122" and weighing 0.639 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, is CSA, HACR, NOM, and UL listed, and is engineered for use in Siemens P1 panelboards for commercial and light industrial applications.

Key Features & Specifications
  • Type: HBL Series, Standard, Molded Case, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 30A
  • Frame Size: 125A/HBL
  • Poles: 2
  • AIC Rating: 65kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Phase: 1
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Panel Type: Siemens P1 Panelboards
  • Standards/Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 2.563" H x 2.00" W x 3.122" D
  • Weight: 0.639 lb
  • MCM/Wire Size: Minimum 8 AWG, Maximum 4 AWG (Aluminum) or 6 AWG (Copper)
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643264151
  • GTIN: 00783643264151
