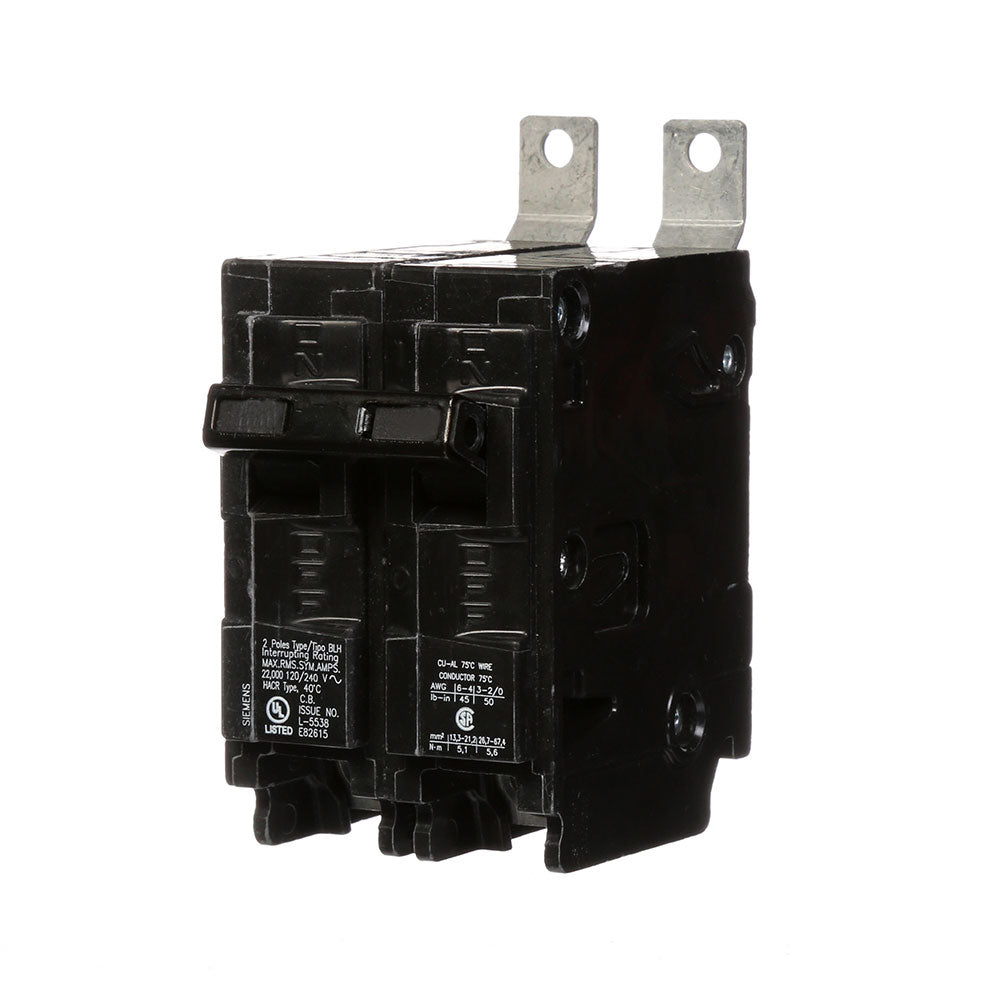

Siemens B230H - Molded Case Circuit Breaker 30A 2-Pole
Siemens B230H - Molded Case Circuit Breaker 30A 2-Pole

Siemens B230H - Molded Case Circuit Breaker 30A 2-Pole

Siemens
Price
Save $389.39
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B230H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 30A current rating and a 120/240V voltage rating, housed within a compact 12.598 x 4.331 x 3.543 inch (320 x 110 x 90 mm) bolt-on unit constructed for durability. The breaker complies with key industry standards including UL, CSA, HACR, and NOM certifications, ensuring safe operation across a temperature range of -25°C to 70°C. Its thermal-magnetic trip unit with long-time and instantaneous (LI) functions makes it suitable for installation in Siemens P1 panelboards for commercial and light industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BLH Type, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 30A
  • Frame Size: 125A/BLH
  • Poles: 2
  • AIC Rating: 22kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Phase: 1
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Standards & Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 12.598 x 4.331 x 3.543 inch (320 x 110 x 90 mm)
  • Weight: 0.661 lb
  • MCM Size / Wire Range: Min: 12 AWG (Al) / 14 AWG (Cu), Max: 10 AWG
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263918
  • GTIN: 00783643263918
