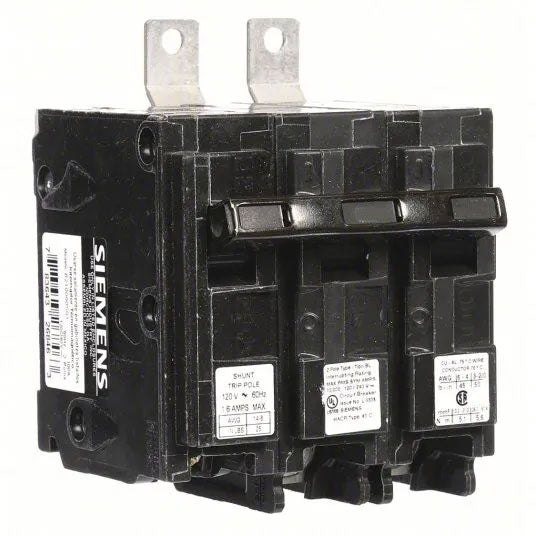

Siemens B23000S01 - Molded Case Circuit Breaker 30A 2-Pole
Siemens B23000S01 - Molded Case Circuit Breaker 30A 2-Pole

Siemens B23000S01 - Molded Case Circuit Breaker 30A 2-Pole

Siemens
Price
Save $496.29
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B23000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 30A current rating and a 120/240V AC voltage rating, housed within a compact 125A frame with dimensions of 2.571" x 3.00" x 2.89" and a weight of 0.926 lb. This thermal magnetic, two-pole breaker utilizes a bolt-on connection with lug terminals and is engineered for operation in temperatures from -25°C to 70°C. It complies with key industry standards including UL, CSA, HACR, and NOM, ensuring suitability for a wide range of commercial and light industrial applications. The unit is specifically configured for Siemens P1 panelboards and includes an integrated 120V shunt trip mechanism for remote tripping capability, supporting wire sizes from 6 AWG to 12 AWG (Al) or 14 AWG (Cu).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Shunt Trip
  • Voltage Rating: 120/240V AC
  • Current Rating: 30A
  • Frame Size: 125A/BL
  • Poles: 2
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Phase: 1
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Panel Type: Siemens P1 Panelboards
  • Temp Rating: -25°C to 70°C
  • Dimensions: 2.571" x 3.00" x 2.89"
  • Weight: 0.926 lb
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 6 AWG
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Additional Info: Complete with 120V Shunt Trip


Product Identification
  • UPC: 783643268364
  • GTIN: 00783643268364
