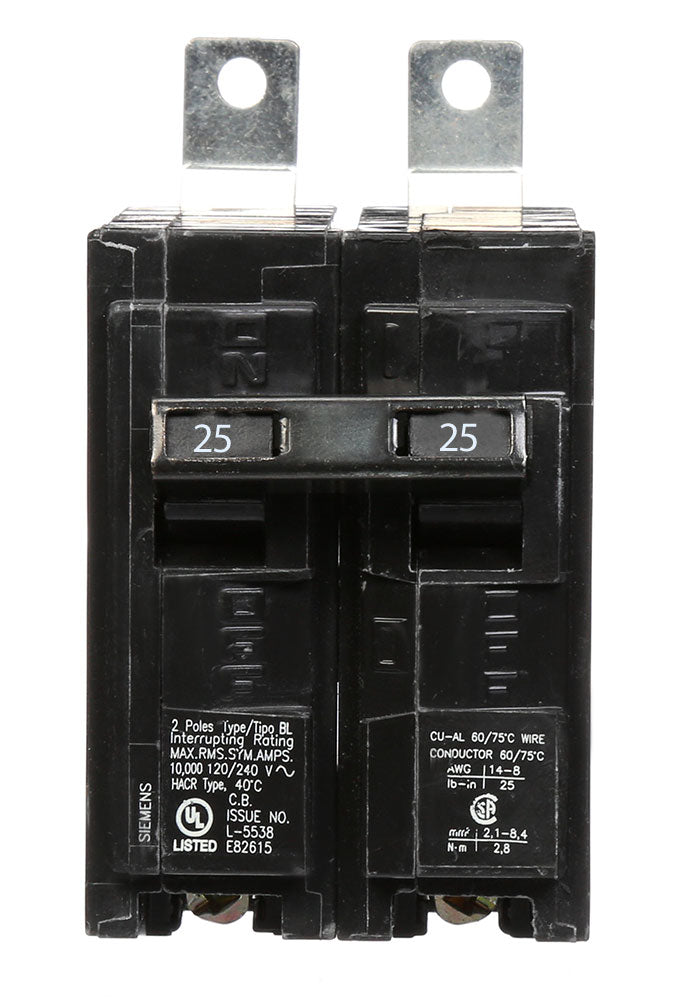

Siemens B225HH - Molded Case Circuit Breaker, 25A 2-Pole
Siemens B225HH - Molded Case Circuit Breaker, 25A 2-Pole

Siemens B225HH - Molded Case Circuit Breaker, 25A 2-Pole

Siemens
Price
Save $617.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B225HH is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 25A current rating and a 240V AC voltage rating, housed in a compact, bolt-on configuration measuring 2.563" x 2.00" x 3.122" and weighing 0.639 lb. This thermal-magnetic breaker with LI (Long-time and Instantaneous) trip functions offers a 65kA interrupting capacity at 240V and is constructed for operation in temperatures from -25°C to 70°C. It complies with key industry standards including UL, CSA, HACR, and NOM, ensuring suitability for use in Siemens P1 panelboards and similar single-phase applications.

Key Features & Specifications
  • Type: HBL Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 25A
  • Dimensions: 2.563" H x 2.00" W x 3.122" D (65.1mm x 50.8mm x 79.3mm)
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Industrial and Commercial Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Phase: 1
  • AIC Rating: 65kA @ 240V
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Molded Case
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 0.639 lb
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643082809
  • GTIN: 00783643082809
