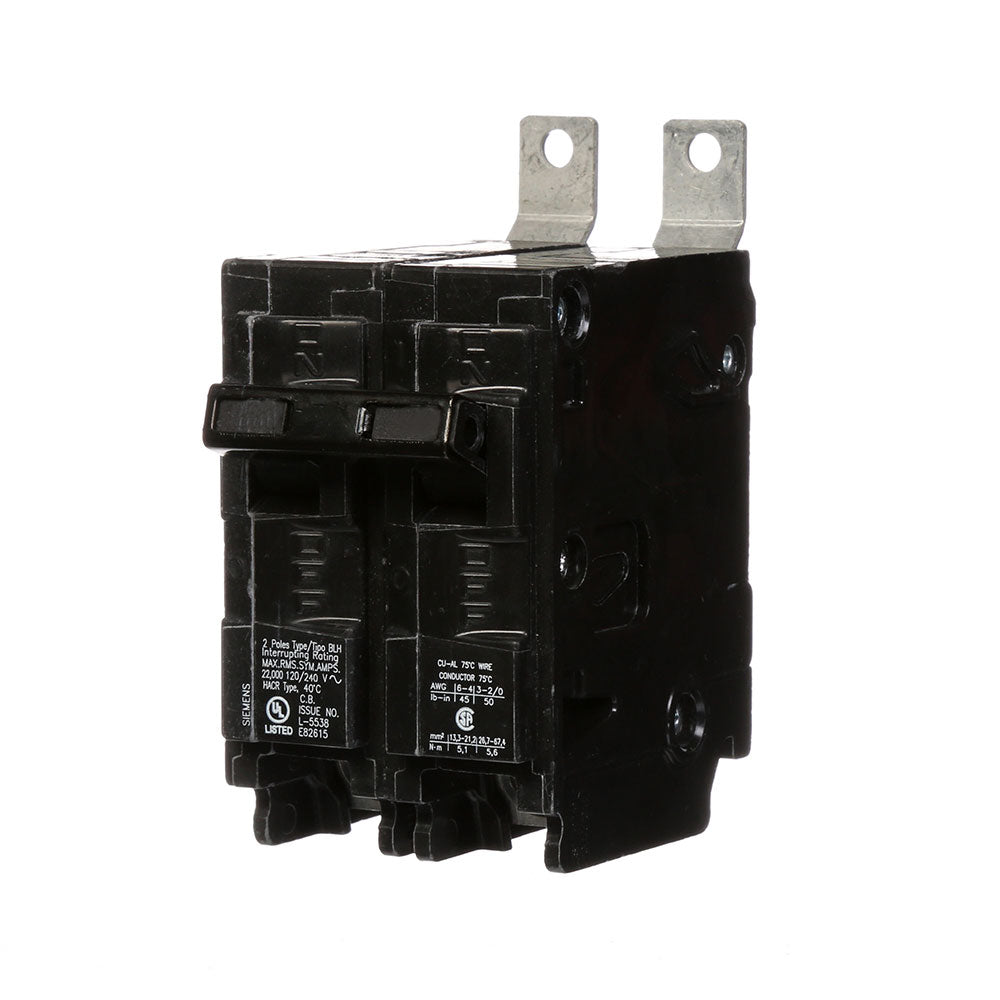

Siemens B225H - Molded Case Circuit Breaker 25A 2-Pole (120/240V)
Siemens B225H - Molded Case Circuit Breaker 25A 2-Pole (120/240V)

Siemens B225H - Molded Case Circuit Breaker 25A 2-Pole (120/240V)

Siemens
Price
Save $333.64
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Siemens B225H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 25A current rating and a 120/240V voltage rating, housed within a compact, durable frame measuring 3.937 x 2.756 x 1.969 inches and weighing 0.705 lb. This thermal magnetic breaker is constructed with bolt-on lug connections, complies with UL, CSA, HACR, and NOM standards, and is engineered for use in Siemens P1 panelboards for commercial and light industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BLH Type, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 25A
  • Dimensions: 3.937" H x 2.756" W x 1.969" D (100mm x 70mm x 50mm)
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Siemens P1 Panelboards, Commercial & Light Industrial Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Phase: 1
  • AIC Rating: 22kA @ 240V
  • Connection: Bolt-on Lug
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 125A/BLH
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Terminal Connection: Lug
  • Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Weight: 0.705 lb
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643000919
  • GTIN: 00783643000919
