Siemens
Price
Save $618.18
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

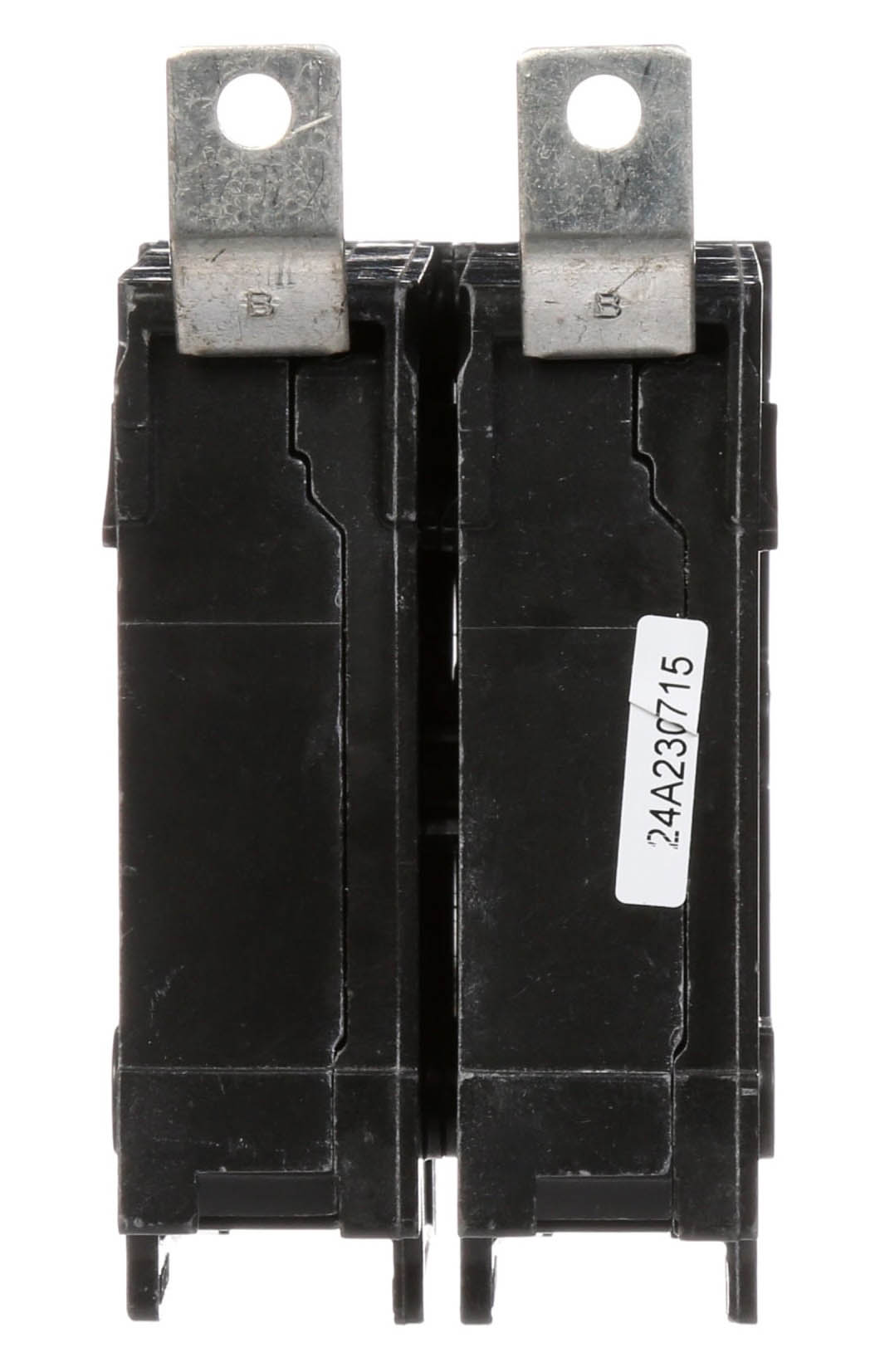

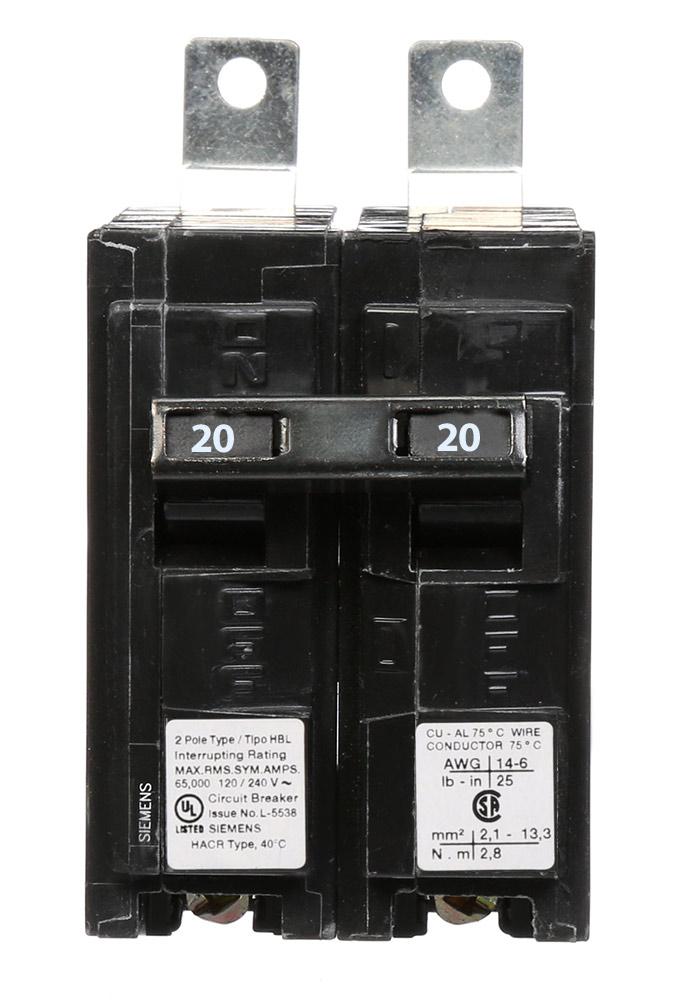

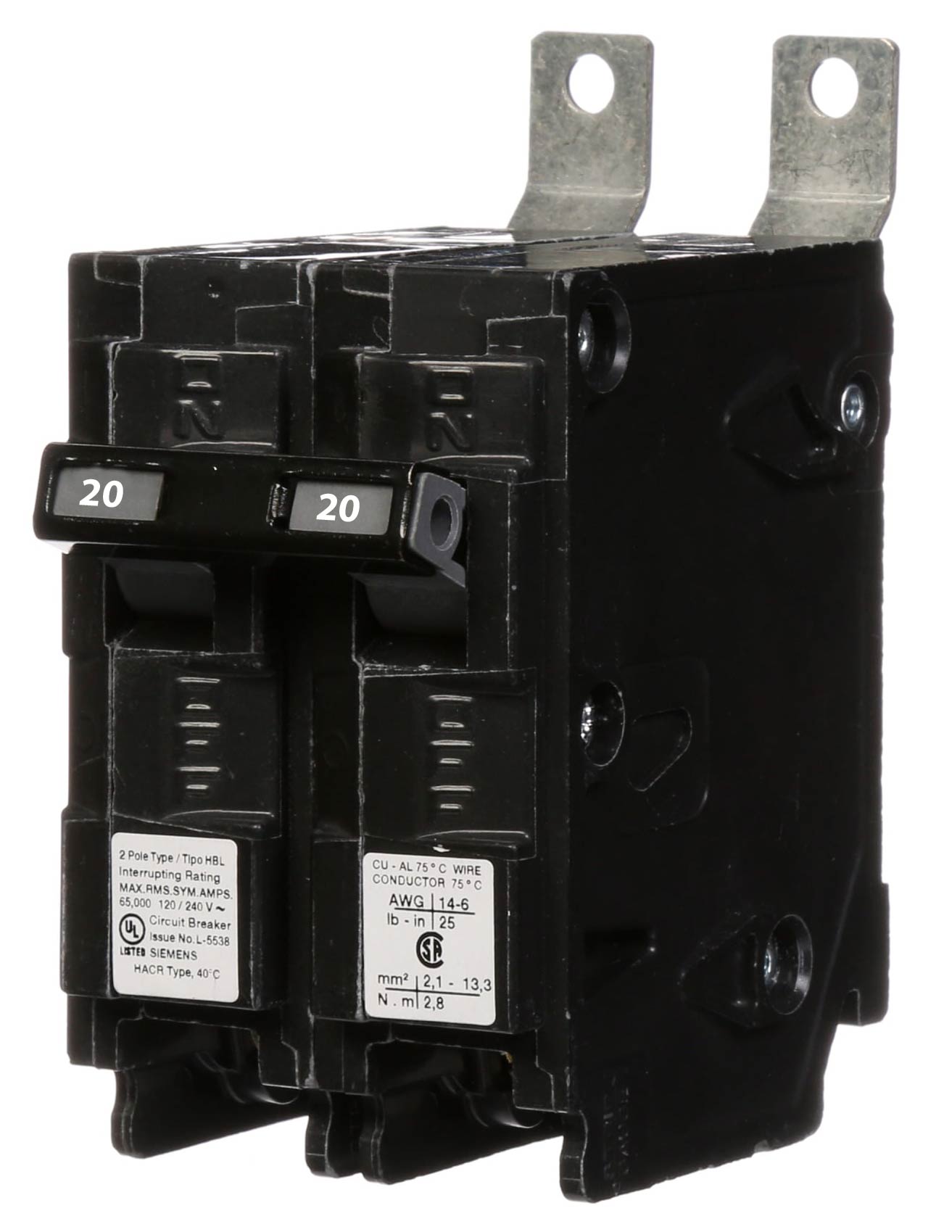

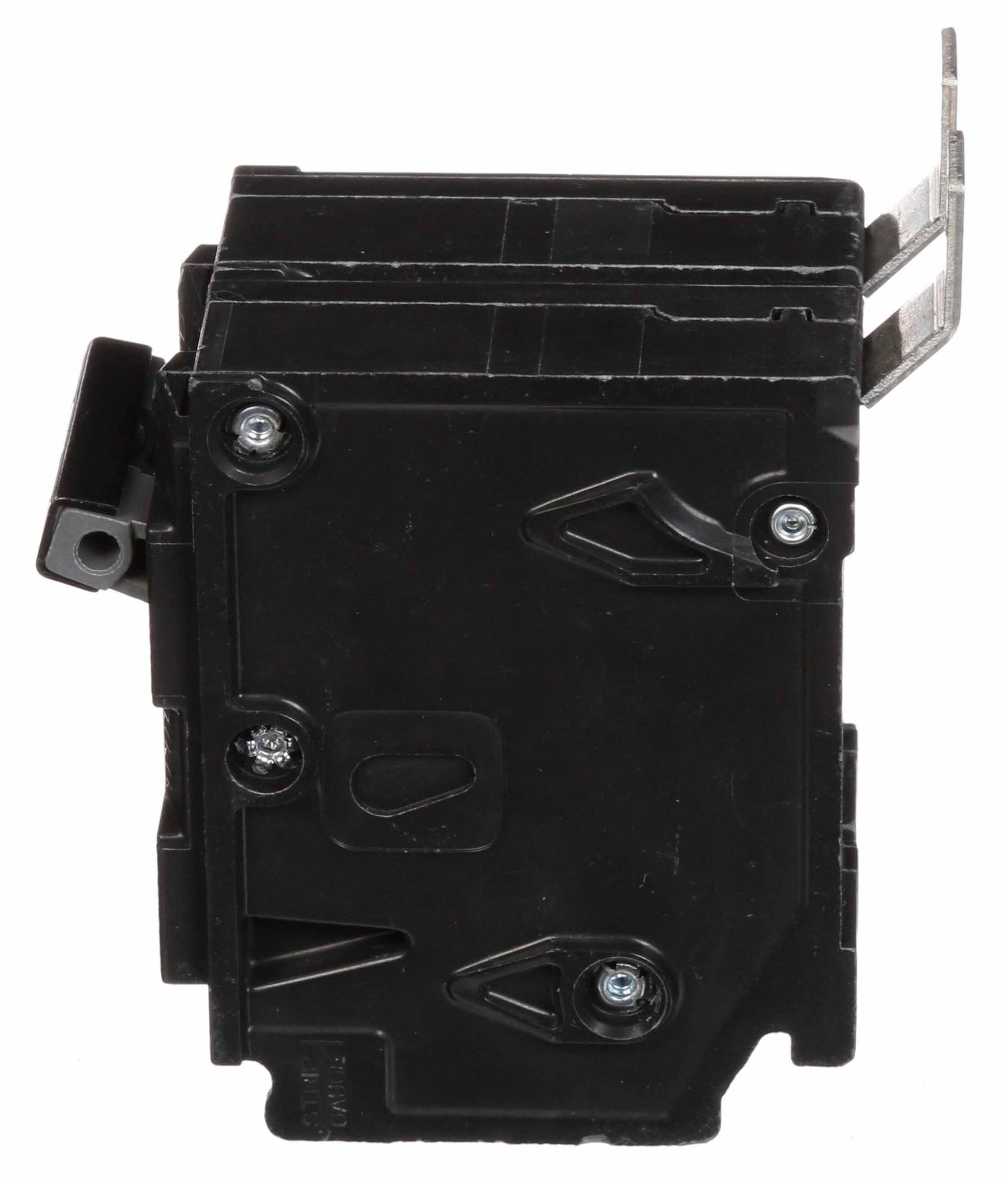

Siemens B220HH is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 20A current rating and a 120/240V voltage rating, housed within a compact, bolt-on unit measuring 2.563" x 2.00" x 3.122" and weighing 0.639 lb. The breaker is constructed with a thermal-magnetic trip mechanism for combined long-time and instantaneous (LI) protection and is certified to UL, CSA, HACR, and NOM standards. It is engineered for integration into Siemens P1 panelboards and is suitable for a wide range of commercial and light industrial applications, operating effectively in temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: HBL Series, Standard, Molded Case, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 20A
  • Frame Size: 125A/HBL
  • AIC Rating: 65kA @ 240V
  • Poles: 2
  • Phase: 1
  • Connection: Bolt-on, Lug Terminal
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Standards & Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Panel Type: Compatible with Siemens P1 Panelboards
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 2.563" x 2.00" x 3.122"
  • Weight: 0.639 lb
  • MCM Size / Wire Range: Minimum 8 AWG, Maximum 4 AWG (Aluminum) or 6 AWG (Copper)
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643264144
  • GTIN: 00783643264144
