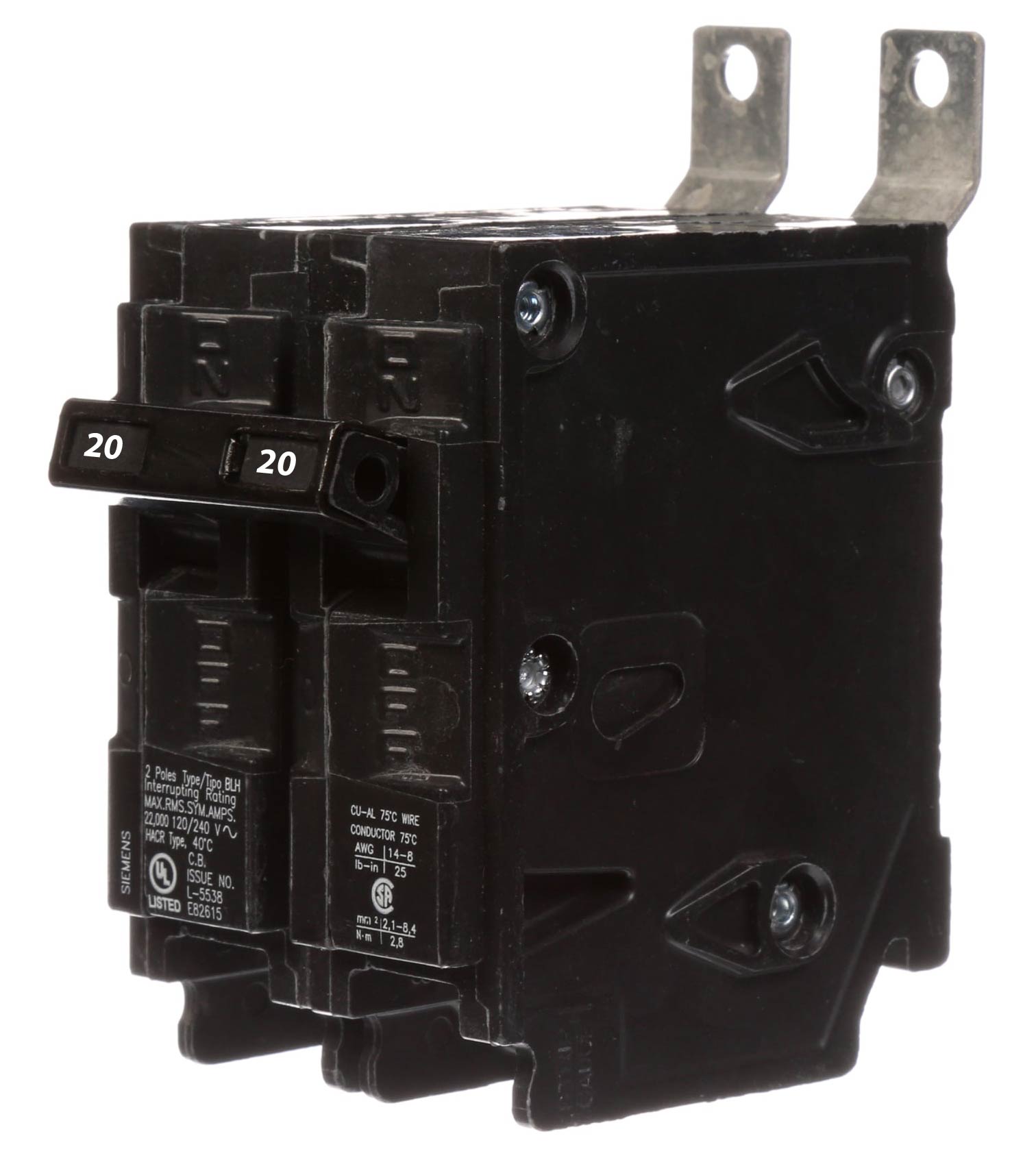

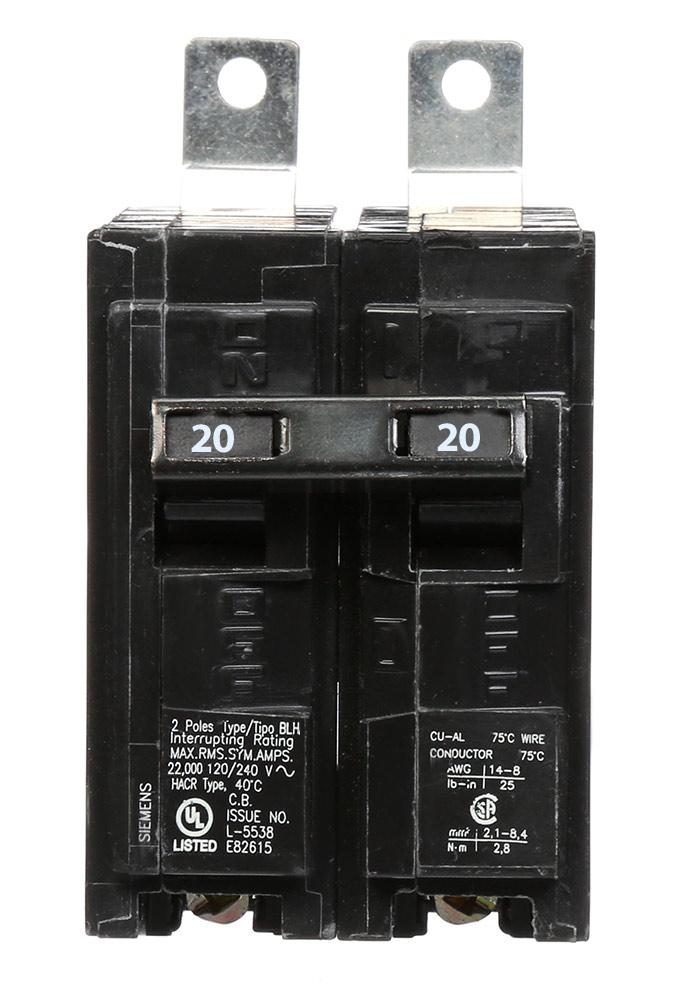

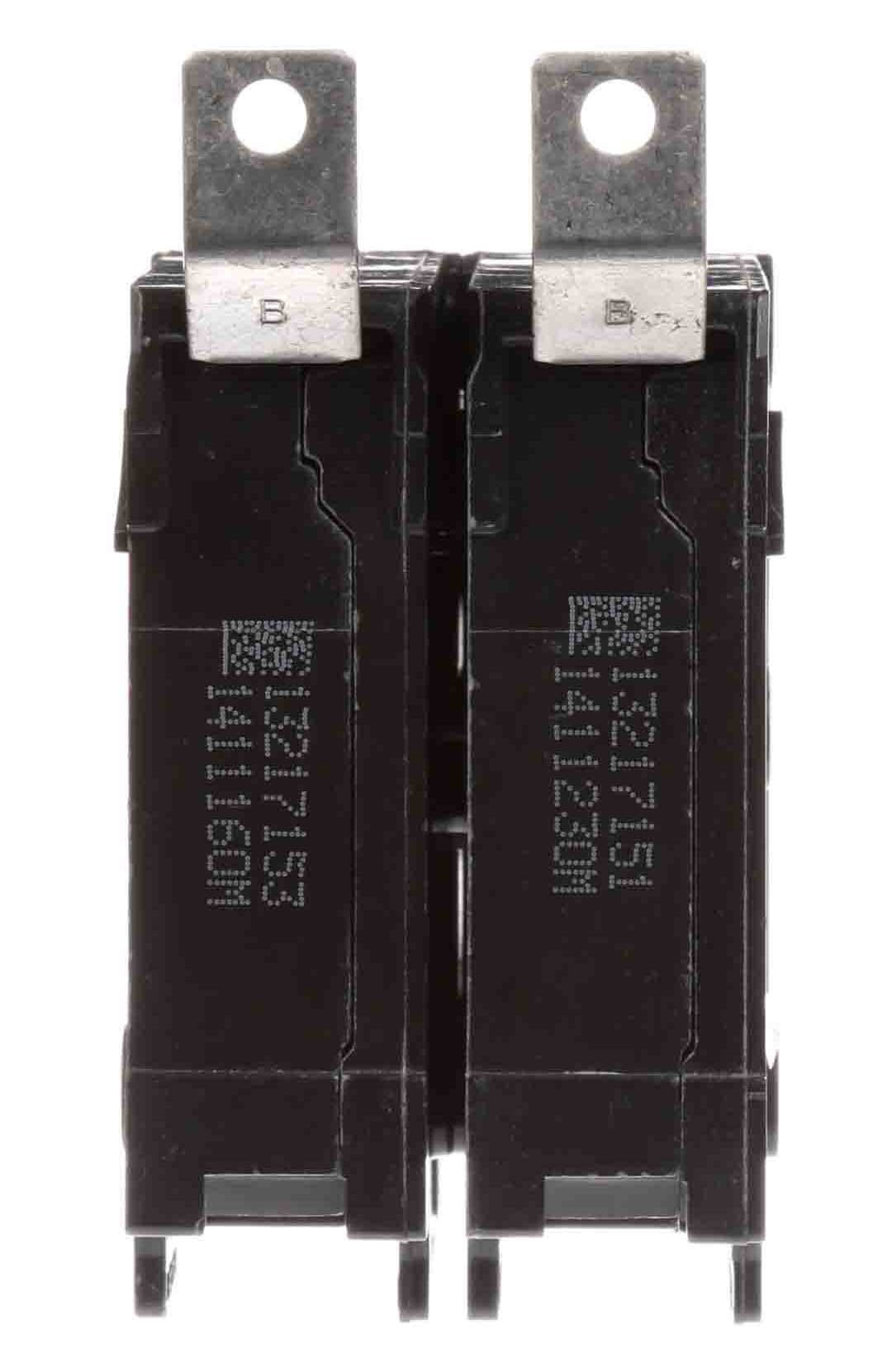

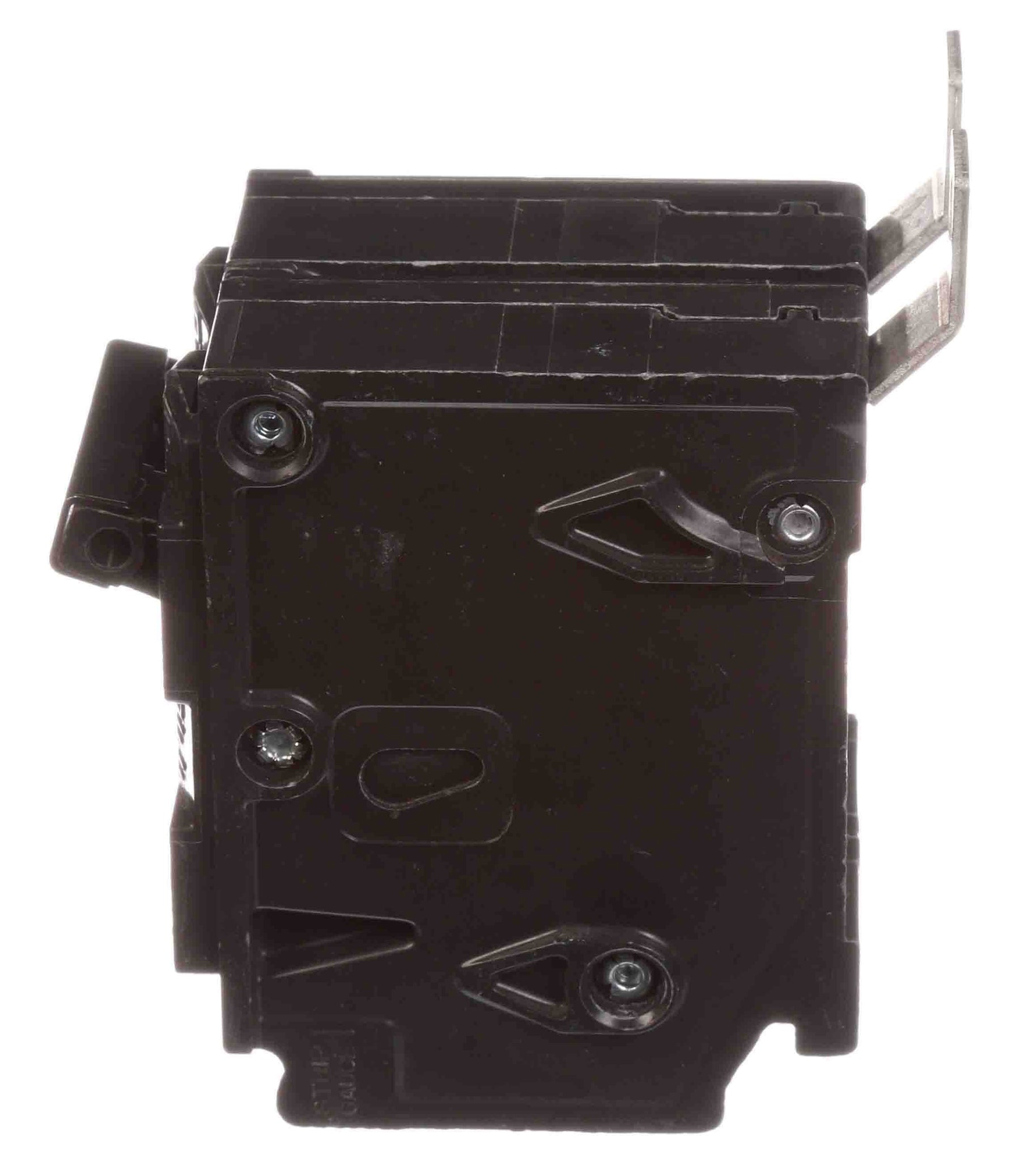

Siemens B220H - Molded Case Circuit Breaker, 20A 2-Pole (120/240V)

Price
Regular price $51.87
Regular price $401.00 Sale price $51.87
Save $349.13
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens B220H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 20A current rating and a 120/240V AC voltage rating, housed within a compact, bolt-on configuration measuring 2.756" x 2.756" x 1.969" and weighing 0.639 lb. This thermal-magnetic breaker, part of the BL Series, is constructed for compliance with key industry standards including UL, CSA, and NOM certifications. It is engineered for use in Siemens P1 panelboards, offering a 22kA interrupting capacity at 240V to safeguard residential and light commercial branch circuits.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Type
  • Voltage Rating: 120/240V AC
  • Current Rating: 20A
  • Frame Size: 125A/BLH
  • Poles: 2
  • Phase: 1
  • AIC Rating: 22kA @ 240V
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Panel Type: Siemens P1 Panelboards
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Dimensions: 2.756" x 2.756" x 1.969"
  • Weight: 0.639 lb
  • Standards & Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263901
  • GTIN: 00783643263901
