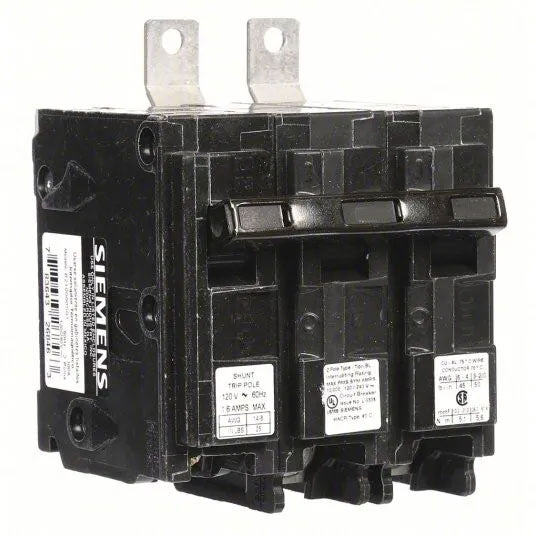

Siemens B22000S01 - Molded Case Breaker 20A 2-Pole (Shunt Trip)
Siemens B22000S01 - Molded Case Breaker 20A 2-Pole (Shunt Trip)

Siemens B22000S01 - Molded Case Breaker 20A 2-Pole (Shunt Trip)

Siemens
Price
Save $487.48
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B22000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 20A current rating and a 120/240V AC voltage rating, housed within a compact, bolt-on frame measuring 2.571 x 3.00 x 2.89 inches and weighing 0.926 lb. The breaker is constructed for durability with a thermal magnetic trip unit providing long-time and instantaneous (LI) protection and is certified to UL, CSA, HACR, and NOM standards. It is typically applied in Siemens P1 panelboards for commercial and light industrial applications requiring a shunt trip function for remote circuit interruption.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Shunt Trip, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 20A
  • Dimensions: 2.571" x 3.00" x 2.89"
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Siemens P1 Panelboards, Commercial & Light Industrial Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 125A/BL
  • Breaker Type: Shunt Trip
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Panel Type: Siemens P1 Panelboards
  • Terminal Connection: Lug
  • MCM Size: Wire Range 6 AWG to 12 AWG (Al) / 14 AWG (Cu)
  • Weight: 0.926 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643268340
  • GTIN: 00783643268340
