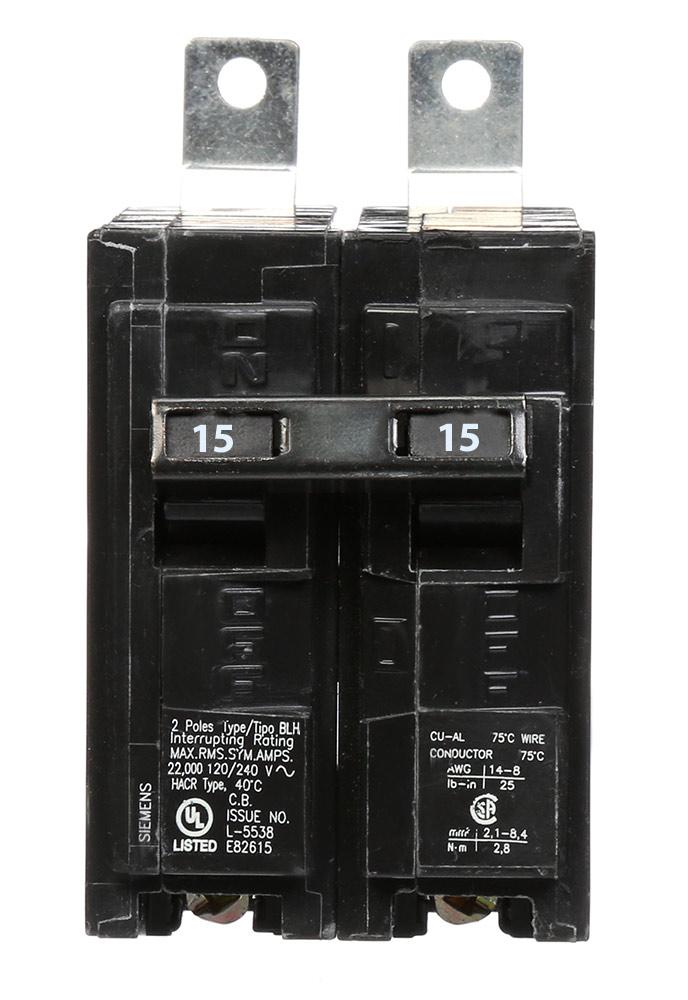

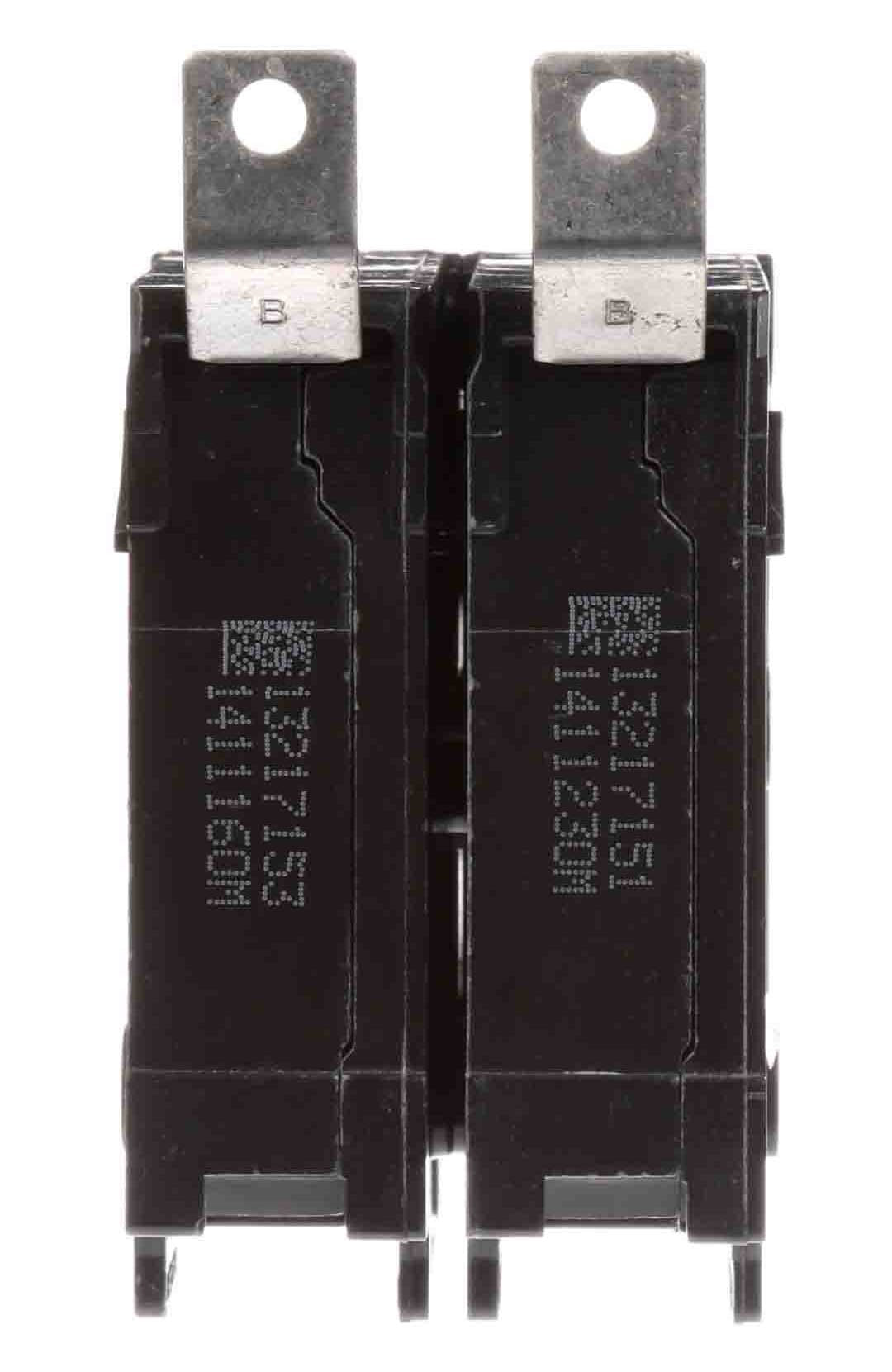

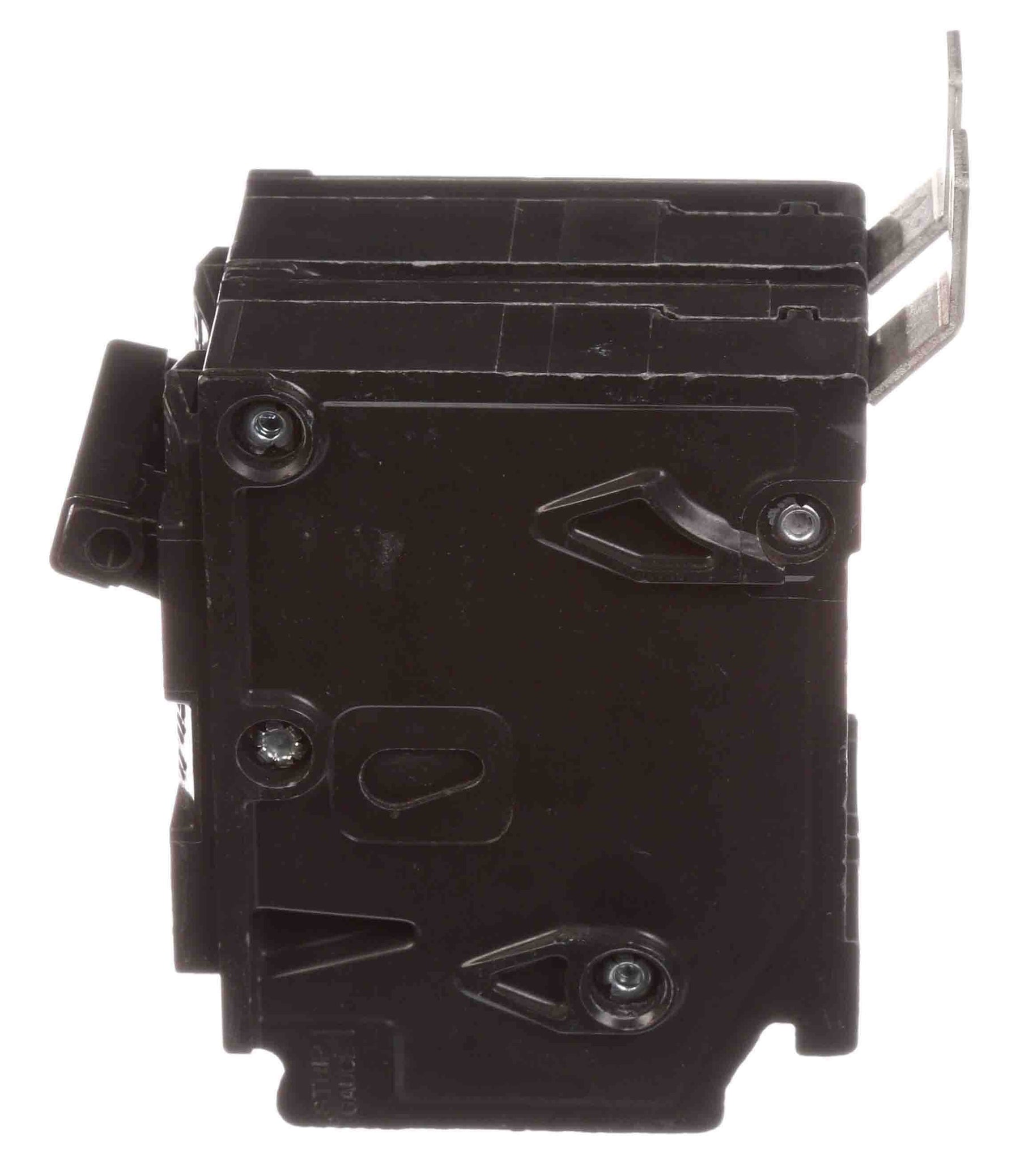

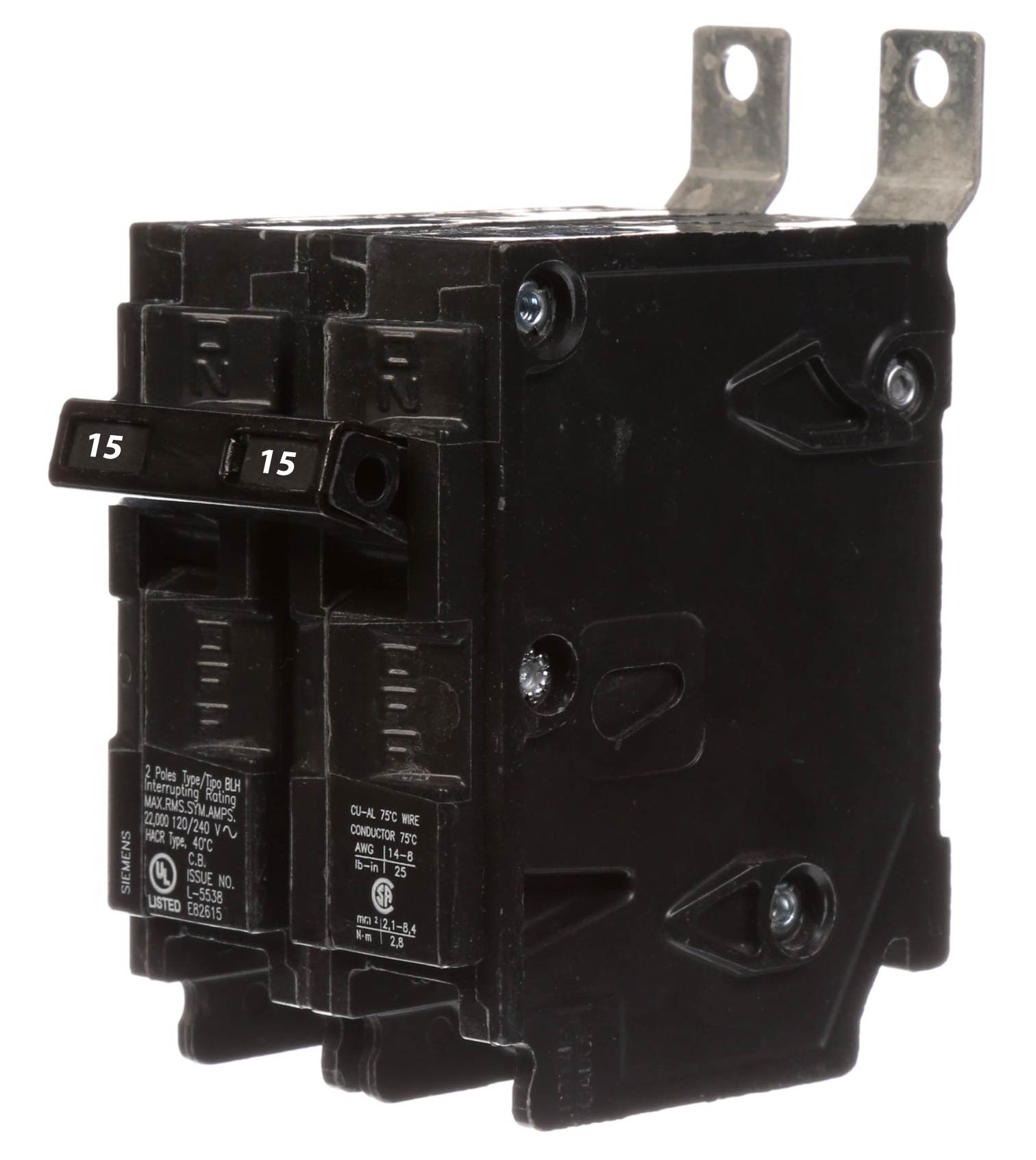

Siemens B215H - Molded Case Circuit Breaker 15A 2-Pole

Price
Regular price $53.75
Regular price $437.00 Sale price $53.75
Save $383.25
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens B215H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 15A current rating and a 120/240V voltage rating, housed within a compact, bolt-on unit measuring 3.937 x 1.969 x 3.937 inches and weighing 0.639 lb. The breaker is constructed with a thermal-magnetic trip mechanism for long-time and instantaneous (LI) protection and is certified to UL, CSA, HACR, and NOM standards. It is engineered for integration into Siemens P1 panelboards, making it suitable for a range of commercial and light industrial applications requiring a 22kA interrupting capacity at 240V.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 15A
  • Frame Size: 125A/BLH
  • Poles: 2
  • Phase: 1
  • AIC Rating: 22kA @ 240V
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • Dimensions: 3.937 x 1.969 x 3.937 inch (100 x 50 x 100 mm)
  • Weight: 0.639 lb
  • MCM Size / Wire Range: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Standards & Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263895
  • GTIN: 00783643263895
