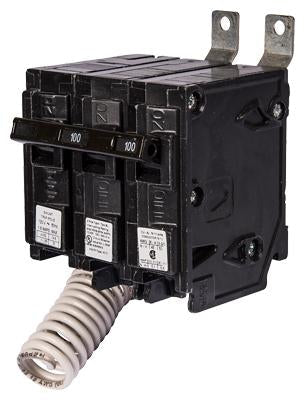

Siemens B21500S01 - Shunt Trip Circuit Breaker 15A 240V 2-Pole
Siemens B21500S01 - Shunt Trip Circuit Breaker 15A 240V 2-Pole

Siemens B21500S01 - Shunt Trip Circuit Breaker 15A 240V 2-Pole

Siemens
Price
Save $510.90
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B21500S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 15A current rating and a 240V voltage rating, housed within a compact 125A/BL frame with dimensions of 2.571" x 3.00" x 2.89" and a weight of 0.926 lb. This thermal-magnetic, shunt-trip breaker is constructed for bolt-on connection with lug terminals, accepts wire sizes from 6 to 12/14 AWG, and complies with UL, CSA, HACR, and NOM standards. It is typically applied in Siemens P1 panelboards for safeguarding single-phase branch circuits, offering an interrupting capacity of 10kA at 240V and includes an integrated 120V shunt trip coil for remote tripping functionality.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Thermal-Magnetic Protection with Shunt Trip
  • Voltage Rating: 240V AC
  • Current Rating: 15A
  • Frame Size: 125A/BL
  • Poles: 2
  • AIC Rating: 10kA @ 240V
  • Phase: 1
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • Functions: LI (Long-Time and Instantaneous)
  • Protection: Thermal Magnetic
  • Breaker Type: Shunt Trip (includes 120V coil)
  • Panel Type: Siemens P1 Panelboards
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Wire Size (MCM): Min. 12 AWG (Al) / 14 AWG (Cu), Max. 6 AWG
  • Dimensions: 2.571" H x 3.00" W x 2.89" D
  • Weight: 0.926 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643268333
  • GTIN: 00783643268333
