Siemens B215 - 2-Pole 15A Circuit Breaker (10kA AIC, 120/240V)
Siemens B215 - 2-Pole 15A Circuit Breaker (10kA AIC, 120/240V)
Siemens B215 - 2-Pole 15A Circuit Breaker (10kA AIC, 120/240V)
Siemens B215 - 2-Pole 15A Circuit Breaker (10kA AIC, 120/240V)
Siemens B215 - 2-Pole 15A Circuit Breaker (10kA AIC, 120/240V)
Siemens B215 - 2-Pole 15A Circuit Breaker (10kA AIC, 120/240V)
Siemens B215 - 2-Pole 15A Circuit Breaker (10kA AIC, 120/240V)
Siemens B215 - 2-Pole 15A Circuit Breaker (10kA AIC, 120/240V)

Siemens B215 - 2-Pole 15A Circuit Breaker (10kA AIC, 120/240V)

Siemens
Price
Save $193.80
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

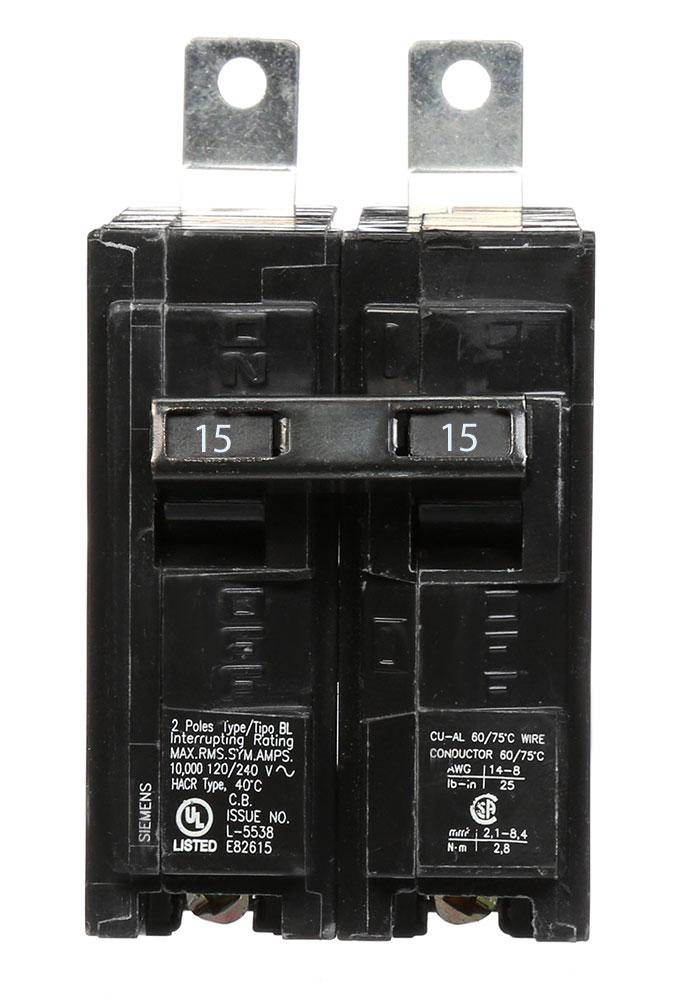

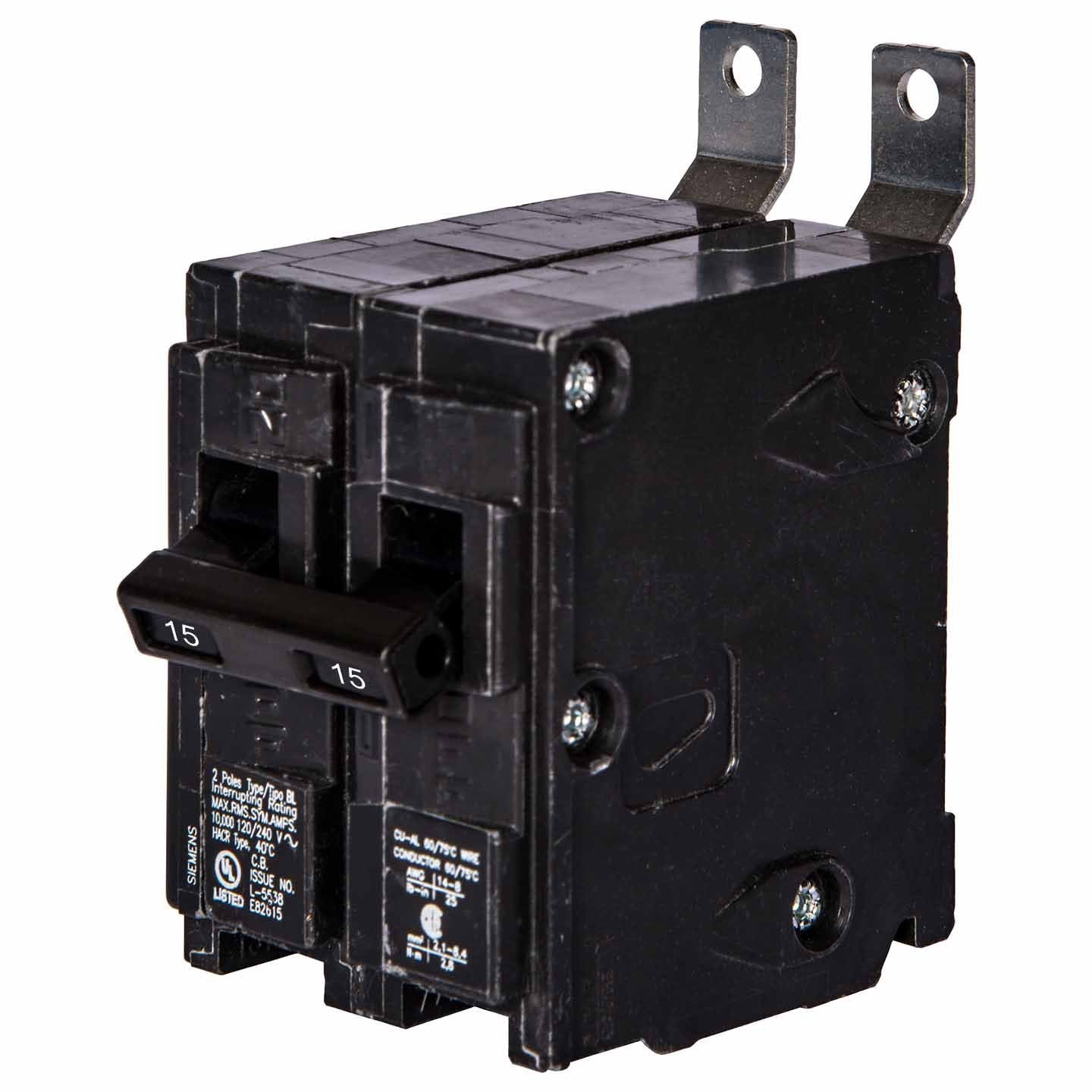

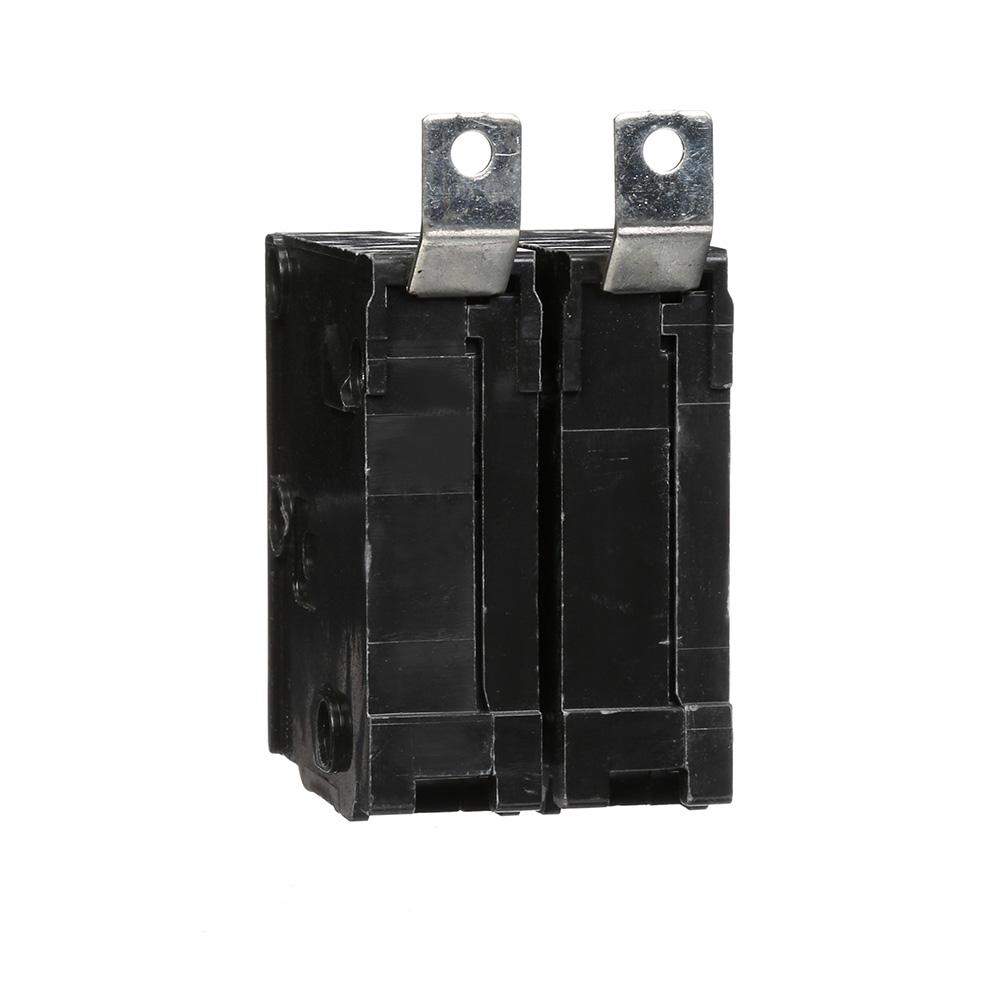

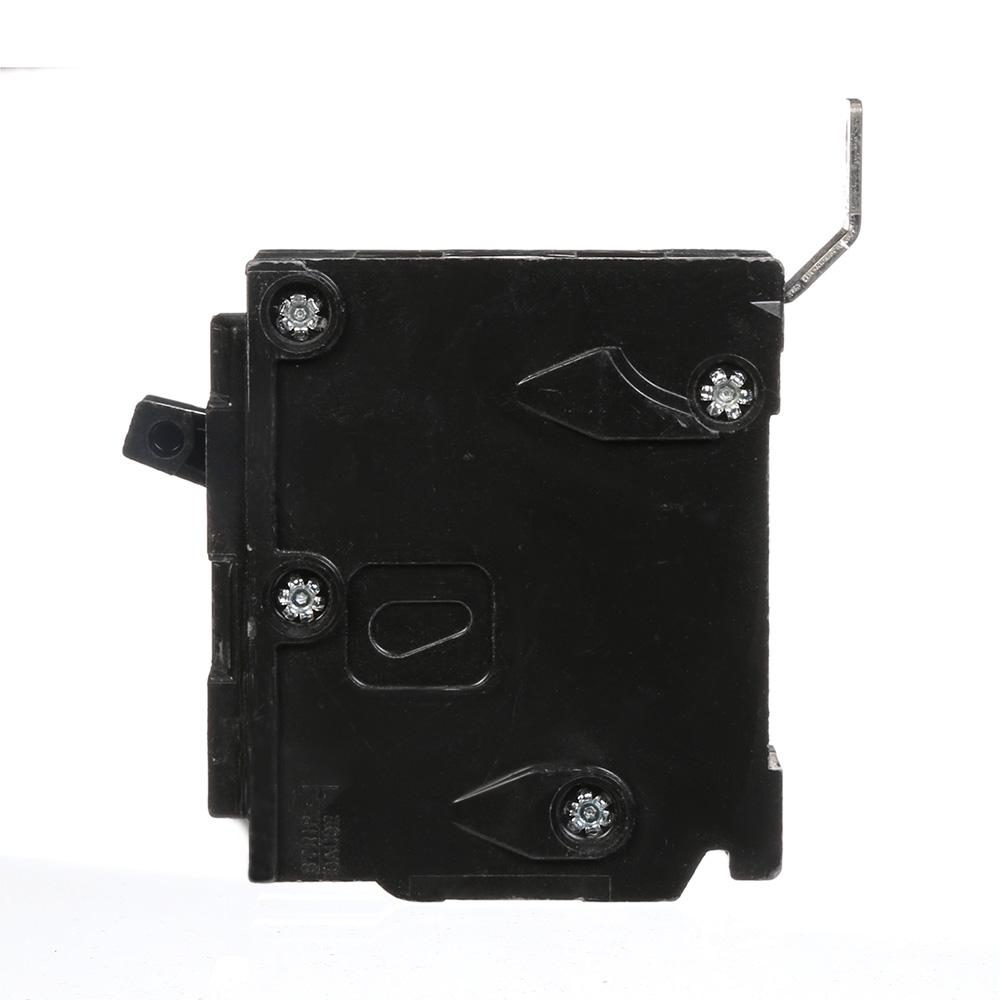

Siemens B215 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 15A current rating and a 120/240V voltage rating, housed within a compact, bolt-on unit measuring 2.571" x 2.00" x 2.89" and weighing 0.639 lb. Constructed with thermal-magnetic trip protection offering long-time and instantaneous (LI) functions, it is CSA, HACR, NOM, and UL listed for compliance and is rated for operation from -25°C to 70°C. This standard breaker, part of the BL Series with a 125A frame, is typically installed in Siemens P1 panelboards for commercial and light industrial applications, offering a 10kA interrupting capacity at 240V with lug terminals suitable for wire sizes from 12 AWG (Al) or 14 AWG (Cu) minimum to 10 AWG maximum.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 15A
  • Frame Size: 125A/BL
  • AIC Rating: 10kA @ 240V
  • Poles: 2
  • Phase: 1
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Panel Type: Siemens P1 Panelboards
  • Standards & Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 2.571 x 2.00 x 2.89 inch
  • Weight: 0.639 lb
  • MCM/Wire Size: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263529
  • GTIN: 00783643263529
