Siemens B2110 - Molded Case Breaker 110A 2-Pole (10kA AIC)
Siemens B2110 - Molded Case Breaker 110A 2-Pole (10kA AIC)

Siemens B2110 - Molded Case Breaker 110A 2-Pole (10kA AIC)

Siemens
Price
Save $925.39
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

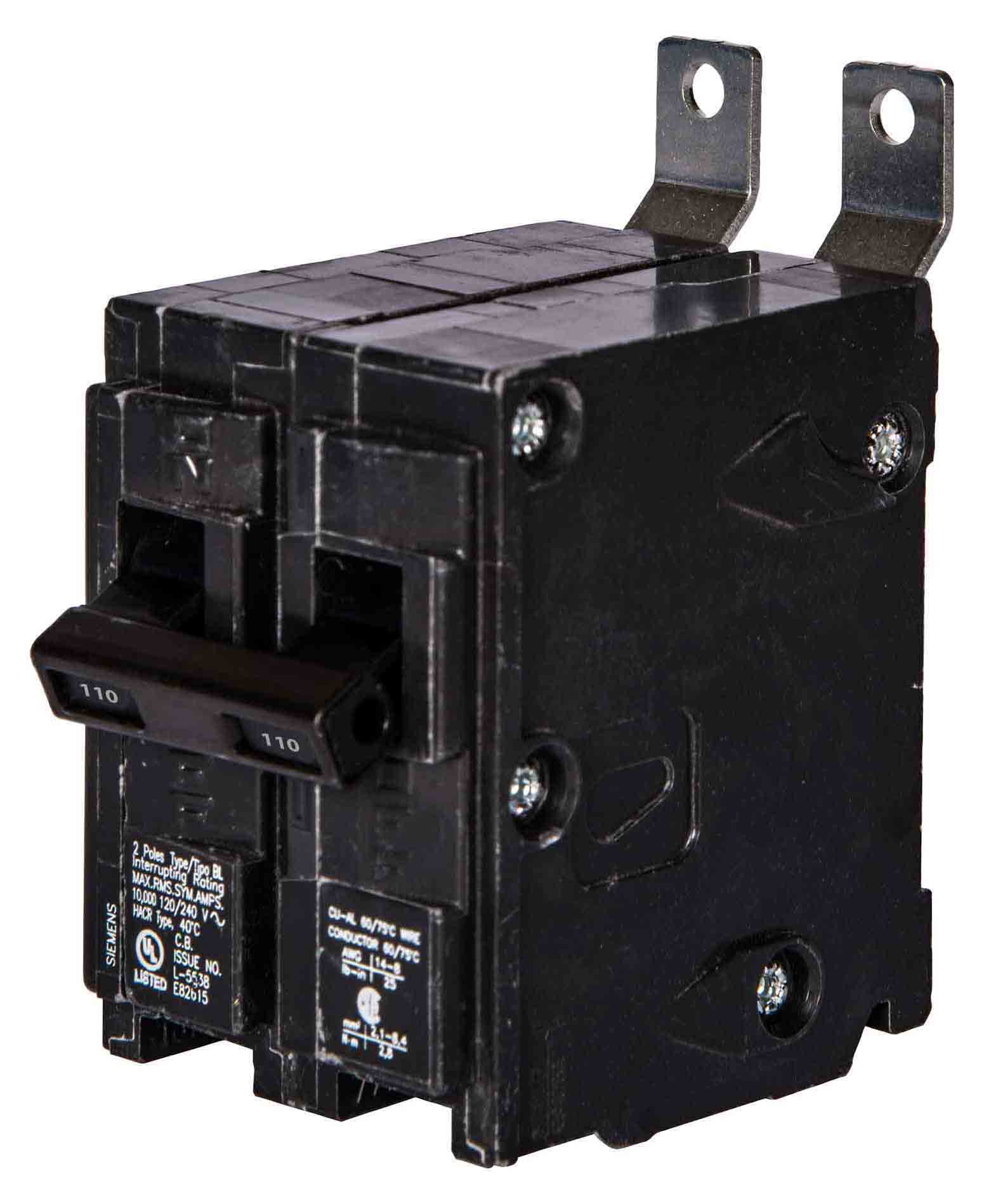

Siemens B2110 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 110A current rating and a 120/240V voltage rating, housed within a compact, bolt-on design measuring 2.756" x 1.969" x 3.937" and weighing 0.75 lb. The breaker is constructed with thermal-magnetic protection for both long-time and instantaneous trip functions, ensuring compliance with key industry standards including UL, CSA, HACR, and NOM. It is engineered for operation in temperatures from -25°C to 70°C and is typically applied in Siemens P1 panelboards for commercial and light industrial distribution.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Thermal Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 110A
  • Dimensions: 2.756" x 1.969" x 3.937" (70mm x 50mm x 100mm)
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Commercial and Light Industrial Power Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 125A/BL
  • Breaker Type: Standard
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Terminal Connection: Lug
  • MCM Size: Min. Wire 12 AWG (Al) / 14 AWG (Cu), Max. Wire 10 AWG
  • Panel Type: Siemens P1 Panelboards
  • Weight: 0.75 lb


Product Identification
  • UPC: 783643263659
  • GTIN: 00783643263659
