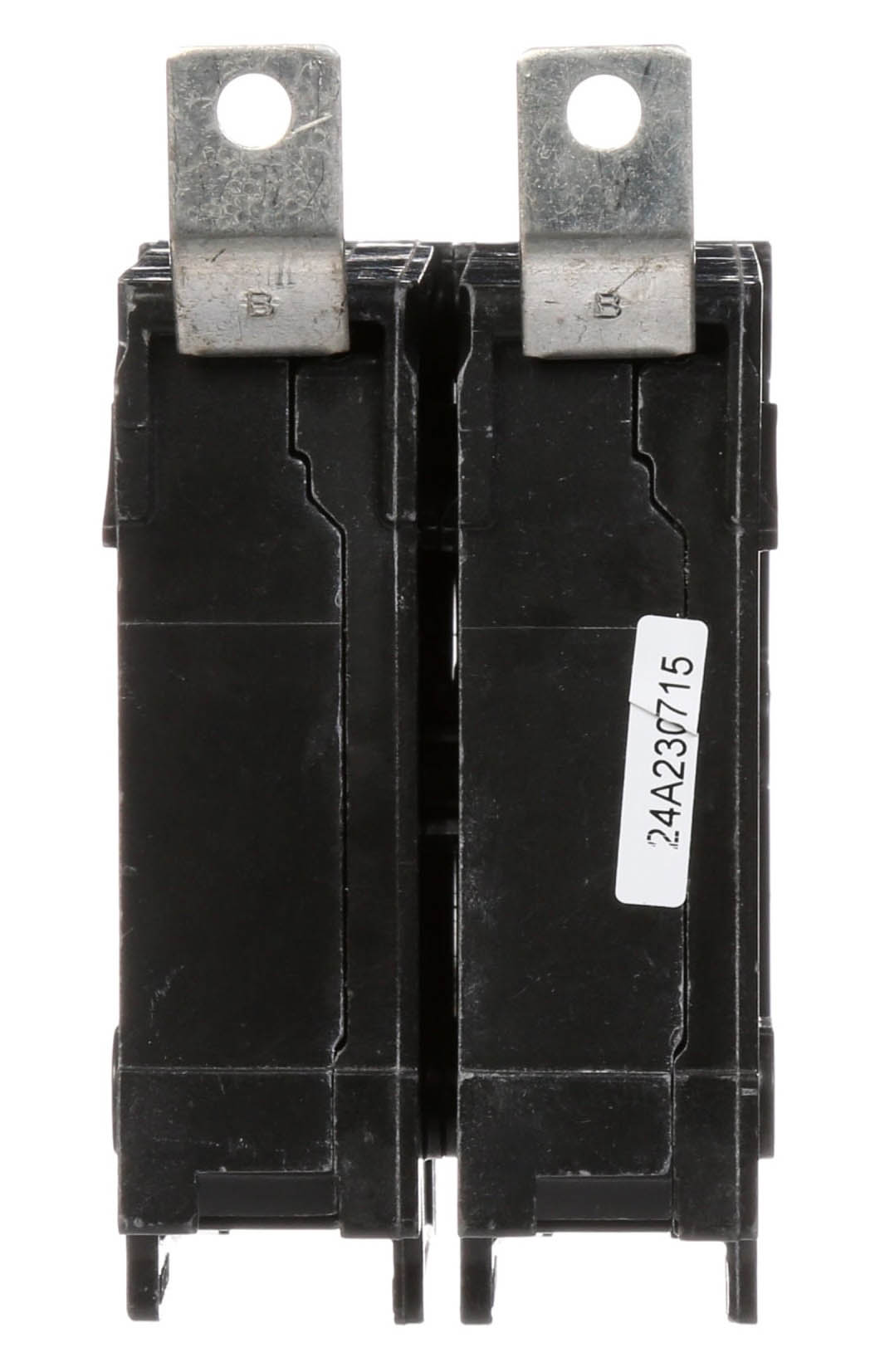

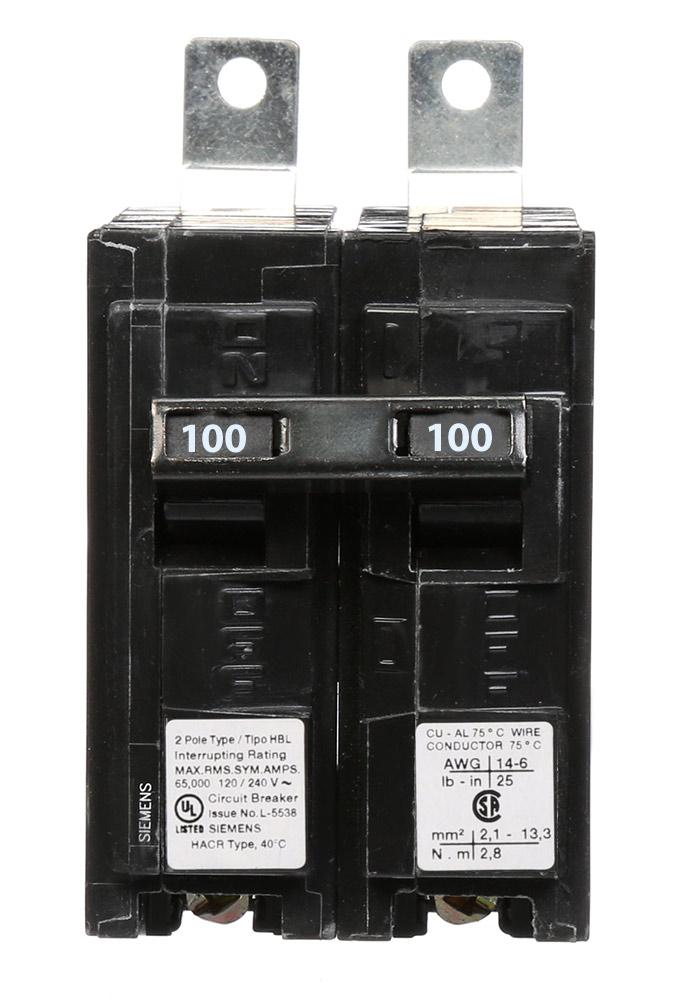

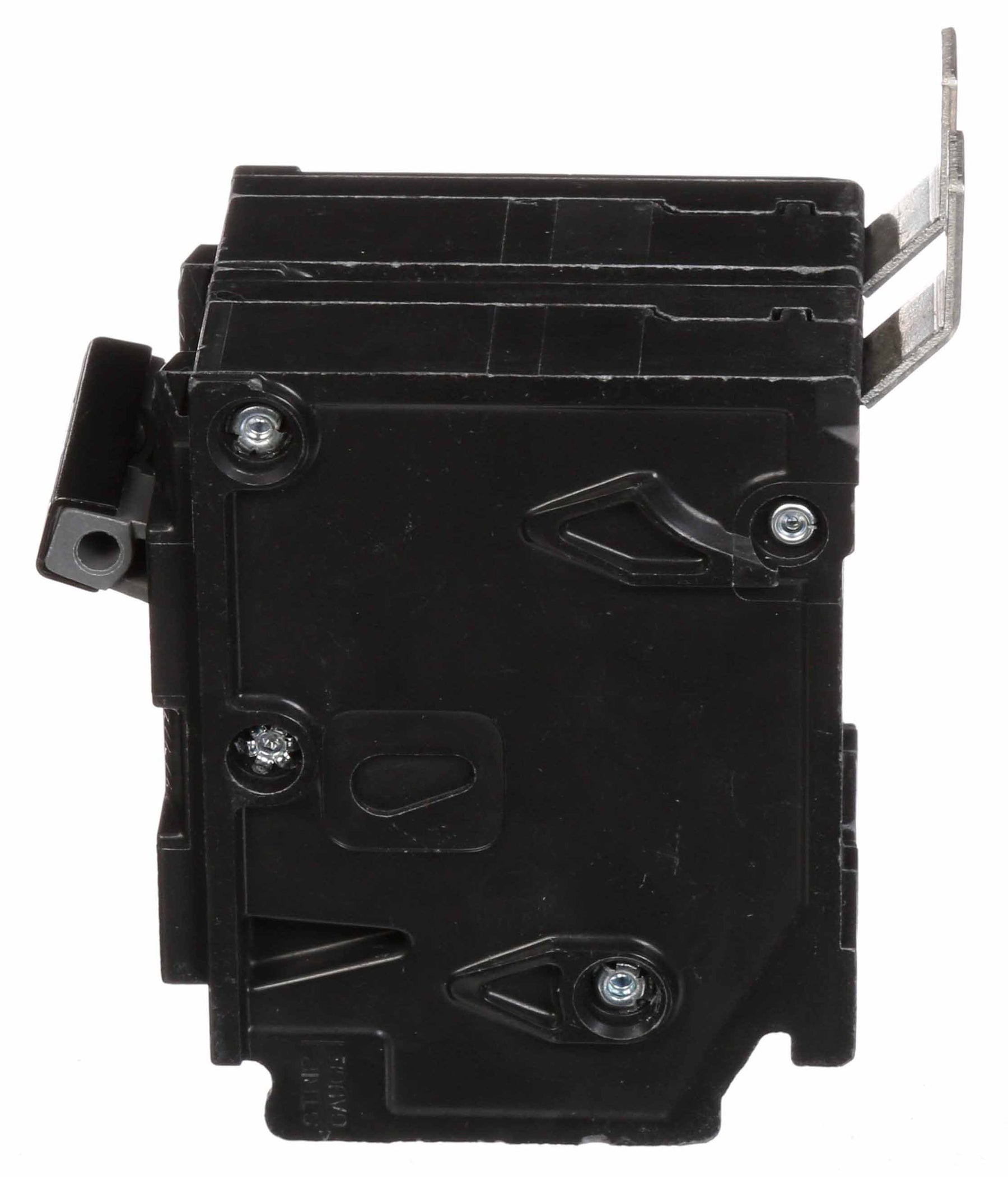

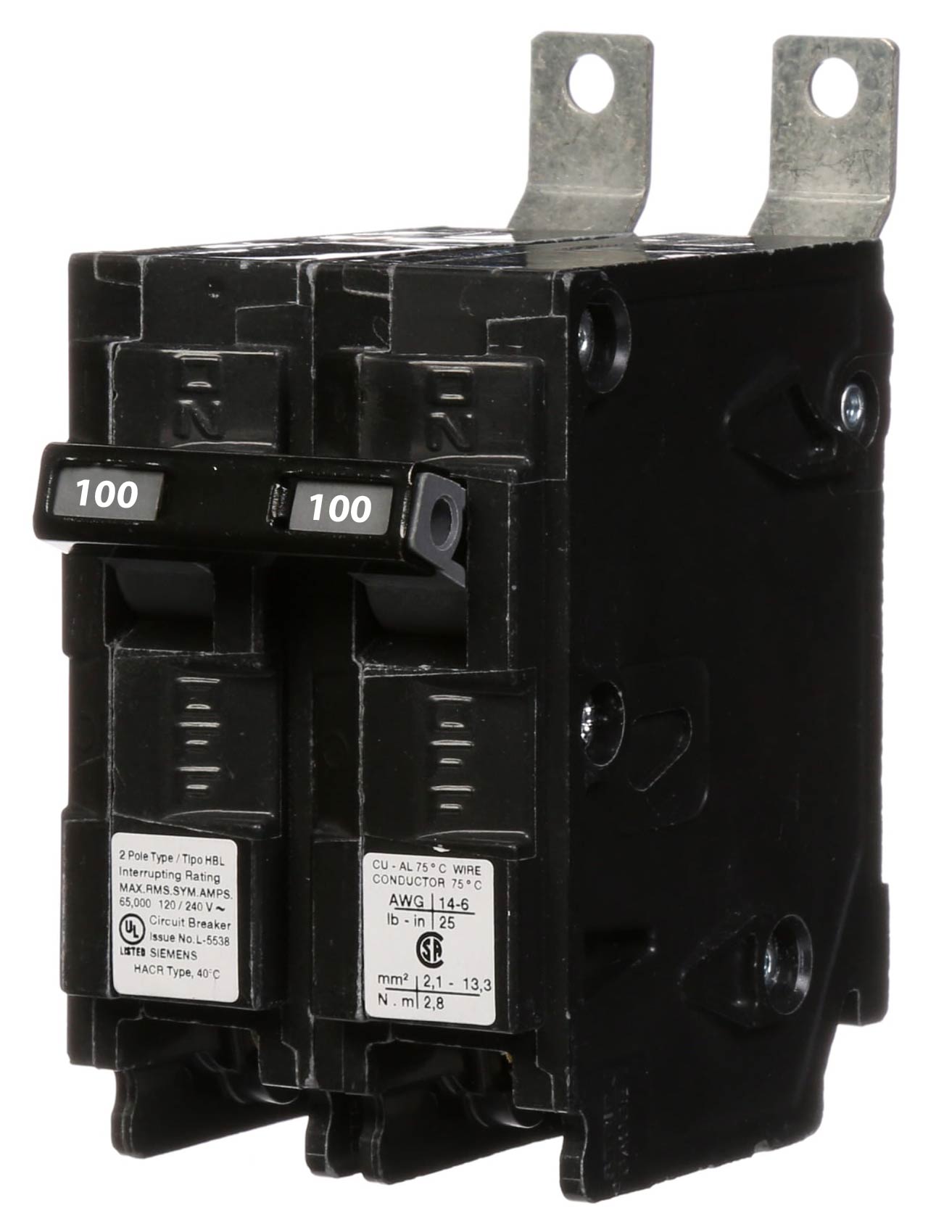

Siemens B2100HH - Molded Case Circuit Breaker, 100A 2-Pole

Price
Regular price $137.82
Regular price $1,783.00 Sale price $137.82
Save $1,645.18
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens B2100HH is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in commercial and industrial electrical systems. It features a 100A current rating and a 120/240V AC voltage rating, housed within a compact, durable frame measuring 2.563" x 2.00" x 3.122" and weighing 0.639 lb. This thermal-magnetic breaker is CSA, HACR, NOM, and UL listed, ensuring compliance with key North American safety standards for use in Siemens P1 panelboards. Its 65kA interrupting rating at 240V and bolt-on lug connection make it suitable for main feeder and branch circuit protection in a variety of single-phase applications.

Key Features & Specifications
  • Type: HBL Standard Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 120/240V AC
  • Current Rating: 100A
  • Frame Size: 125A/HBL
  • Poles: 2
  • Phase: 1
  • AIC Rating: 65kA @ 240V
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • MCM Size / Wire Range: Min. 8 AWG, Max. 4 AWG (Al) or 6 AWG (Cu)
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Protection: Thermal Magnetic
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • Dimensions: 2.563" x 2.00" x 3.122"
  • Weight: 0.639 lb
  • Standards/Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643270084
  • GTIN: 00783643270084
