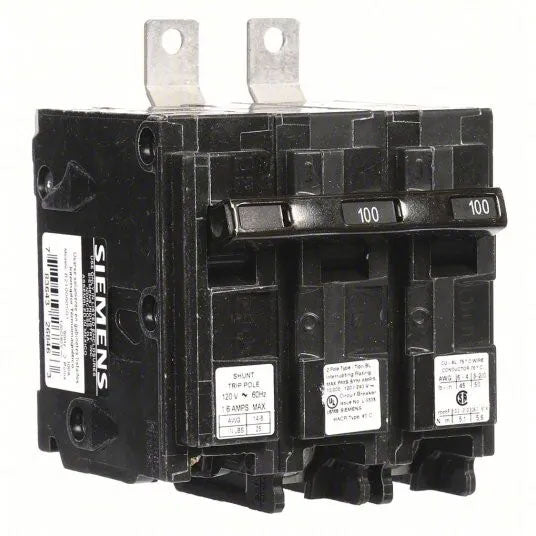

Siemens B210000S01 - Shunt Trip Circuit Breaker 100A 2-Pole
Siemens B210000S01 - Shunt Trip Circuit Breaker 100A 2-Pole

Siemens B210000S01 - Shunt Trip Circuit Breaker 100A 2-Pole

Siemens
Price
Save $871.95
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B210000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 100A current rating and a 120/240V voltage rating, housed within a compact 125A/BL frame with dimensions of 2.563" x 3.00" x 3.122" and a weight of 0.926 lb. This thermal magnetic, shunt trip breaker is constructed for bolt-on connection with lug terminals and is certified to UL, CSA, HACR, and NOM standards for safety and interoperability. Its 10kA interrupting rating at 240V and LI (Long-time and Instantaneous) trip functions make it suitable for protecting feeders and branch circuits, specifically within Siemens P1 panelboards, across an operating temperature range of -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BL Series, Thermal Magnetic Protection with Shunt Trip
  • Voltage Rating: 120/240V AC
  • Current Rating: 100 Amps
  • Frame Size: 125A/BL
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Connection: Bolt-on, Lug Terminal
  • Panel Type: Siemens P1 Panelboards
  • Wire Size Range: Minimum 12 AWG (Al) / 14 AWG (Cu), Maximum 6 AWG
  • Operating Temperature: -25°C to 70°C
  • Standards & Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Dimensions: 2.563" H x 3.00" W x 3.122" D
  • Weight: 0.926 lb
  • Additional Info: Complete with 120V shunt trip coil


Product Identification
  • UPC: 783643268463
  • GTIN: 00783643268463
