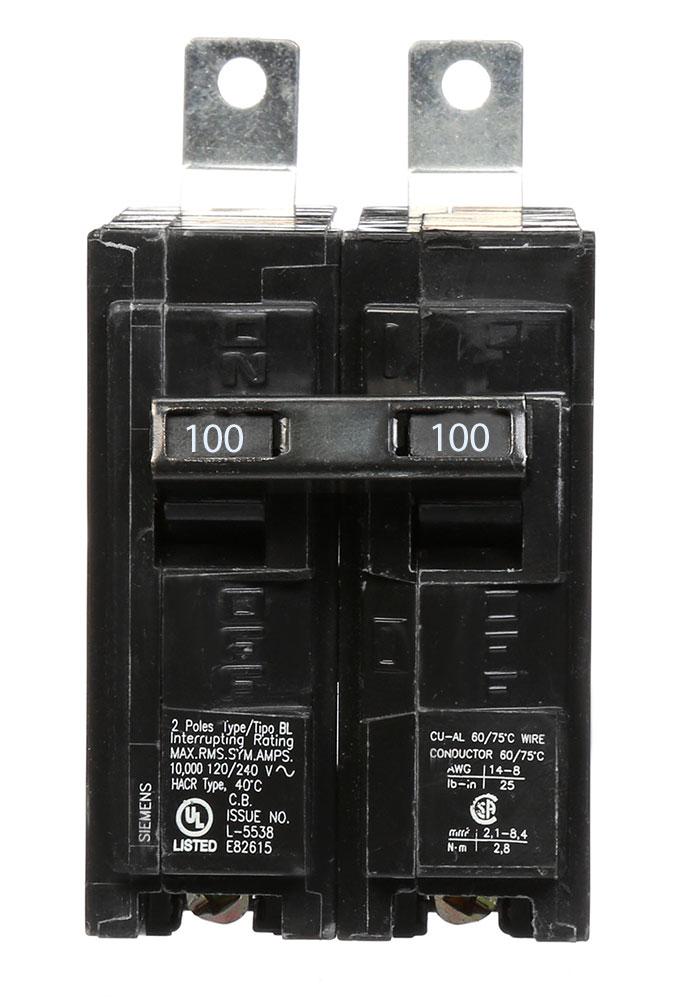

Siemens B2100 - Molded Case Circuit Breaker 100A 240V 2-Pole
Siemens B2100 - Molded Case Circuit Breaker 100A 240V 2-Pole
Siemens B2100 - Molded Case Circuit Breaker 100A 240V 2-Pole
Siemens B2100 - Molded Case Circuit Breaker 100A 240V 2-Pole
Siemens B2100 - Molded Case Circuit Breaker 100A 240V 2-Pole
Siemens B2100 - Molded Case Circuit Breaker 100A 240V 2-Pole
Siemens B2100 - Molded Case Circuit Breaker 100A 240V 2-Pole
Siemens B2100 - Molded Case Circuit Breaker 100A 240V 2-Pole

Siemens B2100 - Molded Case Circuit Breaker 100A 240V 2-Pole

Siemens
Price
Save $521.01
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B2100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 100A current rating and a 240V AC voltage rating, housed within a compact, plug-in design measuring 2.563" x 2.00" x 3.122" and weighing 0.639 lb. The breaker is constructed with a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection and is certified to UL, CSA, HACR, and NOM standards. It is engineered for use in Siemens P1 panelboards and similar industrial and commercial applications requiring a 10kA interrupting capacity at 240V.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Frame Size: 125A/BL
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In
  • Terminal Connection: Lug (Min. Wire: 12 AWG Al / 14 AWG Cu, Max. Wire: 10 AWG)
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Dimensions: 2.563" H x 2.00" W x 3.122" D
  • Weight: 0.639 lb
  • Panel Type: Siemens P1 Panelboards
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263642
  • GTIN: 00783643263642
  • Family: BL Series
