Siemens B170H - Molded Case Circuit Breaker 70A 1-Pole (120V)
Siemens B170H - Molded Case Circuit Breaker 70A 1-Pole (120V)
Siemens B170H - Molded Case Circuit Breaker 70A 1-Pole (120V)
Siemens B170H - Molded Case Circuit Breaker 70A 1-Pole (120V)
Siemens B170H - Molded Case Circuit Breaker 70A 1-Pole (120V)
Siemens B170H - Molded Case Circuit Breaker 70A 1-Pole (120V)
Siemens B170H - Molded Case Circuit Breaker 70A 1-Pole (120V)
Siemens B170H - Molded Case Circuit Breaker 70A 1-Pole (120V)

Siemens B170H - Molded Case Circuit Breaker 70A 1-Pole (120V)

Siemens
Price
Save $213.50
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

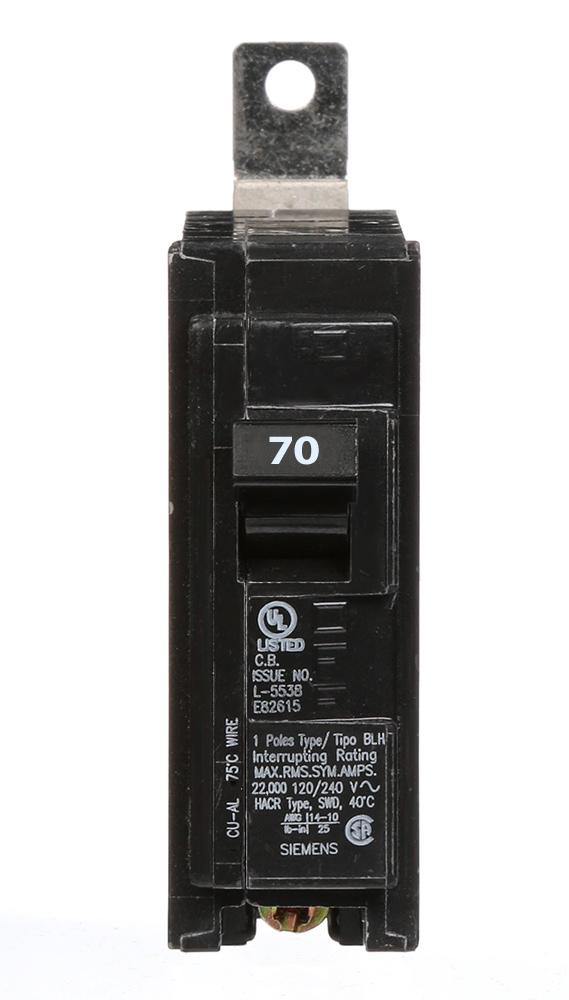

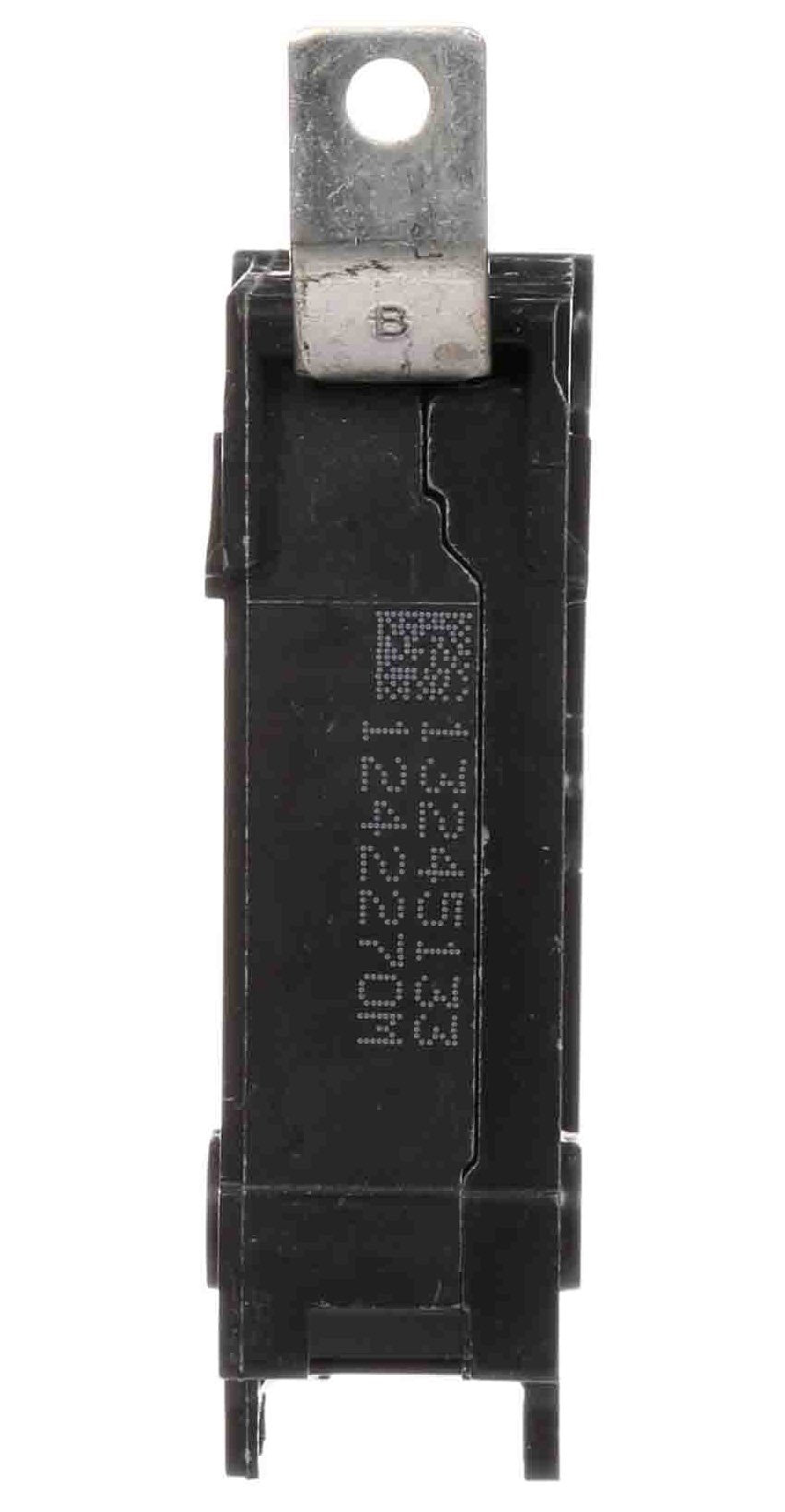

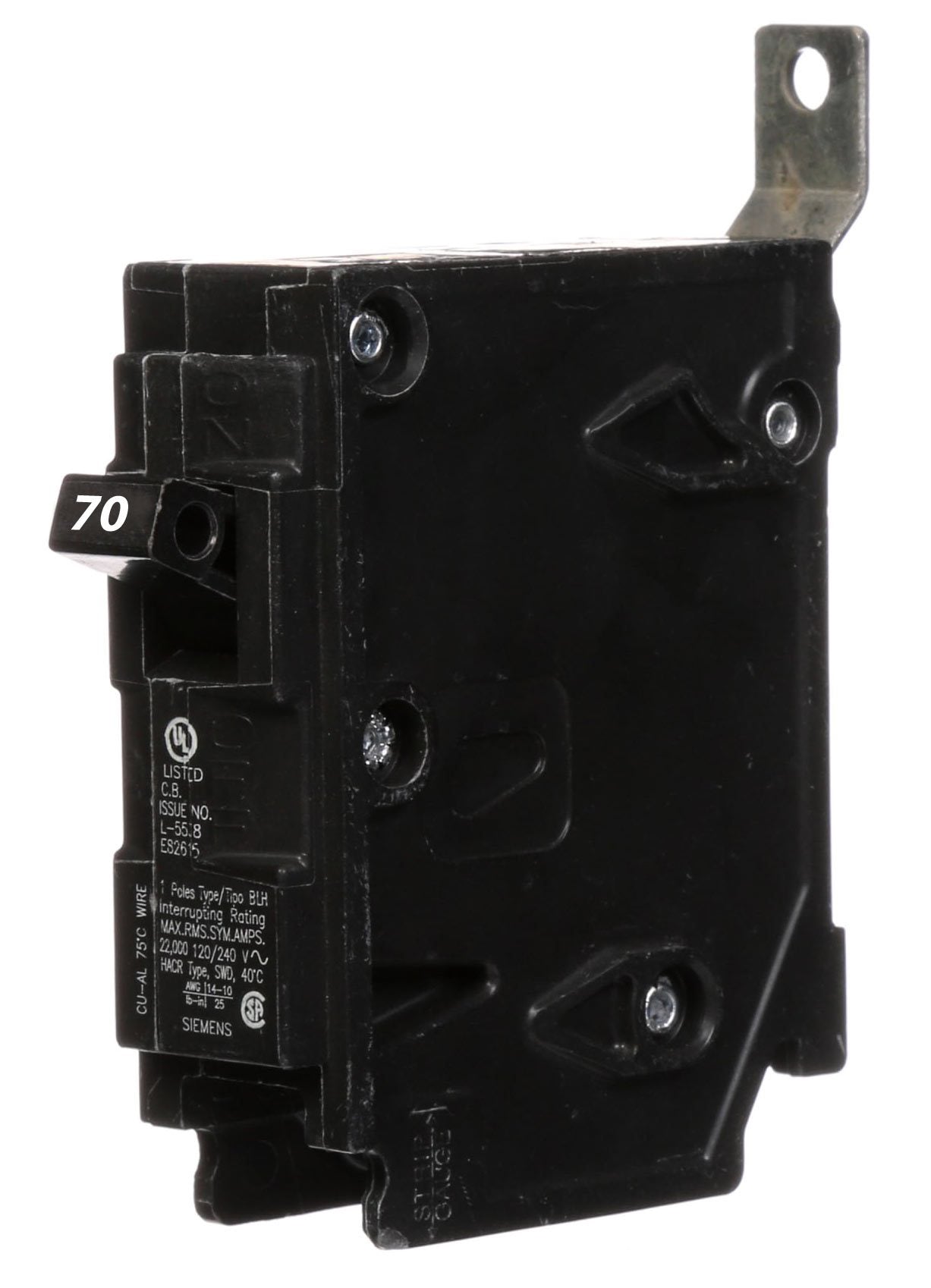

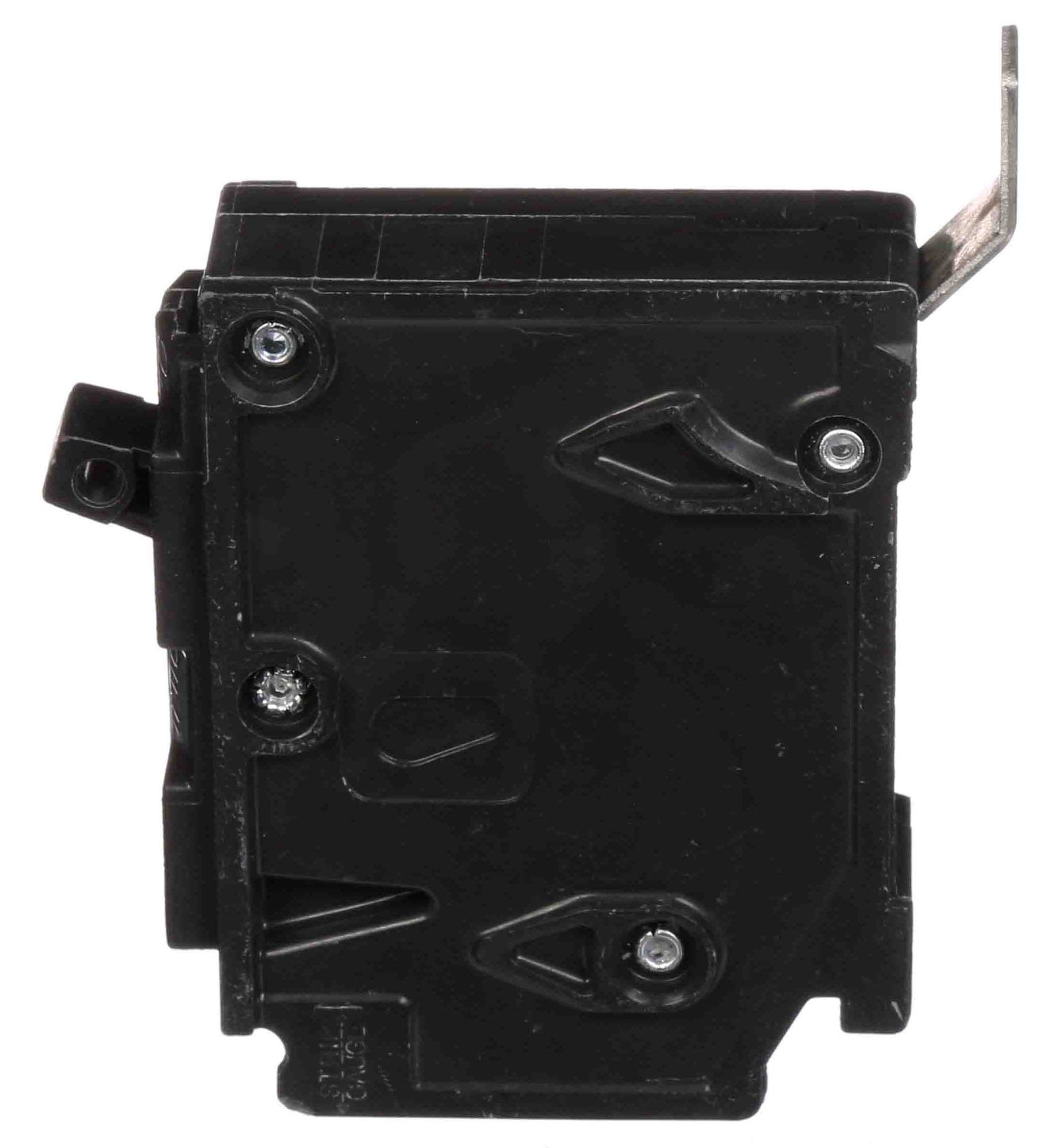

Siemens B170H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 70A current rating and a 120V voltage rating, housed within a compact, bolt-on unit measuring 2.756" x 0.787" x 3.937" (70mm x 20mm x 100mm) and weighing 0.353 lb. This thermal-magnetic breaker is CSA, HACR, NOM, and UL listed, ensuring compliance with key North American safety standards for use in Siemens P1 panelboards and similar industrial and commercial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard Type, BLH Series, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 70A
  • Dimensions: 2.756" x 0.787" x 3.937" (70mm x 20mm x 100mm)
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Overcurrent and short-circuit protection in Siemens P1 Panelboards and compatible single-phase systems
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Poles: 1
  • Phase: 1
  • AIC Rating: 22kA @ 240V
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 125A/BLH
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • MCM Size: Min. Wire Size 8 AWG, Max. Wire Size 2 AWG (Aluminum) or 4 AWG (Copper)
  • Weight: 0.353 lb
  • Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263888
  • GTIN: 00783643263888
