Siemens
Price
Save $-85.25
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price

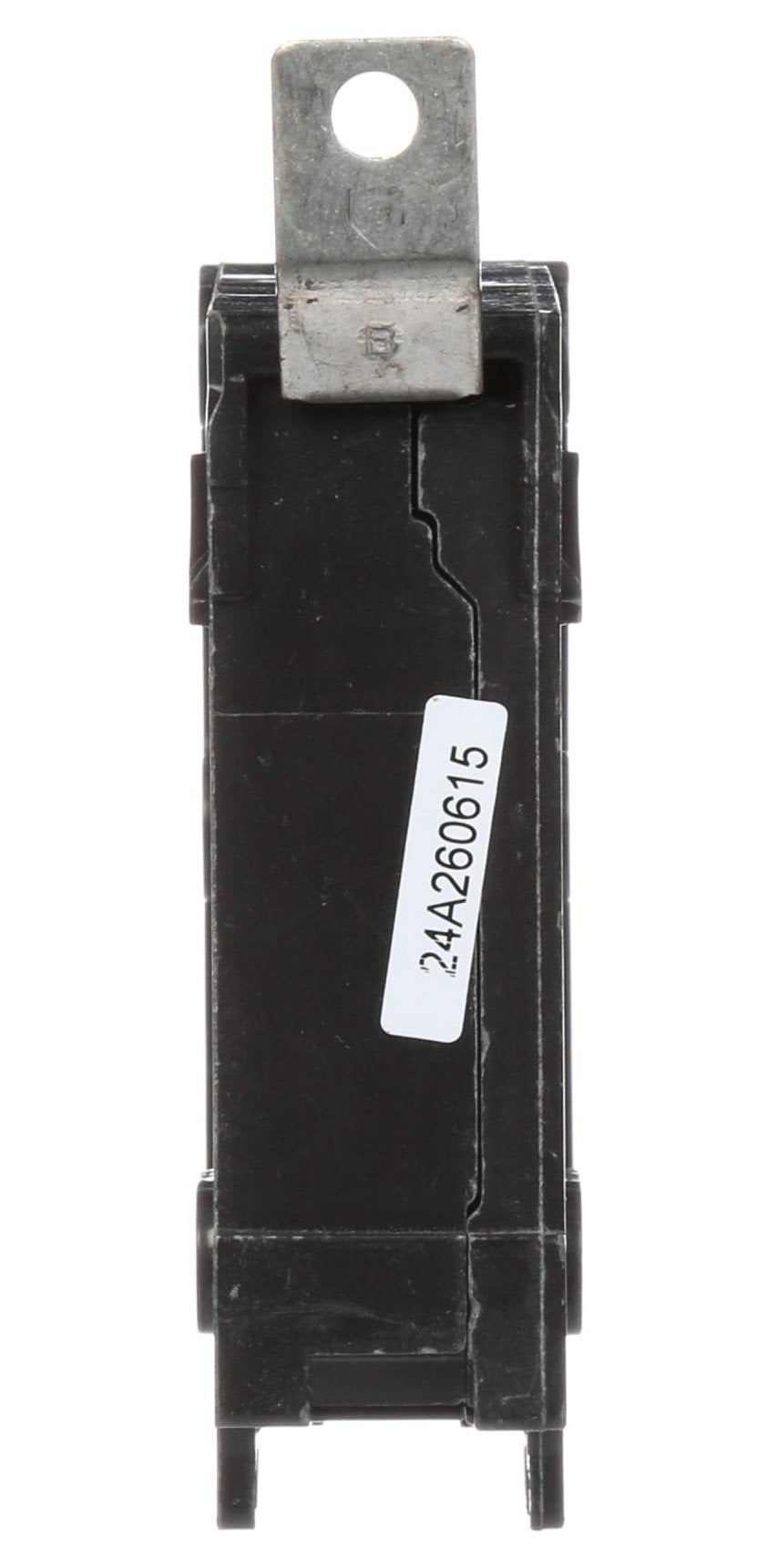

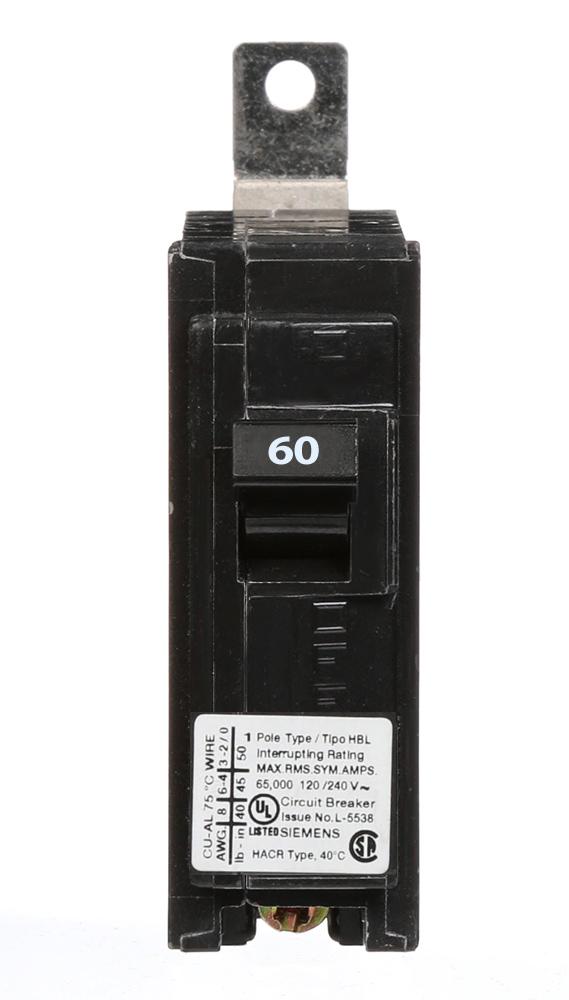

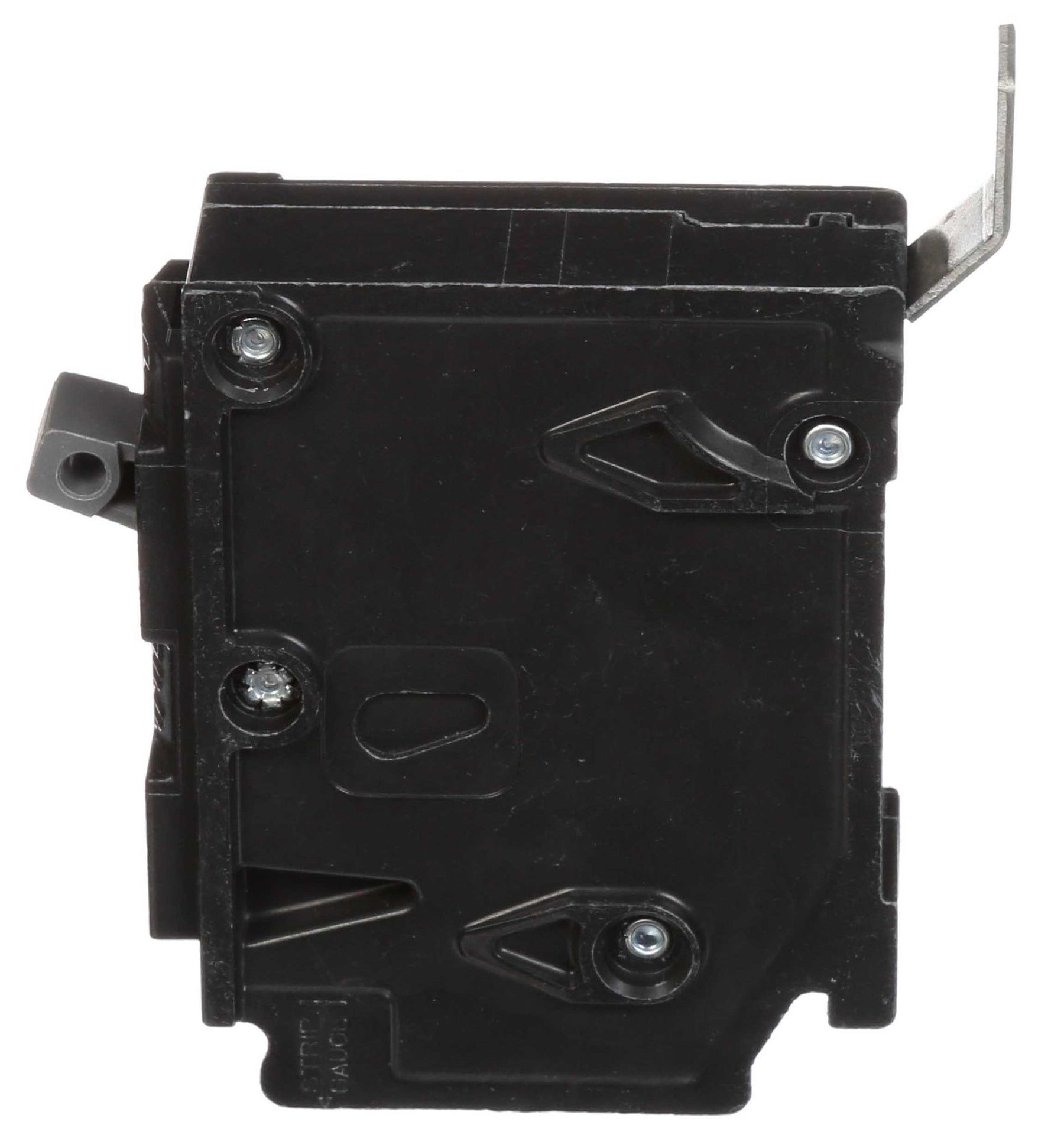

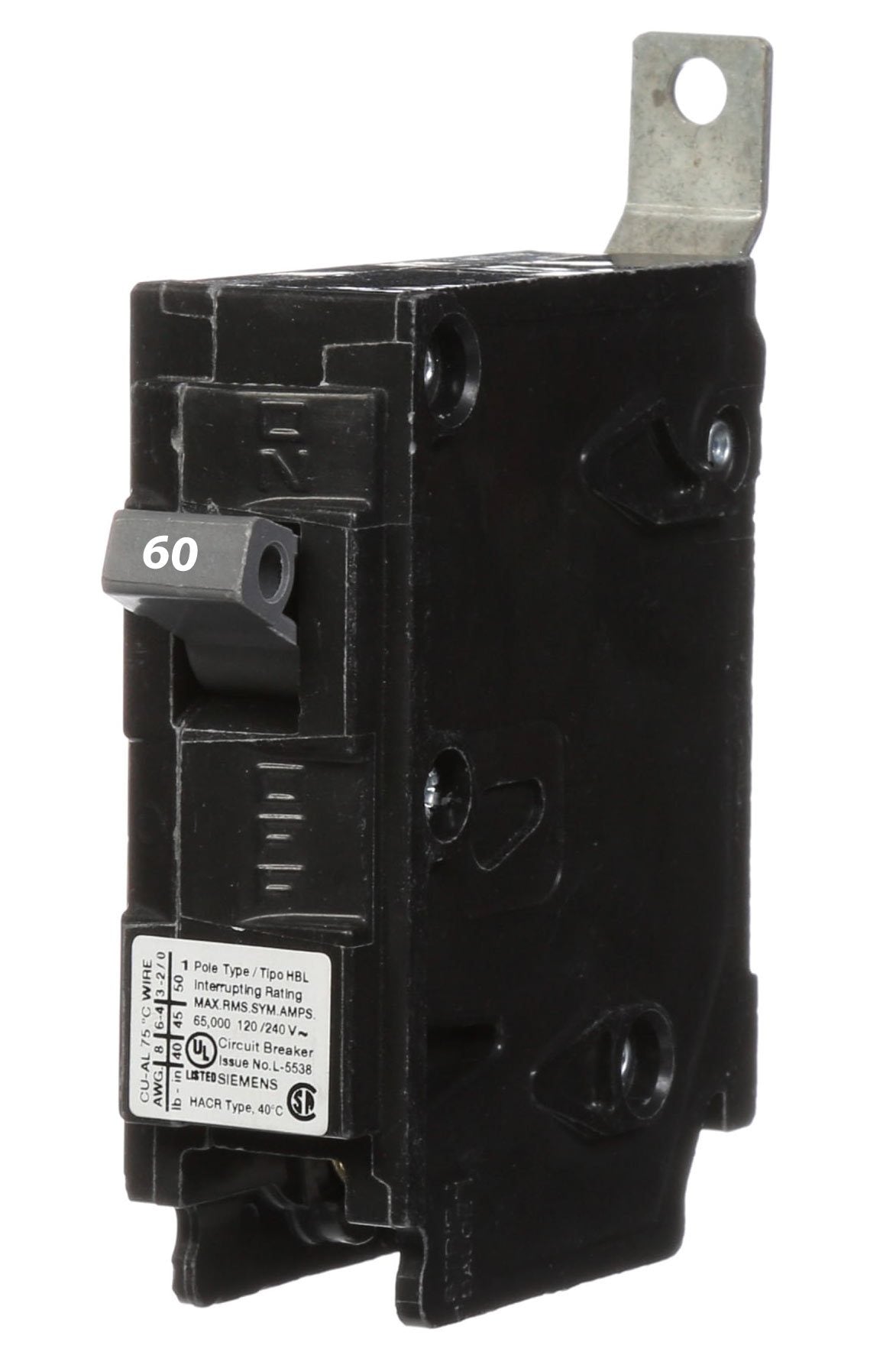

Siemens B160HH is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in commercial and industrial electrical systems. It is rated for 120V AC single-phase applications with a 60A continuous current rating and features a compact, bolt-on design with lug terminals for secure connections. This thermal-magnetic breaker, part of the BL Series, is constructed with a durable HBL frame and complies with key industry standards including UL, CSA, and NOM. It is engineered for integration into Siemens P1 panelboards, offering a 65kA interrupting capacity at 240V to safeguard critical branch circuits.

Key Features & Specifications
  • Type: HBL Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 60A
  • Frame Size: 125A/BL
  • Poles: 1
  • Connection: Bolt-on, Lug Terminal
  • AIC Rating: 65kA @ 240V
  • Phase: 1
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Panel Type: Siemens P1 Panelboards
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Dimensions: 2.563" x 1.00" x 3.122"
  • Weight: 0.315 lb
  • MCM/Wire Size: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Breaker Type: Standard
  • Country of Origin: Mexico
  • Family: BL Series


Product Identification
  • UPC: 783643088283
  • GTIN: 00783643088283
