Siemens
Price
Save $168.26
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

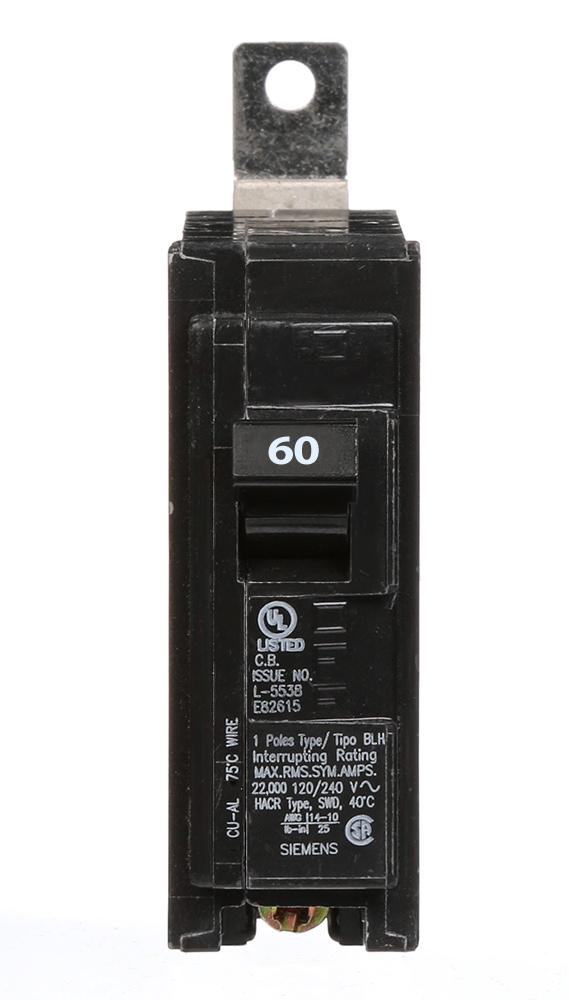

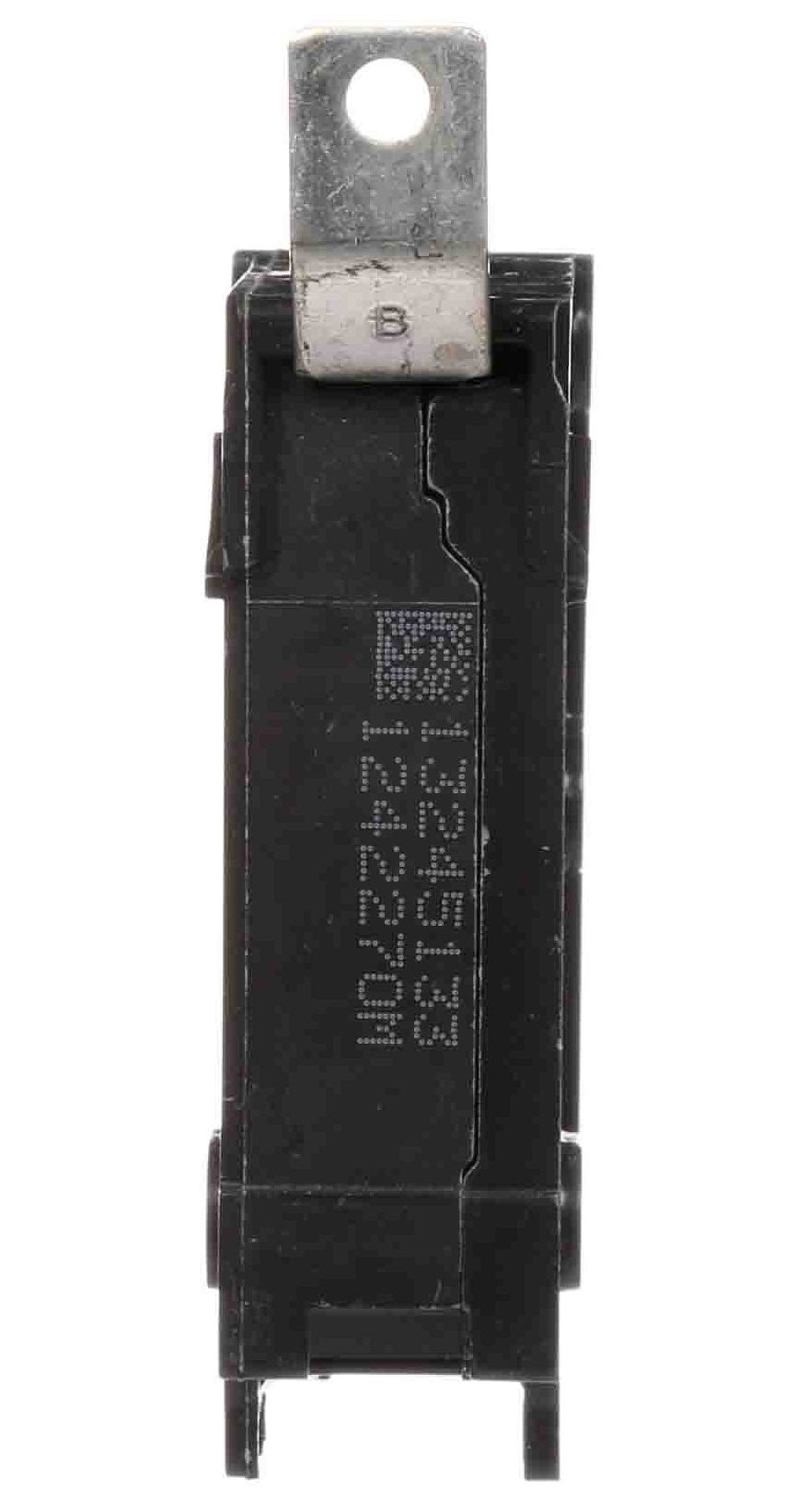

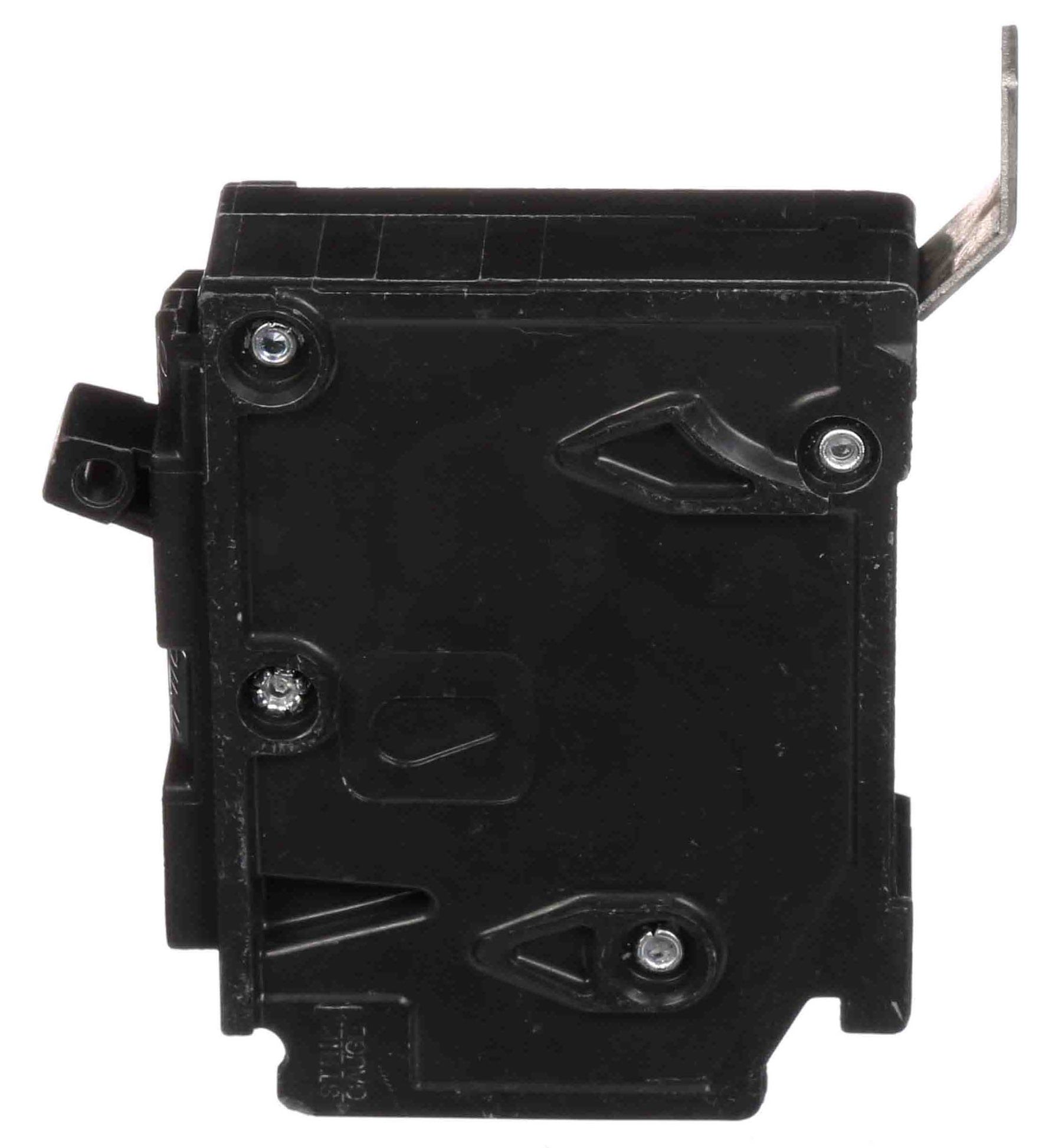

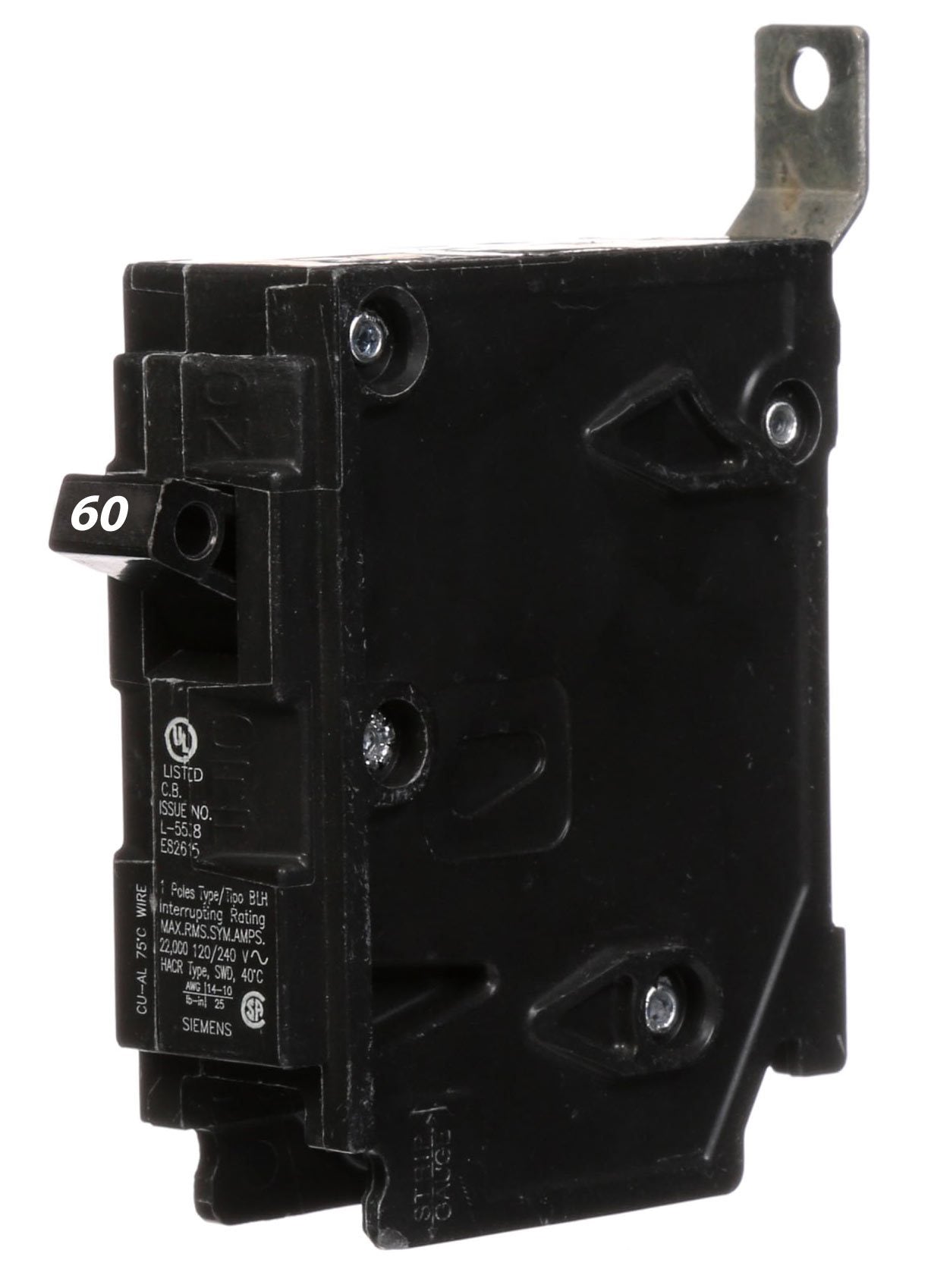

Siemens B160H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 60A current rating and a 120V voltage rating, housed within a compact 125A/BLH frame measuring 70 x 70 x 20 mm (2.756 x 2.756 x 0.787 inches) and weighing 0.353 lb. This thermal-magnetic breaker, with its LI (Long-time and Instantaneous) trip function and 22kA interrupting capacity at 240V, complies with UL, CSA, HACR, and NOM standards for safety and performance. It is engineered for bolt-on installation in Siemens P1 panelboards, utilizing lug terminals suitable for wire sizes from 12 AWG aluminum (14 AWG copper) to a maximum of 10 AWG, and operates reliably across a temperature range of -25°C to 70°C (-13°F to 158°F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard Type
  • Voltage Rating: 120V AC
  • Current Rating: 60A
  • Dimensions: 70 x 70 x 20 mm (2.756 x 2.756 x 0.787 inches)
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Overcurrent and short-circuit protection in single-phase Siemens P1 Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Single-Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: 70 x 70 x 20 mm (2.756 x 2.756 x 0.787 inches)
  • Phase: 1
  • Amperage: 60A
  • AIC rating: 22kA @ 240V
  • Connection: Bolt-on
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 125A/BLH
  • Trip Type: Thermal Magnetic
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Mounting: Panel Mount
  • Hz: 50/60 Hz
  • Terminal Connection: Lug
  • Frequency Rating: 50/60 Hz
  • Phase Connection: Single-Phase
  • Compatible Frames: Siemens BL Series
  • Installation Type: Bolt-on
  • Breaker Frame: 125A/BLH
  • Operating Temperature Maximum Celsius: 70°C


Product Identification
  • UPC: 783643263871
  • GTIN: 00783643263871
