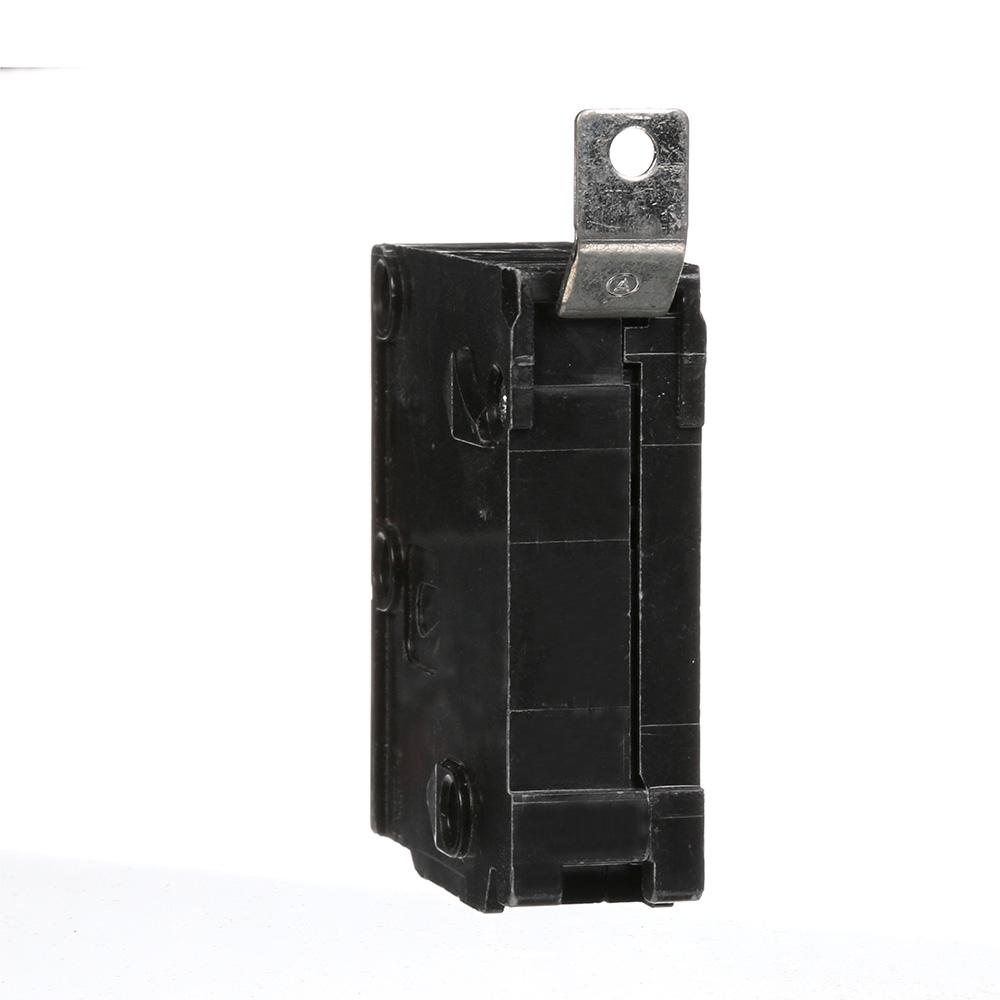

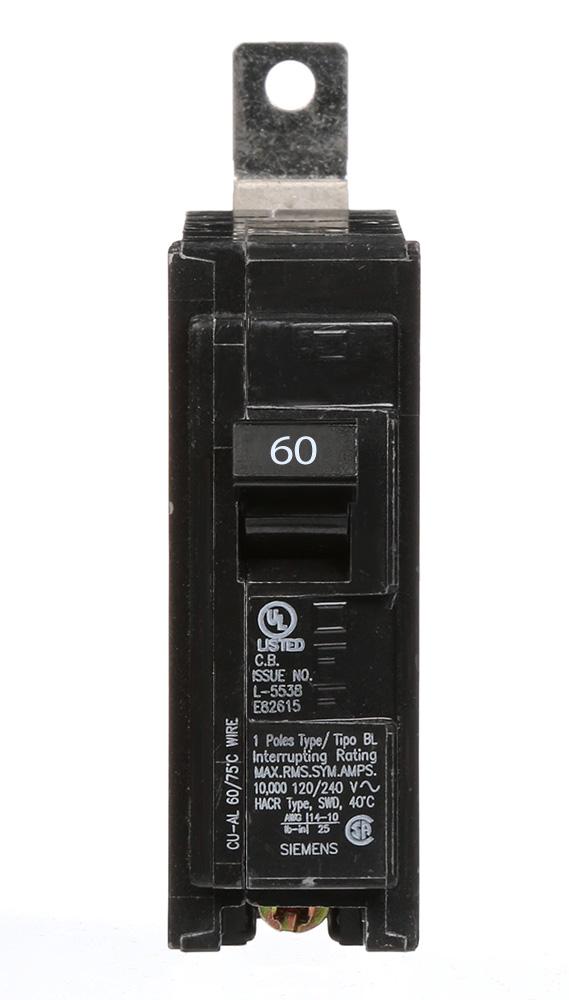

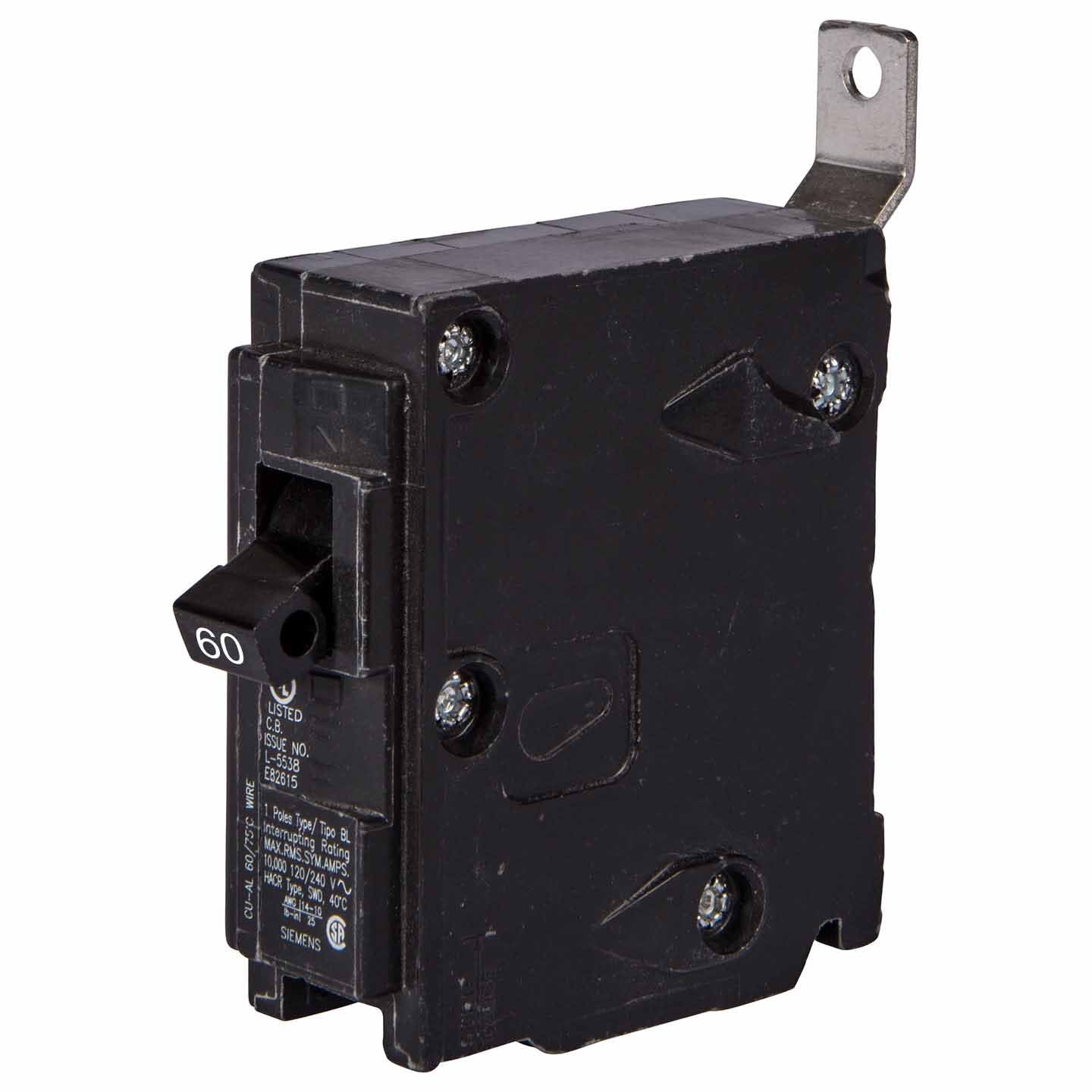

Siemens B160 - Molded Case Circuit Breaker 60A 1-Pole
Siemens B160 - Molded Case Circuit Breaker 60A 1-Pole
Siemens B160 - Molded Case Circuit Breaker 60A 1-Pole
Siemens B160 - Molded Case Circuit Breaker 60A 1-Pole
Siemens B160 - Molded Case Circuit Breaker 60A 1-Pole
Siemens B160 - Molded Case Circuit Breaker 60A 1-Pole
Siemens B160 - Molded Case Circuit Breaker 60A 1-Pole
Siemens B160 - Molded Case Circuit Breaker 60A 1-Pole

Siemens B160 - Molded Case Circuit Breaker 60A 1-Pole

Siemens
Price
Save $82.10
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B160 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 60A current rating and a 120V voltage rating, housed within a compact, bolt-on design measuring 2.756" x 0.787" x 3.937" and weighing 0.331 lb. The breaker is constructed with thermal-magnetic trip protection offering long-time and instantaneous (LI) functions, ensuring compliance with key industry standards including UL listing, CSA certification, HACR rating, and NOM certification. It is engineered for a wide operating temperature range from -25°C to 70°C (-13°F to 158°F) and is typically applied in Siemens P1 panelboards for commercial and light industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 60A
  • Dimensions: 2.756 x 0.787 x 3.937 inch (70mm x 20mm x 100mm)
  • Weight: 0.331 lb
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Siemens P1 Panelboards, Commercial & Light Industrial Distribution
  • Frame Size: 125A/BL
  • Phase: 1
  • Poles: 1
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • MCM Size: Min. Wire Size 8 AWG, Max. Wire Size 4 AWG (Aluminum), 6 AWG (Copper)
  • AIC Rating: 10kA @ 240V
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Functions: LI - Long-Time and Instantaneous Trip
  • Protection: Thermal Magnetic
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263505
  • GTIN: 00783643263505
