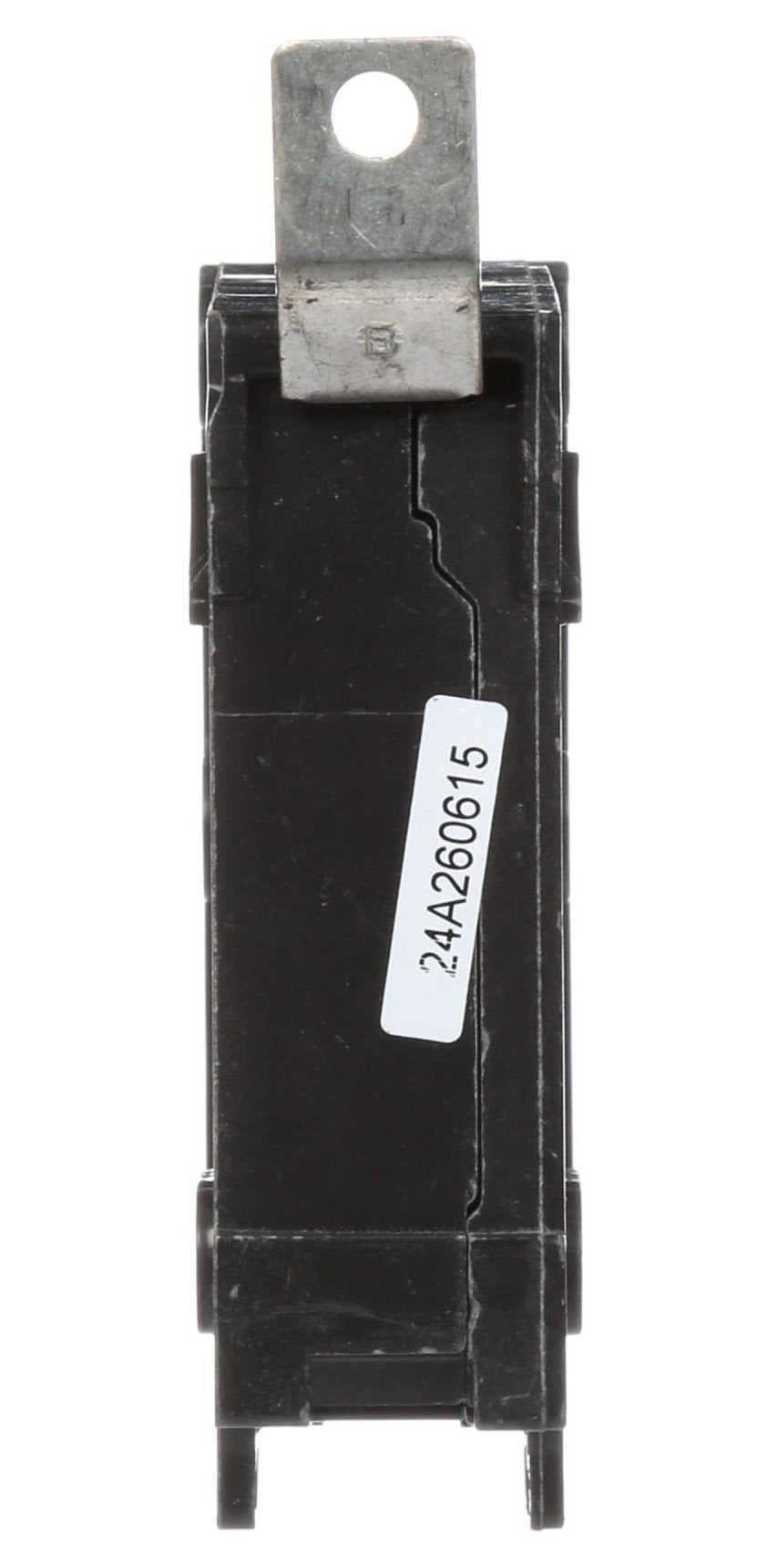

Siemens B150HH - Molded Case Breaker 50A 1P (65kA AIC)
Siemens B150HH - Molded Case Breaker 50A 1P (65kA AIC)
Siemens B150HH - Molded Case Breaker 50A 1P (65kA AIC)
Siemens B150HH - Molded Case Breaker 50A 1P (65kA AIC)
Siemens B150HH - Molded Case Breaker 50A 1P (65kA AIC)
Siemens B150HH - Molded Case Breaker 50A 1P (65kA AIC)
Siemens B150HH - Molded Case Breaker 50A 1P (65kA AIC)
Siemens B150HH - Molded Case Breaker 50A 1P (65kA AIC)

Siemens B150HH - Molded Case Breaker 50A 1P (65kA AIC)

Siemens
Price
Save $302.35
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

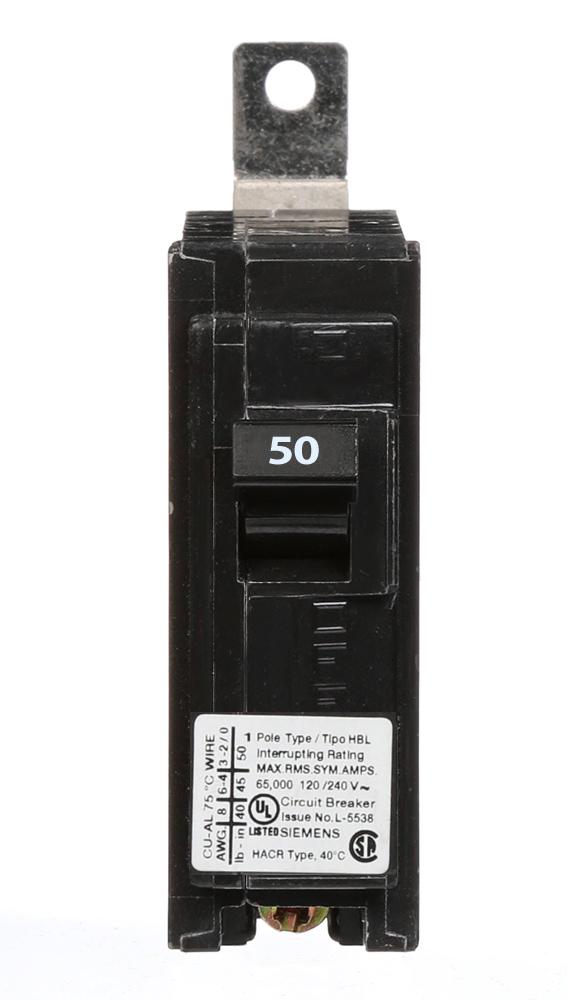

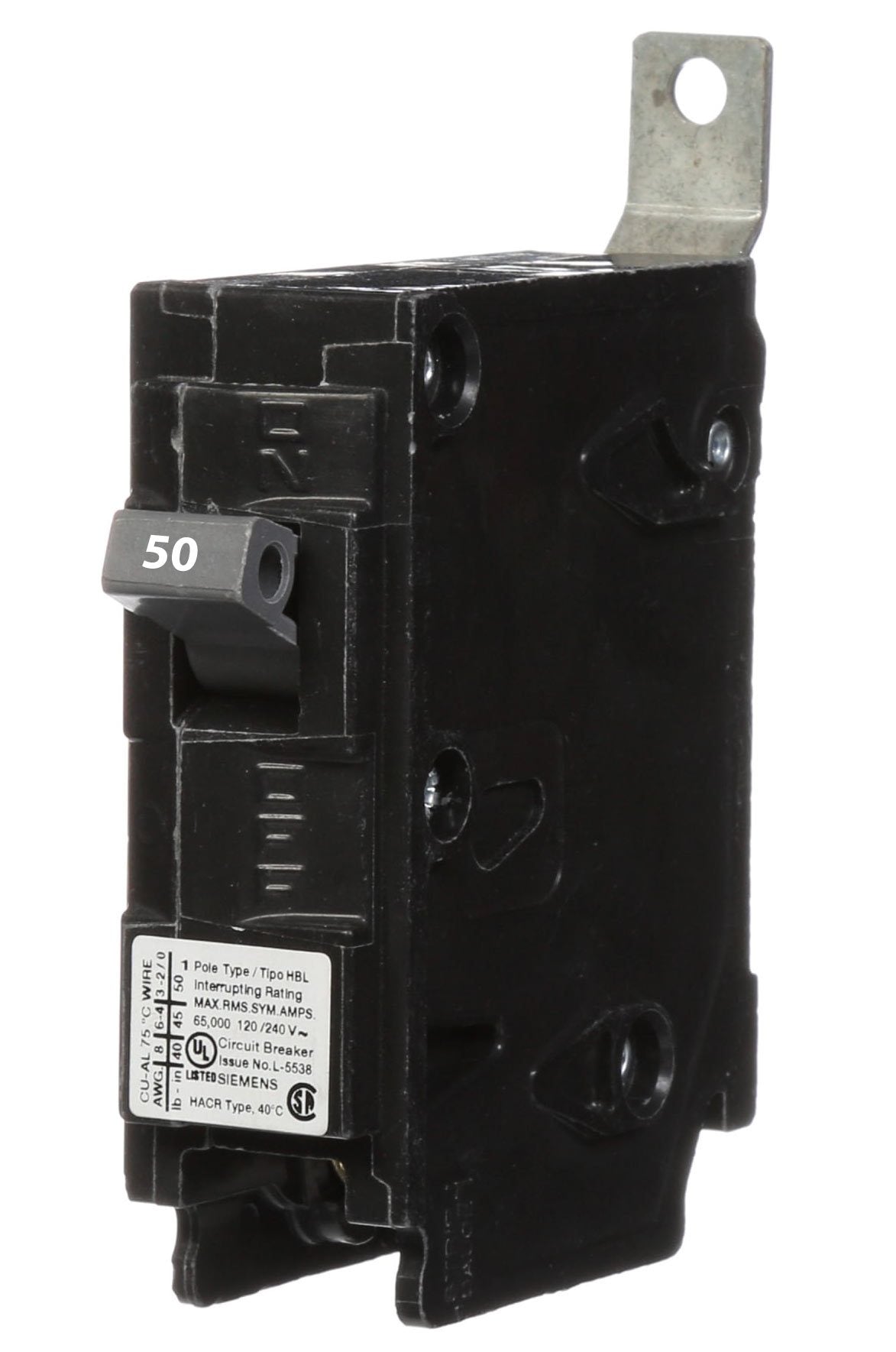

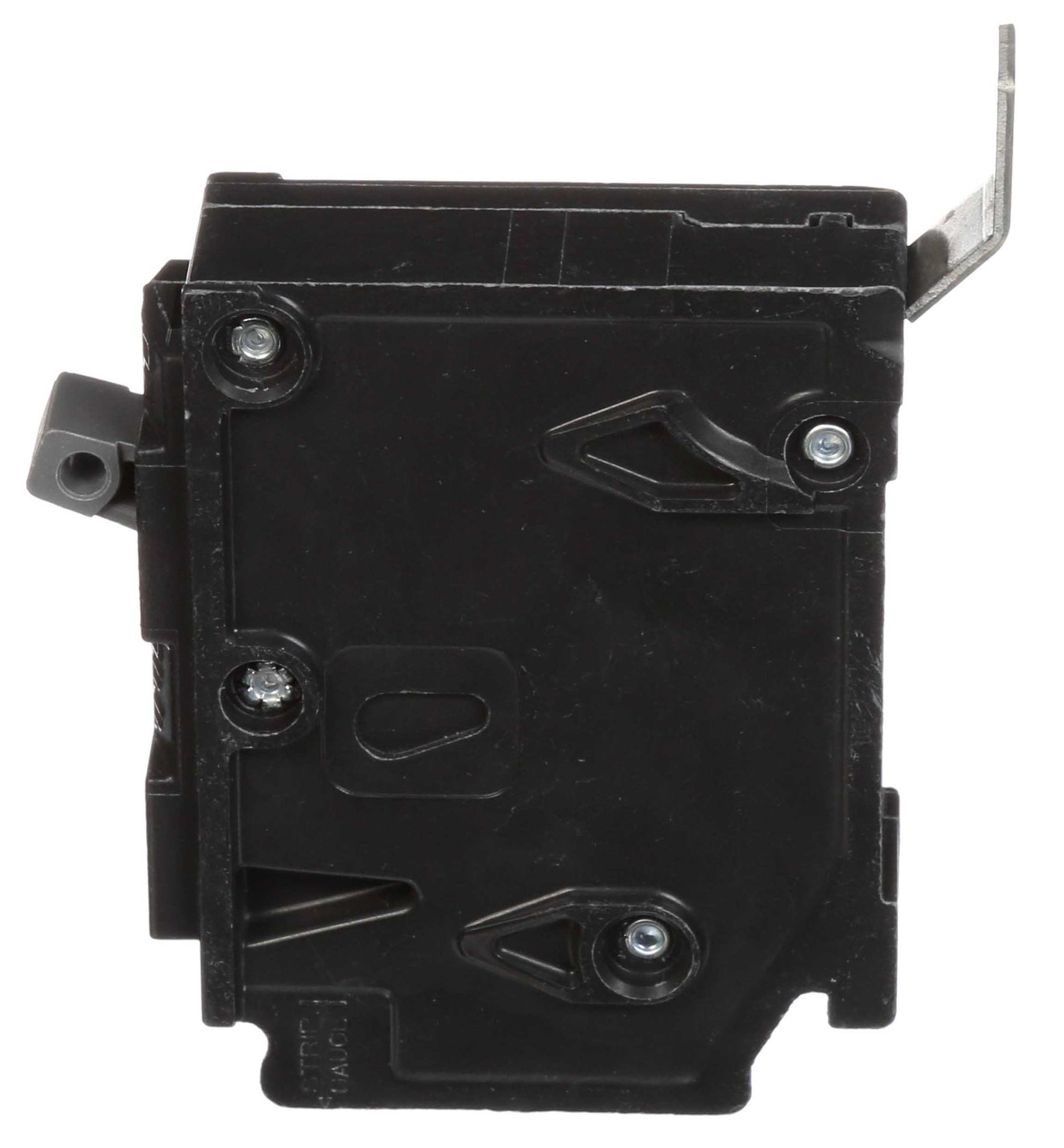

Siemens B150HH is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 50A current rating and a 120V voltage rating, housed within a compact, bolt-on design measuring 2.563 x 1.00 x 3.122 inches and weighing 0.309 lb. This thermal-magnetic breaker, part of the BL Series, is CSA, HACR, NOM, and UL listed, ensuring compliance with key industry standards for safety and performance. It is engineered for use in Siemens P1 panelboards, offering a 65kA interrupting capacity at 240V and reliable operation across a temperature range of -25°C to 70°C.

Key Features & Specifications
  • Type: HBL Standard Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 50A
  • Dimensions: 2.563" x 1.00" x 3.122" (65.1mm x 25.4mm x 79.3mm)
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Overcurrent protection in Siemens P1 Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on Connection
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC rating: 65kA @ 240V
  • Connection: Bolt-on, Lug Terminal
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 125A/BL
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Circuit Breaker Mounting Style: Bolt-on
  • Terminal Connection: Lug
  • Standards: CSA, HACR, NOM, UL
  • Family: BL Series
  • Country of Origin: Mexico
  • Weight: 0.309 lb


Product Identification
  • UPC: 783643264120
  • GTIN: 00783643264120
