Siemens B150H - Molded Case Circuit Breaker 50A 1-Pole
Siemens B150H - Molded Case Circuit Breaker 50A 1-Pole
Siemens B150H - Molded Case Circuit Breaker 50A 1-Pole
Siemens B150H - Molded Case Circuit Breaker 50A 1-Pole
Siemens B150H - Molded Case Circuit Breaker 50A 1-Pole
Siemens B150H - Molded Case Circuit Breaker 50A 1-Pole
Siemens B150H - Molded Case Circuit Breaker 50A 1-Pole
Siemens B150H - Molded Case Circuit Breaker 50A 1-Pole

Siemens B150H - Molded Case Circuit Breaker 50A 1-Pole

Siemens
Price
Save $130.45
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

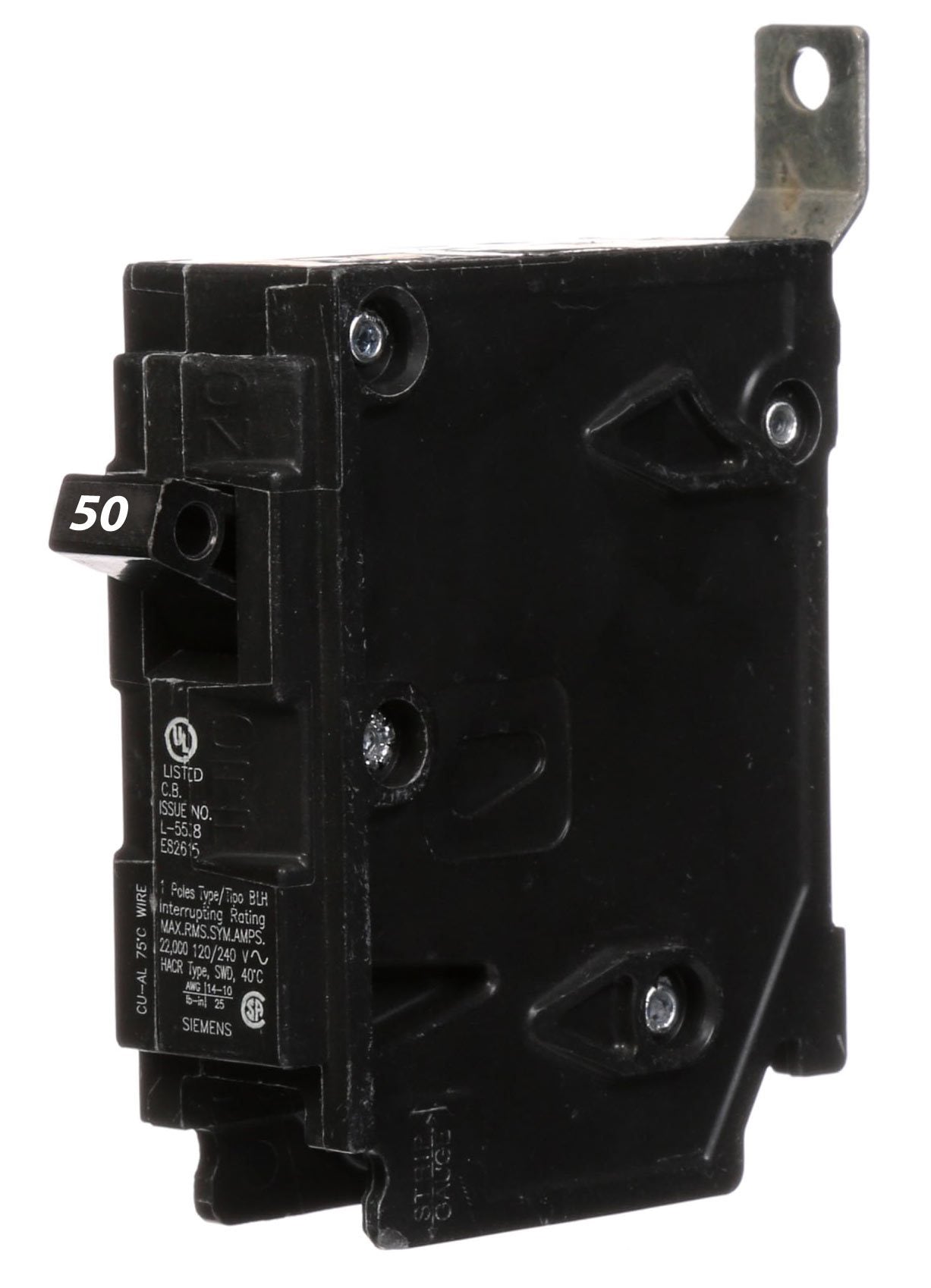

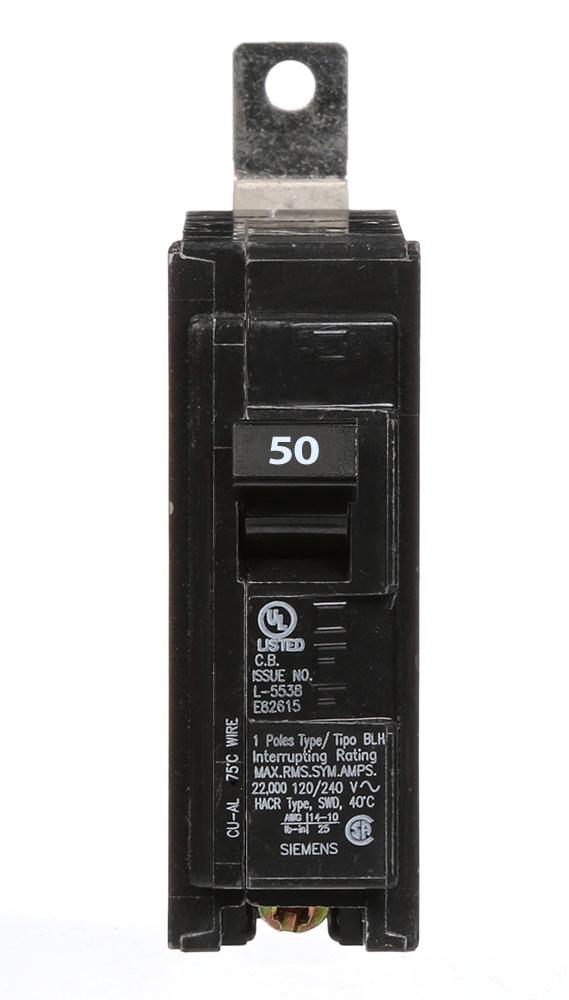

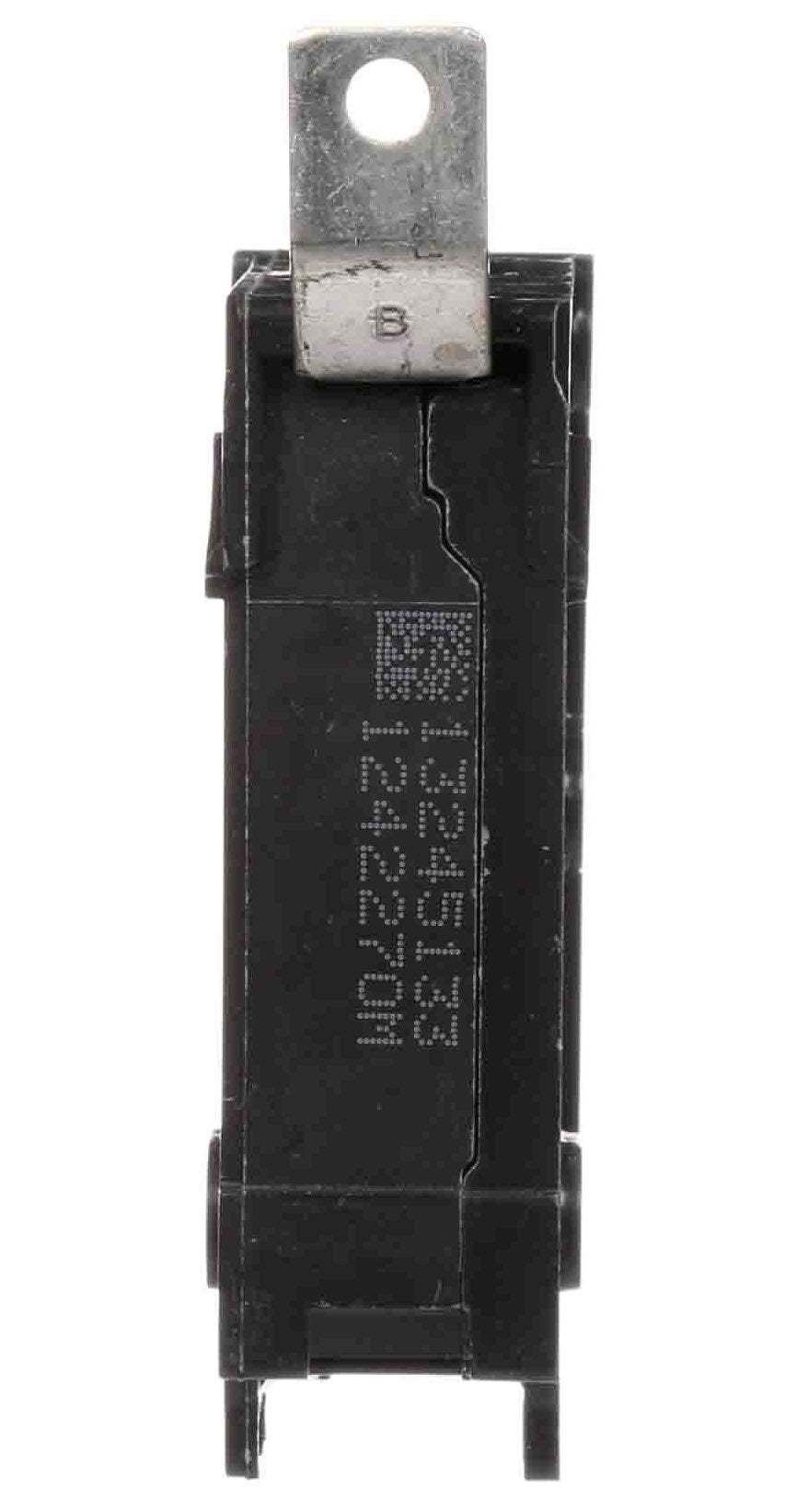

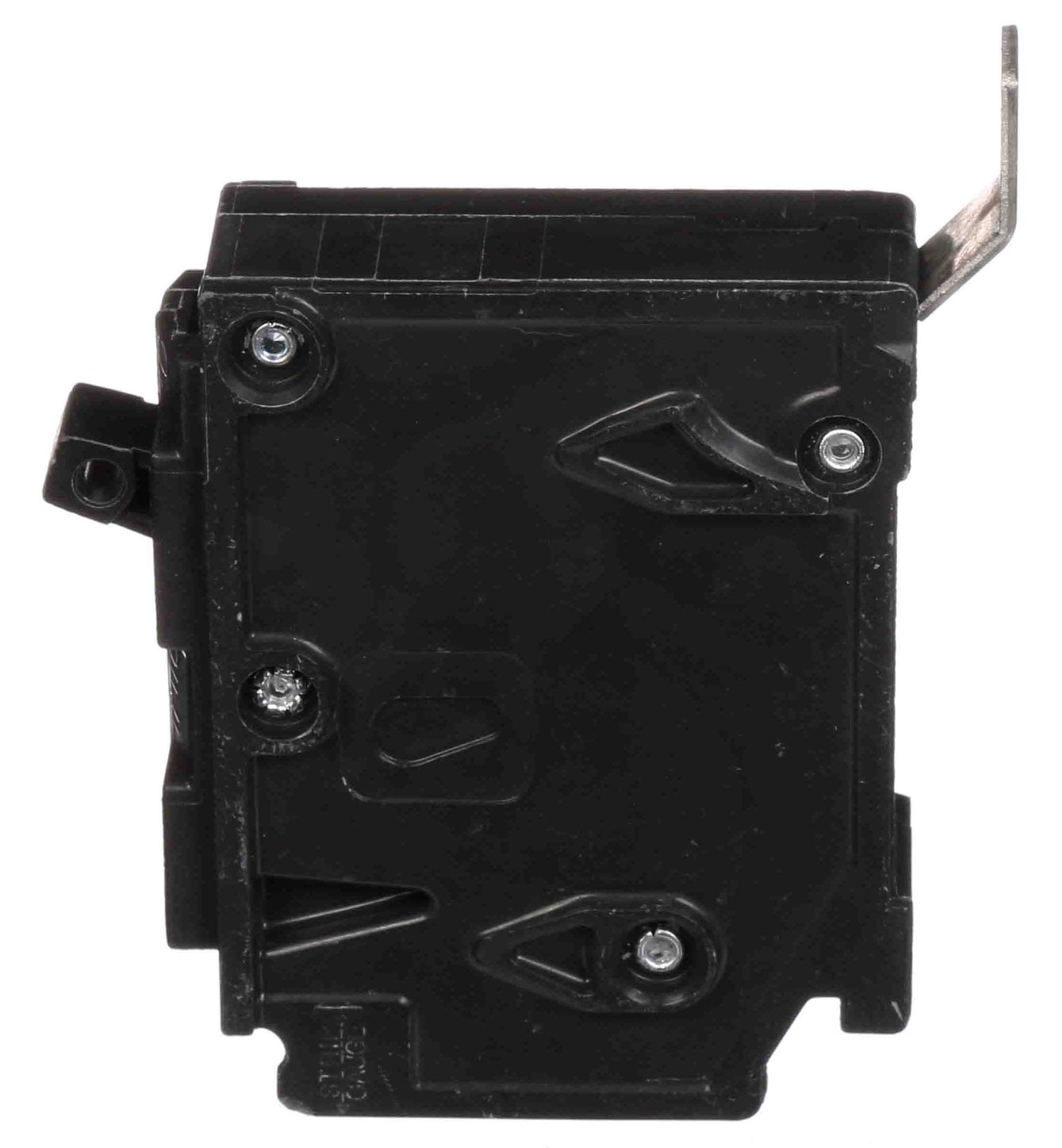

Siemens B150H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in commercial and industrial electrical systems. It features a 50A current rating and a 120V voltage rating, housed within a compact, bolt-on frame measuring 3.937 x 2.756 x 0.787 inches and weighing 0.309 lb. The breaker is constructed with a thermal-magnetic trip unit for both long-time and instantaneous protection, ensuring compliance with key industry standards including UL, CSA, and NOM. It is engineered for operation in temperatures from -25°C to 70°C and is typically applied within Siemens P1 panelboards for branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, BLH Series
  • Voltage Rating: 120V AC
  • Current Rating: 50A
  • Frame Size: 125A/BLH
  • AIC Rating: 22kA @ 240V
  • Poles: 1
  • Phase: 1
  • Connection: Bolt-on
  • Terminal Connection: Lug (Min. Wire 12 AWG Al/14 AWG Cu, Max. Wire 10 AWG)
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Operating Temperature: -25°C to 70°C
  • Dimensions: 3.937" x 2.756" x 0.787" (100mm x 70mm x 20mm)
  • Weight: 0.309 lb
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263857
  • GTIN: 00783643263857
