Siemens
Price
Save $172.85
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

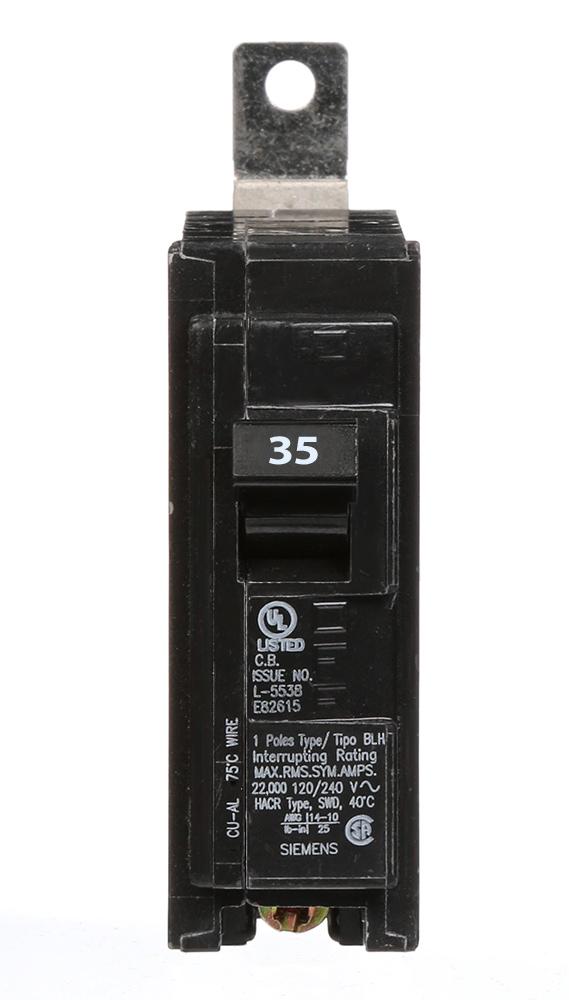

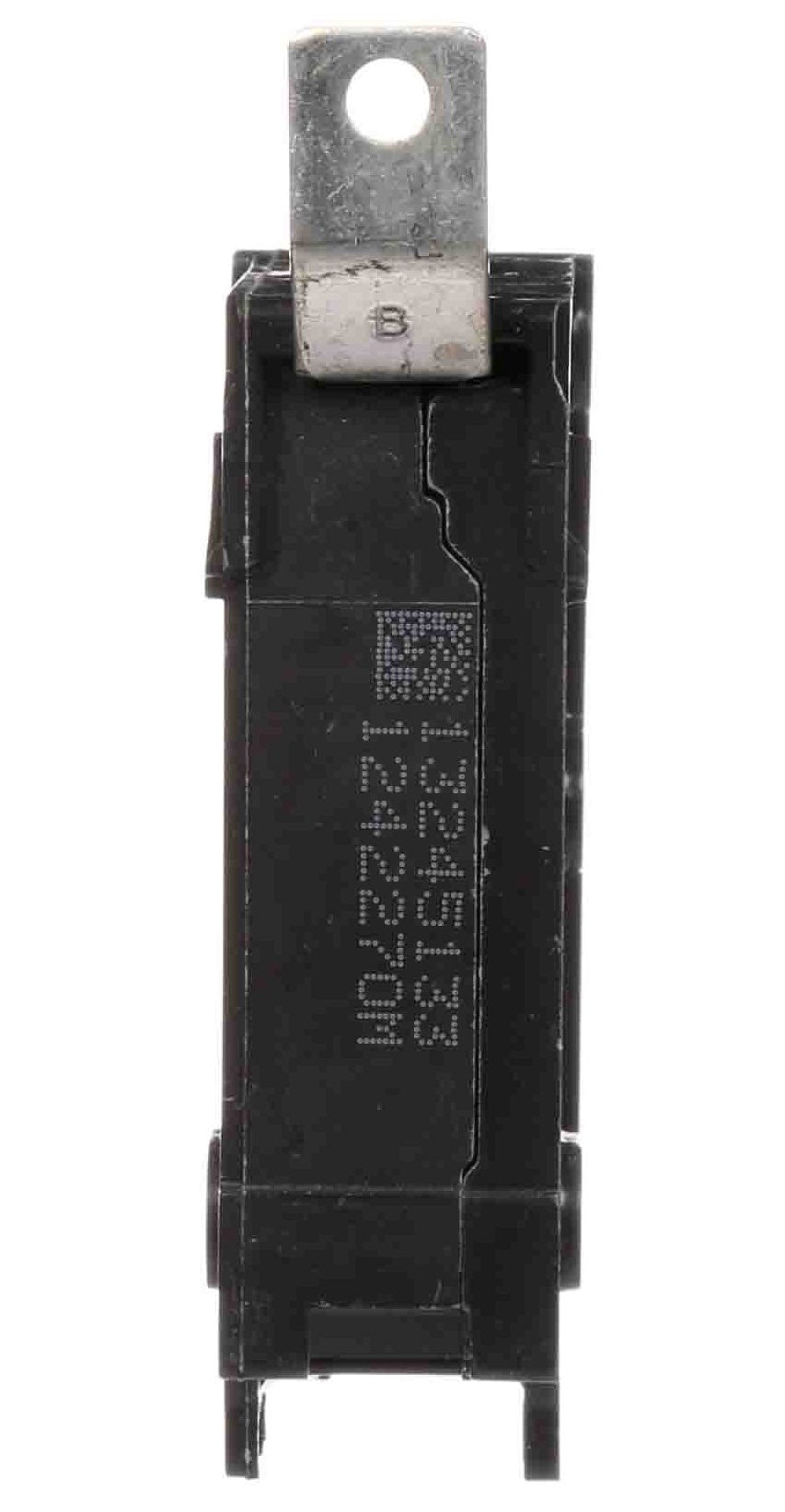

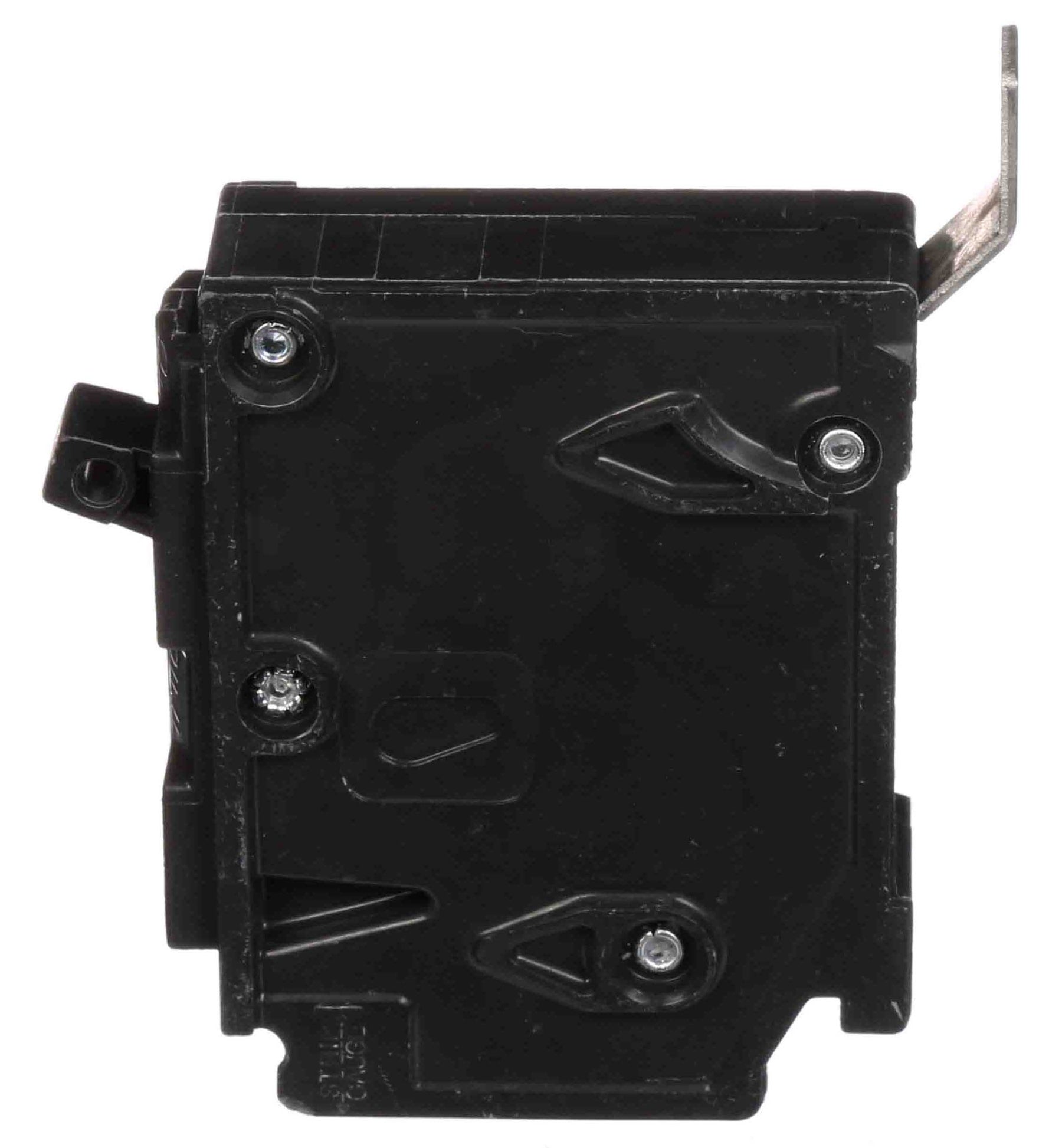

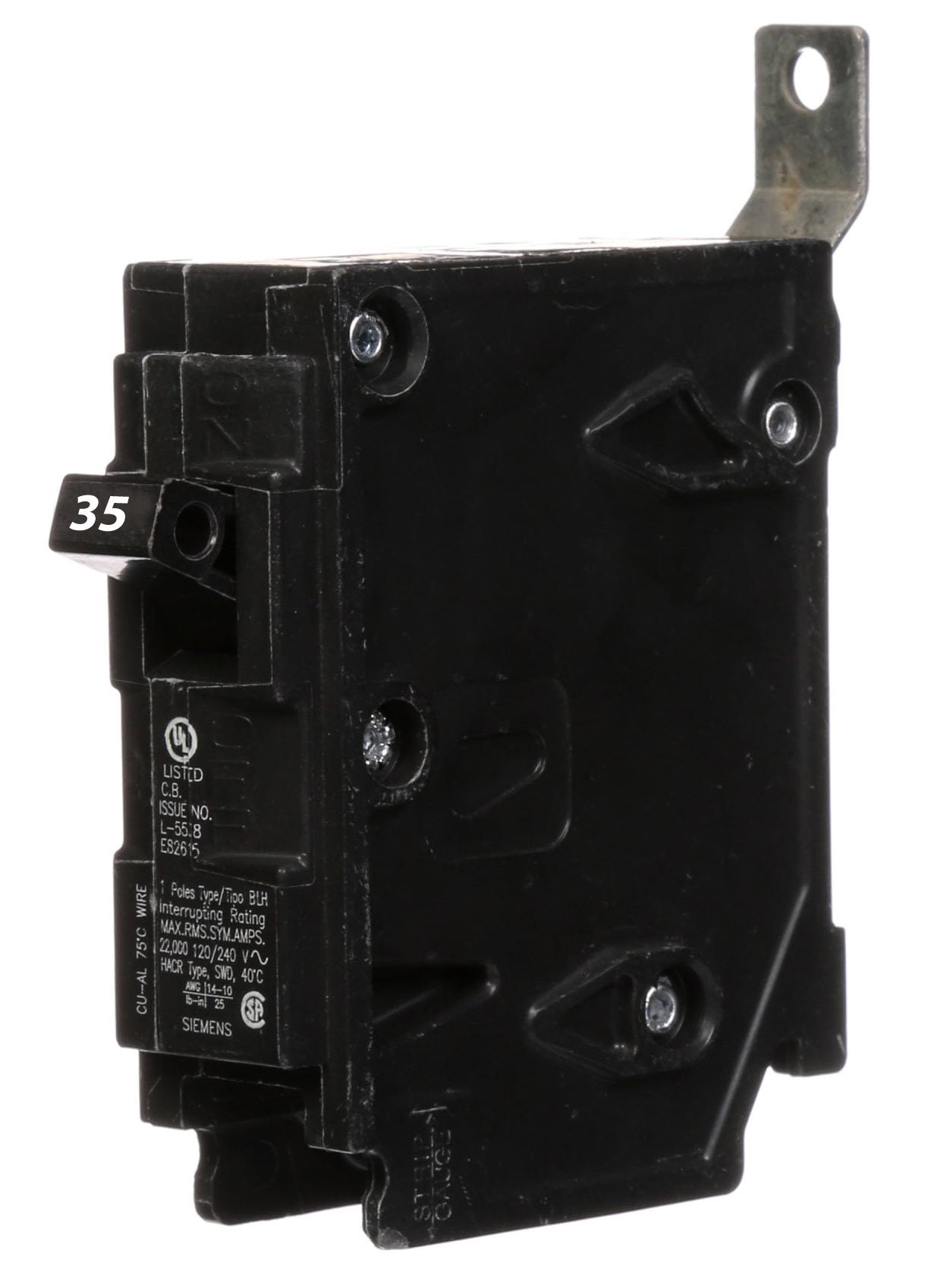

Siemens B135H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 35A current rating and a 240V voltage rating, housed within a compact, bolt-on configuration measuring 2.756 x 0.787 x 3.937 inches and weighing 0.353 lb. This thermal magnetic breaker, offering long-time and instantaneous (LI) trip functions with a 22kA interrupting rating at 240V, is fully compliant with UL, CSA, HACR, and NOM standards for operation from -25°C to 70°C. It is engineered for integration into Siemens P1 panelboards, making it suitable for a range of commercial and light industrial applications requiring dependable circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, BLH Type, Thermal Magnetic Protection with LI (Long-time and Instantaneous) Trip
  • Voltage Rating: 240V AC
  • Current Rating: 35A
  • Dimensions: 2.756" H x 0.787" W x 3.937" D (70mm x 20mm x 100mm)
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Circuit protection for Siemens P1 Panelboards in commercial and light industrial settings
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On Connection
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 22kA @ 240V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Molded Case
  • Family: BL Series
  • Weight: 0.353 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643089075
  • GTIN: 00783643089075
