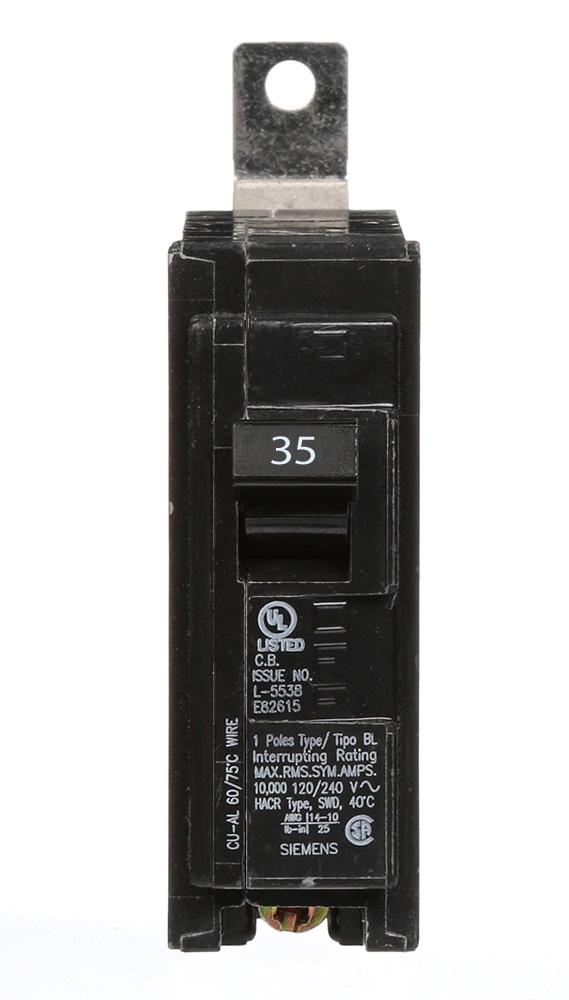

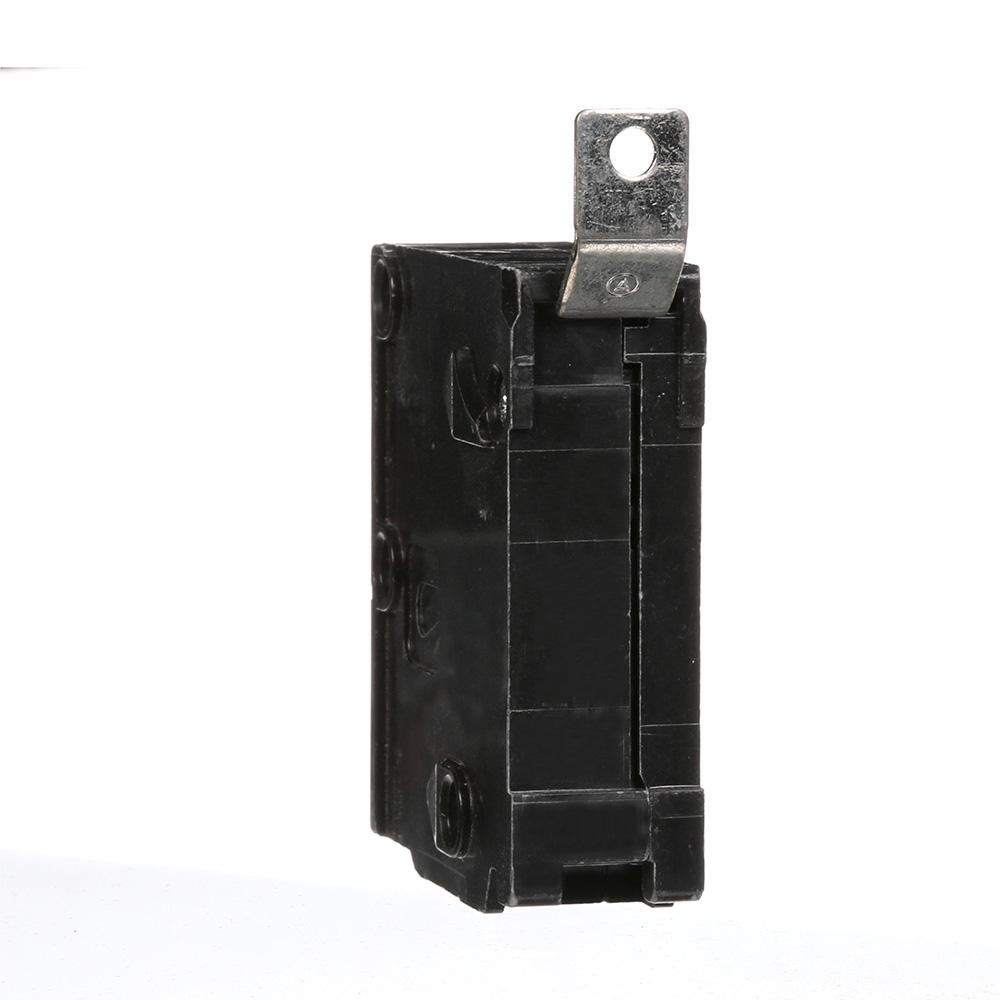

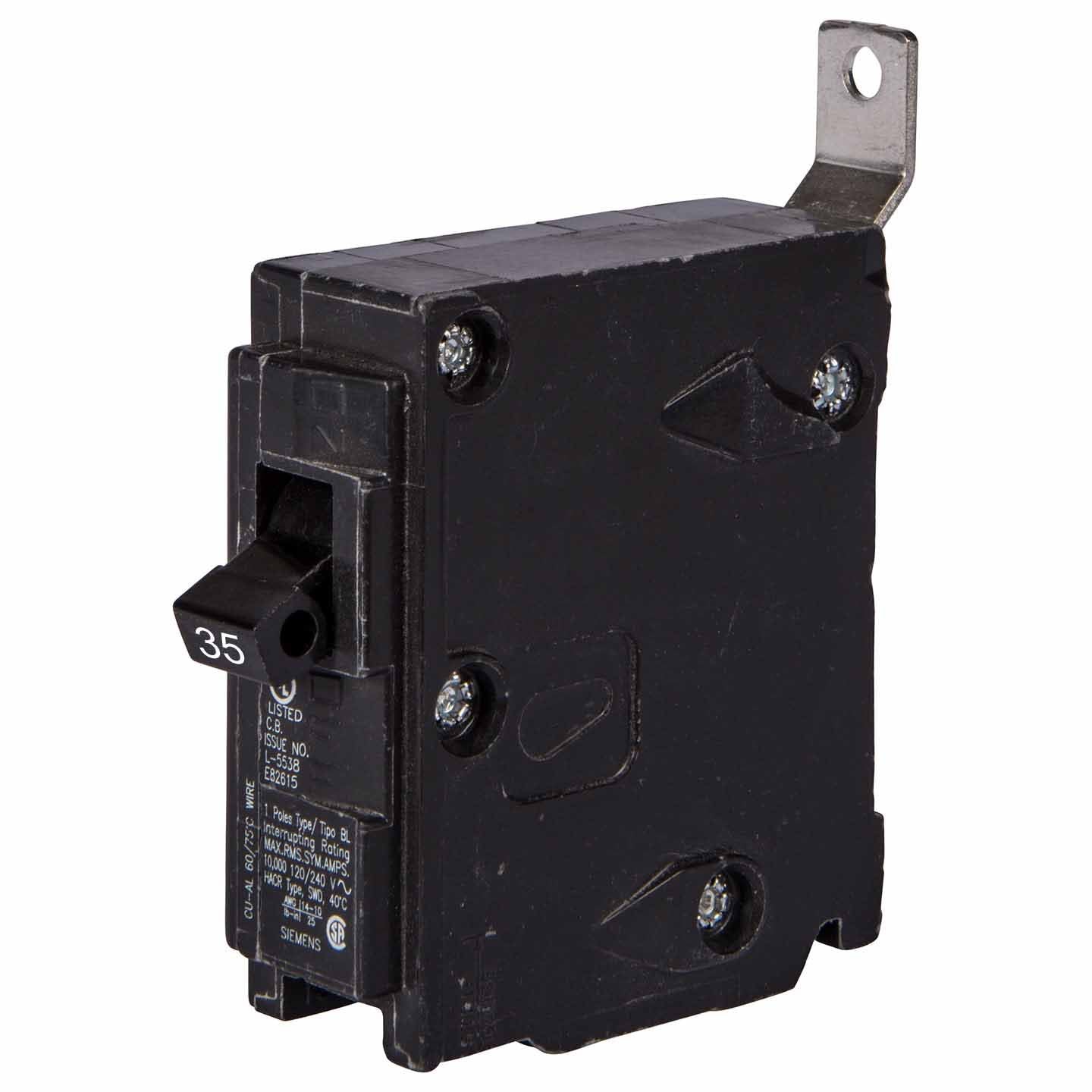

Siemens B135 is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 35A current rating and a 120V voltage rating, housed within a compact, bolt-on frame measuring 2.571" x 1.00" x 2.89" and weighing 0.309 lb. The breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous protection, is certified to UL, CSA, HACR, and NOM standards, and is engineered for installation in Siemens P1 panelboards within industrial and commercial environments.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 35A
  • Dimensions: 2.571" H x 1.00" W x 2.89" D (65.3mm x 25.4mm x 73.4mm)
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Industrial and Commercial Electrical Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 125A/BL
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • Terminal Connection: Lug
  • MCM Size: Min. Wire Size 8 AWG, Max. Wire Size 4 AWG (Al) / 6 AWG (Cu)
  • Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Family: BL Series
  • Country of Origin: Mexico
  • Weight: 0.309 lb


Product Identification
  • UPC: 783643263451
  • GTIN: 00783643263451
