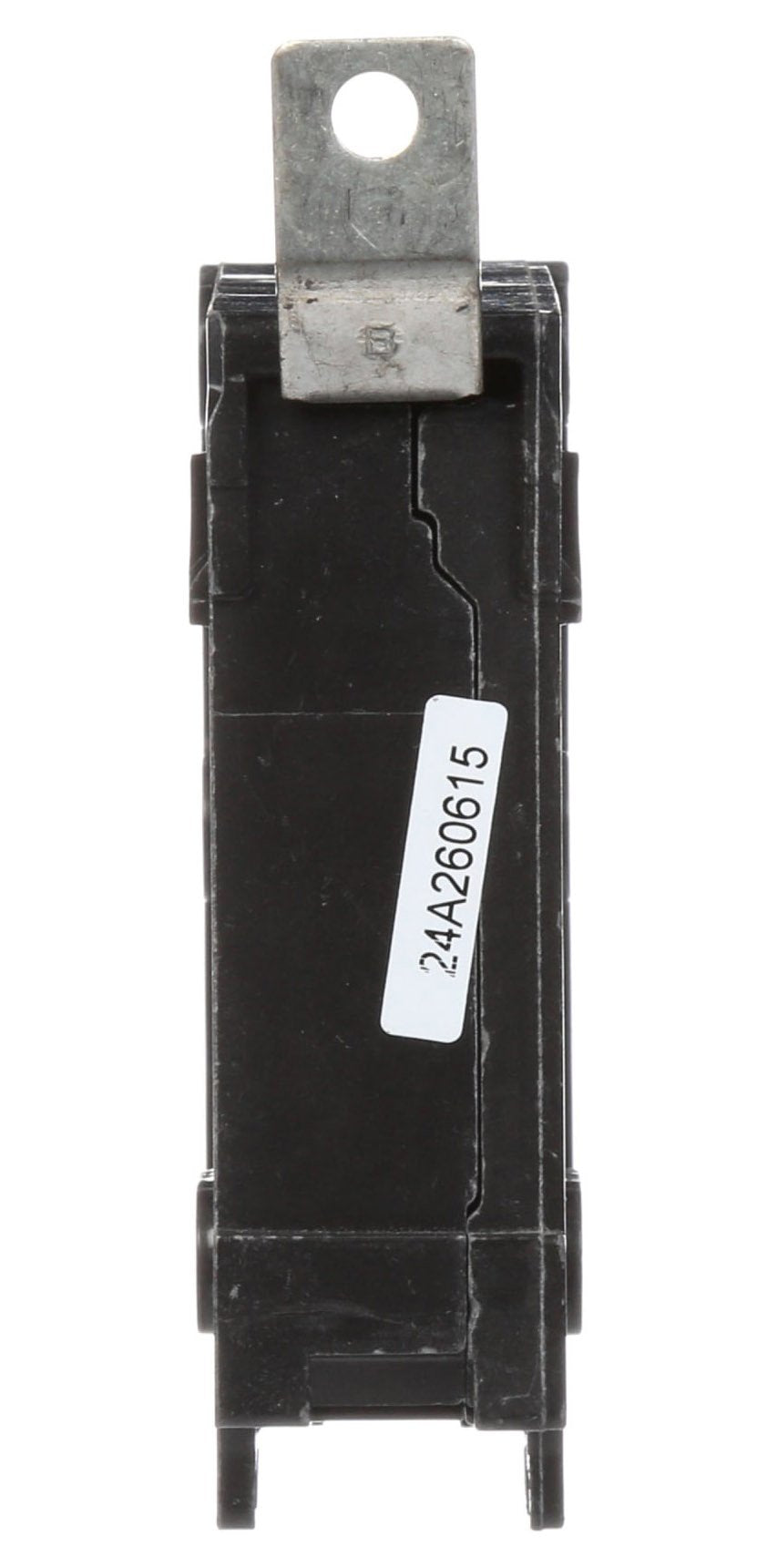

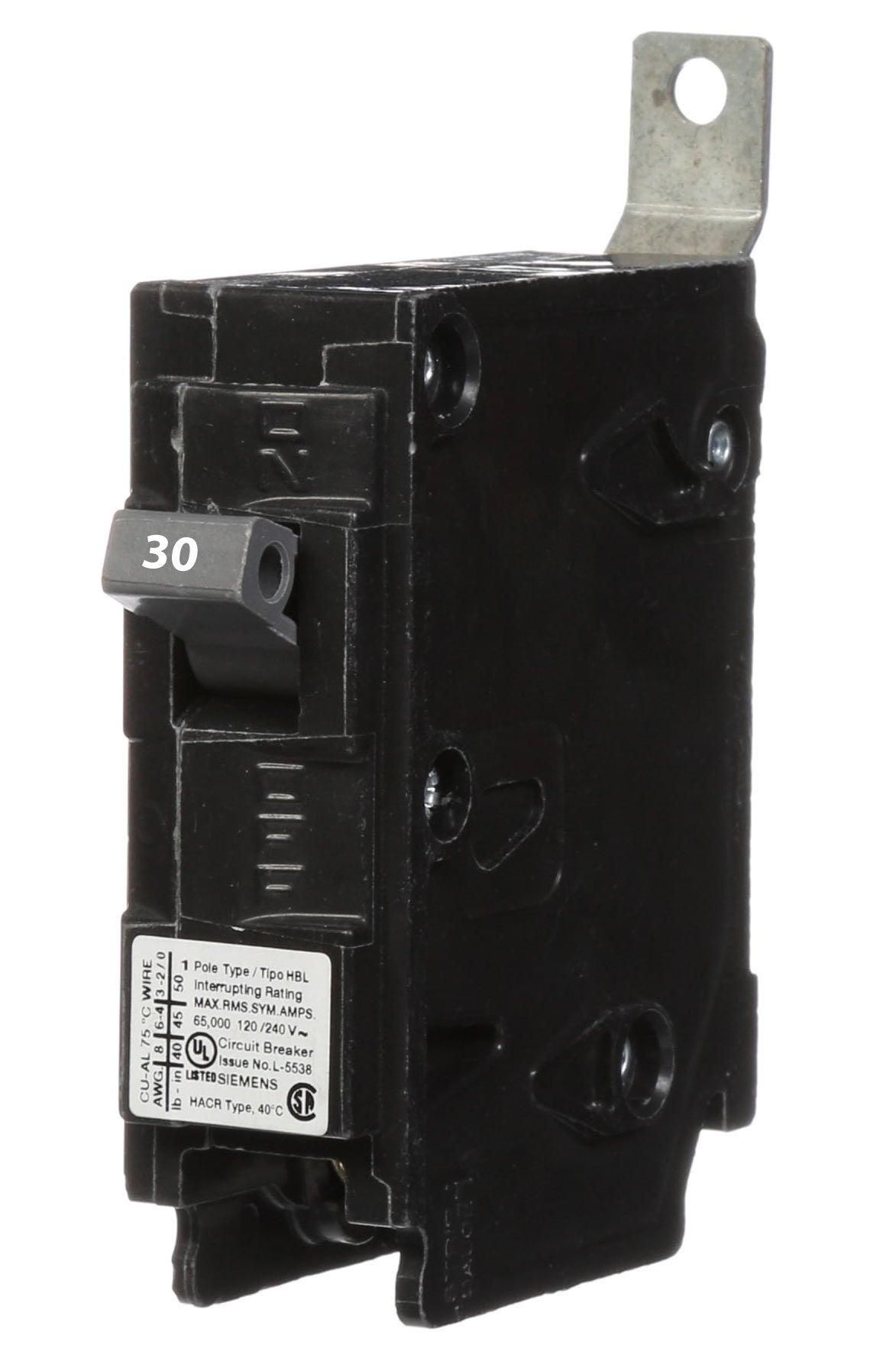

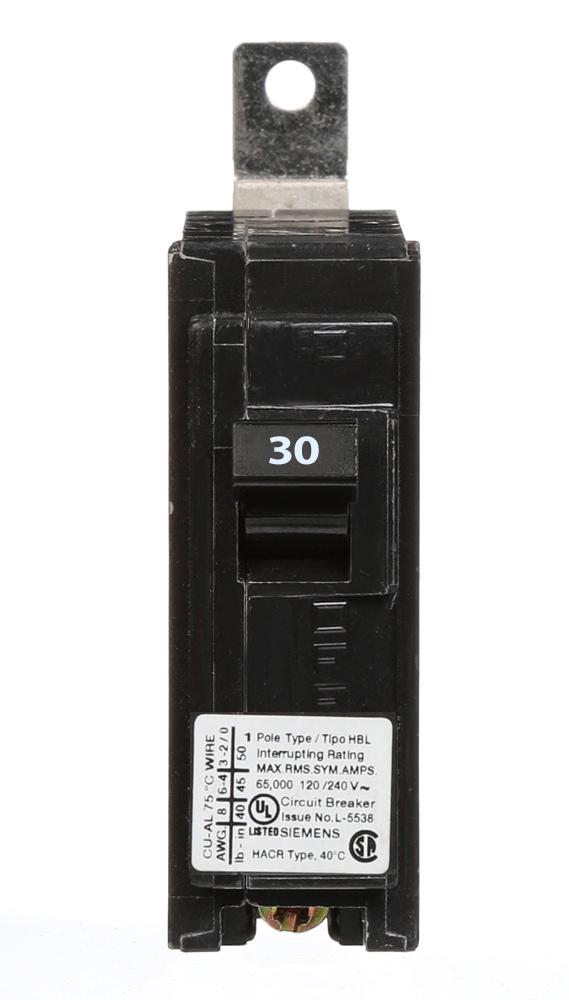

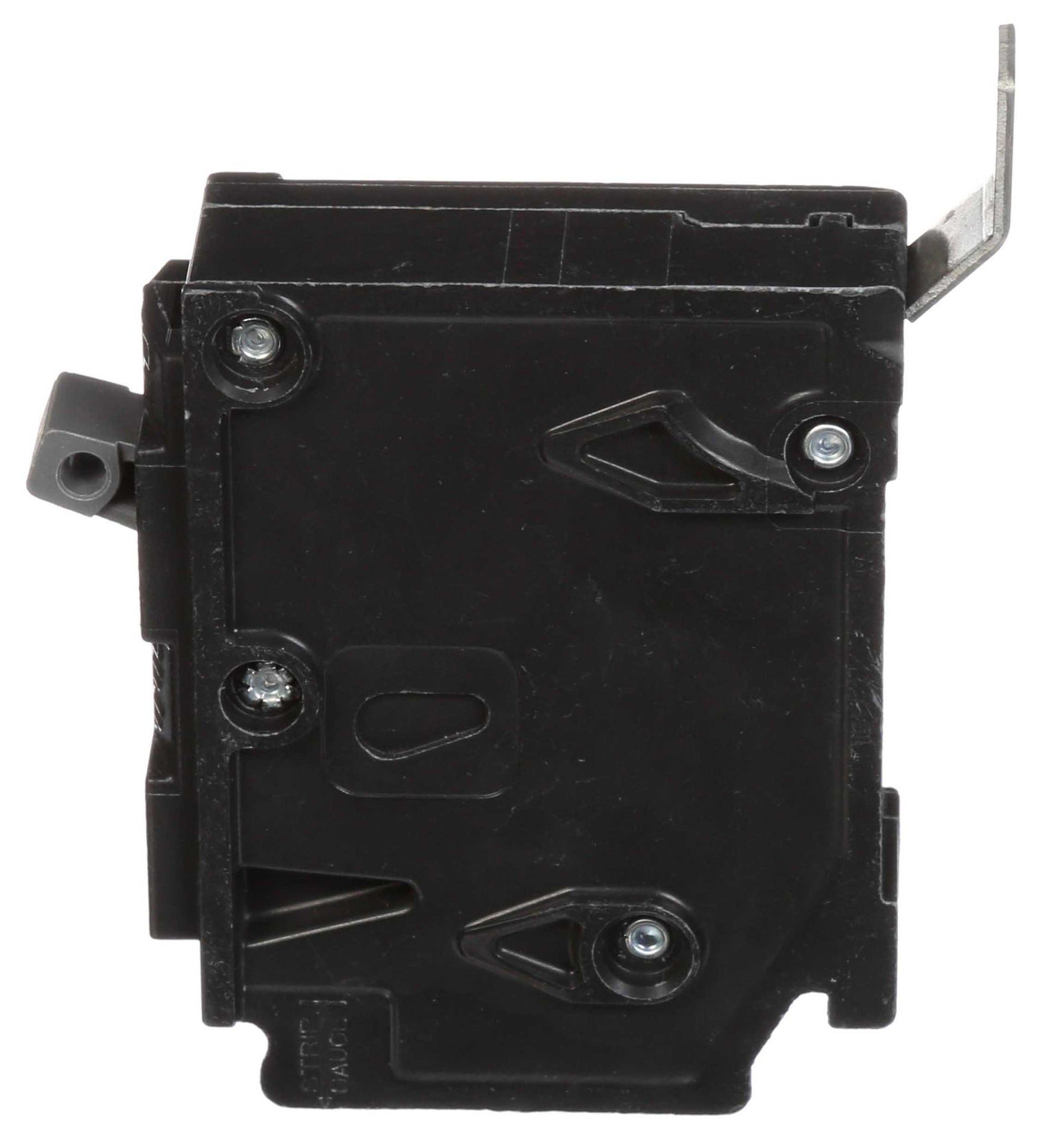

Siemens B130HH - Molded Case Circuit Breaker 30A 1-Pole

Siemens
Price
Save $249.43
/
Condition
  • Low stock - 8 items left
  • Backordered, shipping soon
Call for Price
Siemens B130HH is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 30A current rating and a 120V voltage rating, housed within a compact, bolt-on frame measuring 2.563 x 1.00 x 3.122 inches and weighing 0.309 lb. This thermal-magnetic breaker, compliant with UL, CSA, HACR, and NOM standards, offers both long-time and instantaneous trip (LI) functions with an interrupting capacity of 65kA at 240V. It is engineered for use in Siemens P1 panelboards and operates effectively within a temperature range of -25°C to 70°C.

Key Features & Specifications
  • Type: HBL Standard Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 120V
  • Current Rating: 30A
  • Frame Size: 125A/BL
  • AIC Rating: 65kA @ 240V
  • Poles: 1
  • Phase: 1
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • Functions: LI - Long-Time and Instantaneous Trip
  • Panel Type: Siemens P1 Panelboards
  • Temp Rating: -25°C to 70°C
  • Dimensions: 2.563 x 1.00 x 3.122 inch
  • Weight: 0.309 lb
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Standards & Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643264106
  • GTIN: 00783643264106
