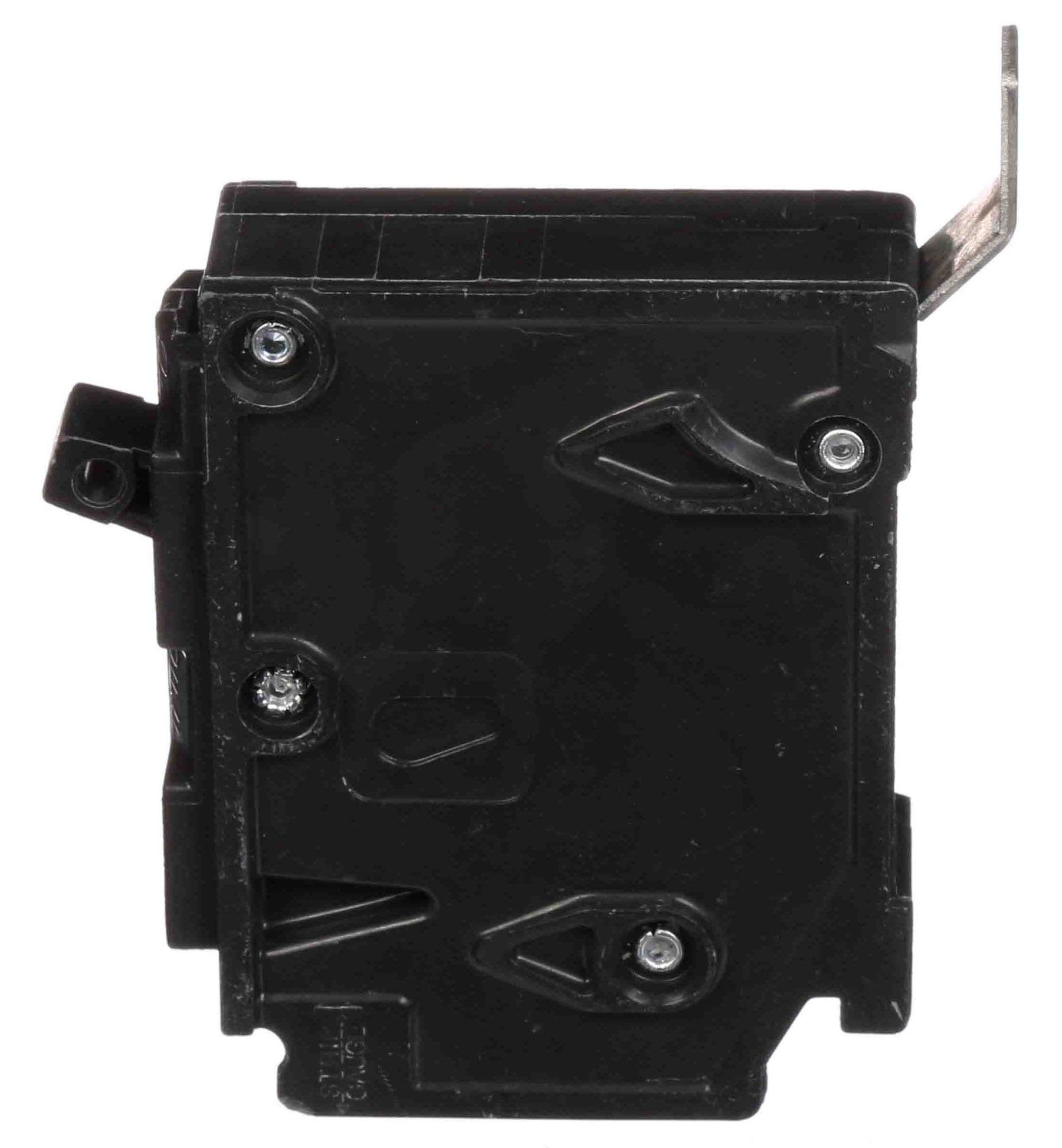

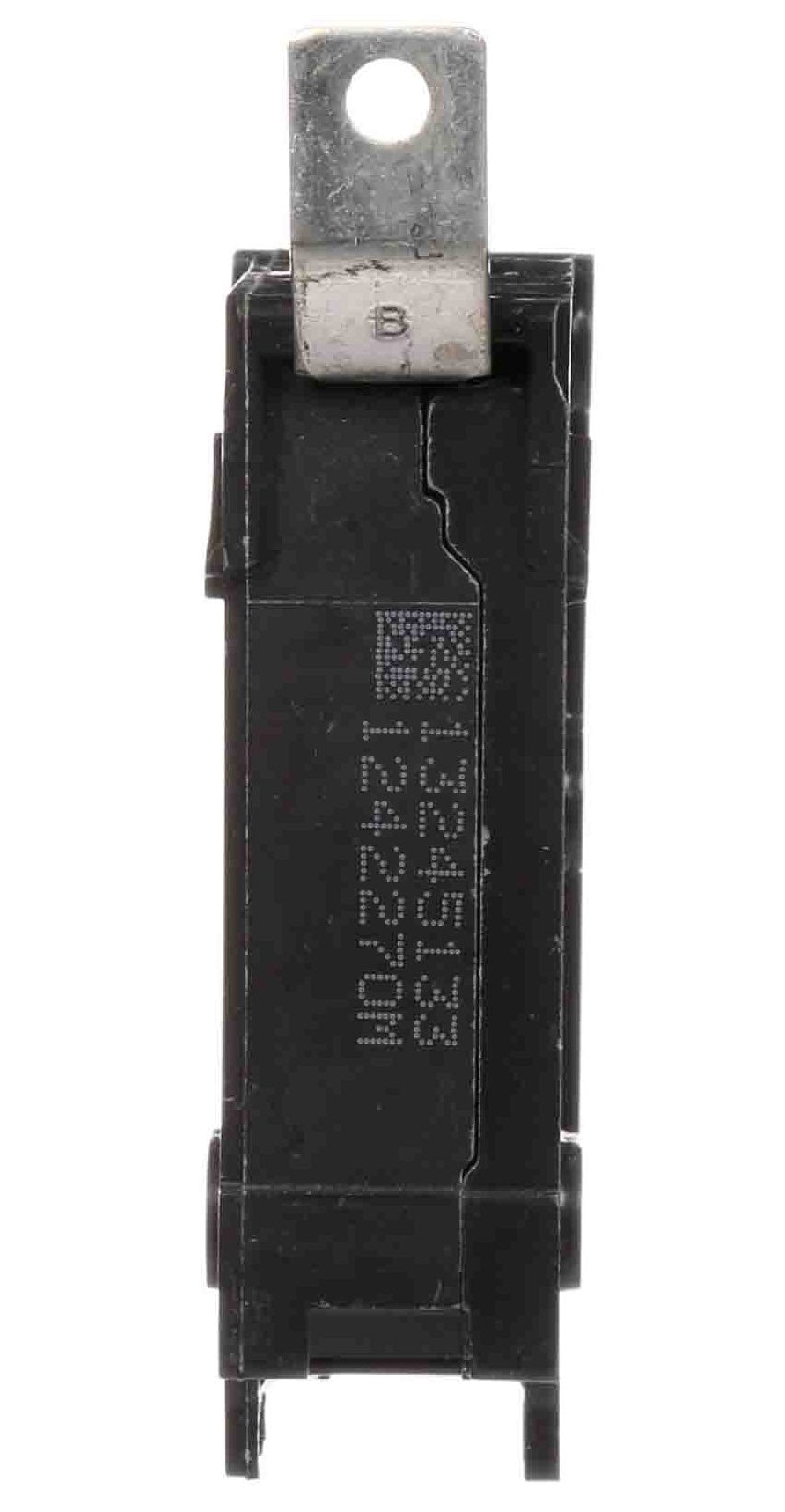

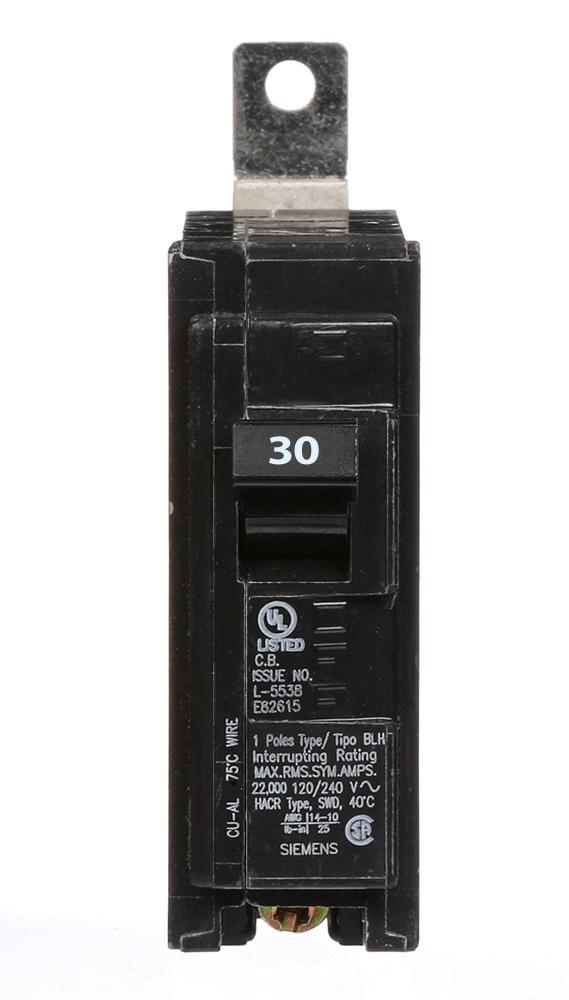

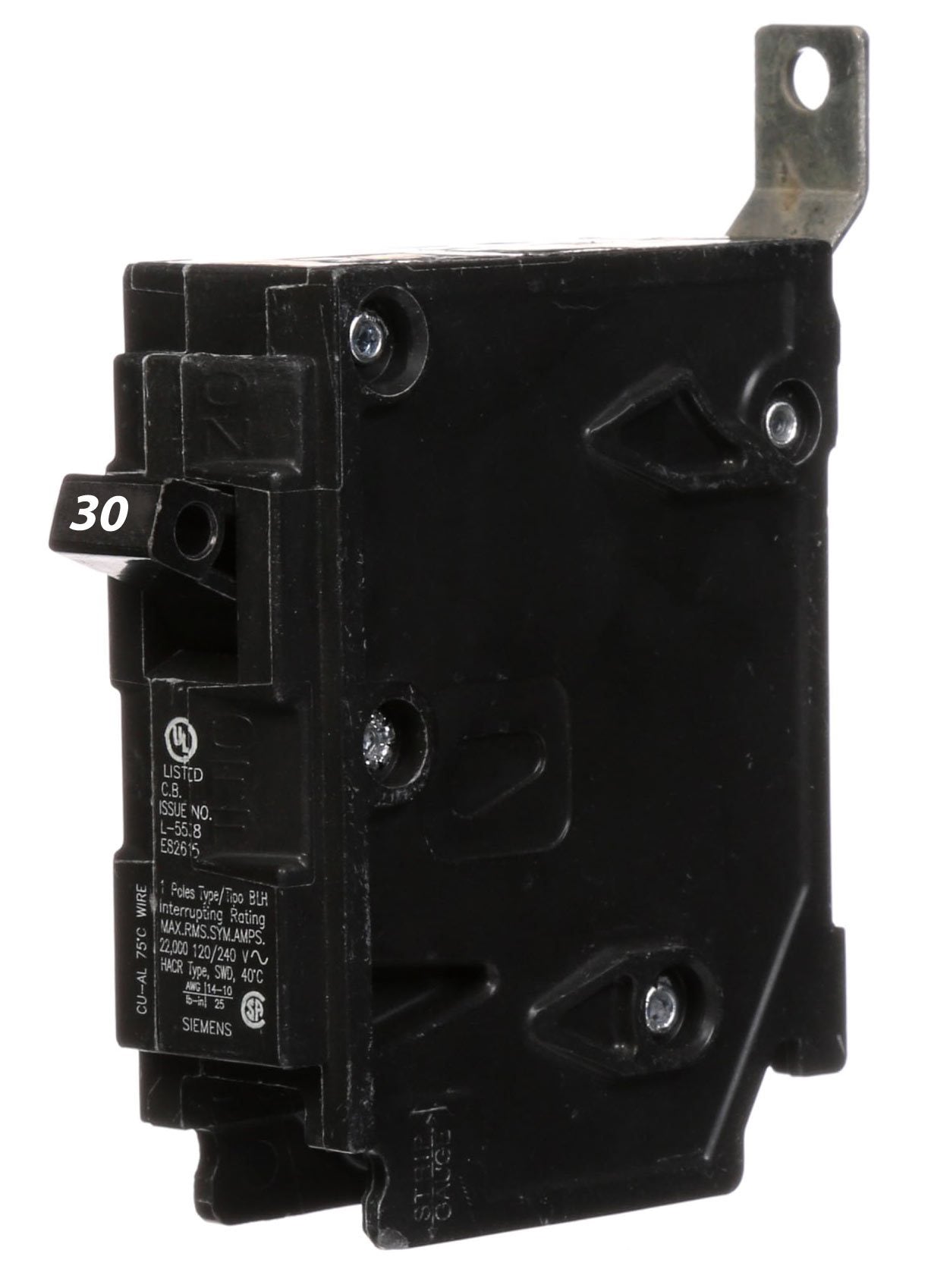

Siemens B130H - Molded Case Circuit Breaker 30A 1-Pole
Siemens B130H - Molded Case Circuit Breaker 30A 1-Pole
Siemens B130H - Molded Case Circuit Breaker 30A 1-Pole
Siemens B130H - Molded Case Circuit Breaker 30A 1-Pole
Siemens B130H - Molded Case Circuit Breaker 30A 1-Pole
Siemens B130H - Molded Case Circuit Breaker 30A 1-Pole
Siemens B130H - Molded Case Circuit Breaker 30A 1-Pole
Siemens B130H - Molded Case Circuit Breaker 30A 1-Pole

Siemens B130H - Molded Case Circuit Breaker 30A 1-Pole

Siemens
Price
Save $198.18
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B130H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 30A current rating and a 120V voltage rating, housed within a compact, bolt-on design measuring 2.563 x 1.00 x 3.122 inches and weighing 0.309 lb. This thermal-magnetic breaker, part of the BL Series, is CSA, HACR, NOM, and UL listed, ensuring compliance with key industry standards for safety and performance. It is engineered for integration into Siemens P1 panelboards, offering a 22kA interrupting capacity at 240V for robust protection in commercial and light industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Type BLH
  • Voltage Rating: 120V AC
  • Current Rating: 30A
  • Dimensions: 2.563" H x 1.00" W x 3.122" D (65.1mm x 25.4mm x 79.3mm)
  • Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Applications: Commercial and Light Industrial Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on Connection
  • Coil Voltage Maximum: Not Applicable
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: Not Specified
  • Phase: 1
  • Voltage: 120V
  • Amperage: 30A
  • AIC rating: 22kA @ 240V
  • Connection: Bolt-on
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 125A/BLH
  • Trip Type: Thermal Magnetic
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: Standard
  • Control Voltage Minimum: Not Applicable
  • Control Voltage Maximum: Not Applicable
  • MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu); Max. Wire Size 10 AWG
  • Metal Type: Not Specified
  • Panel Style: Not Specified
  • Bus Type: Not Specified
  • Fuse Class: Not Applicable
  • Insulation Temperature: Not Specified
  • Inductance: Not Applicable
  • Impedance: Not Applicable
  • Barrels: Not Applicable
  • Class Rating: Not Specified
  • Diameter: Not Applicable
  • Velocity: Not Applicable
  • Clip Center: Not Applicable
  • Class: Not Specified
  • Mounting: Bolt-on
  • Hz: 50/60 Hz (Typical for Standard)
  • Coil Material: Not Applicable
  • Horse Power: Not Specified
  • Aux Contacts: Not Applicable
  • CPT: Not Applicable
  • Full Load Amps: Not Specified
  • Dist Voltage: Not Specified
  • Bucket Size: Not Applicable
  • Bucket Style: Not Applicable
  • Bucket Type: Not Applicable
  • Full Load Amp Maximum: Not Specified
  • Full Load Amp Minimum: Not Specified
  • Enclosure: Molded Case
  • Relay Style: Not Applicable
  • Coil Voltage Minimum: Not Applicable
  • Wire: See MCM Size
  • Amperage Maximum: 30A
  • Amperage Minimum: Not Specified
  • Nema Rating: HACR Rated
  • Switch Style: Not Specified
  • Wire Size: See MCM Size
  • Certification: CSA, HACR, NOM, UL
  • Circuit Breaker Mounting Style: Bolt-on
  • Terminal Connection: Lug
  • Frequency Rating: Standard 50/60 Hz
  • Phase Connection: Single Phase
  • Standards: CSA, HACR, NOM, UL
  • Compatible Frames: 125A/BLH Frame
  • Installation Type: Panel Mount
  • Item QTY: 1
  • Nema Starter Size: Not Applicable
  • Breaker Frame: 125A/BLH
  • Current Rating: 30A
  • Reverse Standoff Voltage: Not Applicable
  • Watts: Not Specified
  • Peak Pulse Current: Not Applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not Applicable
  • Breakdown Voltage (VBR@IT) (V): Not Applicable
  • Polarity: Not Applicable
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: Not Applicable
  • On-State Current: Not Applicable


Product Identification
  • UPC: 783643263833
  • GTIN: 00783643263833
