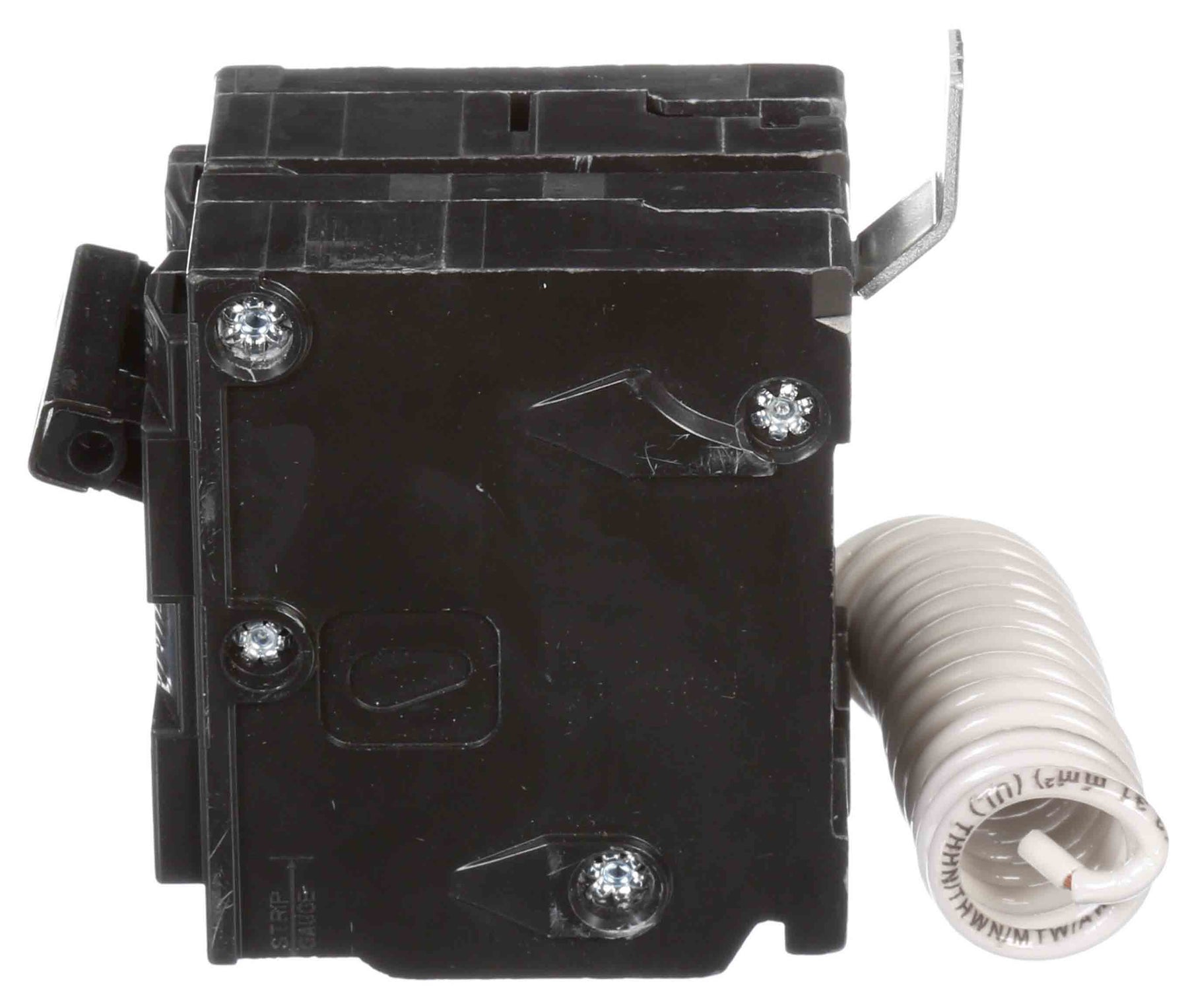

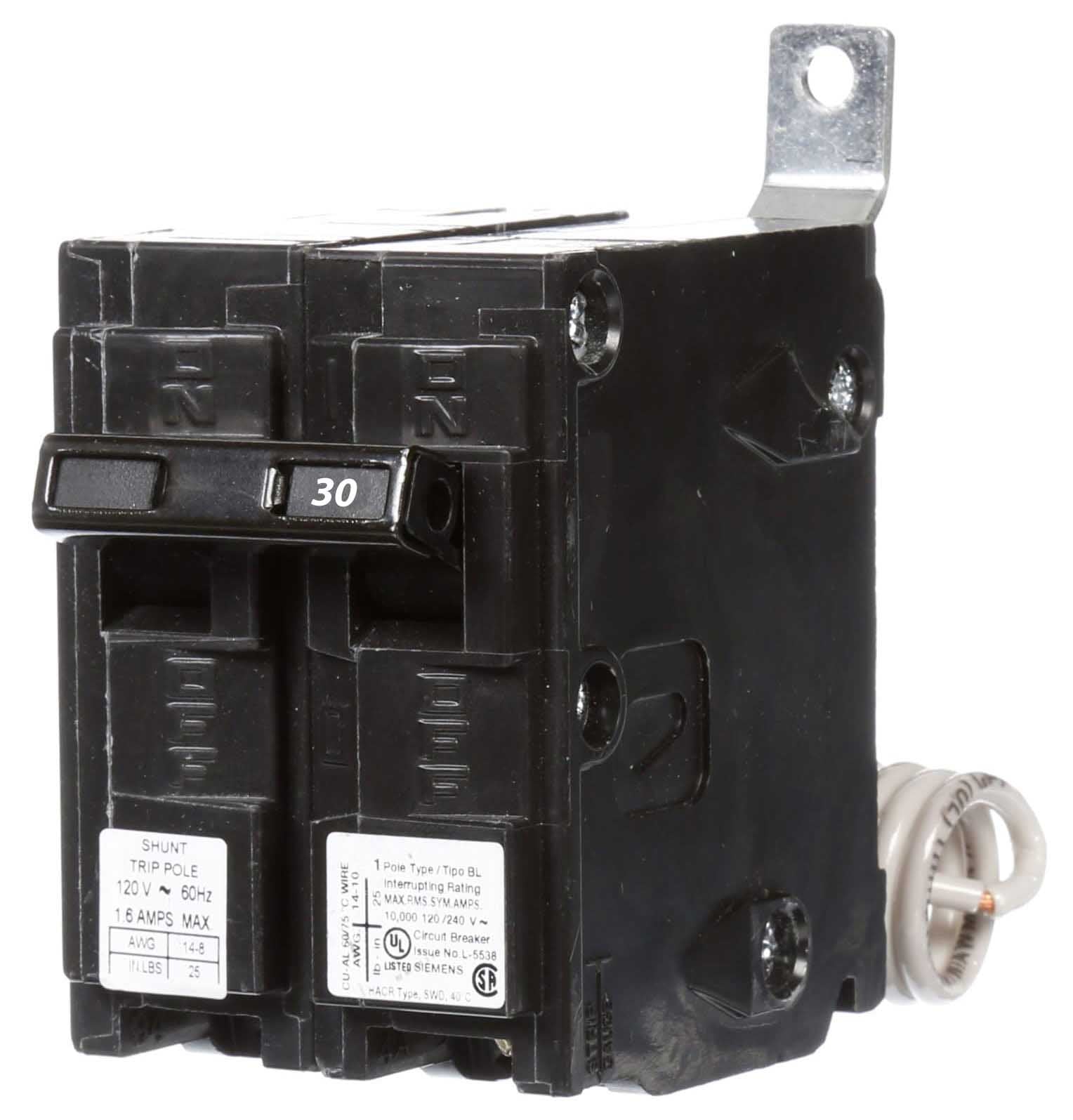

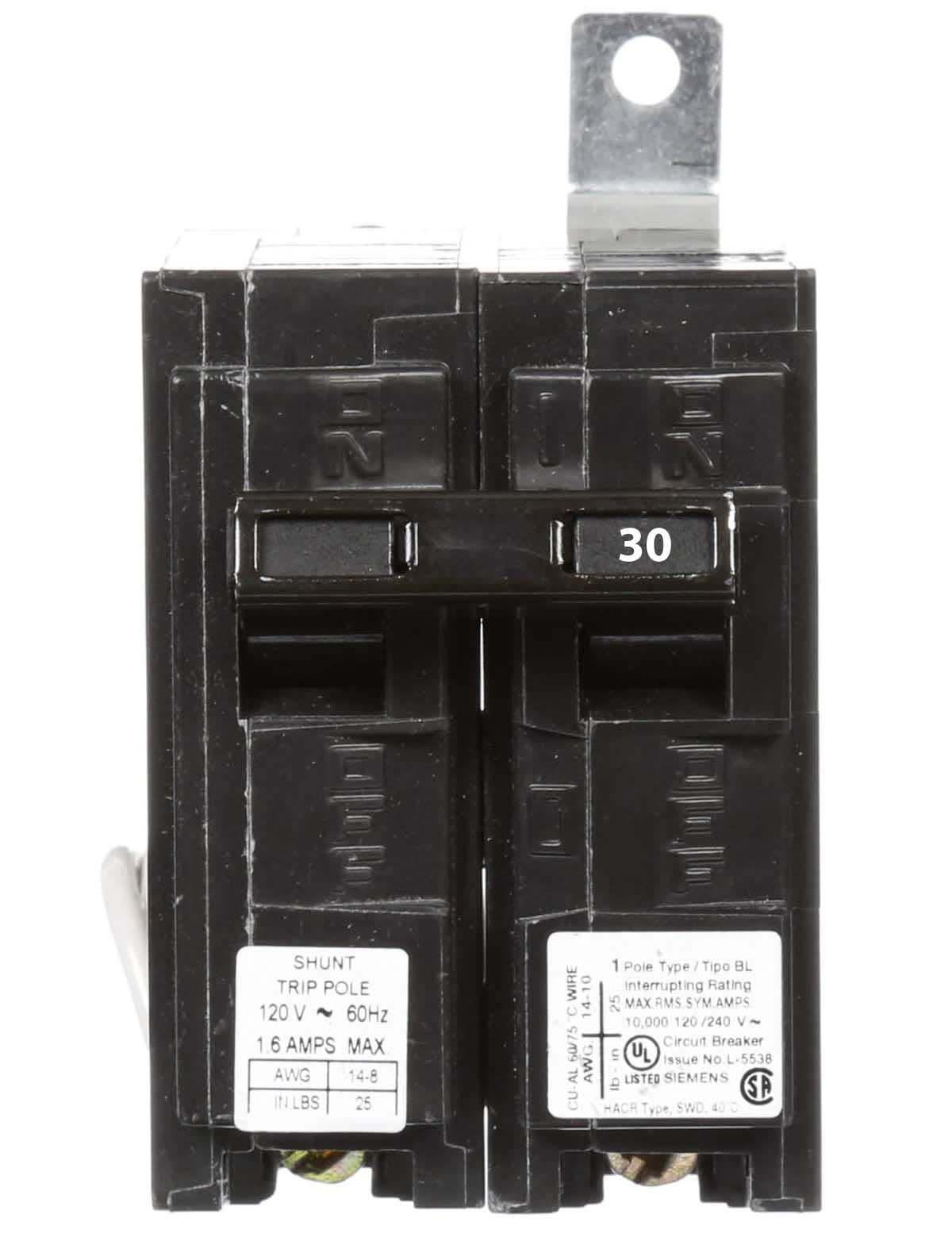

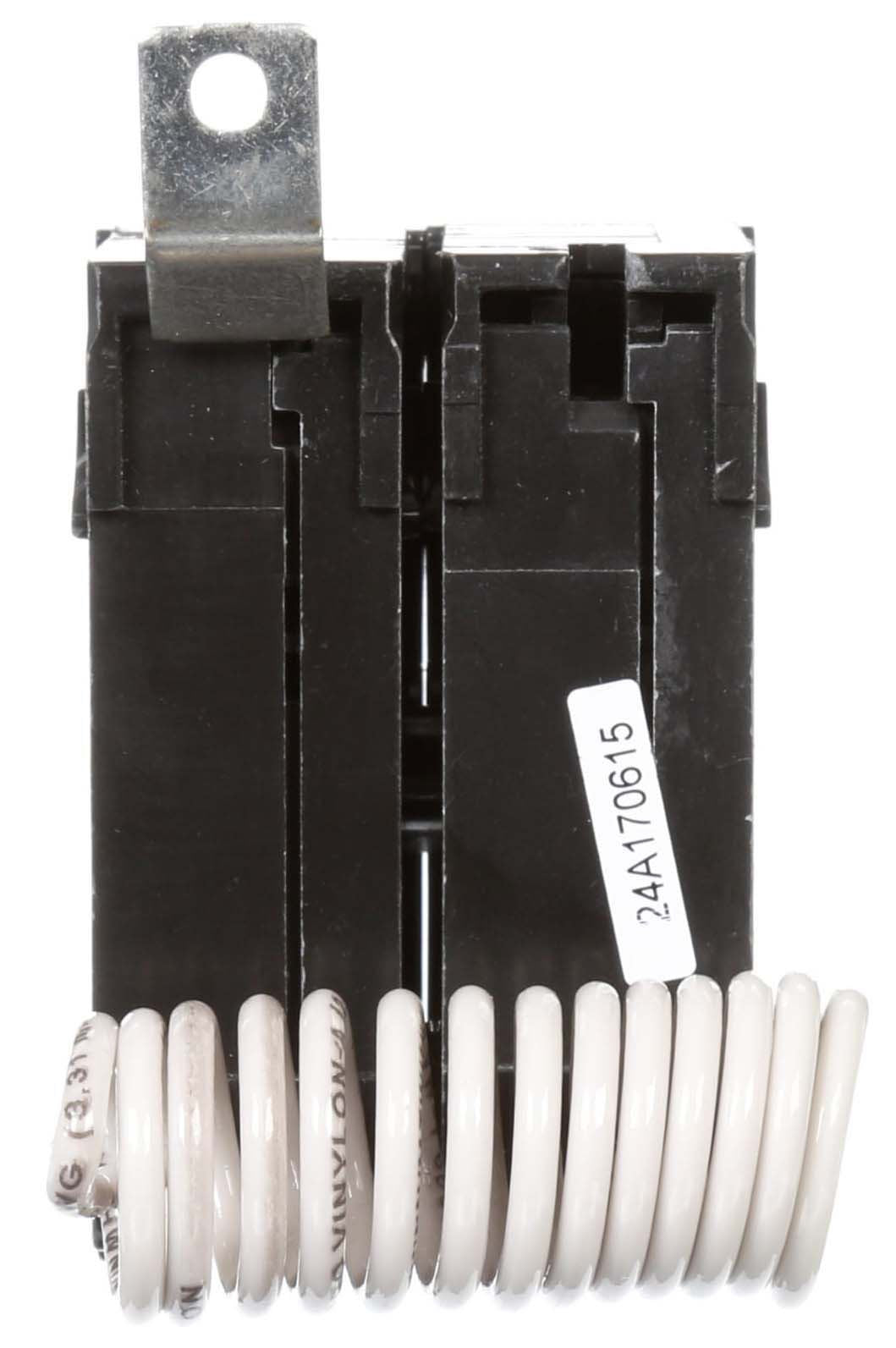

Siemens B13000S01 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 30A current rating and a 120V voltage rating, housed within a compact, bolt-on design measuring 2.571" x 2.00" x 2.89" and weighing 0.309 lb. This shunt trip breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, is certified to UL, CSA, HACR, and NOM standards, and offers a 10kA interrupting capacity at 240V. It is engineered for integration into Siemens P1 panelboards and is suitable for a range of commercial and light industrial applications requiring precise circuit control.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Shunt Trip, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 30A
  • Dimensions: 2.571" H x 2.00" W x 2.89" D
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Circuit protection in Siemens P1 Panelboards for commercial/industrial use
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Bolt-on
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: 125A/BL
  • Breaker Type: Shunt Trip
  • Terminal Connection: Lug
  • MCM Size: Wire Range 6 AWG (Max) to 12 AWG (Al) / 14 AWG (Cu) (Min)
  • Panel Type: Siemens P1 Panelboards
  • Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Weight: 0.309 lb


Product Identification
  • UPC: 783643268258
  • GTIN: 00783643268258
