Siemens
Price
Save $83.68
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

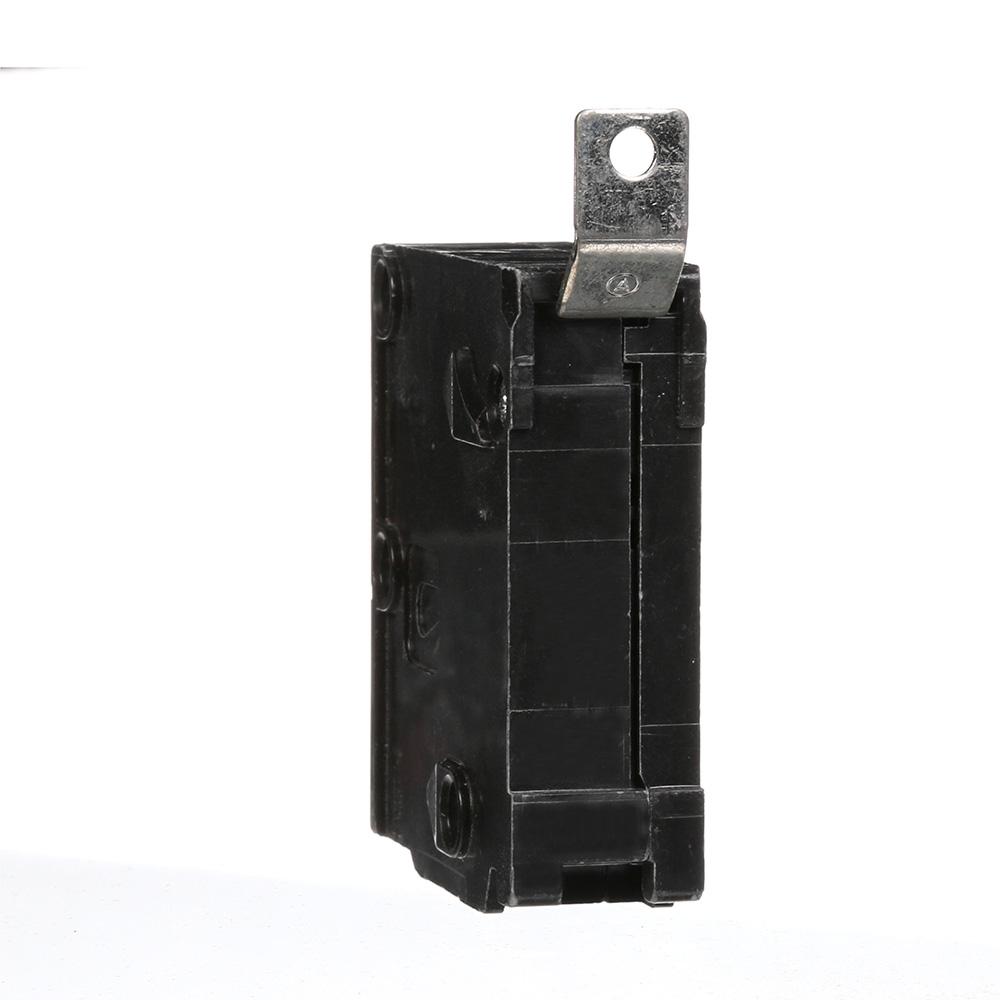

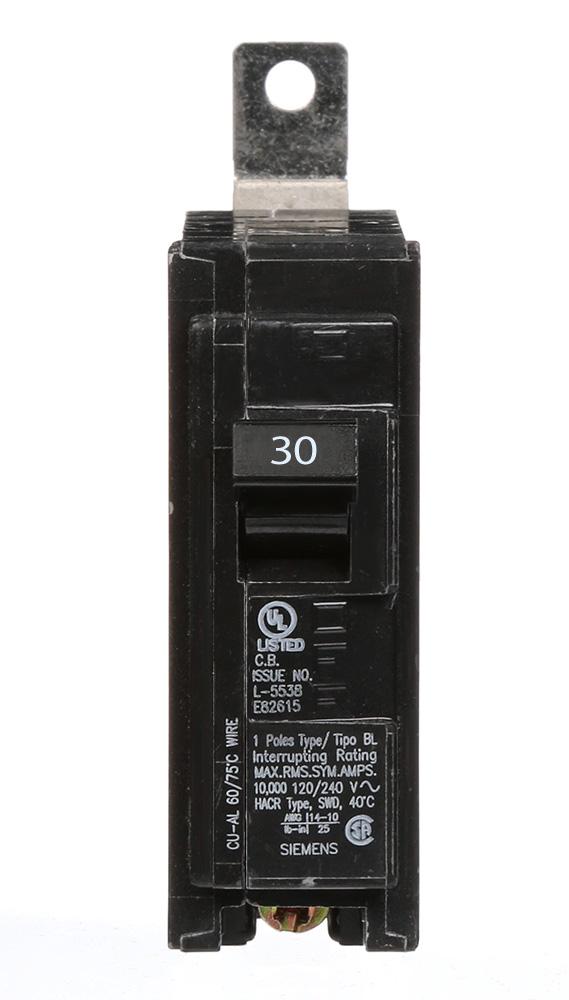

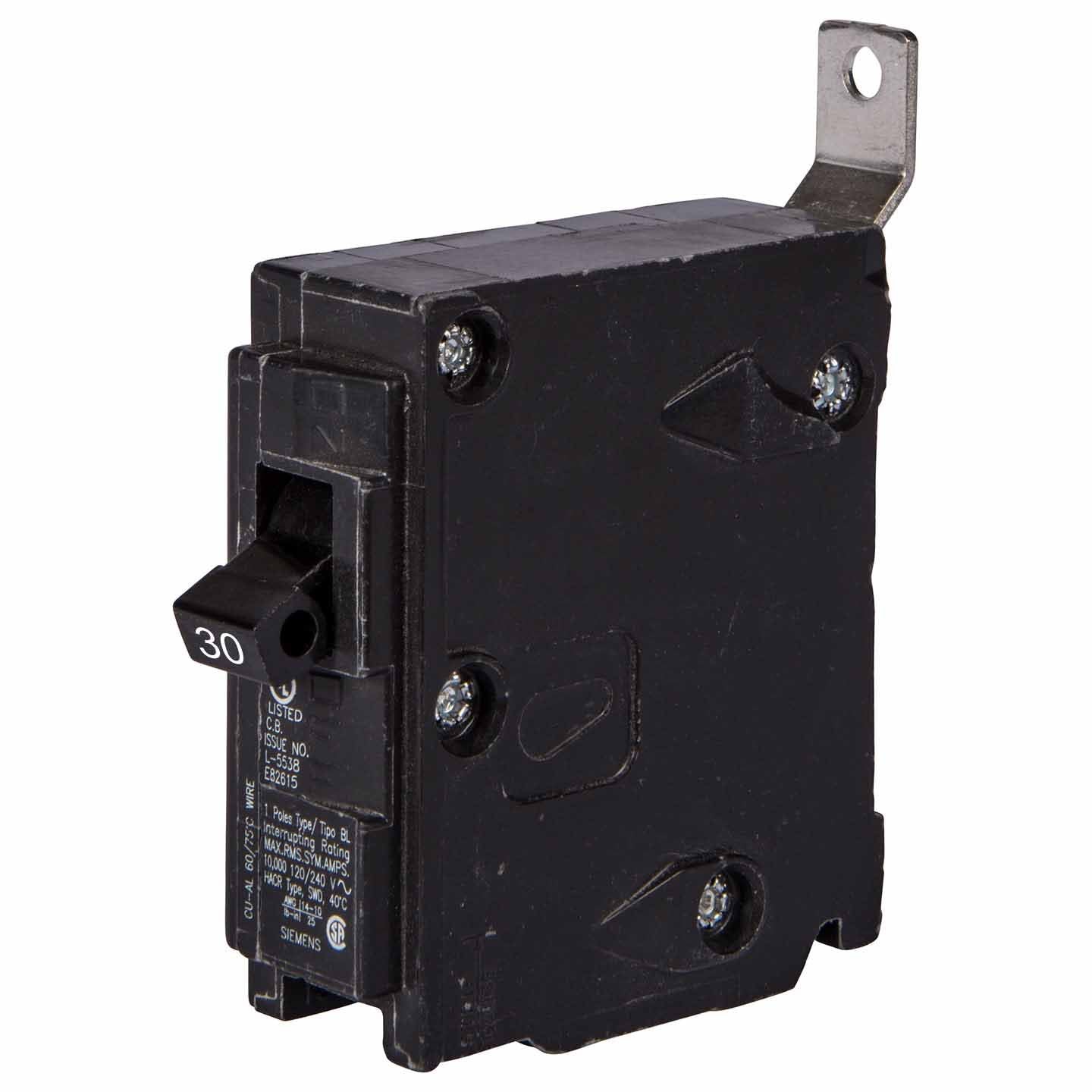

Siemens B130 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 30A current rating and a 120V voltage rating, housed within a compact, bolt-on design measuring 2.571 x 1.00 x 2.89 inches and weighing 0.309 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection and is constructed to operate in temperatures from -25°C to 70°C. It complies with key industry standards including UL listing, CSA certification, and is HACR rated for HVAC equipment. This standard breaker is typically applied in Siemens P1 panelboards for commercial and light industrial branch circuits, offering a 10kA interrupting capacity at 120V.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-on Connection
  • Voltage Rating: 120V AC
  • Current Rating: 30A
  • Dimensions: 2.571 x 1.00 x 2.89 inch (65.3 x 25.4 x 73.4 mm)
  • Weight: 0.309 lb
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Branch circuit protection in Siemens P1 Panelboards for commercial/light industrial use
  • Frame Size: 125A/BL
  • Phase: 1
  • Poles: 1
  • AIC Rating: 10kA @ 120V
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • MCM Size / Wire Range: Min. 8 AWG, Max. 4 AWG (Aluminum) or 6 AWG (Copper)
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263444
  • GTIN: 00783643263444
