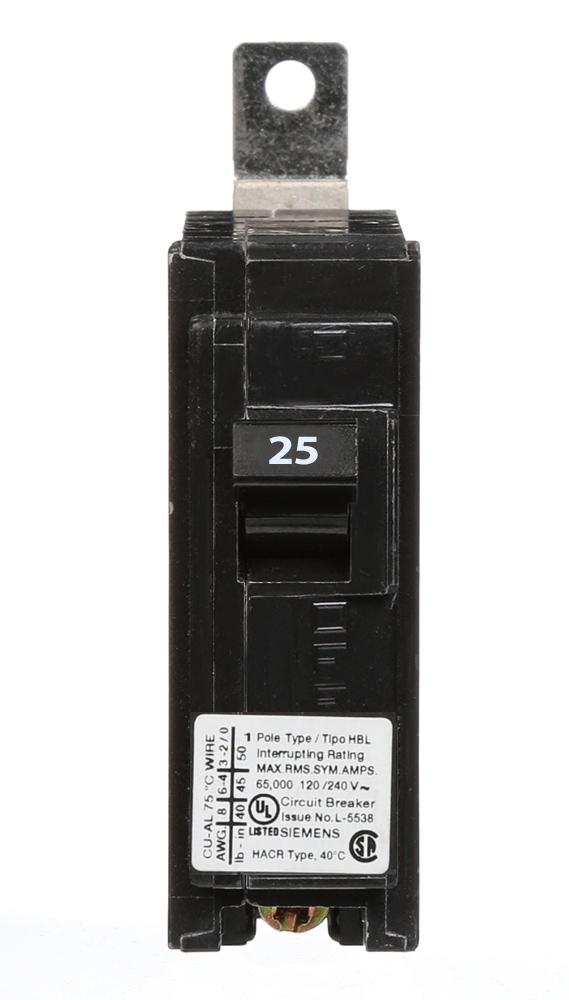

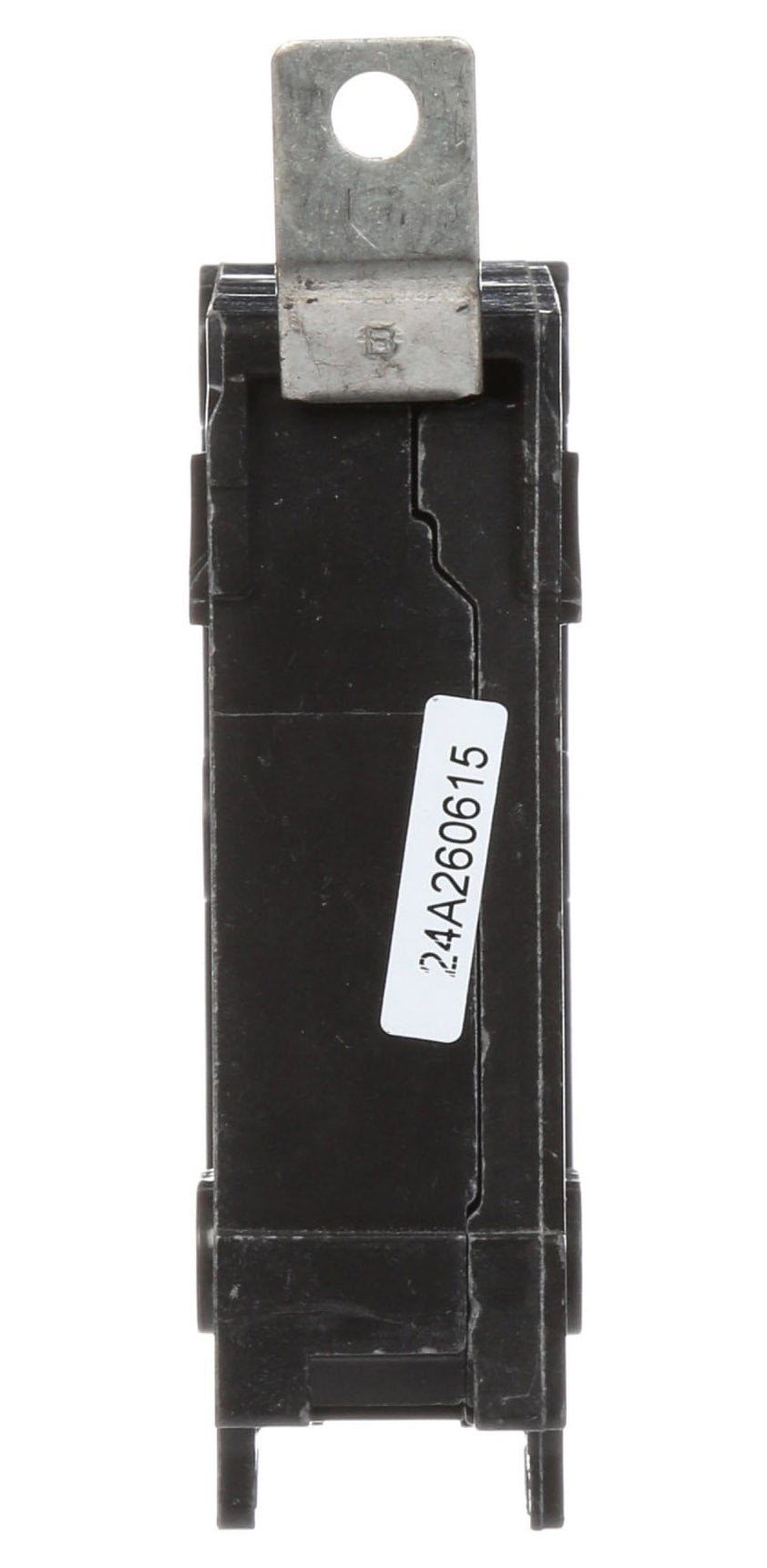

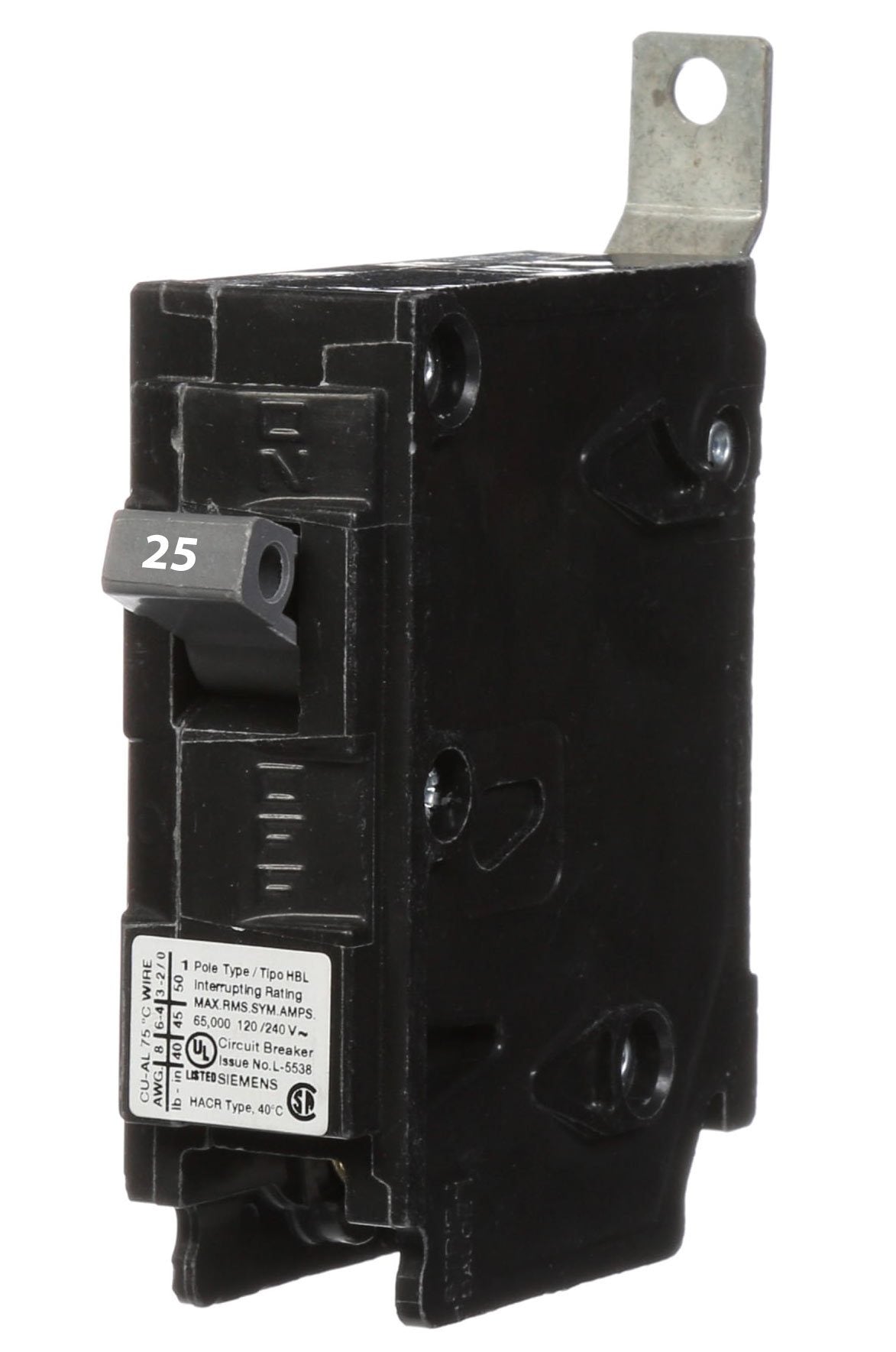

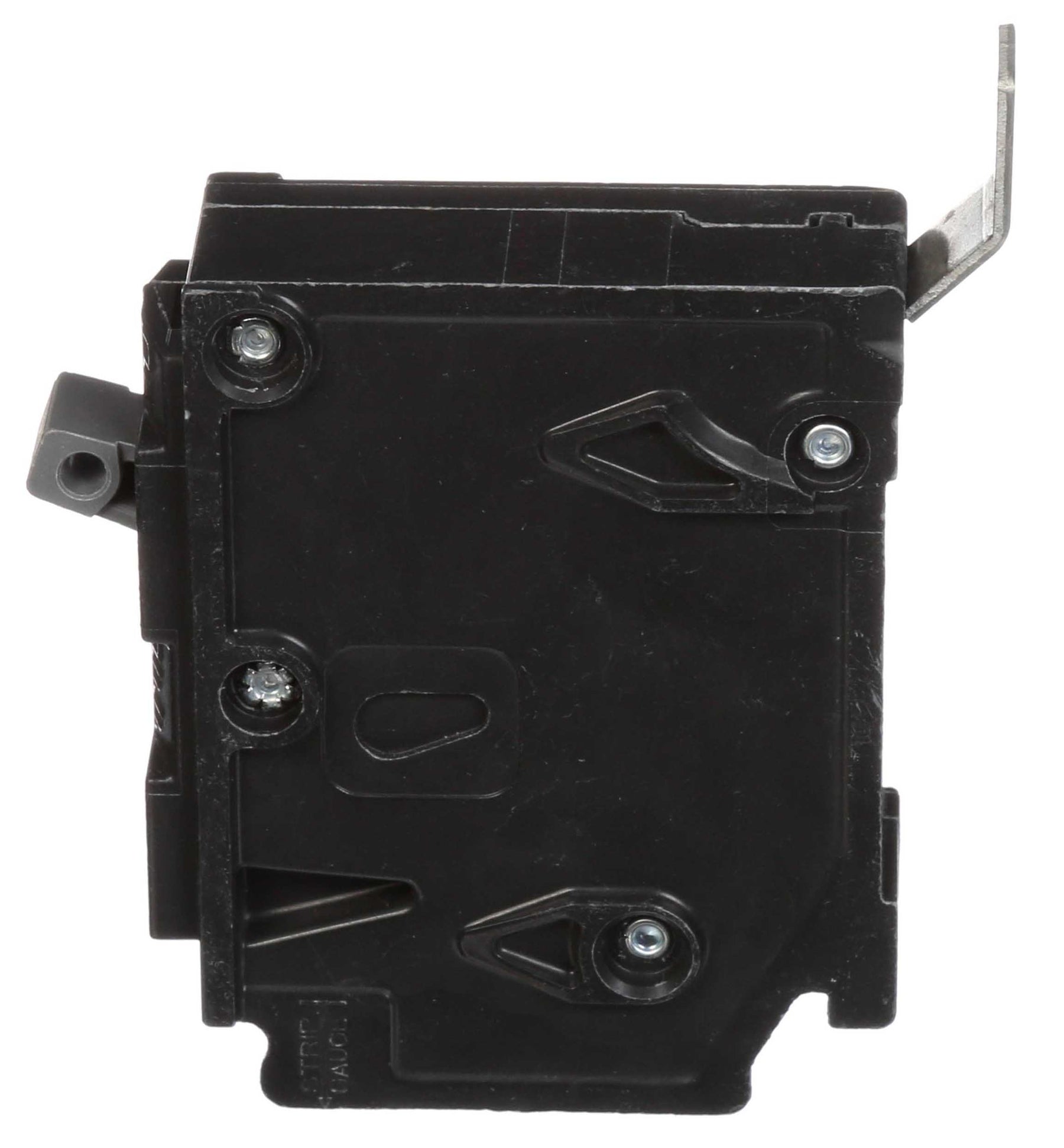

Siemens B125HH - Molded Case Circuit Breaker 25A 1-Pole

Price
Regular price $44.95
Regular price $303.00 Sale price $44.95
Save $258.05
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens B125HH is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in commercial and industrial electrical systems. It features a 25A current rating and a 120V voltage rating, housed within a compact, bolt-on design measuring 2.563 x 1.00 x 3.122 inches and weighing 0.309 lb. This thermal-magnetic breaker is constructed for compliance with key industry standards including UL listing, CSA certification, and HACR rating, ensuring safe operation. Its typical application is within Siemens P1 panelboards for protecting branch circuits in single-phase systems.

Key Features & Specifications
  • Type: HBL Standard Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 25A
  • Dimensions: 2.563" H x 1.00" W x 3.122" D
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Siemens P1 Panelboards, Commercial/Industrial Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on Connection
  • Phase: 1
  • AIC Rating: 65kA @ 240V
  • Connection: Lug Terminal
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 125A/BL
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Family: BL Series
  • Country of Origin: Mexico
  • Weight: 0.309 lb


Product Identification
  • UPC: 783643089099
  • GTIN: 00783643089099
