Siemens
Price
Save $171.30
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

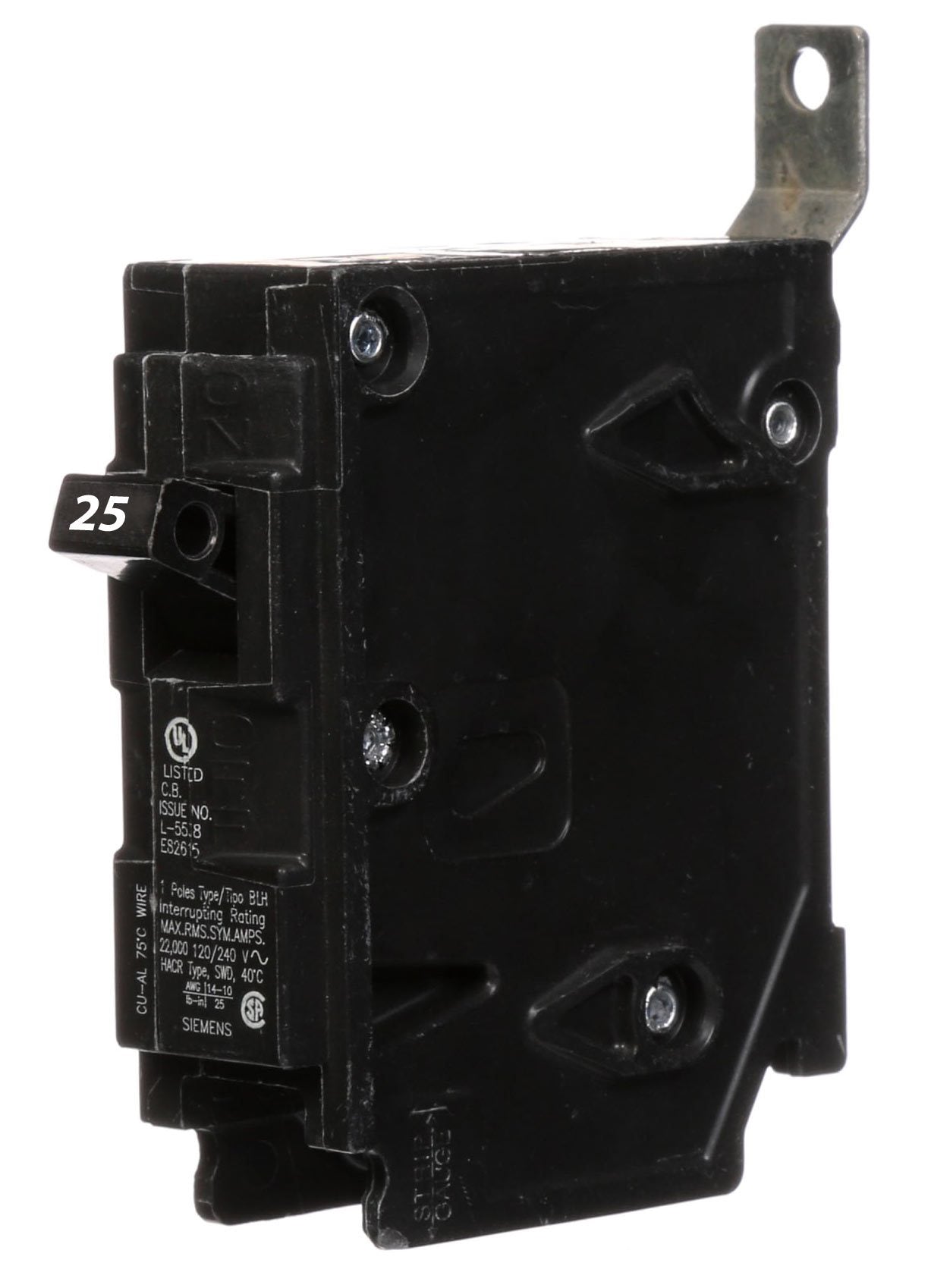

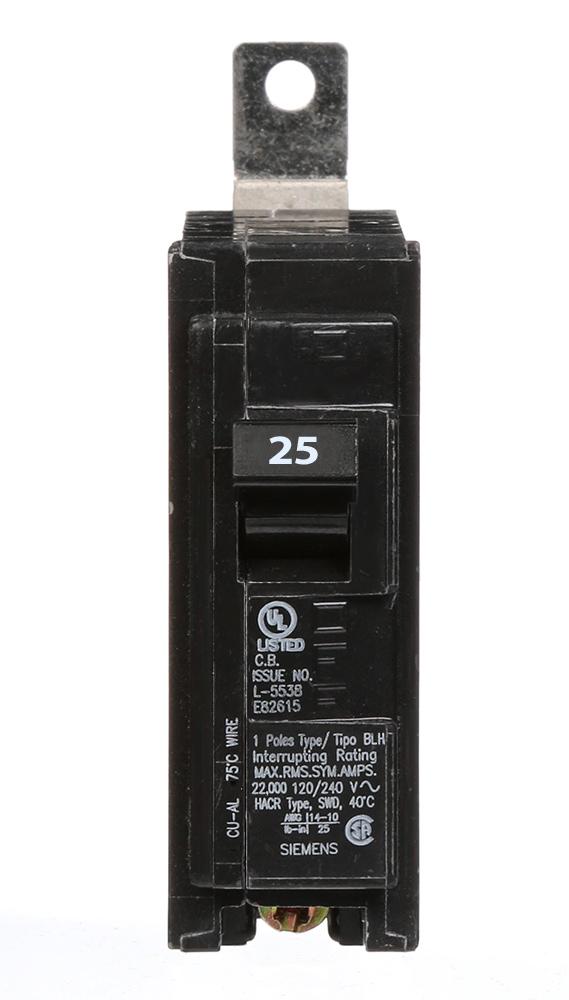

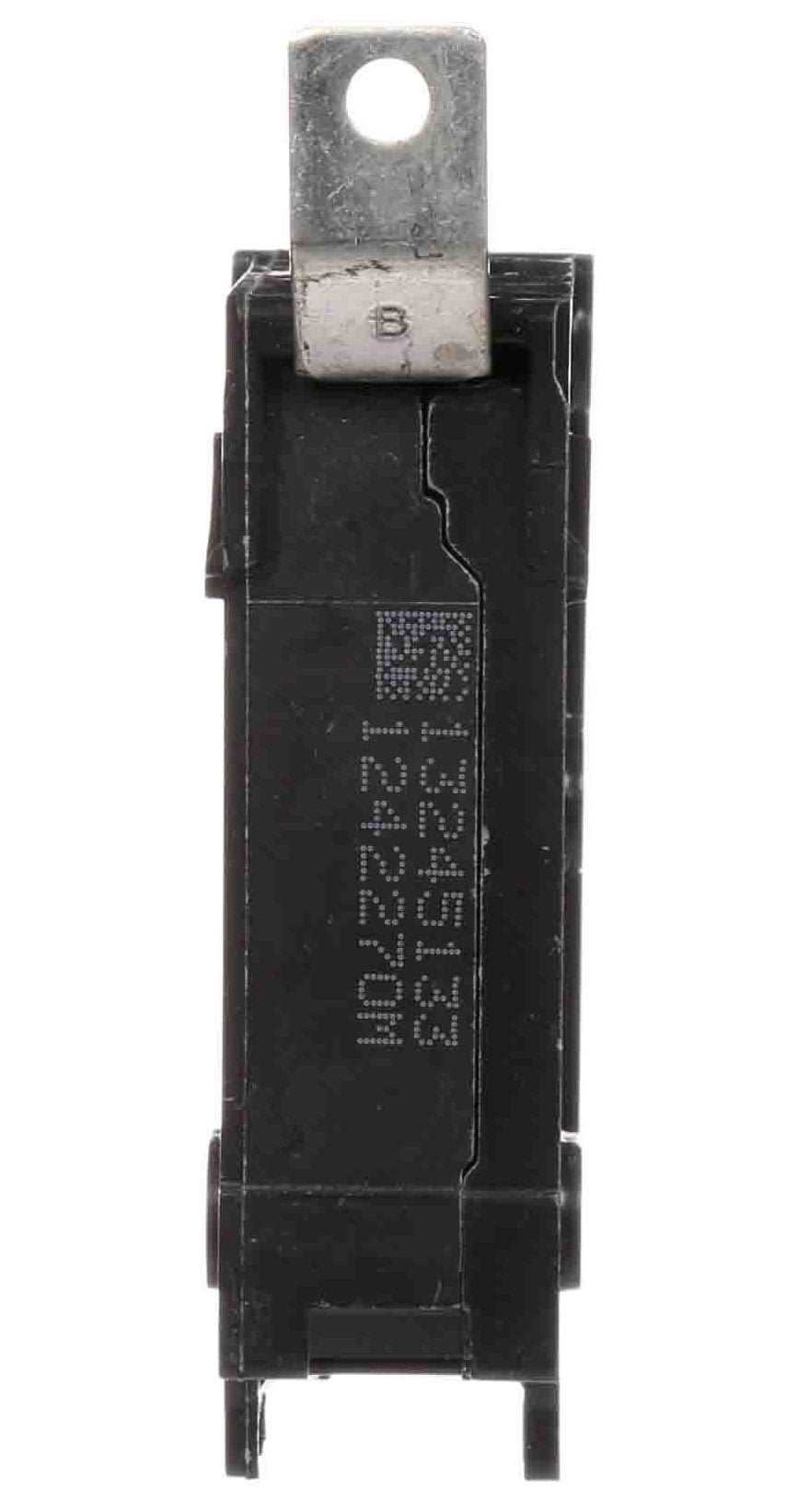

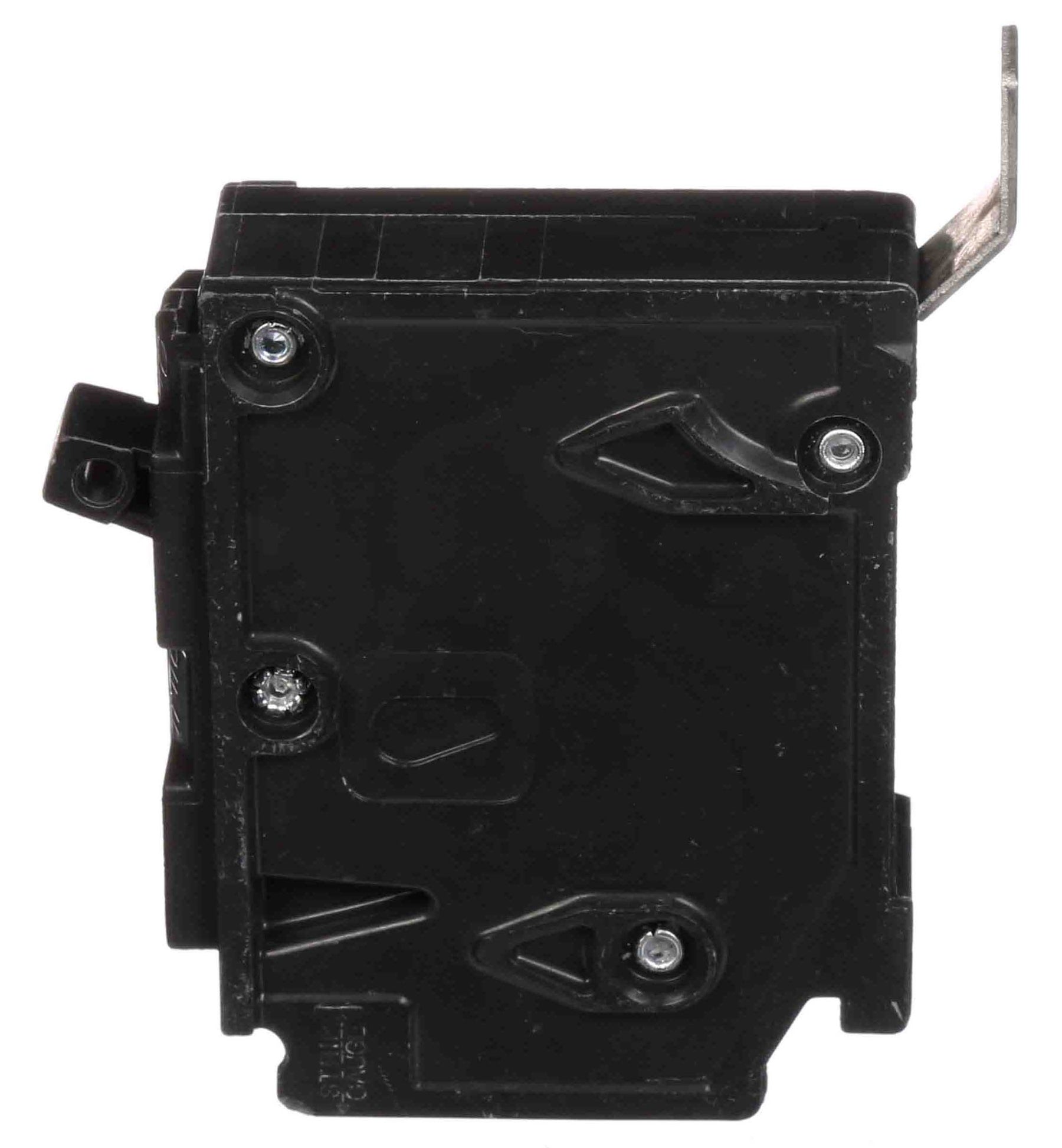

Siemens B125H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 25A current rating and a 120V voltage rating, housed within a compact, bolt-on frame measuring 2.563 x 1.00 x 3.122 inches and weighing 0.309 lb. This thermal magnetic breaker is CSA, HACR, NOM, and UL listed, ensuring compliance with key North American safety standards for use in Siemens P1 panelboards and similar industrial and commercial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 25A
  • Frame Size: 125A/BLH
  • AIC Rating: 22kA @ 240V
  • Poles: 1
  • Phase: 1
  • Connection: Bolt-On
  • Terminal Connection: Lug
  • Functions: LI (Long-Time and Instantaneous Trip)
  • MCM Size / Wire Range: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Dimensions: 2.563" x 1.00" x 3.122" (65.1mm x 25.4mm x 79.3mm)
  • Weight: 0.309 lb (0.14 kg)
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
  • Panel Type: Compatible with Siemens P1 Panelboards
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643303959
  • GTIN: 00783643303959
