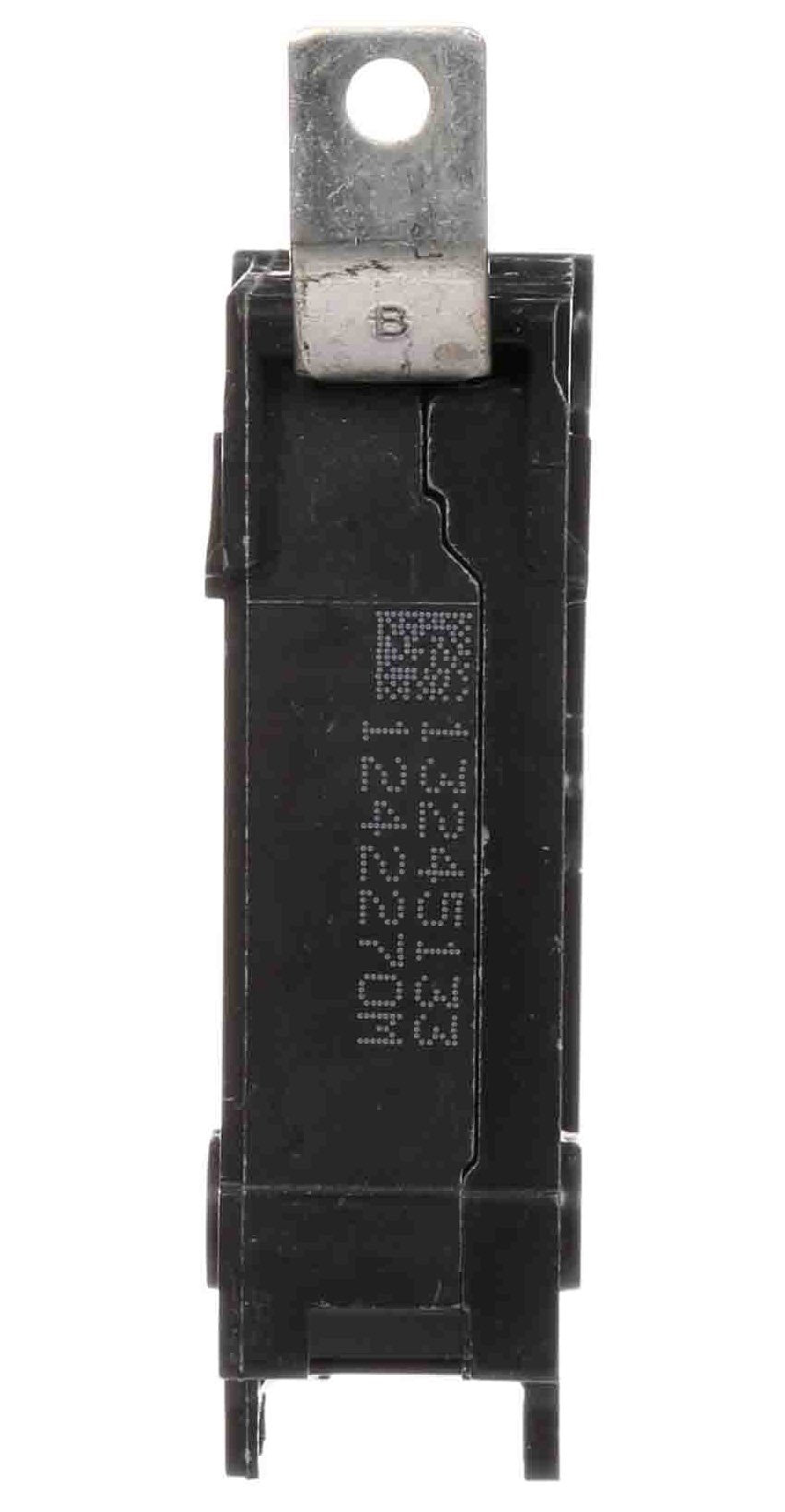

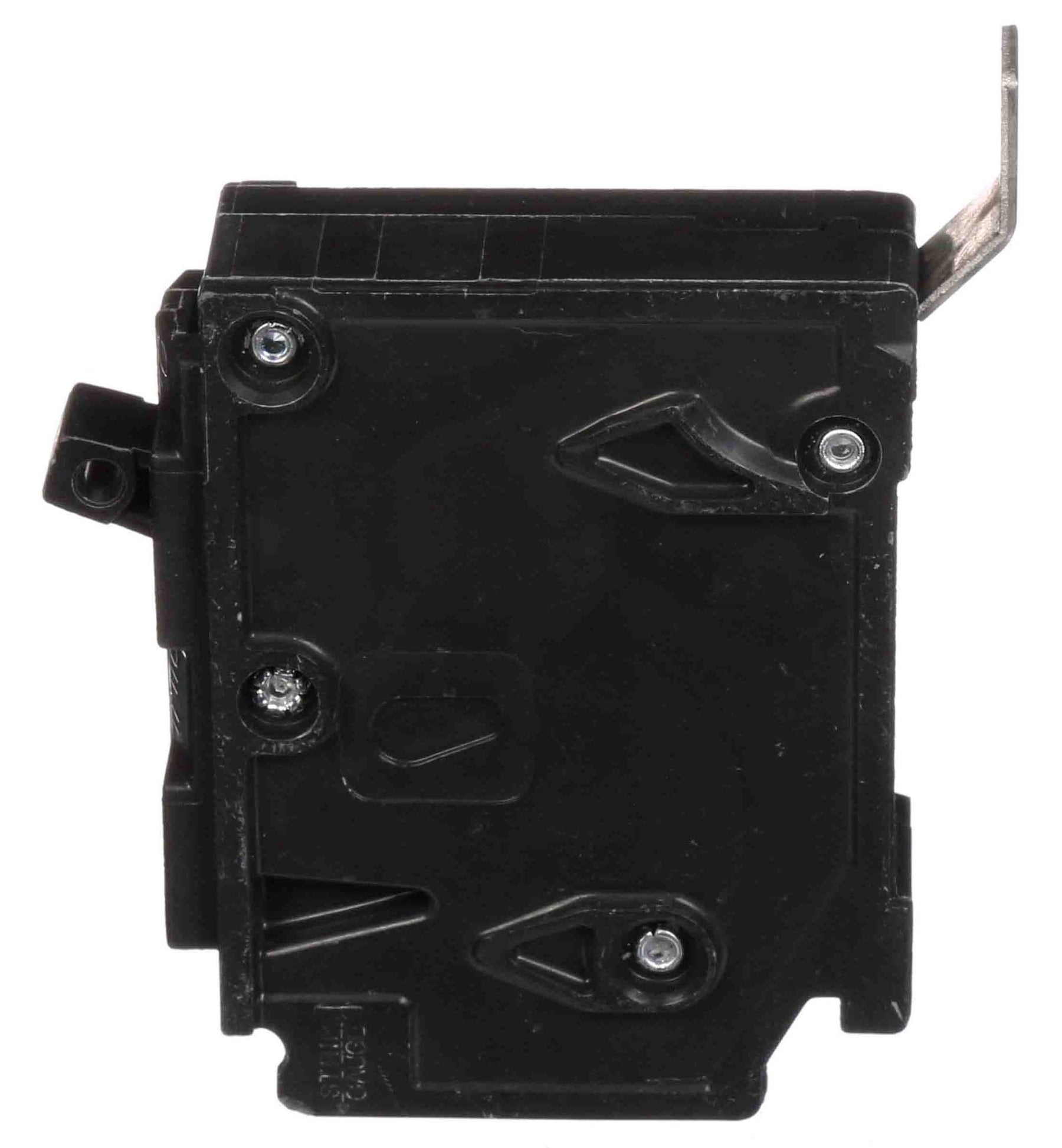

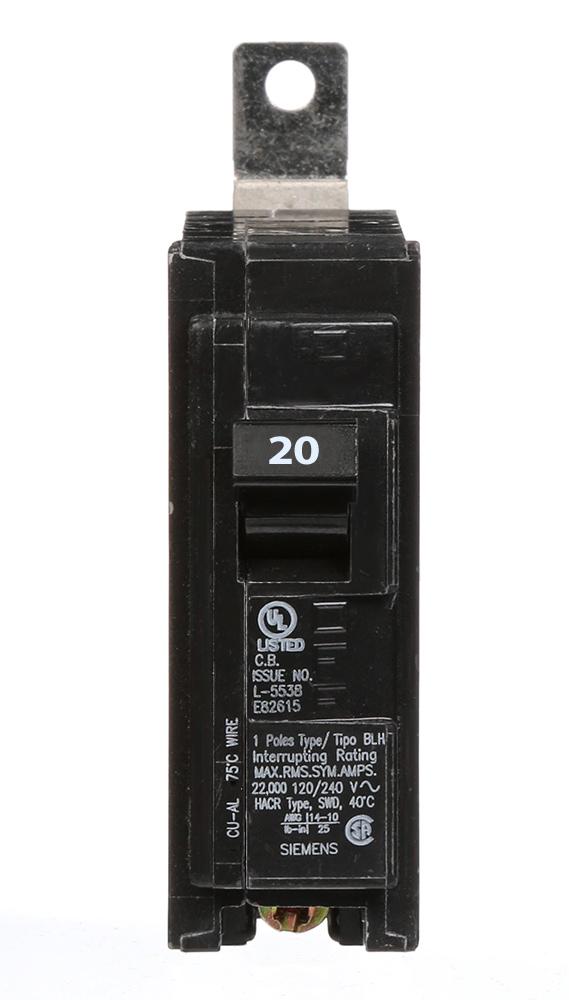

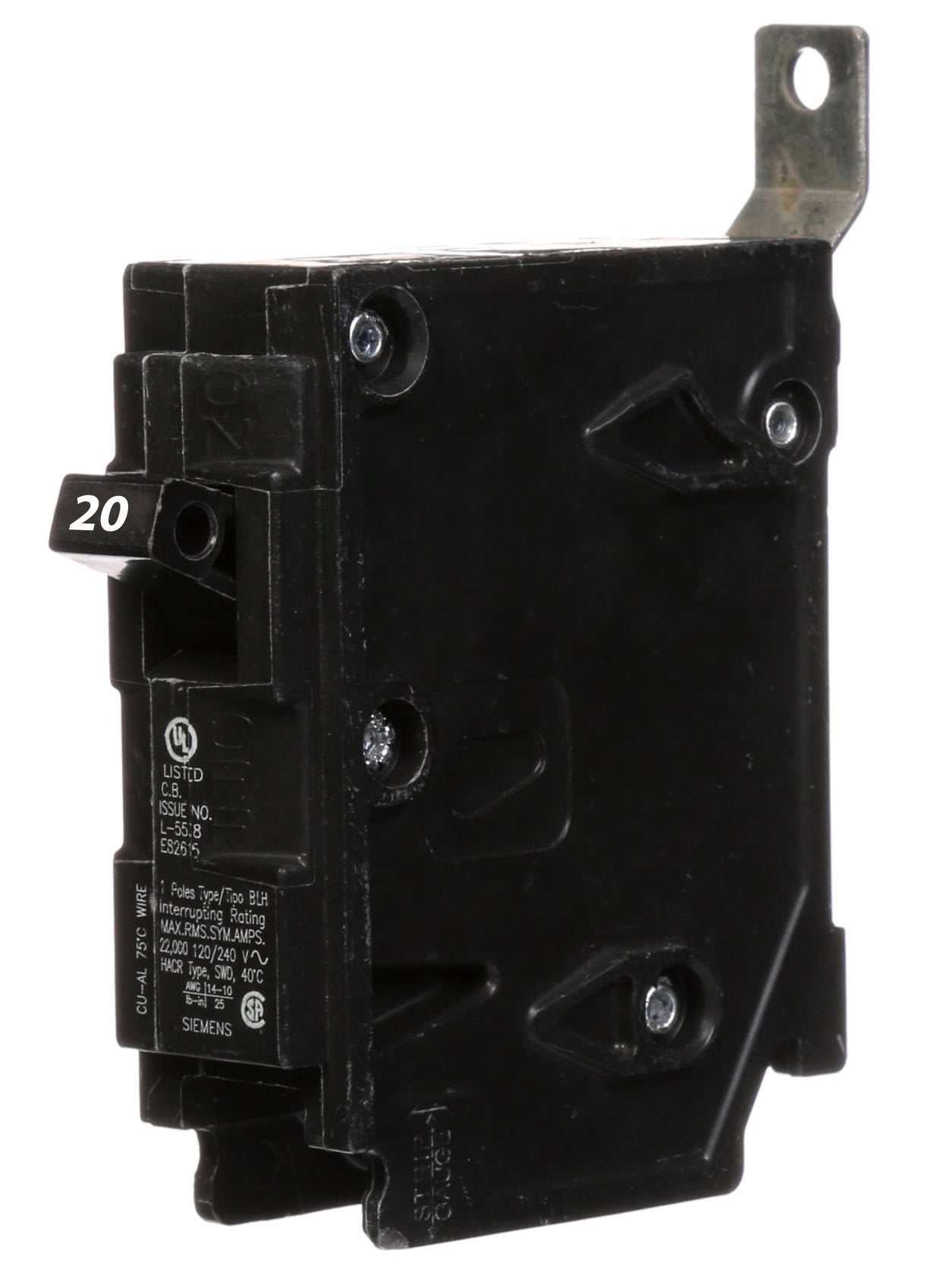

Siemens B120H - Molded Case Circuit Breaker 20A 1-Pole (120V)

Price
Regular price $20.82
Regular price $191.00 Sale price $20.82
Save $170.18
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens B120H is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 20A current rating and a 120V voltage rating, housed within a compact, bolt-on design measuring 2.563 x 1.00 x 3.122 inches and weighing 0.309 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, is certified to UL, CSA, HACR, and NOM standards, and is compatible with Siemens P1 panelboards. Its typical applications include protecting branch circuits in commercial and light industrial power distribution.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 2.563" H x 1.00" W x 3.122" D
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Branch circuit protection in commercial/industrial panels
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-on Connection
  • Phase: 1
  • AIC rating: 22kA @ 240V
  • Connection: Bolt-on
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 125A/BLH
  • Breaker Type: Standard
  • Panel Type: Siemens P1 Panelboards
  • Terminal Connection: Lug
  • MCM Size: Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Weight: 0.309 lb
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263826
  • GTIN: 00783643263826
