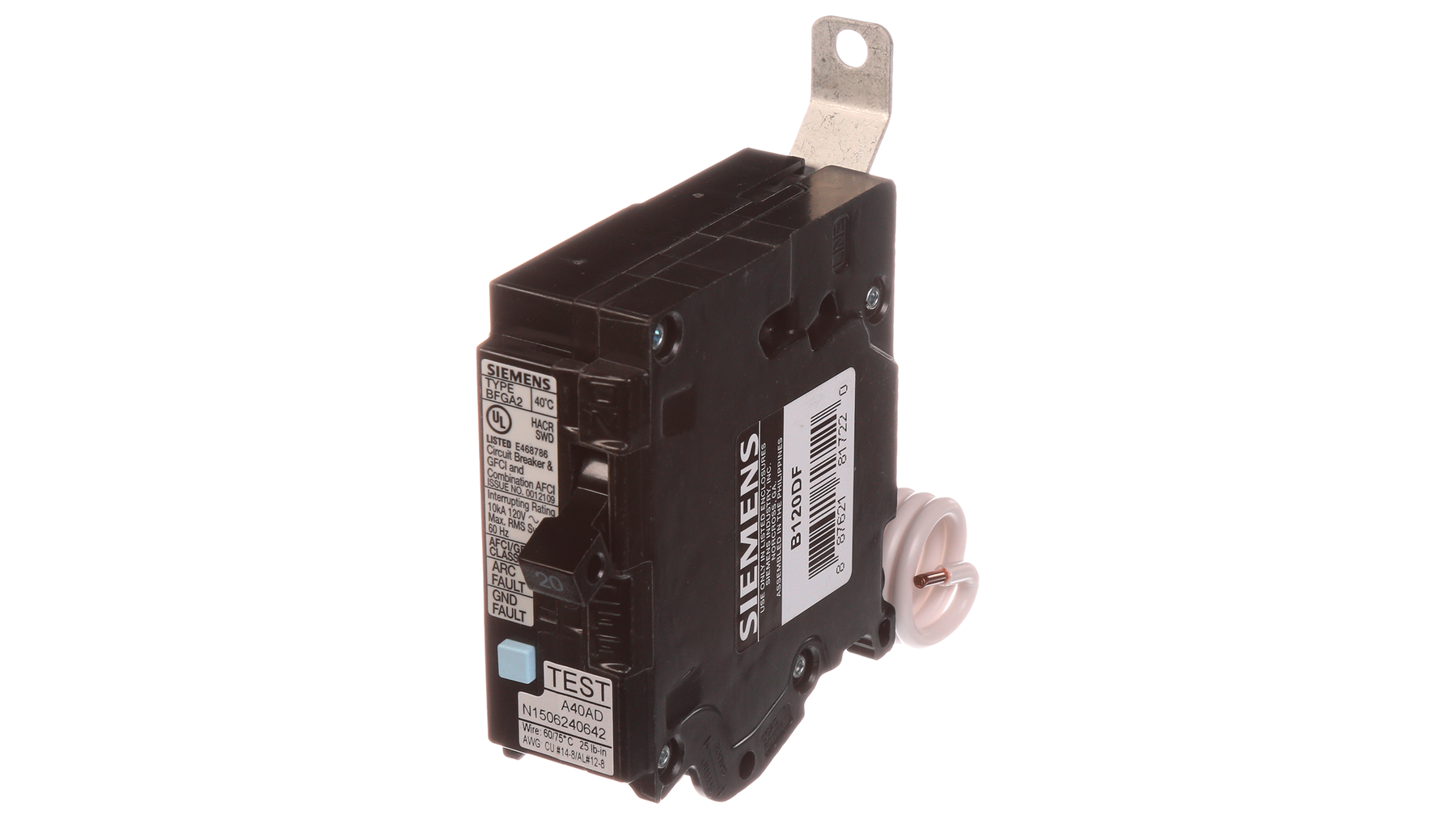

Siemens B120DF - Molded Case Circuit Breaker 20A 1P 120V
Siemens B120DF - Molded Case Circuit Breaker 20A 1P 120V

Siemens B120DF - Molded Case Circuit Breaker 20A 1P 120V

Siemens
Price
Save $86.97
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens B120DF is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 20A current rating and a 120V voltage rating, housed within a compact bolt-on configuration measuring 0.787 x 3.15 x 4.724 inches and weighing 0.243 lb. This thermal-magnetic breaker, offering both long-time and instantaneous trip functions with a 10kA interrupting rating at 120V, is constructed for operation in temperatures from -25°C to 70°C and complies with UL, CSA, HACR, and NOM standards. It is typically applied within Siemens P1 panelboards for commercial and light industrial branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 120V AC
  • Current Rating: 20A
  • Dimensions: 0.787" W x 3.15" H x 4.724" D (20mm x 80mm x 120mm)
  • Standards: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Applications: Branch circuit protection in Siemens P1 Panelboards for commercial/industrial use
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Phase: 1
  • AIC Rating: 10kA @ 120V
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Panel Type: Siemens P1 Panelboards
  • Breaker Type: BDF
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Family: BL Series
  • Weight: 0.243 lb


Product Identification
  • UPC: 887621817220
  • GTIN: 00887621817220
