Siemens
Price
Save $172.45
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

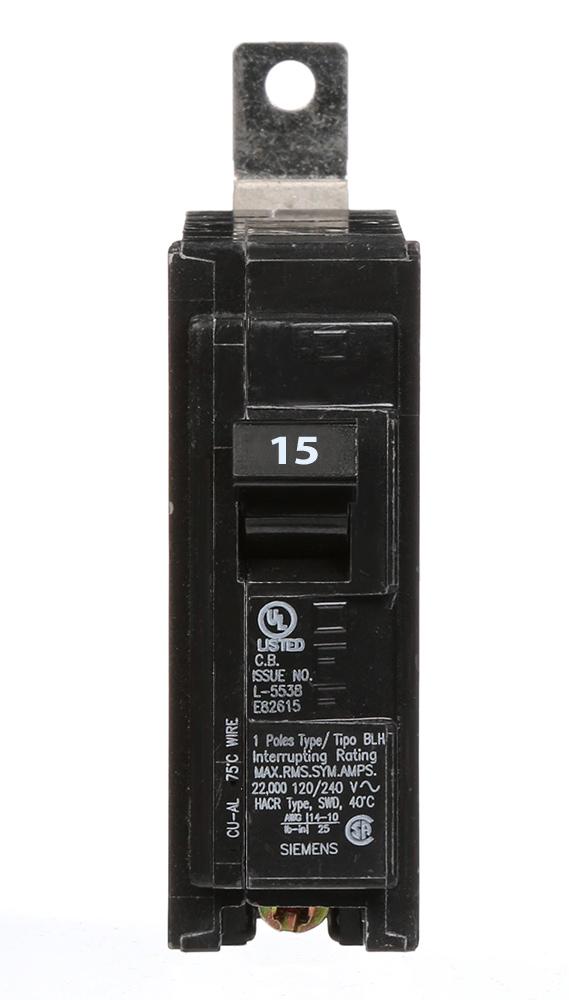

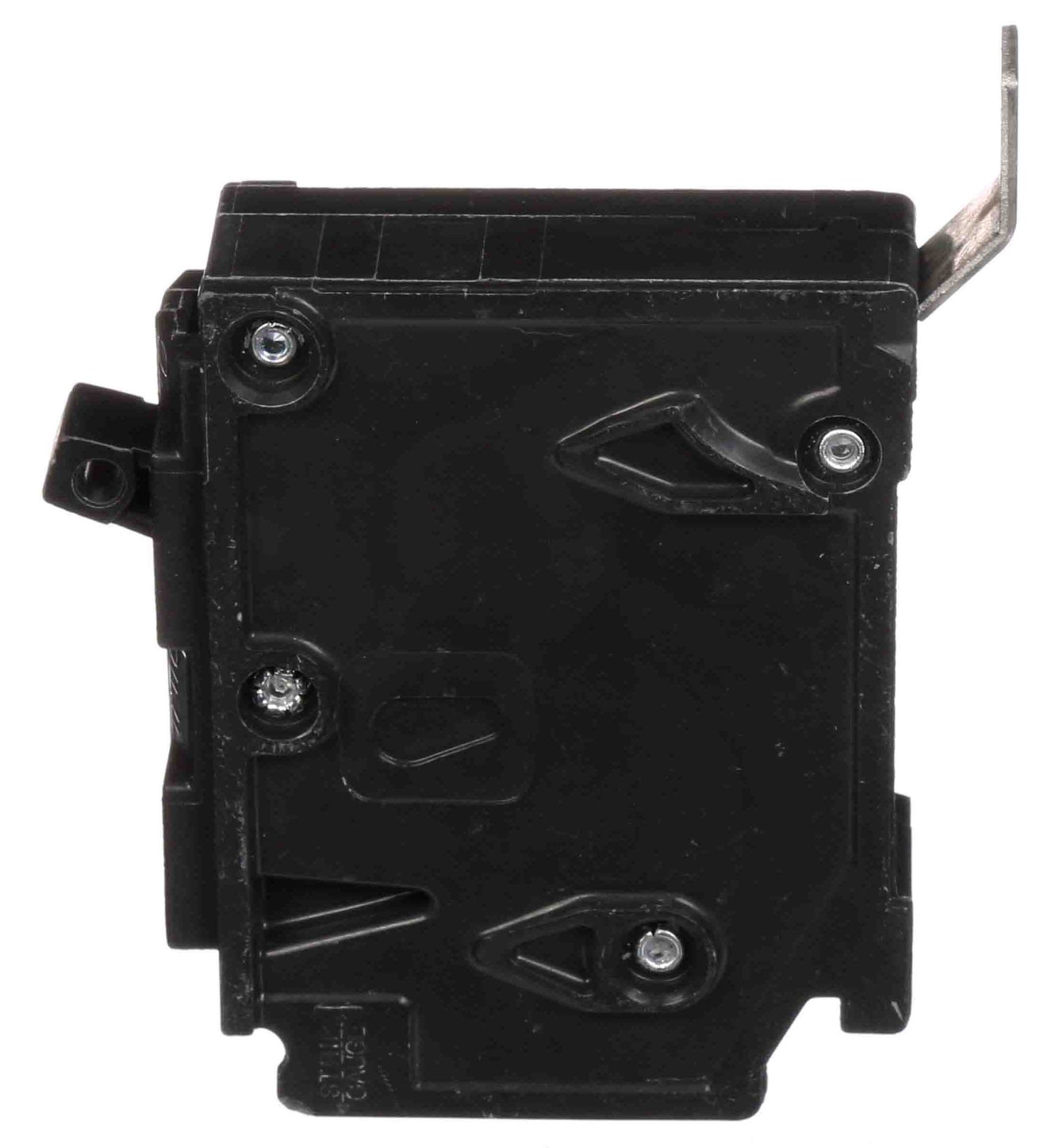

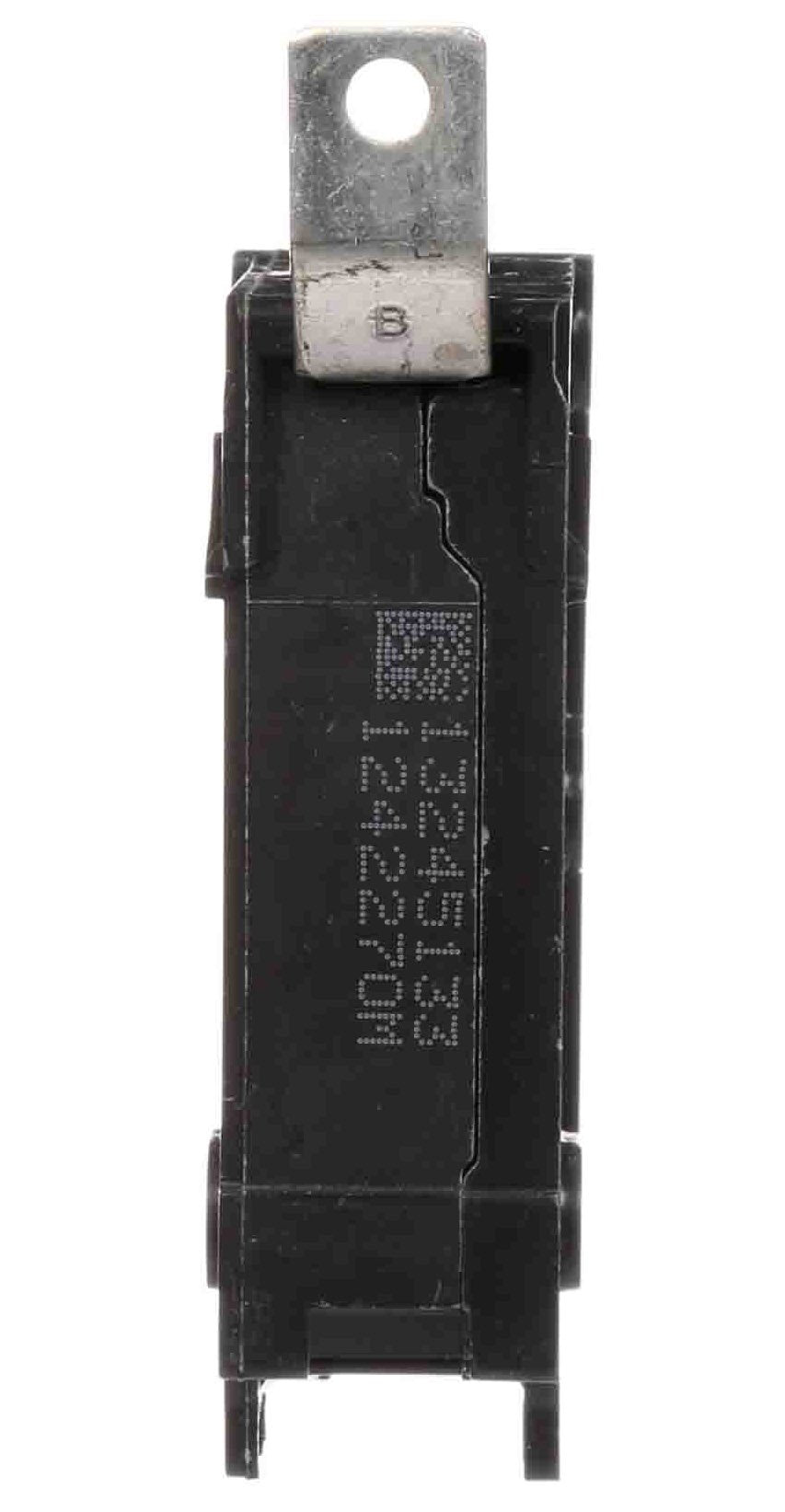

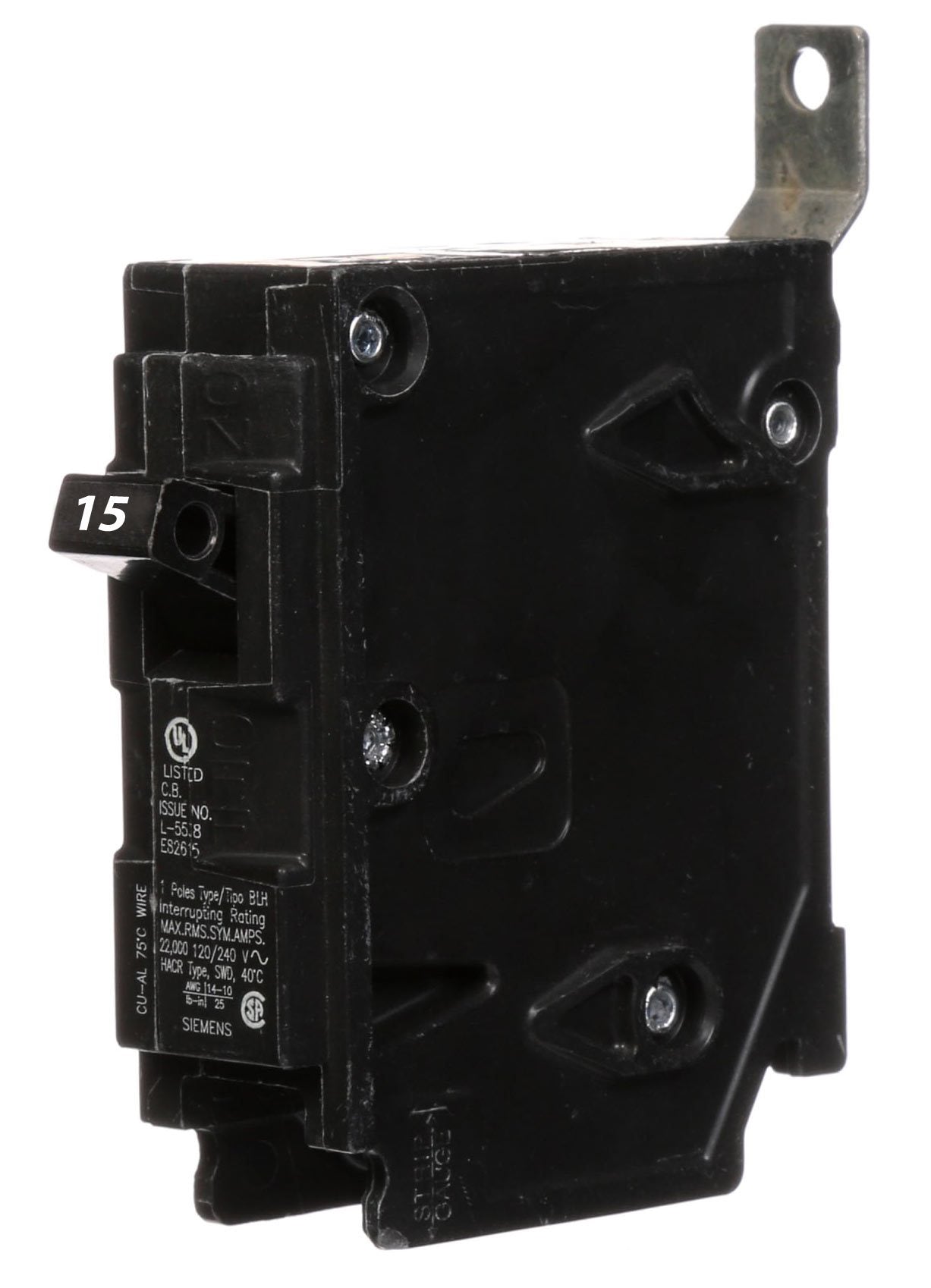

Siemens B115H is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase electrical systems. It features a 15A current rating and a 120V voltage rating, housed within a compact 125A/BLH frame with dimensions of 2.563" x 1.00" x 3.122" and a weight of 0.309 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection, is constructed for bolt-on connection with lug terminals, and complies with UL, CSA, HACR, and NOM standards for use in Siemens P1 panelboards and similar industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 15A
  • Frame Size: 125A/BLH
  • Poles: 1
  • Phase: 1
  • AIC Rating: 22kA @ 240V
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Connection: Bolt-on
  • Terminal Connection: Lug
  • Panel Type: Siemens P1 Panelboards
  • Wire Size (MCM): Min. 12 AWG (Al) / 14 AWG (Cu), Max. 10 AWG
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards/Certification: UL Listed, CSA Certified, HACR Rated, NOM Certified
  • Dimensions: 2.563" H x 1.00" W x 3.122" D
  • Weight: 0.309 lb
  • Family: BL Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643263819
  • GTIN: 00783643263819
